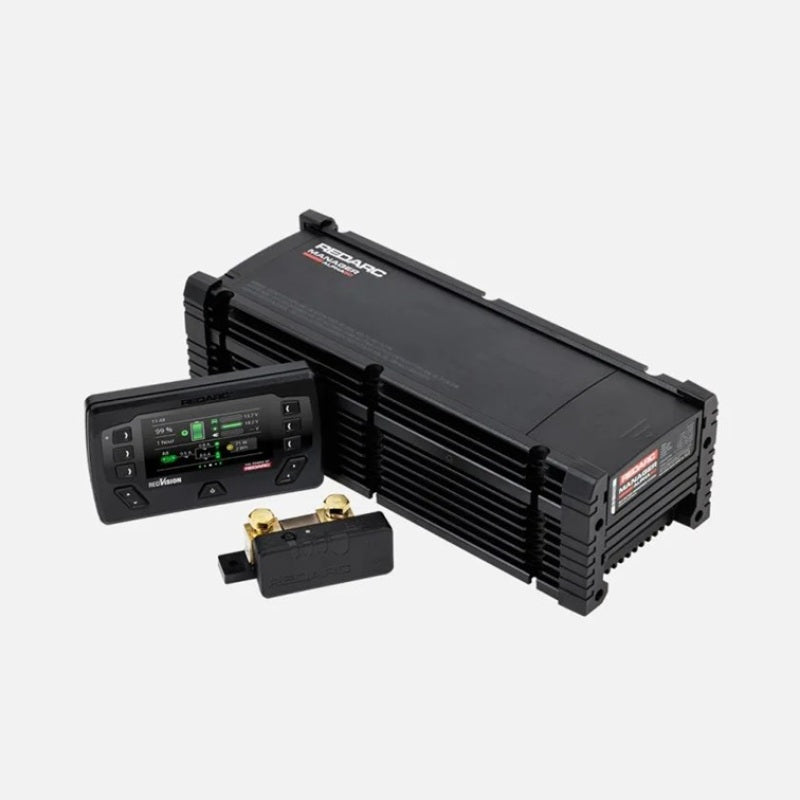

REDARC Manager Alpha50 Battery Management System with RedVision
Choose options
A single wired-in unit that charges from vehicle, mains, and solar to manage your entire 12V auxiliary system.
The REDARC Manager Alpha50 is a 50A total battery management system built for touring rigs, camper trailers, and 4WD builds that run a single house battery hard. It combines vehicle DC-DC charging, AC mains charging, and solar MPPT input into one unit, then hands you full control through the included RedVision display and companion app. If you want a wired-in system rather than a stack of separate chargers, this is the tidy way to do it.
- Charges from three sources: engine (DC-DC), 240V AC mains, and solar, prioritizing automatically
- 50A total charge output to bring a large auxiliary bank back up faster
- RedVision display plus app for battery state, water tanks, and switched loads
Trade-off: it is a permanently installed system, not a portable box, so budget for proper mounting and wiring. Pair it with matched panels from our solar range, or compare simpler options in dual battery systems.
| Specification | Detail |
|---|---|
| Model | Manager Alpha50 (BMS12050) |
| System voltage | 12V |
| Total charge output | 50A |
| Charging inputs | DC-DC (vehicle), AC mains, solar |
| Display | RedVision monitor included |
As an authorized REDARC dealer, it is backed by the full manufacturer warranty.
