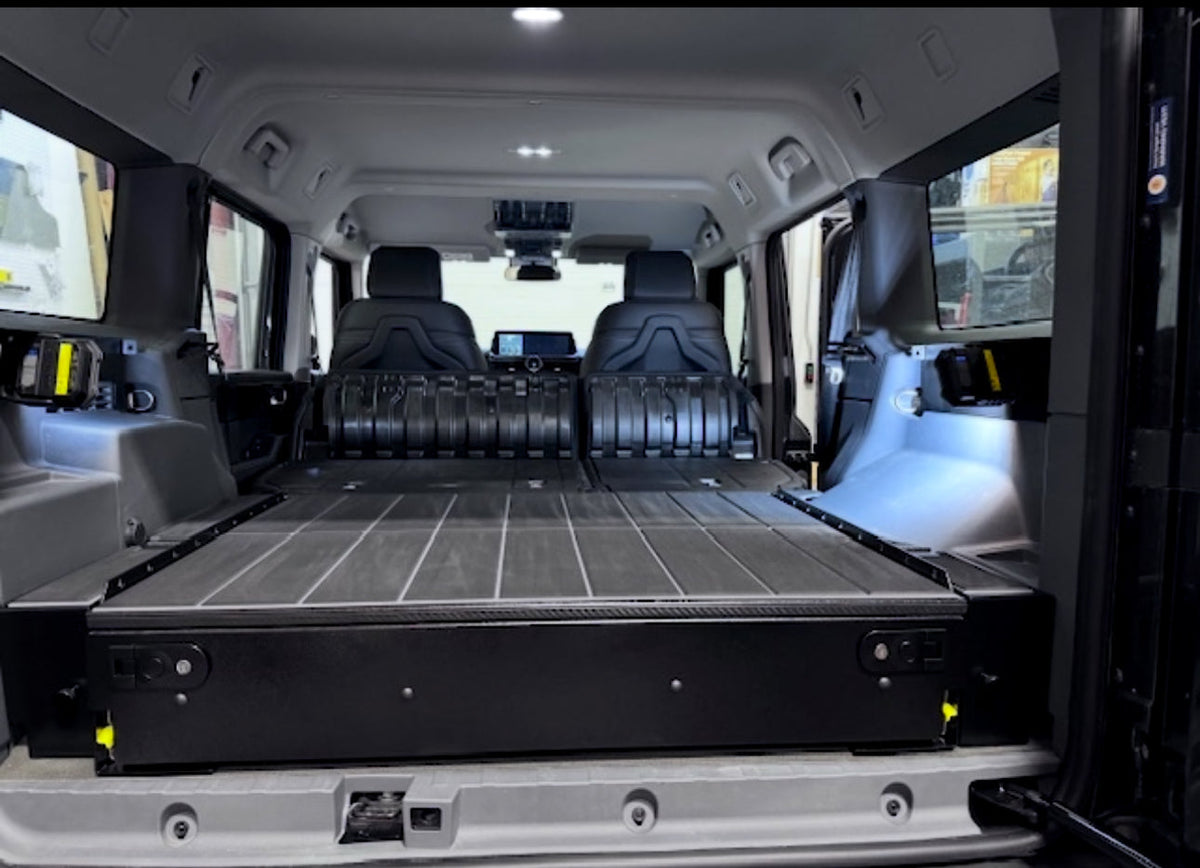

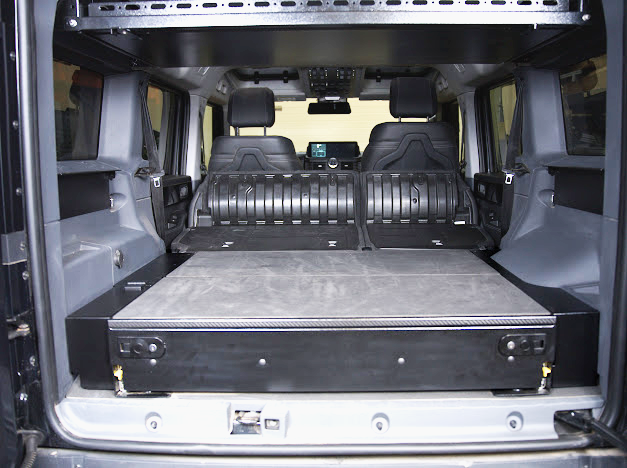

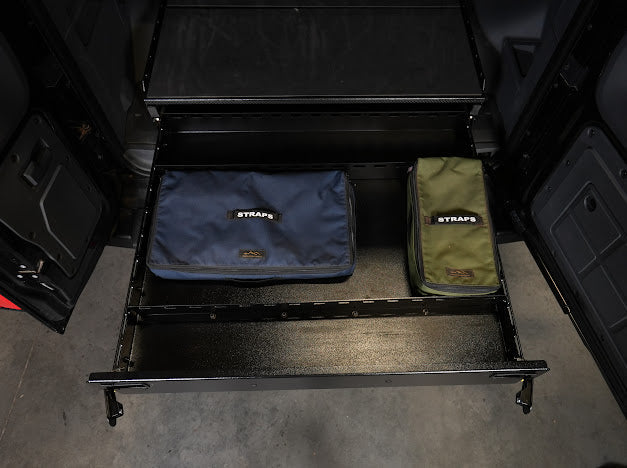

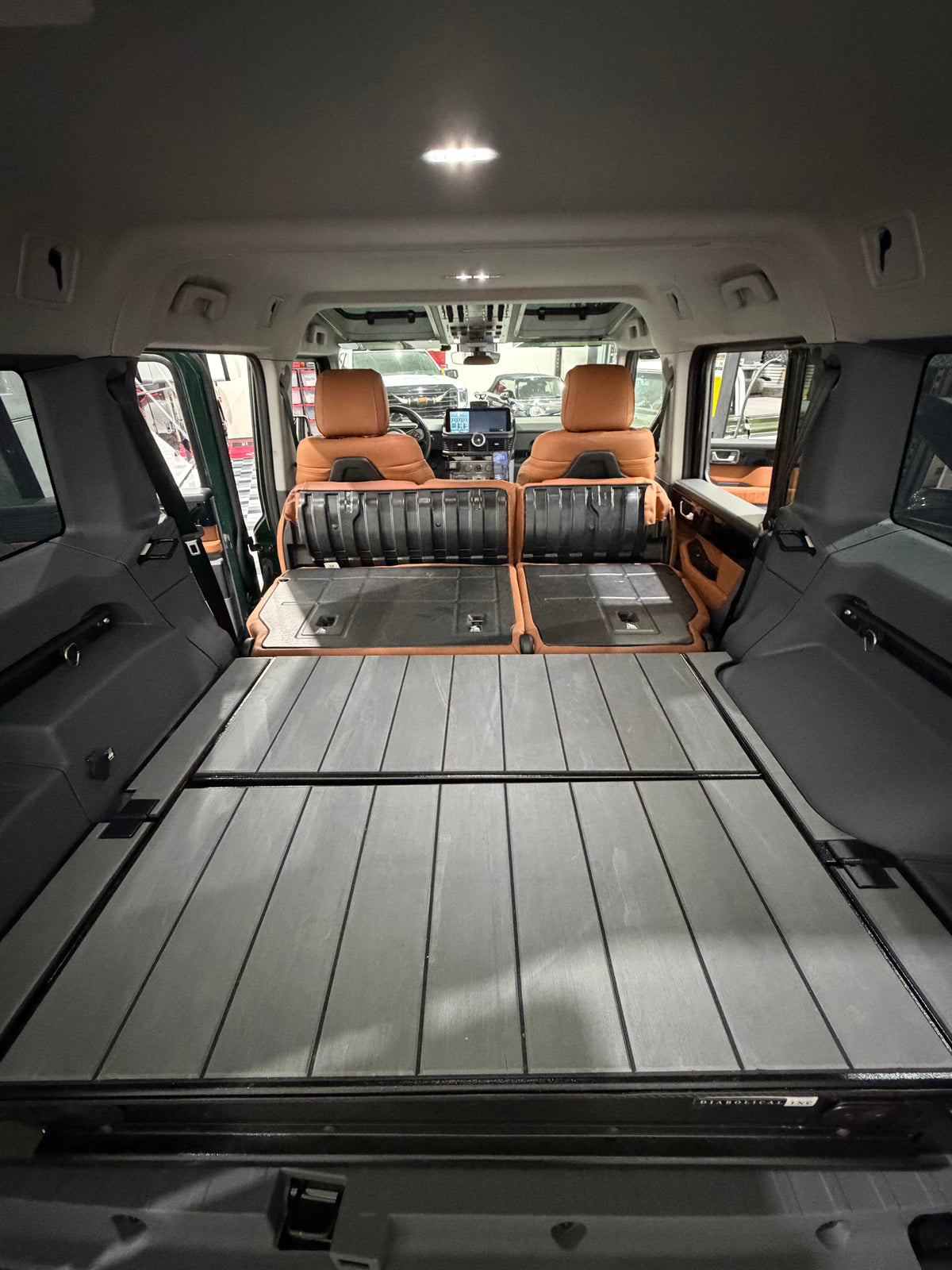

The Diabolical Inc Grenadier Complete Drawer System is the whole kit for the Ineos Grenadier in one order: slide floor, drawer top, leveling panels, dividers, tie-down rails and foam mats. Installed, it gives you a lockable drawer and a deck that runs the full width of the cargo area.

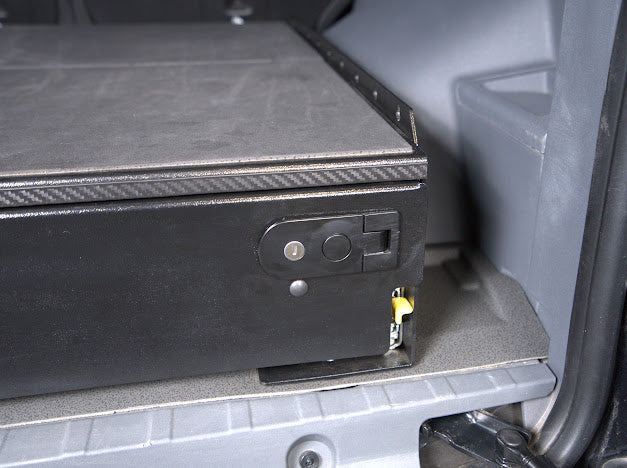

The slide floor runs on Accuride slides with a lifetime warranty, rated at 250 lb per side (500 lb total) and locking both in and out. Paddle latches lock with a key and double as pull handles, and the full-width handle comes off when you need to slide in something large. The leveling panels have hinged sections that open onto the Grenadier's sidewall storage, and the two full-width dividers let you section the drawer.

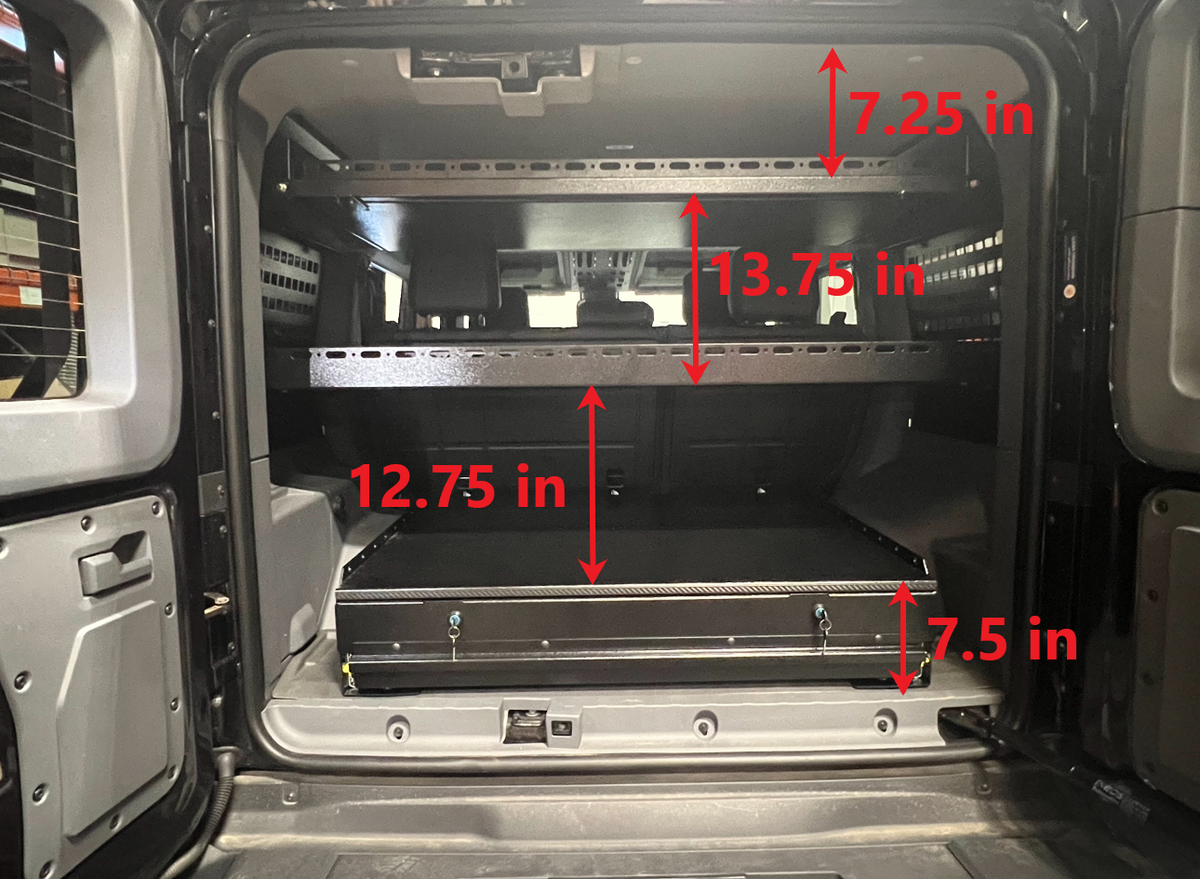

It is all aluminum, about 110 lb as a system, and measures 41 in wide, 33 in deep and 6 in tall. The tie-down rails are optional to install. Pair it with the Grenadier Mid Deck above for a second storage level, or browse more drawer systems.
Specifications
| Fitment | Ineos Grenadier |
|---|---|
| Dimensions | 41 in W x 33 in D x 6 in H |
| Weight | About 110 lb |
| Slides | Accuride, 250 lb per side (500 lb), lock-in / lock-out, lifetime warranty |
| Locks | Key-lockable paddle latches |
| SKU | IN2023CDS |
In the box
- Slide floor assembly
- Drawer top assembly
- Leveling kit panels (hinged)
- Full-length tie-down rails (optional install)
- (2) full-width dividers
- EVA foam mats: 1/8 in for the tray, 1/4 in for the tops and leveling panels
