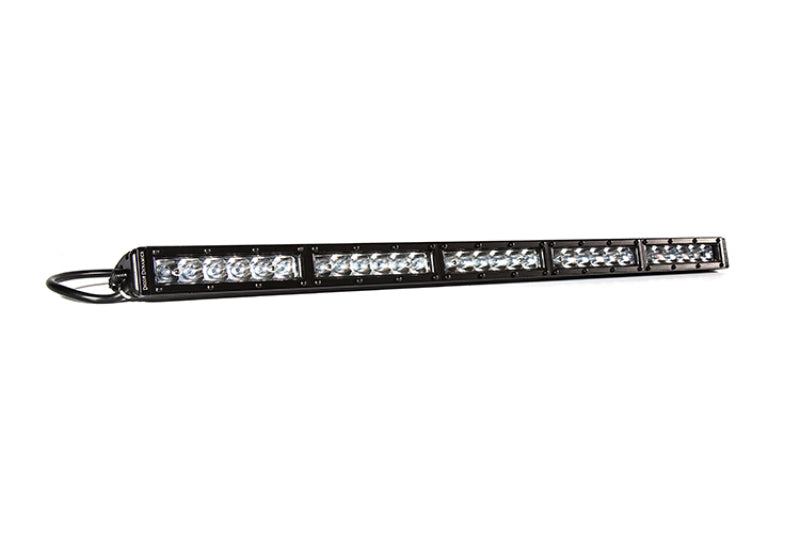

Diode Dynamics Stage Series 30 in Single-Row LED Light Bar, White Driving
Choose options

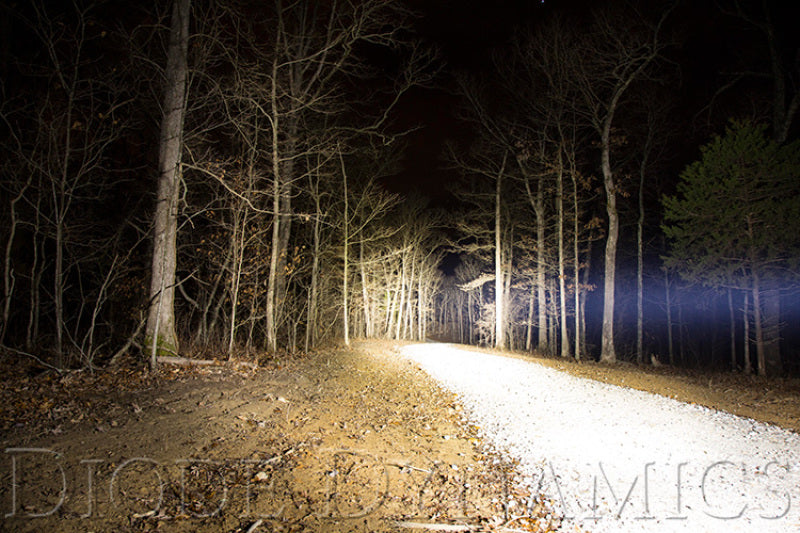

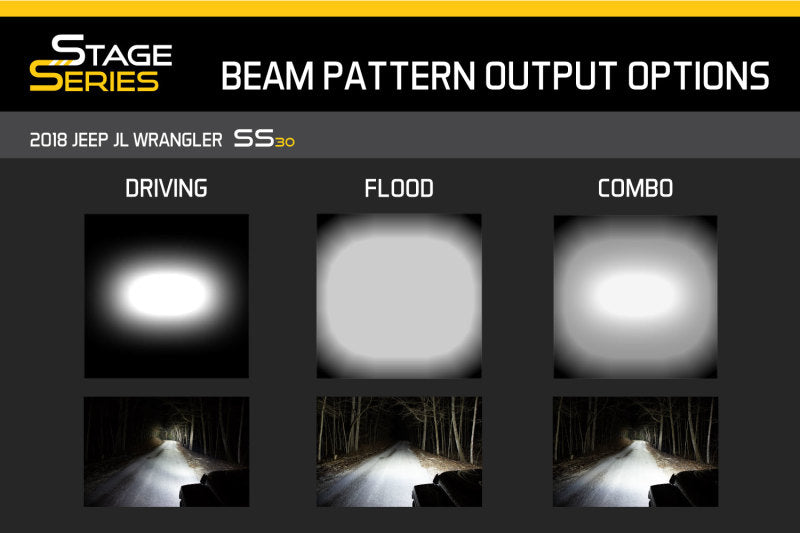

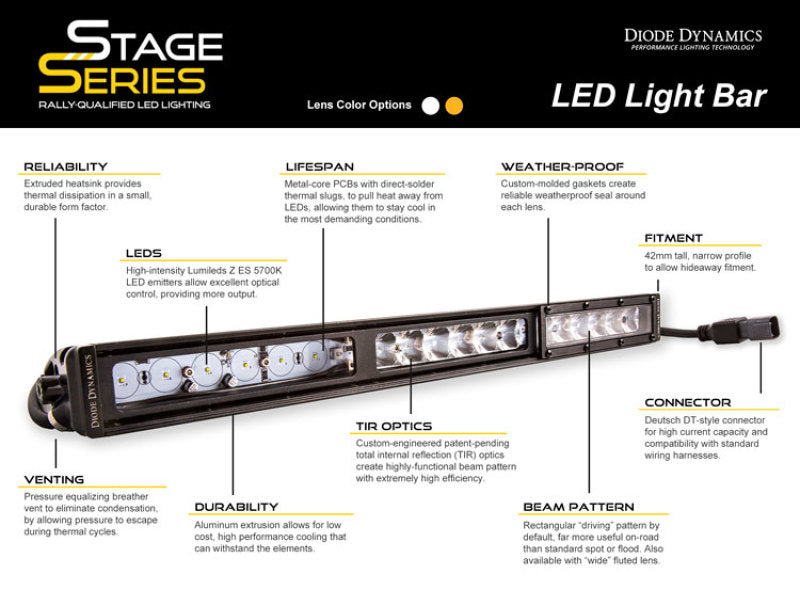

The Diode Dynamics Stage Series 30 in single-row bar with a clear driving optic is built for reach. Its rectangular 30 by 20 degree driving pattern is shaped to back up high beams at speed, more useful than a round spot because it lights the road's width as well as its length.

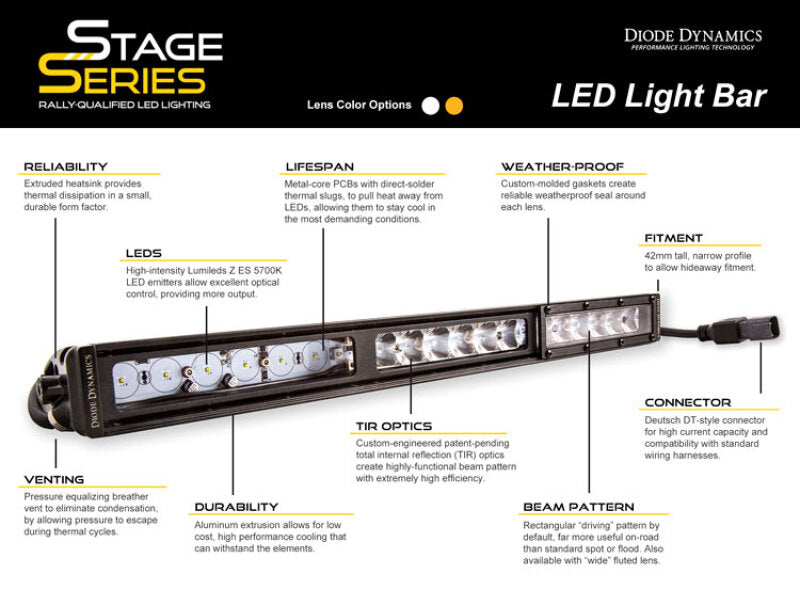

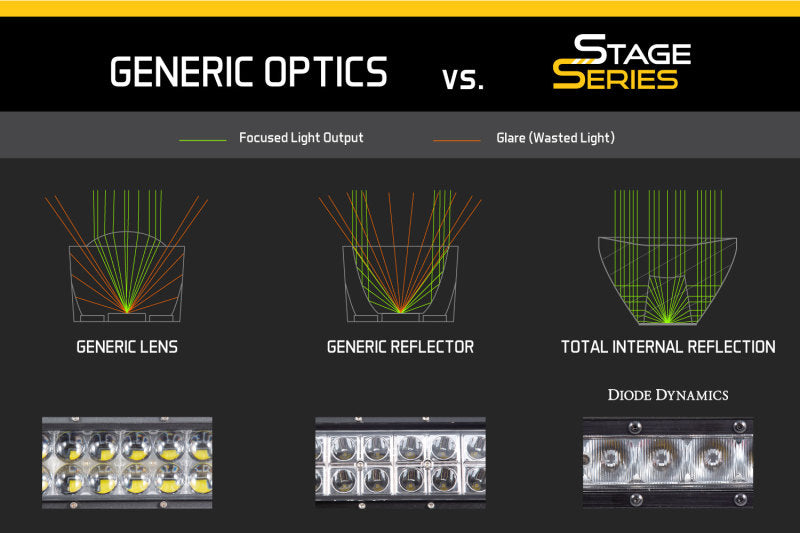

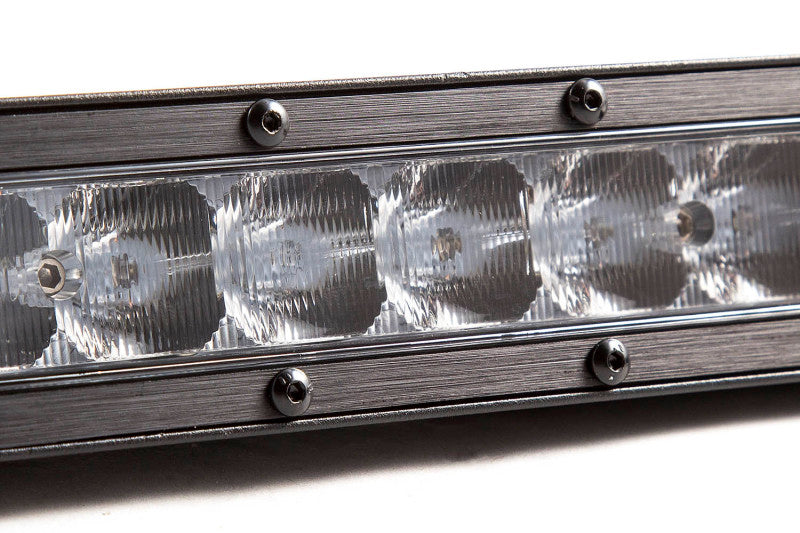

The extruded aluminum housing is under 42 mm tall, so the bar fits where a dual-row bar will not and weighs less. Lumileds LED chips sit behind Diode's TIR optics, which collect the light and aim it instead of losing it to glare, and the housing has a durable matte powdercoat.
This is the earlier single-row Stage Series bar (Diode now calls it the Classic); confirm availability with us before planning a build around it. Turn 14 links the 30 in bar to Diode's 2016-2018 Subaru Forester bumper kit. See light bars and mounts.
Specifications
| Length | 30 in class |
| Rows | Single |
| Beam | Driving, 30x20° |
| Lens color | White |
| Output | 7,000 lm measured (11,400 lm raw) |
| Power | 137.2 W |
| Dimensions | 31 x 3 x 1.63 in |
| Voltage | 9-24 V |
| Water rating | IP69K |
| Connector | Deutsch DT |
| Quantity | One bar |
| Part number | DD5018 |
