Diode Dynamics Stage Series 18 in Single-Row LED Light Bar, Amber Combo
Choose options
The Diode Dynamics Stage Series 18 in single-row bar with an amber combo lens is a compact bar for dusty and wet conditions, where amber light reflects less off particles in the air. The combo optic blends a 30 by 20 degree driving pattern with an 80 by 50 degree flood.

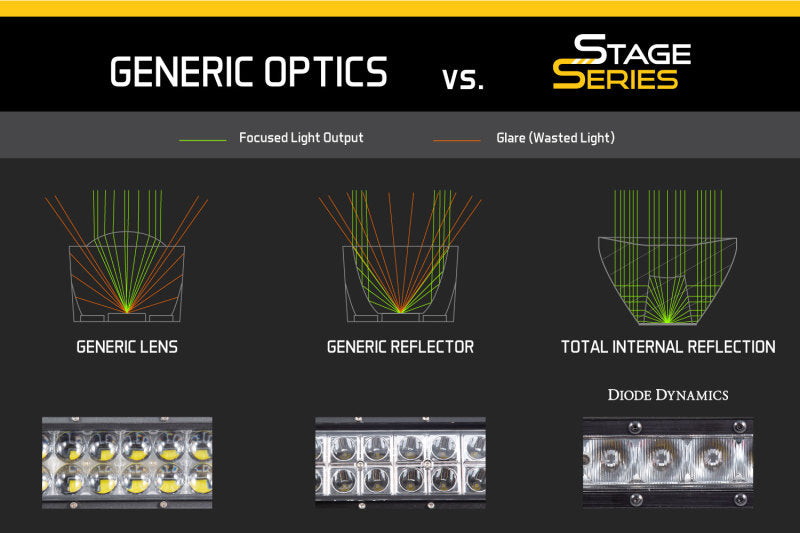

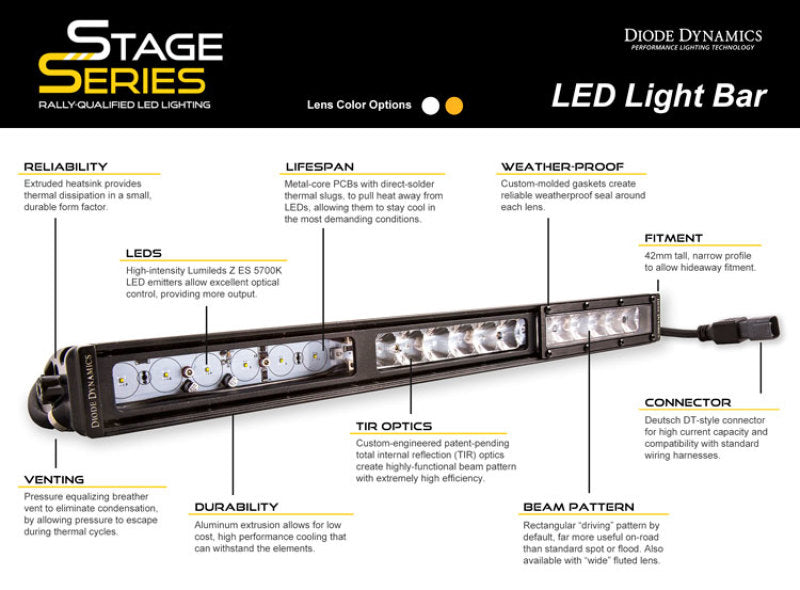

The extruded aluminum housing is under 42 mm tall, so the bar fits where a dual-row bar will not and weighs less. Lumileds LED chips sit behind Diode's TIR optics, which collect the light and aim it instead of losing it to glare, and the housing has a durable matte powdercoat.
This is the earlier single-row Stage Series bar (Diode now calls it the Classic); confirm availability with us before planning a build around it. See light bars and mounts.
Specifications
| Length | 18 in class |
| Rows | Single |
| Beam | Combo: 30x20° driving + 80x50° flood |
| Lens color | Amber |

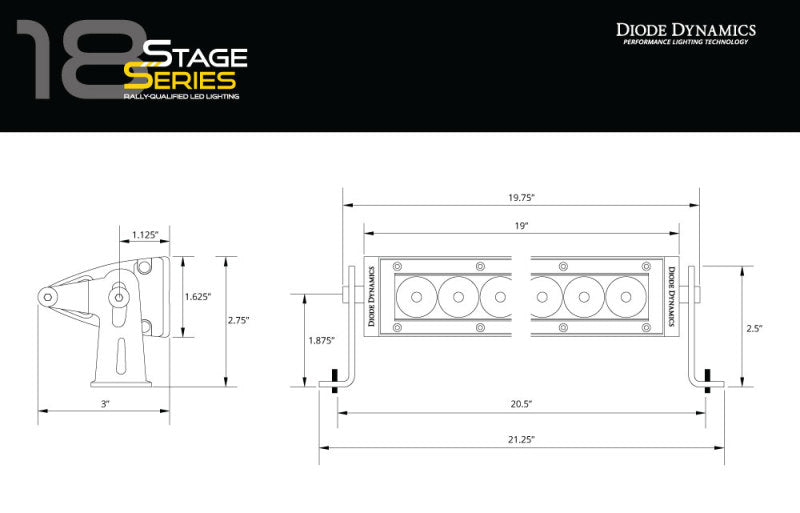

| Housing height | Under 42 mm |
| Quantity | One bar |
| Part number | DD5052 |
WARNING: This product can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information, go to www.P65Warnings.ca.gov.
