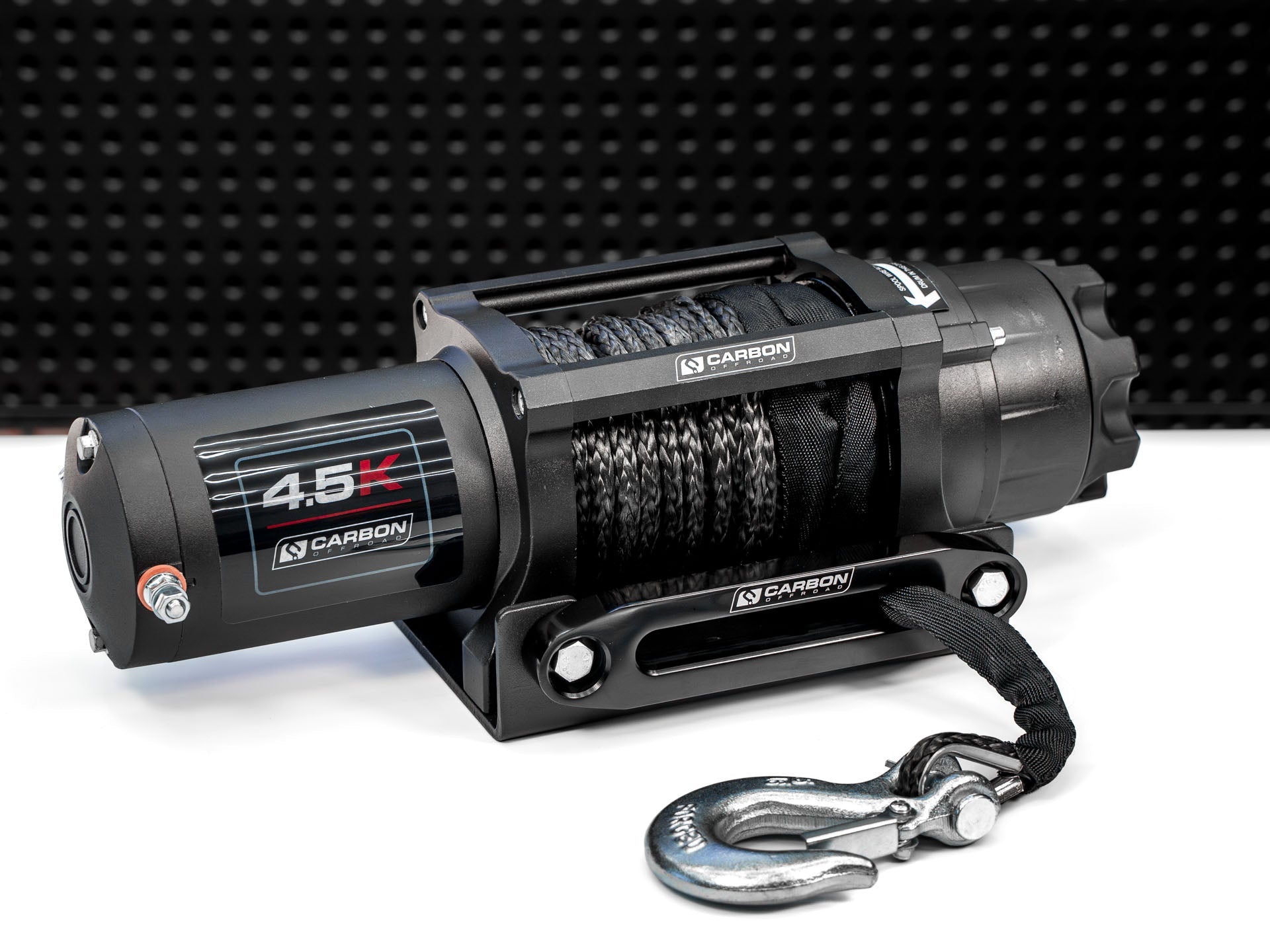

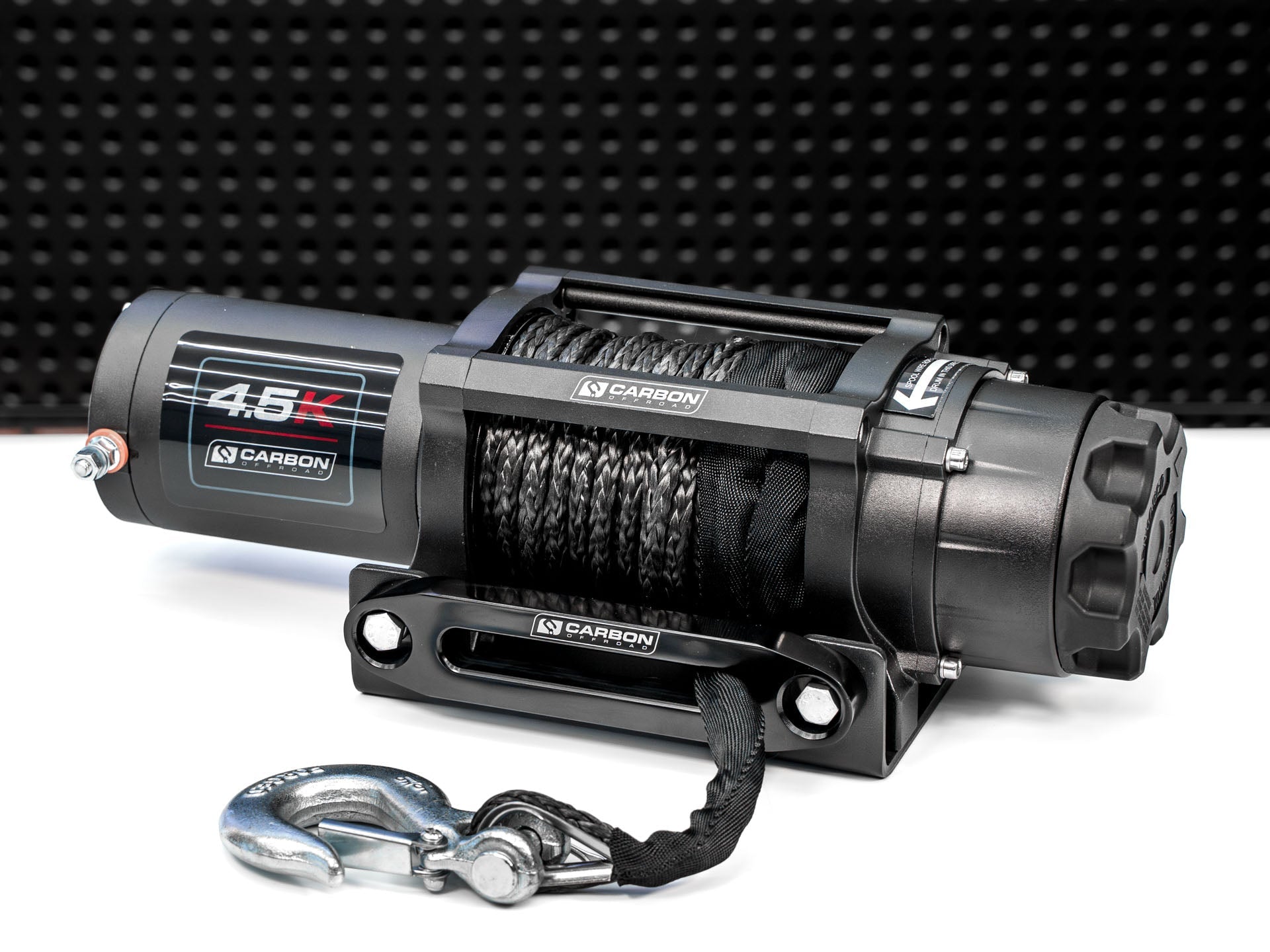

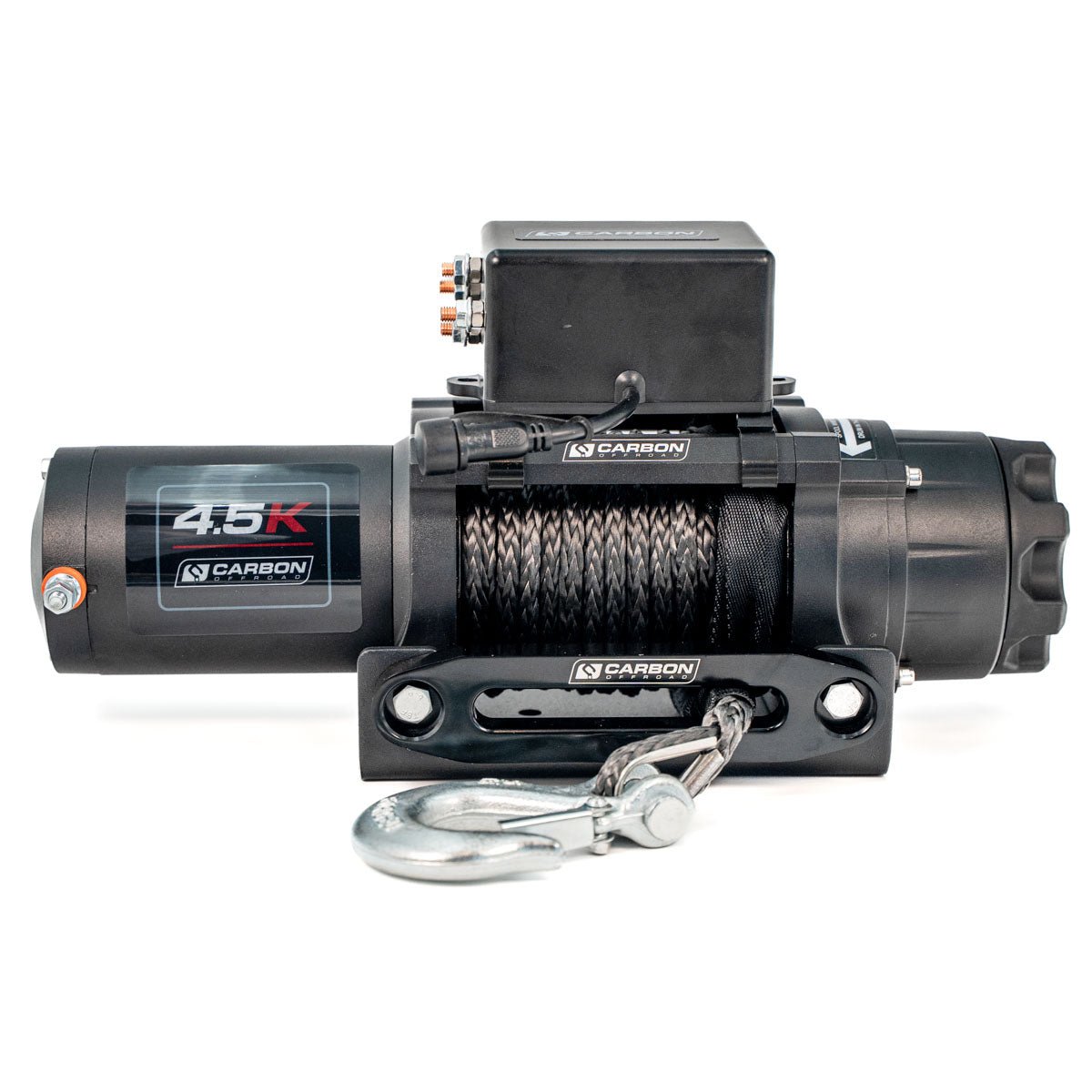

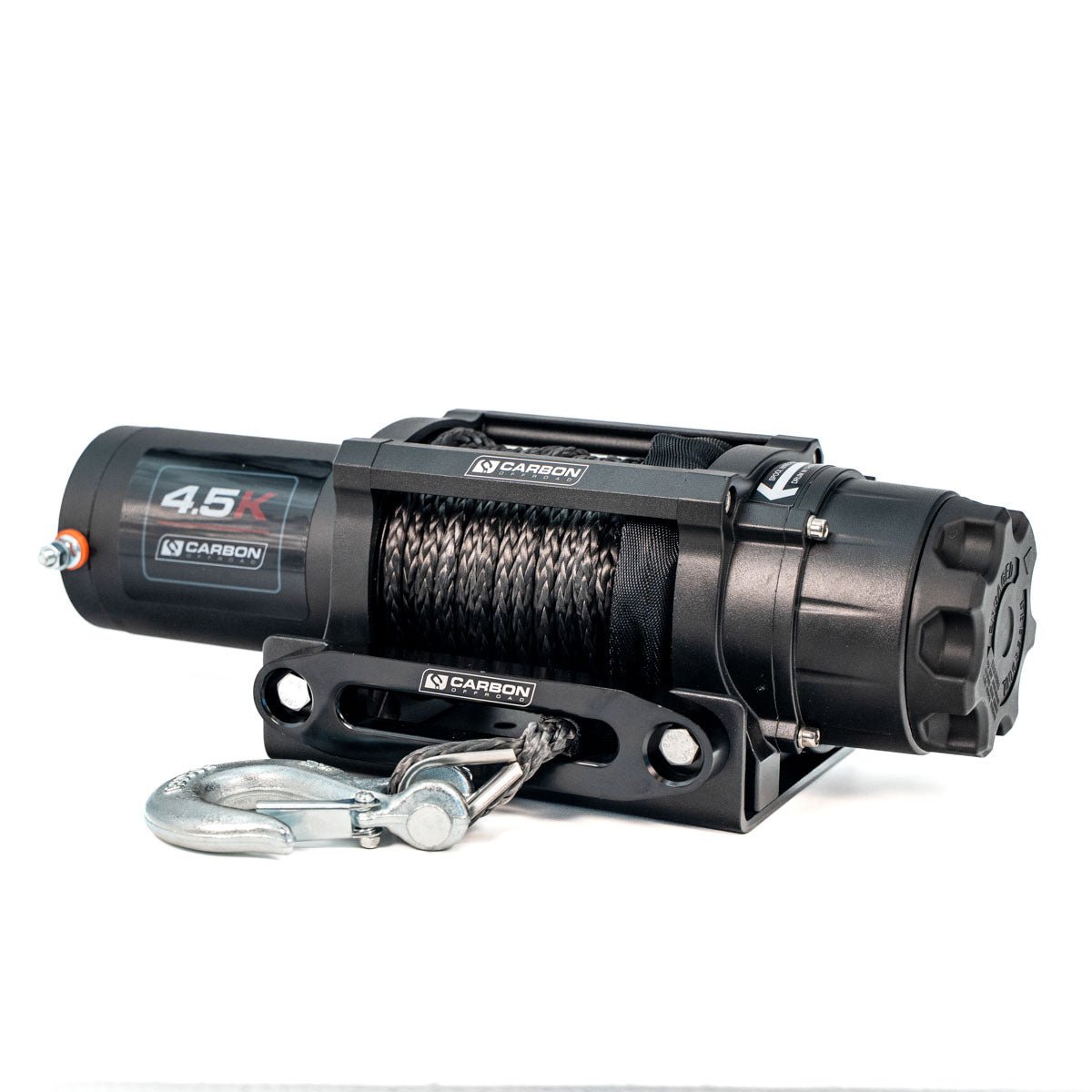

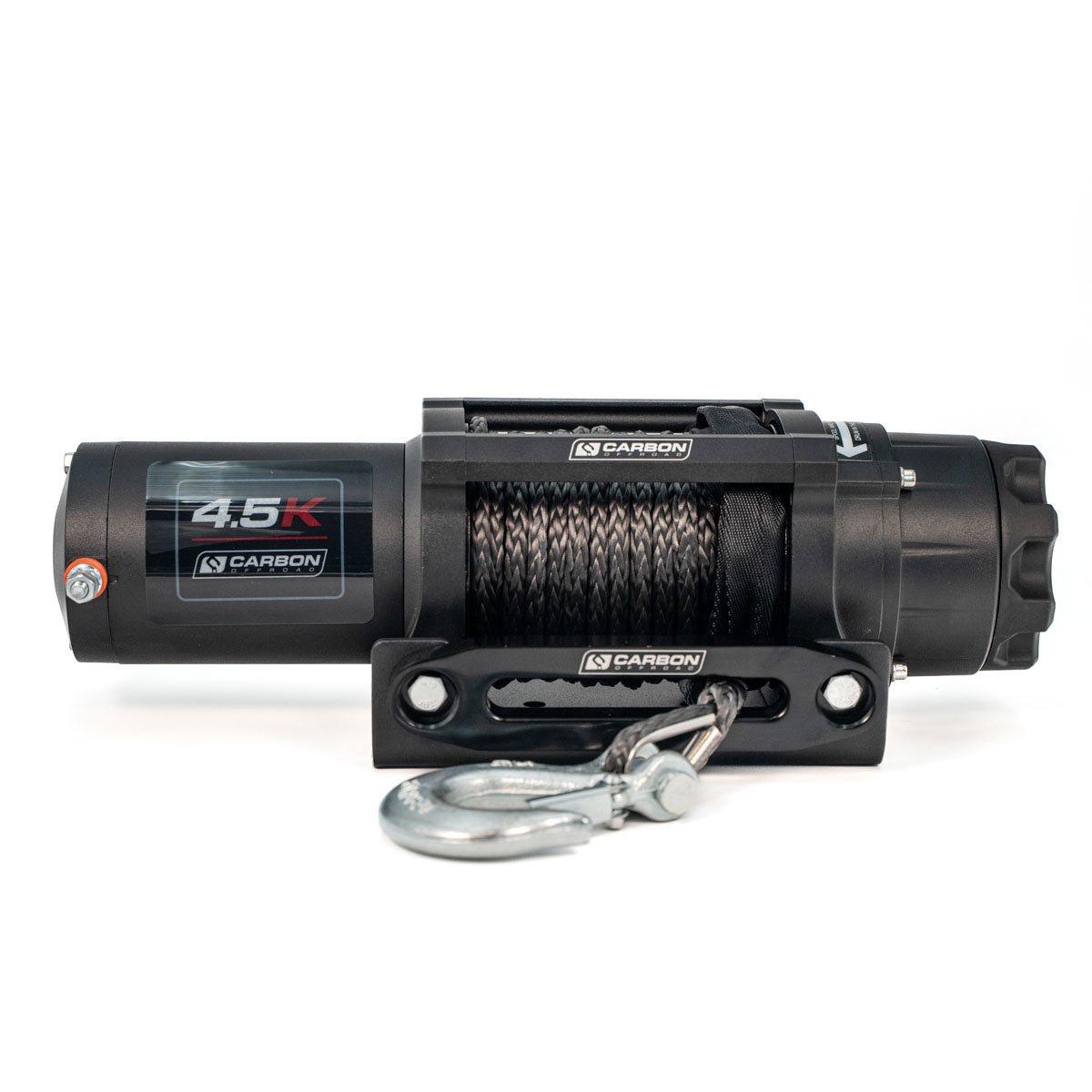

Built for heavier side-by-sides and utility vehicles, the ATV 4.5K offers 4,500lb capacity and a compact, rugged build. Designed for ATVs, UTVs, side-by-sides, car trailers and equipment transport; this winch is ideal for mounting in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers.
- 4,500lb (2,041kg) Rated Pull – Extra capacity for demanding ATV/UTV use
- 1.9HP Motor – Compact with reliable pulling power
- 176:1 Gear Ratio – Strong, controlled operation
- 43ft (13m) Synthetic Rope – Lightweight and durable
- Mounting Bolt Pattern – 6.57in x 2.99in (167mm x 76mm)
- Drum Dimensions – 1.26in x 2.87in (32mm x 73mm)
- Winch Dimensions – 14.92in x 4.72in x 4.53in (379mm x 120mm x 115mm)
- IP66 Rated winch and solenoid (excludes remote control and switch)
- Wired + Wireless Remotes – Flexible control options
12V DC PERFORMANCE SPECS (first layer of drum)
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 20.4(6.2) | 31 Amps | 1/4500(2040) |
| 1000 | 14.2(4.3) | 65Amps | 2/3750(1700) |
| 2000 | 10.9(3.3) | 96Amps | 3/3510(1595) |
| 3000 | 7.7(2.4) | 125Amps | 4/3300(1500) |
| 4500 | 4.9(1.5) | 175.Amps | |
