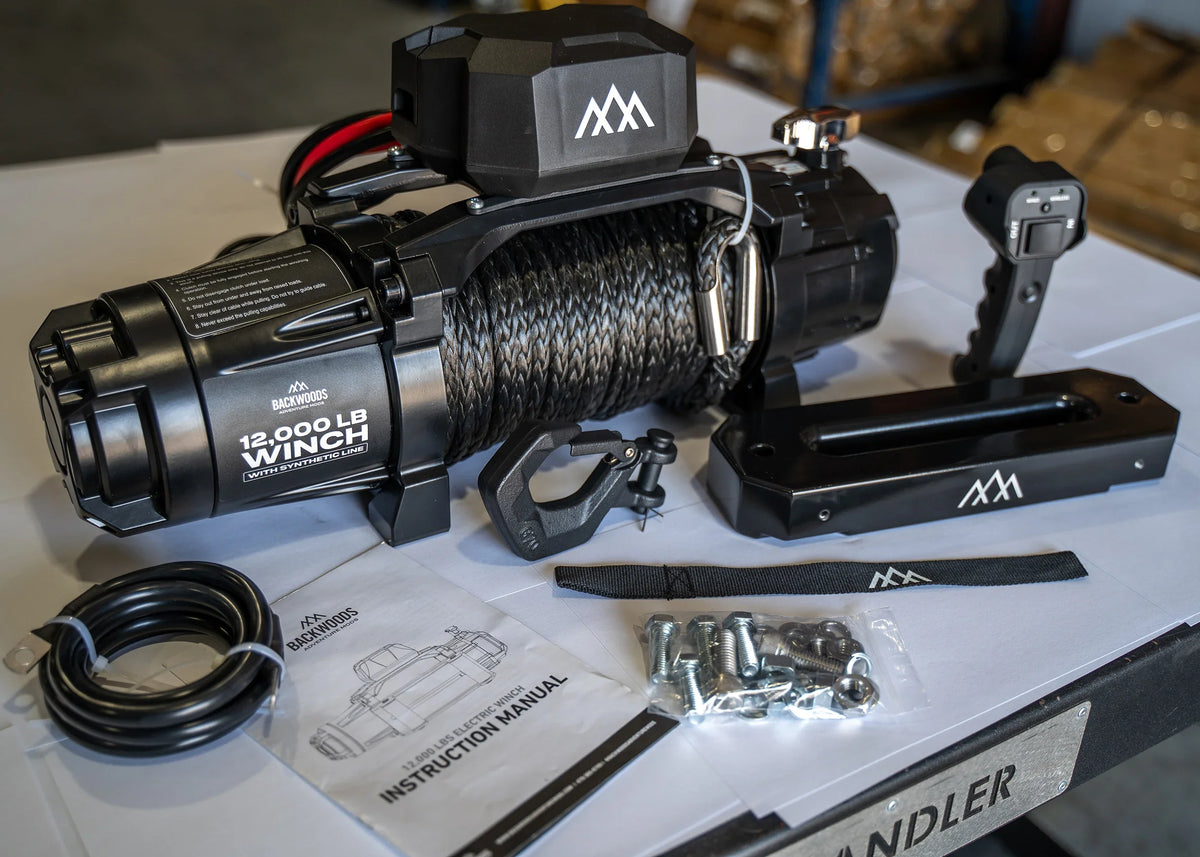

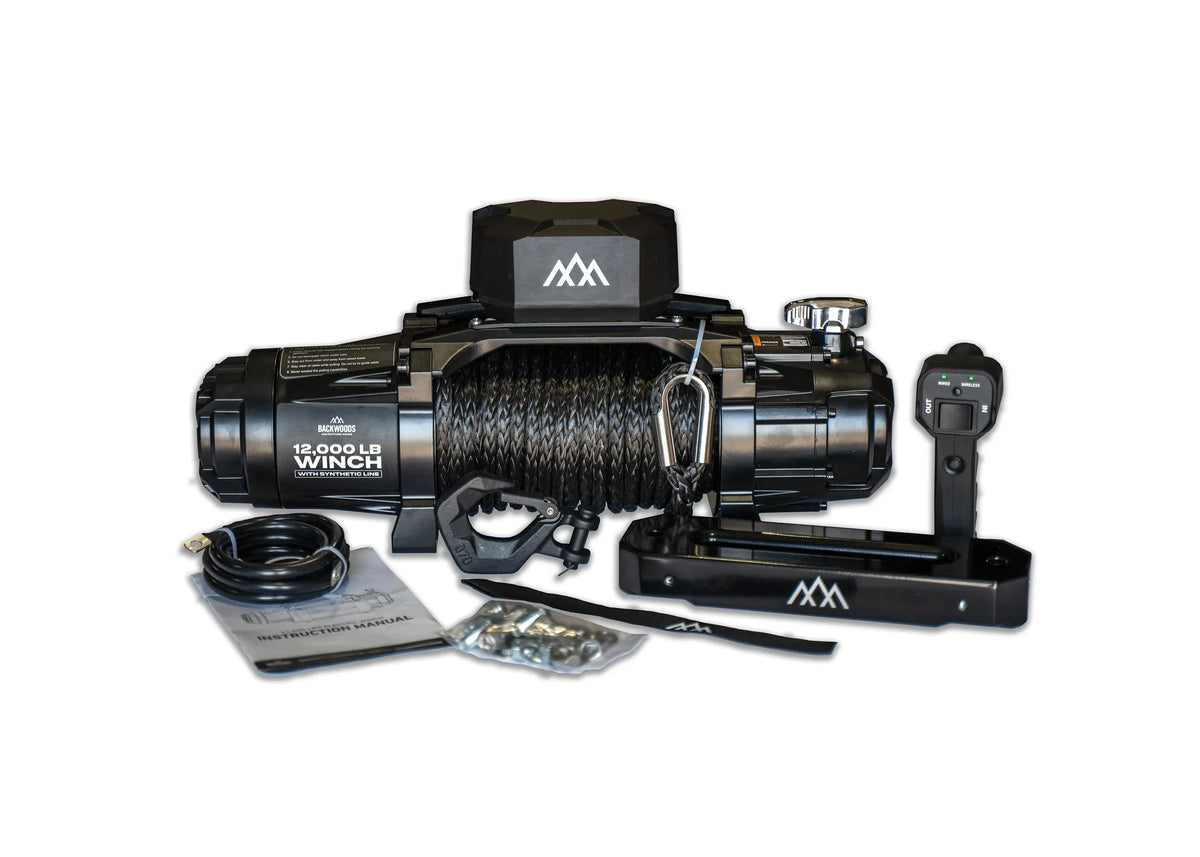

Backwoods 12,000lb winch with synthetic line, full kit flat lay showing the winch, wireless remote, hardware, and instruction manual
Backwoods 12,000lb winch with synthetic line, studio product shot

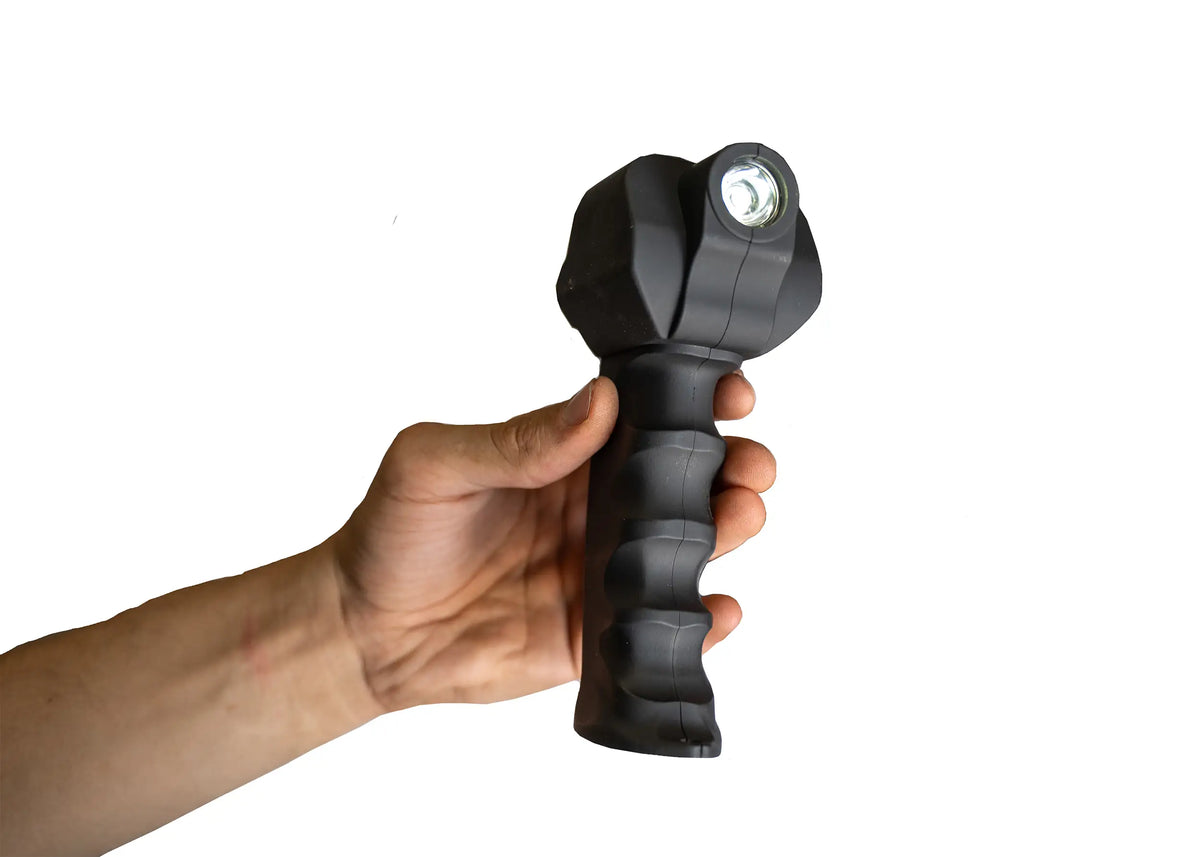

Hand holding the winch's wireless remote control with its built-in flashlight lit
Backwoods 12,000lb winch, close-up product photo
Backwoods 12,000lb winch mounted to a bumper, installed view
Backwoods 12,000lb winch, alternate product photo

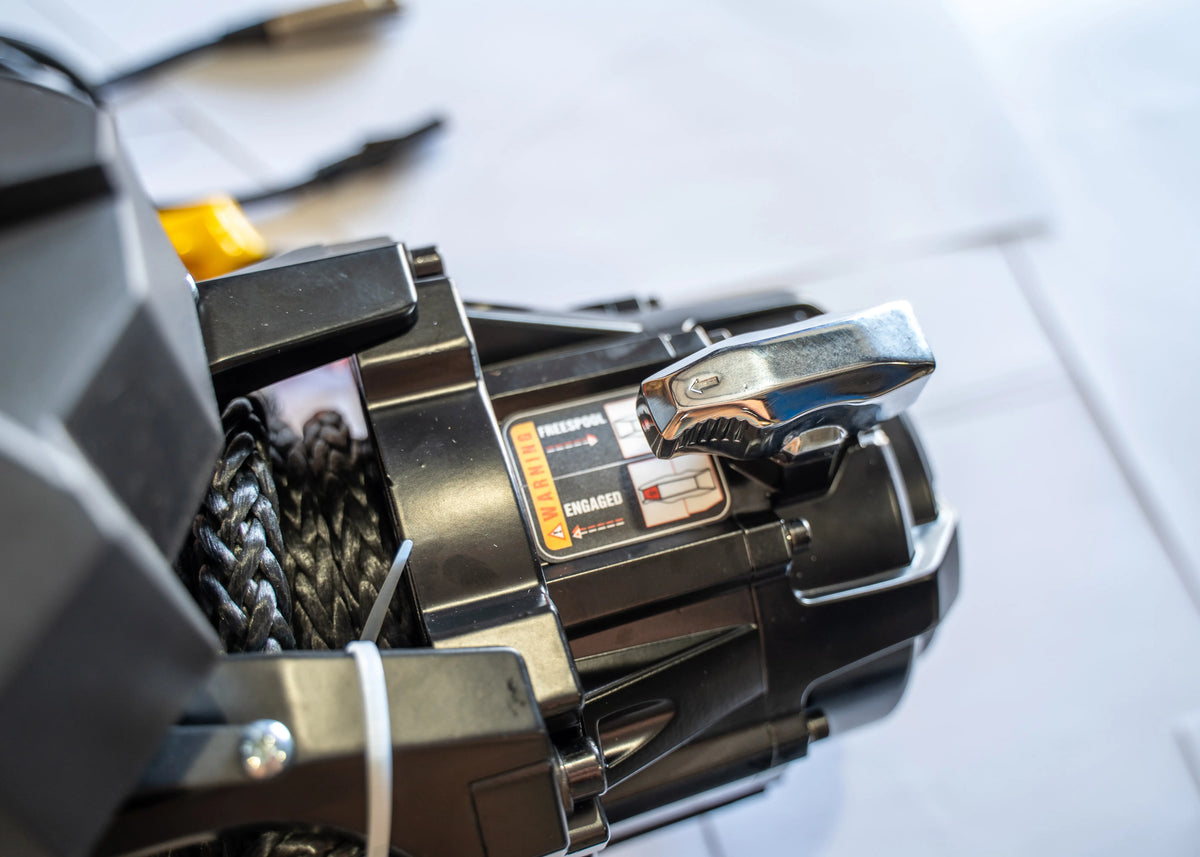

Backwoods 12,000lb winch synthetic line and fairlead, close-up

Backwoods Adventure Mods

Backwoods Offroad Winch - 12,000lb w/ Synthetic Line

$750.00
SKU: BWAO-1060
Quantity:

12,000lb Winch w/ Synthetic Line

Give your build the winch it deserves with our 12,000lb Backwoods winch. Serious pulling power, big features, and as always – good looks.

Features:

  • Designed to integrate perfectly with Backwoods bumpers
    • Standard 10" x 4.5" mounting bolt pattern fits most winch-ready bumpers on the market
  • 12,000 lb rated line pull – built for real recovery situations
  • 6.0 HP Series Wound 12V DC motor with 3-stage planetary geartrain
  • 216:1 gear ratio for maximum pulling torque
  • Automatic in-drum brake for safe, controlled operation
  • Sliding ring gear clutch for quick free-spooling
  • Wireless remote with built-in flashlight for hands-free operation
  • Removable solenoid for clean, flexible mounting and wiring
  • 85ft of synthetic line – lighter, safer, and easier to handle than steel cable
  • 10" x 4.5" standard mounting bolt pattern fits most winch-ready bumpers
  • Recommended for use with a 12V battery, minimum 650 CCA

What's Included:

  • 12,000 lb winch
  • 85ft synthetic line
  • Winch fairlead and shackle
  • Removable solenoid with power cables
  • Wireless winch remote with flashlight
  • Winch wire for remote
  • Installation hardware

Specs & More Info:

  • Rated Line Pull: 12,000 lbs (5,443 kg)
  • Motor: 12V DC, 6.0 HP Series Wound
  • Gear Ratio: 216:1
  • Line Speed: 4.59 ft/min
  • Drum: 2.5" diameter / 9" length
  • Mounting Bolt Pattern: 10" x 4.5"
  • Check out our winch pull test here
