Blue Sea Fuse Block Bracket for 5th Gen Toyota 4Runner (2010–2024)
Choose options

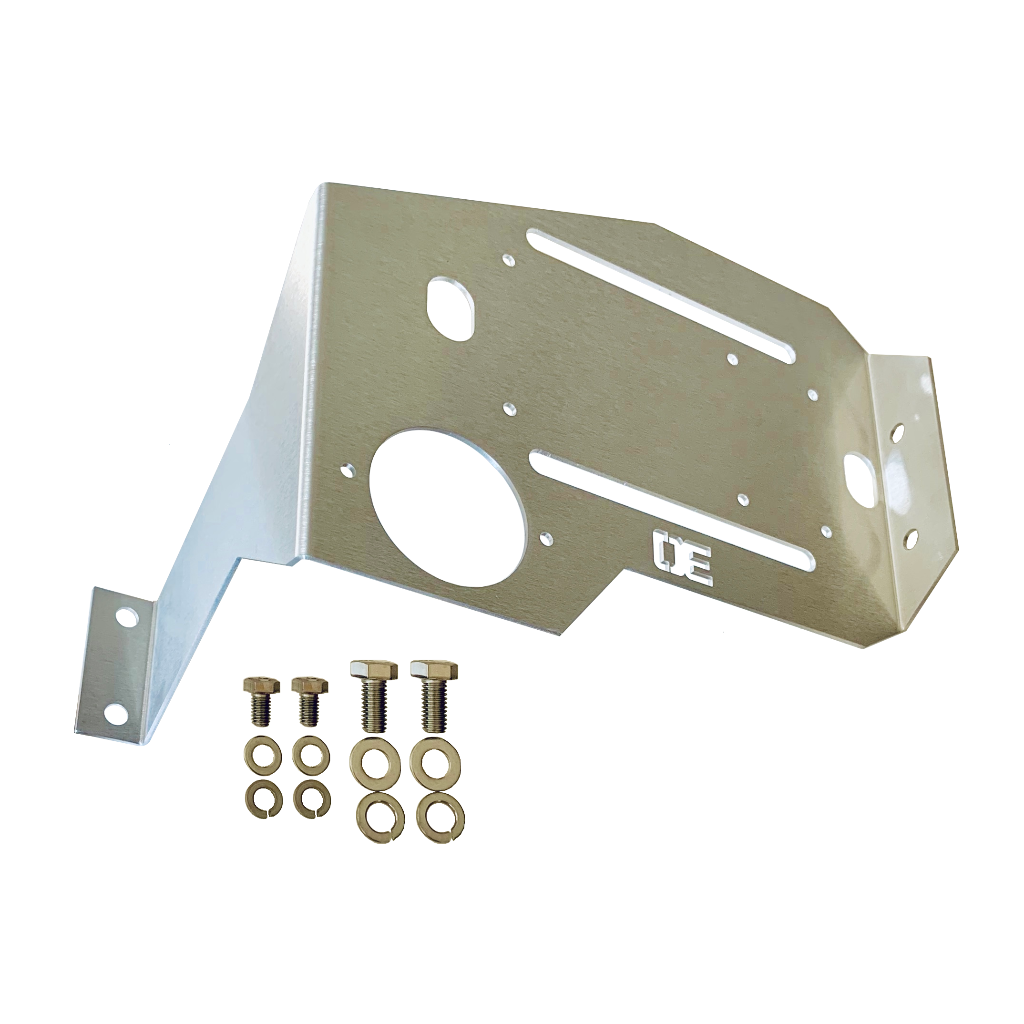

Building a 5th Gen Toyota 4Runner for overland travel means feeding a lot of accessories, and an auxiliary fuse block keeps that power centralized, controlled, and protected instead of spliced into factory circuits. This brushed-aluminum fuse-block bracket gives those components a clean, factory-fit home.

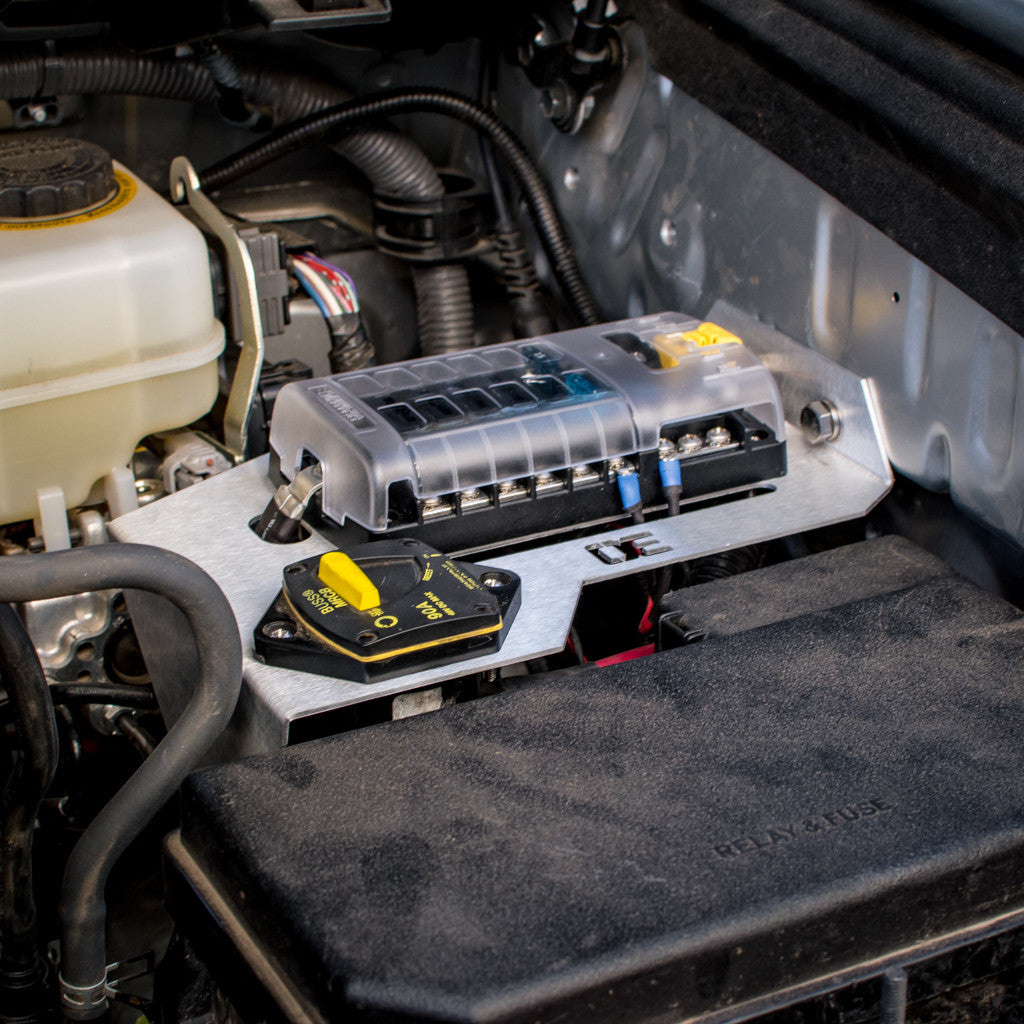

It bolts to factory OEM tapped positions — no fabrication — with a supporting pillar for stability, and it's sized to accept a Blue Sea Systems 6- or 12-circuit ST Blade fuse block plus a 187-Series panel-mount breaker. Prefer an sPOD? Drill a few holes and it mounts that instead.
Worth knowing: this is the bracket and vehicle-mount hardware only — the fuse block, circuit breaker, and the small screws that fasten them to the bracket (#8-32 with Nyloc nuts or lock washers) are not included.

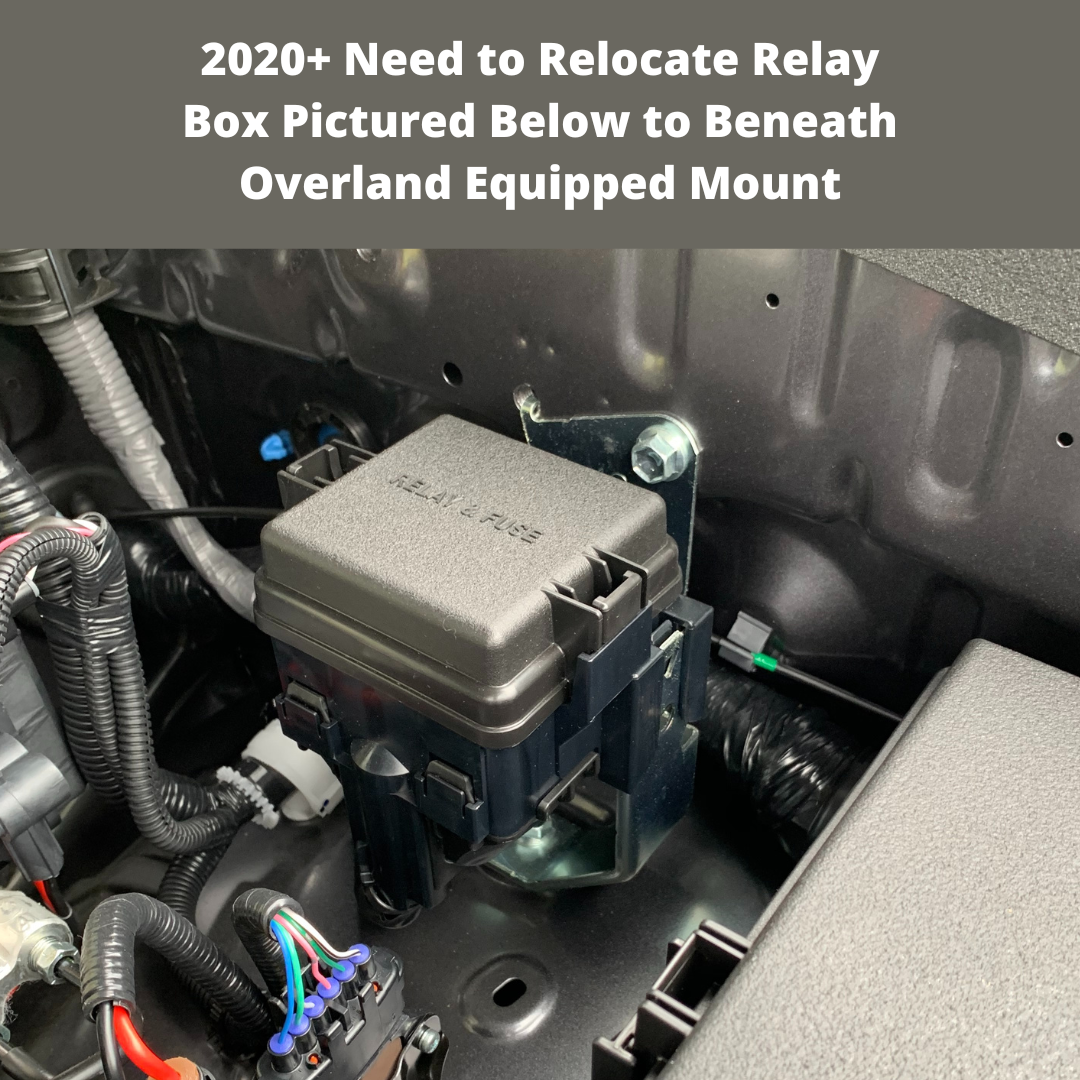

2020–2024 owners: Toyota added a relay box in the same location this bracket uses. Owners have relocated that relay and tucked it beneath the Overland Equipped bracket — workable, but some modification is required; it's not a simple drop-in.
| Spec | Detail |
|---|---|
| Bracket | Custom brushed aluminum with support pillar, factory bolt-in |
| Accepts | Blue Sea 6- or 12-circuit ST Blade fuse block + 187-Series breaker (or sPOD, drilling required) |
| Included hardware | Stainless bracket-to-vehicle hardware (component screws not included) |
| Warranty / origin | Limited Lifetime Guarantee; made in Portland, Oregon |
What's included
- 1 × brushed-aluminum bracket
- All stainless hardware to mount the bracket to factory tapped positions
Prefer the components pre-matched? See the Complete Auxiliary Power Kit for the 5th Gen 4Runner in our electrical & power lineup, or everything for your 5th Gen 4Runner.
