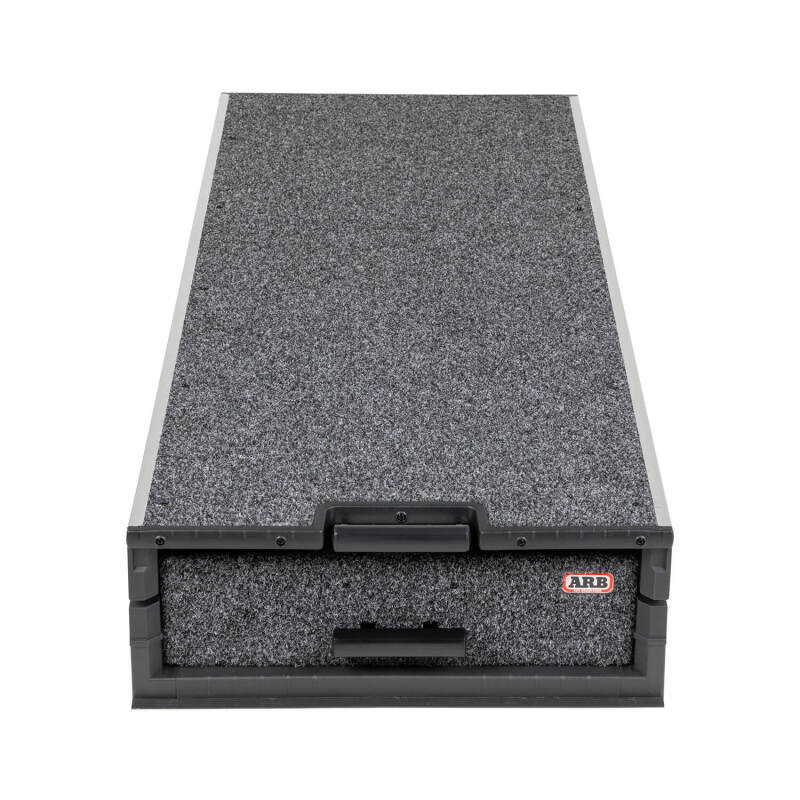

ARB Outback Solutions mid-height roller floor drawer with roll top closed

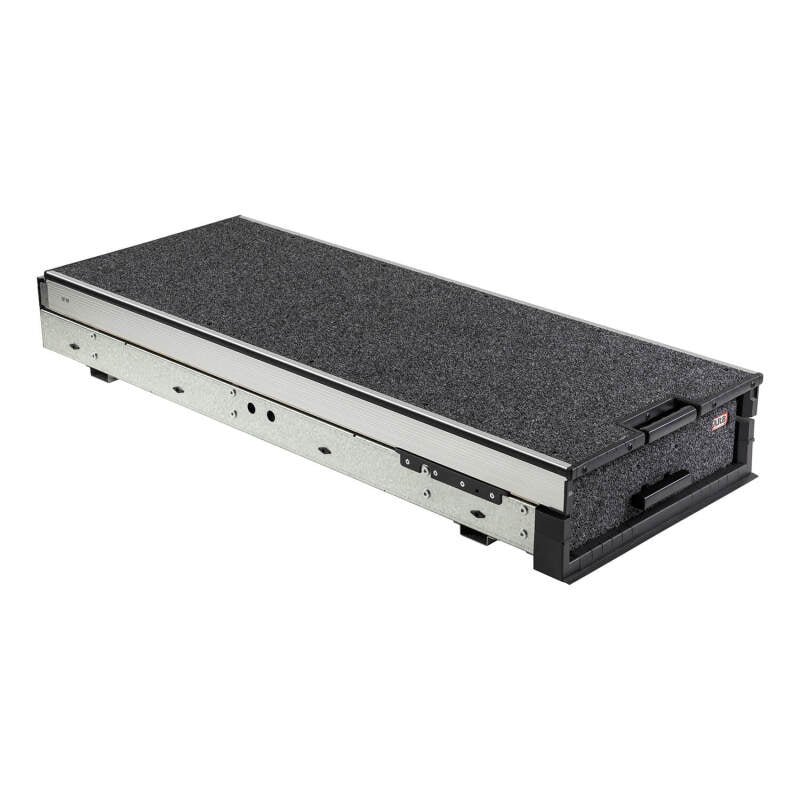

ARB roller floor drawer extended showing marine plywood construction

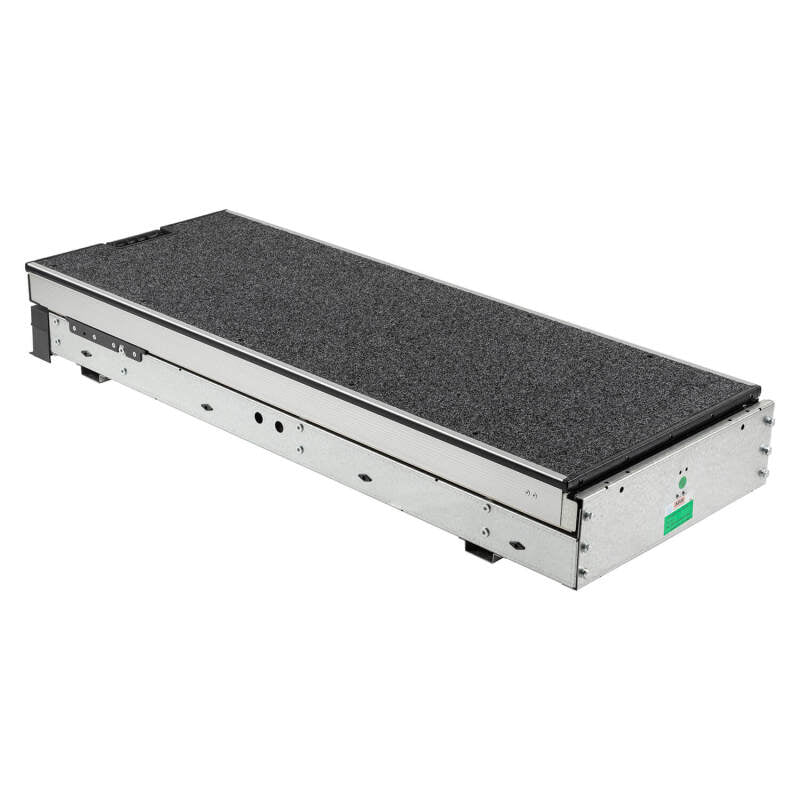

ARB roller floor roll-top slide giving fridge access on top of the drawer

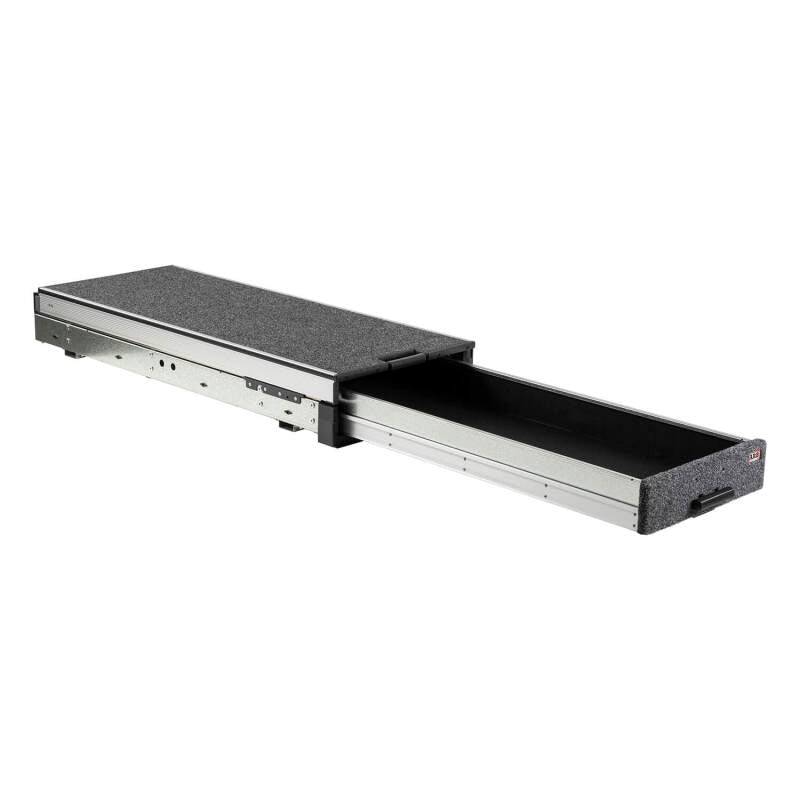

ARB roller floor drawer key-lockable push-pull slam latch detail

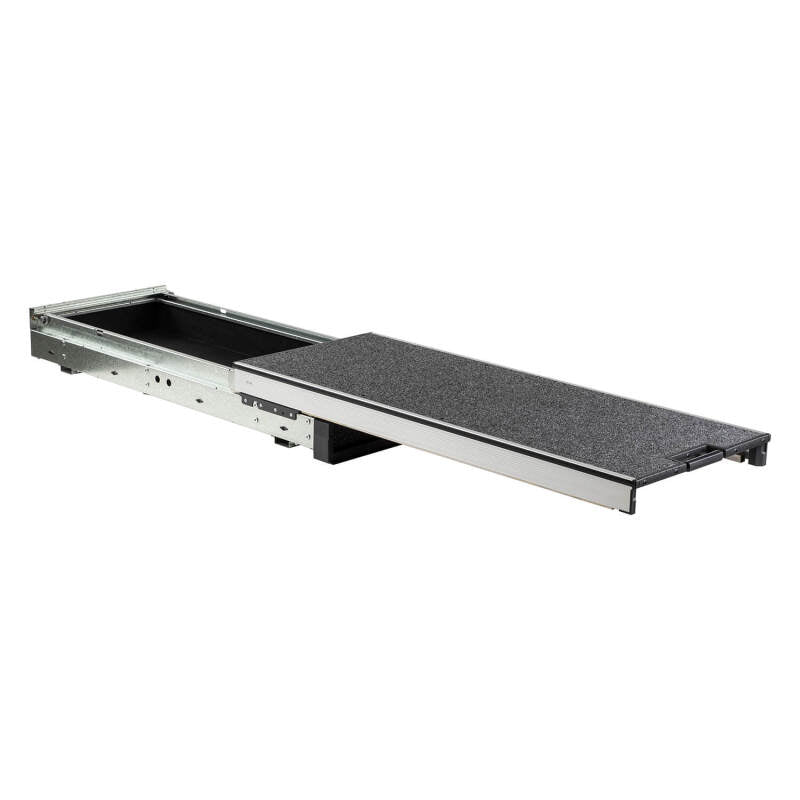

ARB roller floor drawer sealed dust and water resistant bearing runners

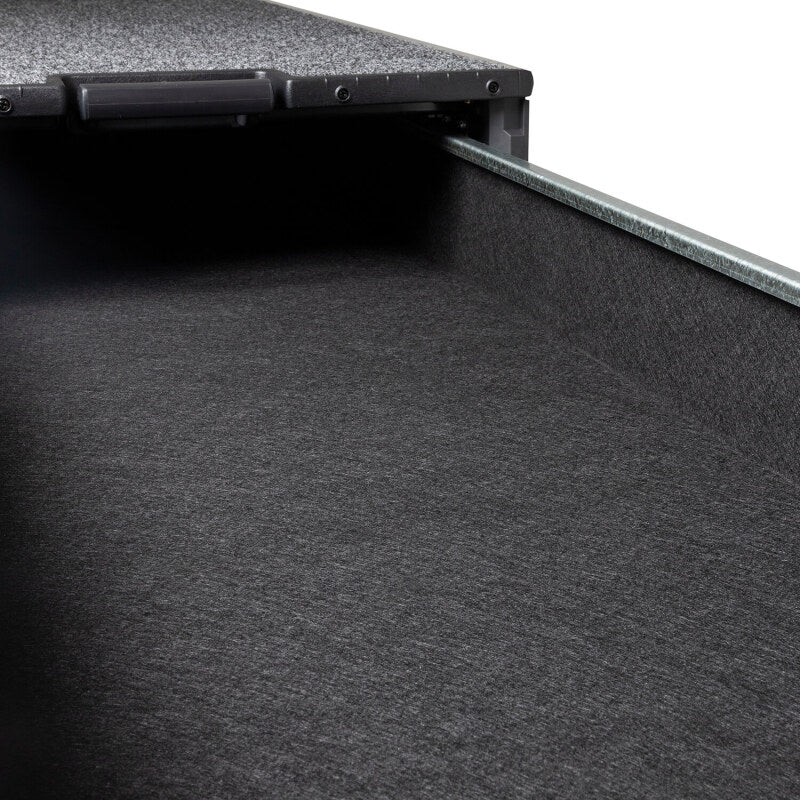

ARB roller floor drawer anti-roll-back self-locking mechanism at full extension

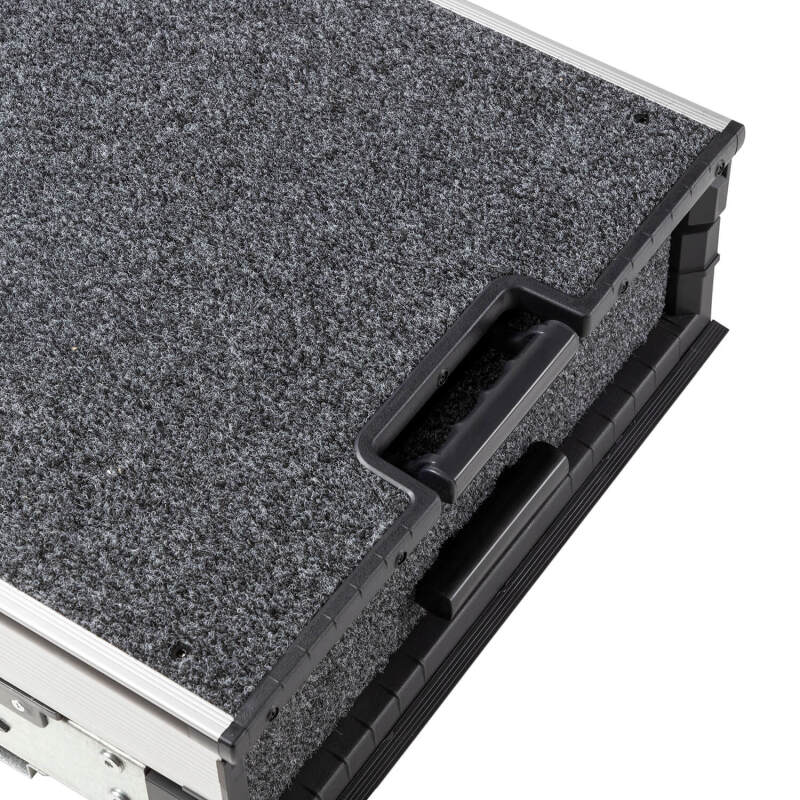

ARB roller floor drawer UV-stable carpet finish interior

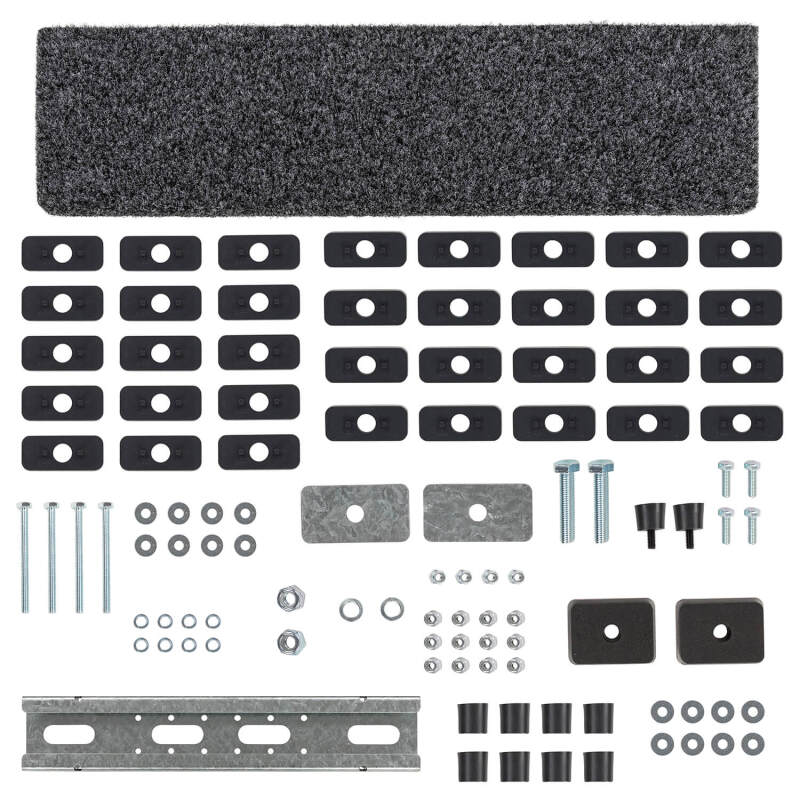

ARB Outback Solutions roller floor drawer dimensions and side floor adapter mounting

ARB

ARB Outback Solutions Roller Floor Drawer — Mid-Height with Roll Top (1355mm)

Name: ARB Outback Solutions Roller Floor Drawer — Mid-Height with Roll Top (1355mm)
Brand: ARB
SKU: arbRFH1355
Price: 1245.95 USD
Availability: OutOfStock

$1,245.95

Sold out

SKU: arbRFH1355

$149.99 Flat Rate Shipping Promotion on ARB Bumpers

Freight shipping required. Because of this item's size and weight, it ships via freight carrier rather than standard delivery.

Questions? Contact us at Hello@Adventure-Imports.com

The ARB Outback Solutions Roller Floor is the sweet-spot height in the modular drawer range: tall enough to swallow gear, low enough that the sliding roll-top still gives you easy access to a fridge or bulky items up top. It's a modular, dimension-based unit that forms the base of a custom cargo system — pair it with vehicle-specific side floor adapters (sold separately) to lock it into your rig.

Best for overlanders building a drawer-and-fridge cargo setup who want secure, rattle-free storage with fridge access on top.

Spec	Detail
External dimensions	1355 x 500 x 190 mm
Internal (drawer) dimensions	1270 x 420 x 105 mm
Construction	Water-resistant bonded marine plywood, steel-reinforced guards
Runners / bearings	Fully sealed, dust- and water-resistant bearings
Locking	Self-locking anti-roll-back at full extension; key-lockable push-pull slam latches
Finish	UV-stable commercial carpet, anti-rattle design
Part number	RFH1355

Note: modular, dimension-based unit — not a single-vehicle bolt-in. Vehicle-specific side floor adapters/kits are required to complete installation and are sold separately. Ships LTL freight.

Trade-off: you build the system around it, so factor in side floors and any wings for your platform.
