Heavy Metal Off-Road
Universal Fit ROCK-IT Bed Rack by Heavy Metal Off-Road
Choose options

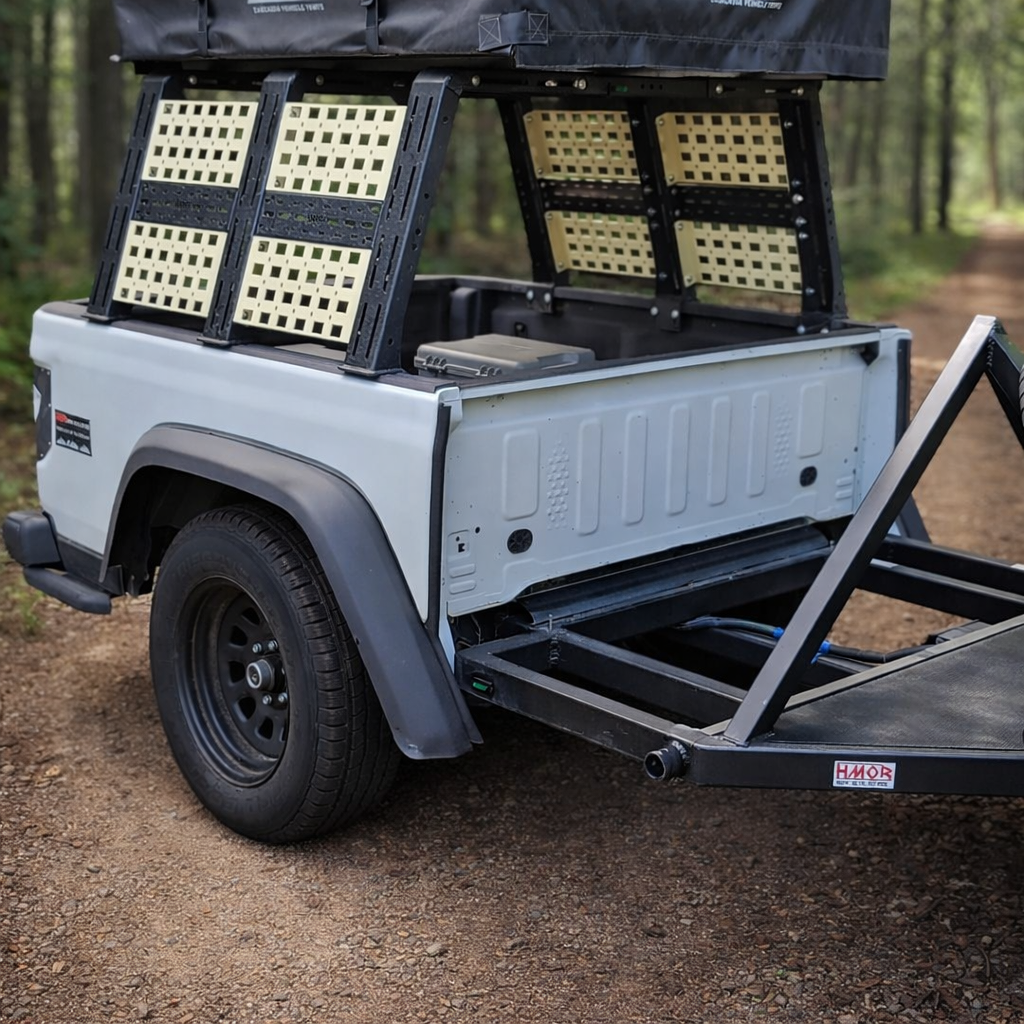

The Heavy Metal Off-Road Universal Fit ROCK-IT Rack is the ROCK-IT system without a vehicle-specific fitment, for trucks HMOR does not list, trailers, flatbeds, custom beds and fabricated platforms.

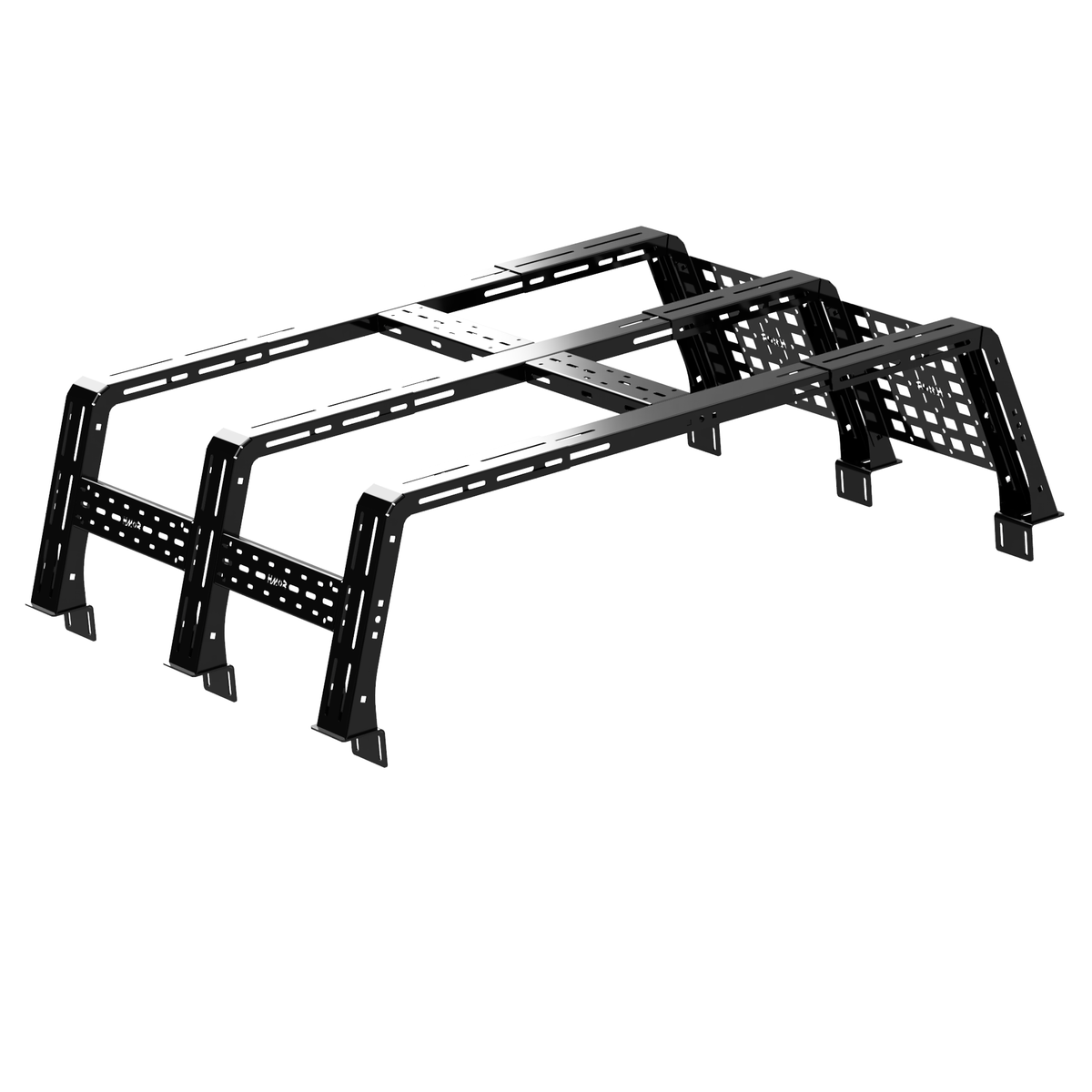

ROCK-IT is HMOR's formed-steel rack. Major parts are 12-gauge steel with continuously welded corner reinforcement, slotted crossbars and runners take tent and accessory hardware directly, and MOLLE side panels and wiring pass-throughs come with it. Width is set during assembly, it arrives in black powder coat, and HMOR rates it at 1,500 lb static and smooth-motion dynamic with an even load.
Choose a 45 or 60 in length and set the width during assembly. The Retrax XR / Roll-N-Lock XT option uses flat plates instead of L-feet, which makes it the easier choice to through-bolt to a flat deck or trailer bed. Measure first: mounting-surface strength, hole access, width, length, height and clearances are on you. Use the vehicle-specific listing if HMOR makes one for your truck. Add-ons like grab bars and bike mounts are in bed rack accessories.
Specifications
| Fitment | Universal Fit |
|---|---|
| Rack heights | 12 in, 17 in, 23 in |
| Bed / rack length | 45 in or 60 in rack (no vehicle-specific bed length) |
| Mounting options | HMOR Non-Track feet, or flat Retrax XR / Roll-N-Lock XT plates for through-bolting |
| Construction | 12-gauge formed steel, welded corner reinforcement |
| Load rating (even load) | 1,500 lb static and smooth-motion dynamic |
| Finish | Black powder coat |
In the box
- All rack components and MOLLE panels
- Rack-to-vehicle mounting hardware for the selected system
- Assembly hardware
