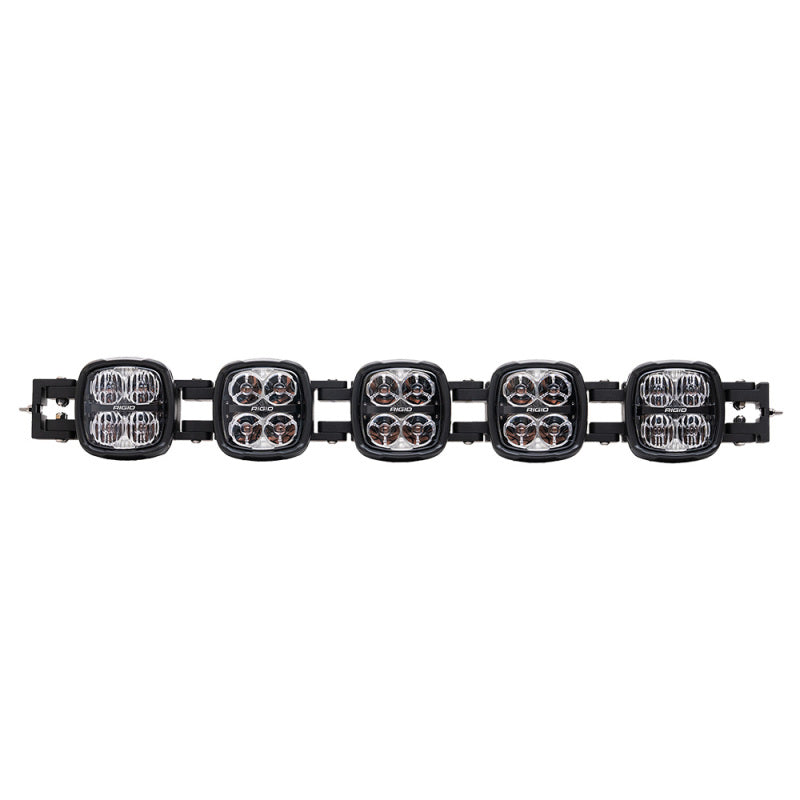

The Rigid Industries Phoenix Connect 40 in. is a modular LED light bar built from five Phoenix 5 in. pods joined by billet aluminum links, so you can run it straight or curve it to follow your bumper or roof line. The pod-based design pairs three Spot and two Drive optics to throw a tight center beam while filling the foreground with wide, even coverage — the kind of balanced pattern that actually helps at overland speeds on unknown trail.
What sets the Phoenix line apart is Rigid's selectable color and power. Five color modes let you switch between Cool White, Natural, Full Power, Warm, and Amber at the push of a button — Amber cuts through dust and fog without stepping out of the cab. Three power modes let you dial output to the conditions and manage draw. It's IP68 sealed against dust and water, wrapped in a cast aluminum housing and bezel, and wired with a rugged Deutsch connector. The lenses are swappable, so a trail-side rock strike doesn't retire the whole bar.
- Modular five-pod design — mount straight or curved to match your rig
- Selectable beam: three Spot pods plus two Drive pods for reach and spread
- Amber mode for dust, fog, and snow visibility
| Configuration | 40 in. — five Phoenix 5 in. pods (3 Spot, 2 Drive) |
|---|---|
| Color Modes | Cool White, Natural, Full Power, Warm, Amber (5 selectable) |
| Power Modes | 3 selectable |
| Mounting | Adjustable straight or curved via billet aluminum links |
| Housing | Cast aluminum housing and bezel |
| Sealing | IP68 dust/water ingress rated |
| Connector | Deutsch |
| Lens | Swappable |
| Part Number | 168243 |
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.P65Warnings.ca.gov.
