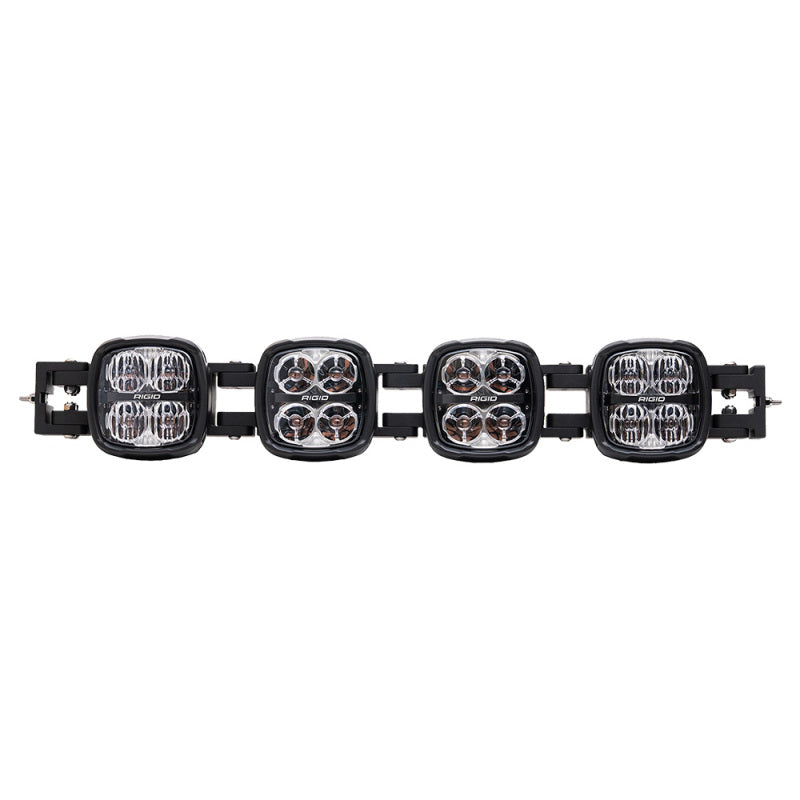

The Rigid Industries Phoenix Connect 30-inch light bar is a genuinely modular front-projection setup built from four Phoenix 5-inch pods linked on billet aluminum. Two pods run a Spot beam for distance and two run a Drive pattern for width, so a single bar covers both the trail ahead and the edges of the two-track without adding a second light.
The standout feature is on-the-fly color: five selectable modes let the driver flip between Cool White, Natural, Full Power, Warm, and Amber at the push of a button — no stopping, no leaving the cab. Amber cuts through dust and snow, while white handles clear high-speed running. Three selectable power modes let you dial brightness to conditions and current draw. The billet links let you mount it dead straight or bow it into a curve to match a bumper, roof line, or grille.
Housing and bezel are cast aluminum, the bar is IP68 rated against dust and water ingress, and lenses are swappable if one takes a rock. A Deutsch connector keeps the wiring weather-sealed and serviceable.
| Configuration | Four Phoenix 5-inch pods (2 Spot, 2 Drive) |
|---|---|
| Length | 30 in. |
| Color Modes | Cool White, Natural, Full Power, Warm, Amber |
| Power Modes | 3 selectable |
| Housing | Cast aluminum housing and bezel |
| Sealing | IP68 dust/water ingress |
| Mounting | Adjustable straight or curved billet links |
| Connector | Deutsch |
| Lens | Swappable |
California Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
