A simple, weatherproof way to bring a portable solar panel into your 12V build without rewiring anything.

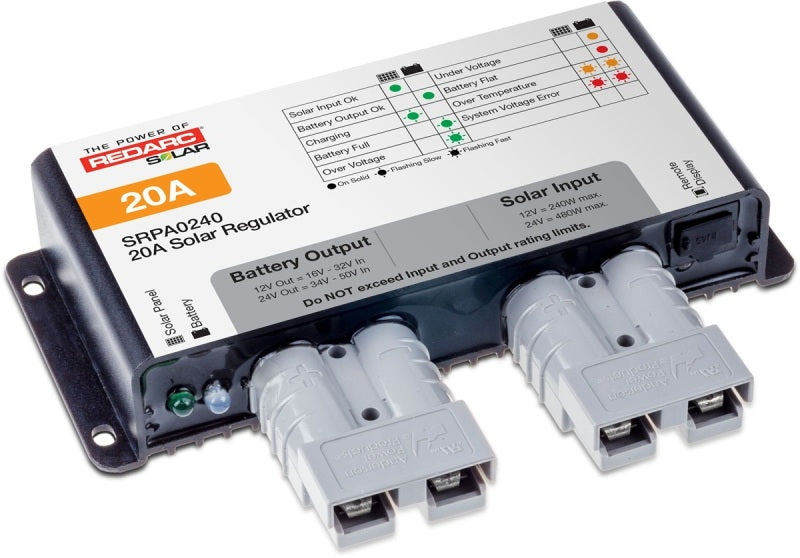

This REDARC solar regulator handles up to 20A of charge current and connects via a standard Anderson-style plug, so it drops straight into most portable folding panels, blankets, and existing battery leads. It is aimed at overlanders and campers who want reliable, protected charging from an amorphous or crystalline panel without a permanent dash-mounted controller.
- 20A regulation keeps panels feeding your auxiliary battery at a safe voltage and prevents overcharge damage.
- Anderson-style connector for quick plug-and-play hookup and tool-free swaps between panels or vehicles.
- Compact, rugged housing built for the dust, heat, and vibration of outback and trail use.
Note: this is a PWM-style portable regulator sized around 20A, so pair it with a panel array that stays within that current. For fixed-mount arrays or larger banks, step up to a dedicated MPPT controller. Browse the rest of our solar range to match a panel to it.
| Specification | Detail |
|---|---|
| Type | Portable solar regulator |
| Max current | 20A |
| System voltage | 12V |
| Connector | Anderson-style plug |
As an authorized REDARC dealer, it is backed by the full manufacturer warranty.
