Automatic dual-battery isolation that protects your starter battery and manages your auxiliary load.

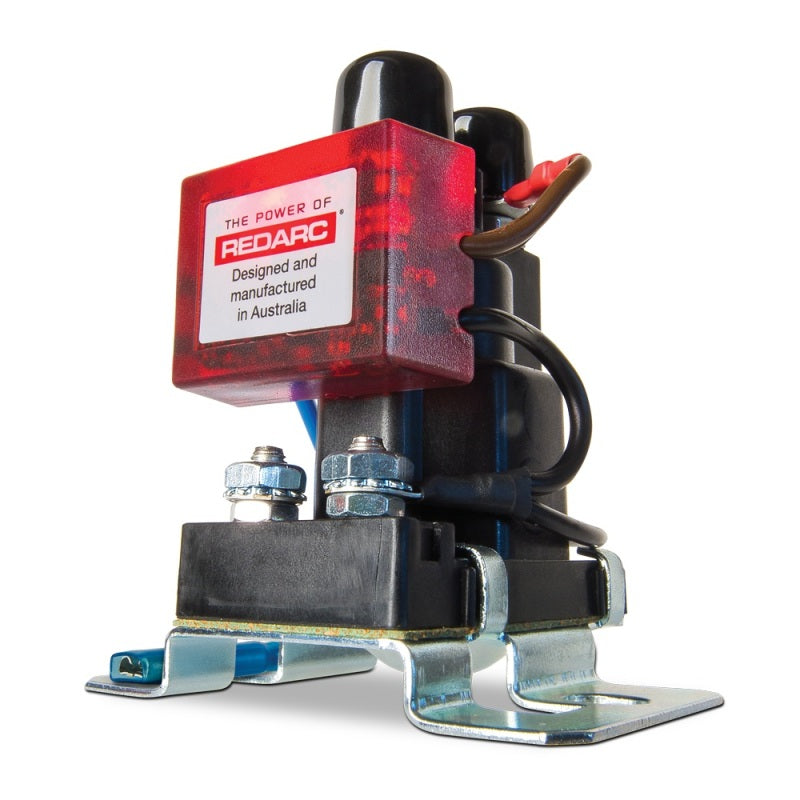

The REDARC Smart Start SBI12 is a voltage-sensing battery isolator for 12V dual-battery builds. It connects your auxiliary battery to the alternator only when the vehicle is charging, then isolates it so a flat second battery can never leave you unable to start the vehicle. The Load Disconnect (BLD) version adds a low-voltage cutout that sheds the auxiliary load before deep discharge damages the battery.
- Automatic dual-sensing connect and disconnect, no manual switching or dashboard button.
- Load disconnect terminal protects the auxiliary battery from over-discharge.
- Rated for 100A continuous, suited to fridges, lighting, and accessory circuits.
It is a simple, reliable isolator rather than a DC-DC charger, so it charges the second battery at the alternator's own voltage. If you run AGM or lithium and want a full charge profile, pair it with a unit from our DC-DC chargers. Browse more dual battery systems to complete the build.
| Specification | Detail |
|---|---|
| Model | SBI12 (Smart Start) |
| System voltage | 12V |
| Continuous rating | 100A |
| Type | Dual-sensing battery isolator |
| Feature | Battery load disconnect (BLD) |
As an authorized REDARC dealer, it is backed by the full manufacturer warranty.
