Protect your starter battery while keeping the auxiliary bank charged, automatically.

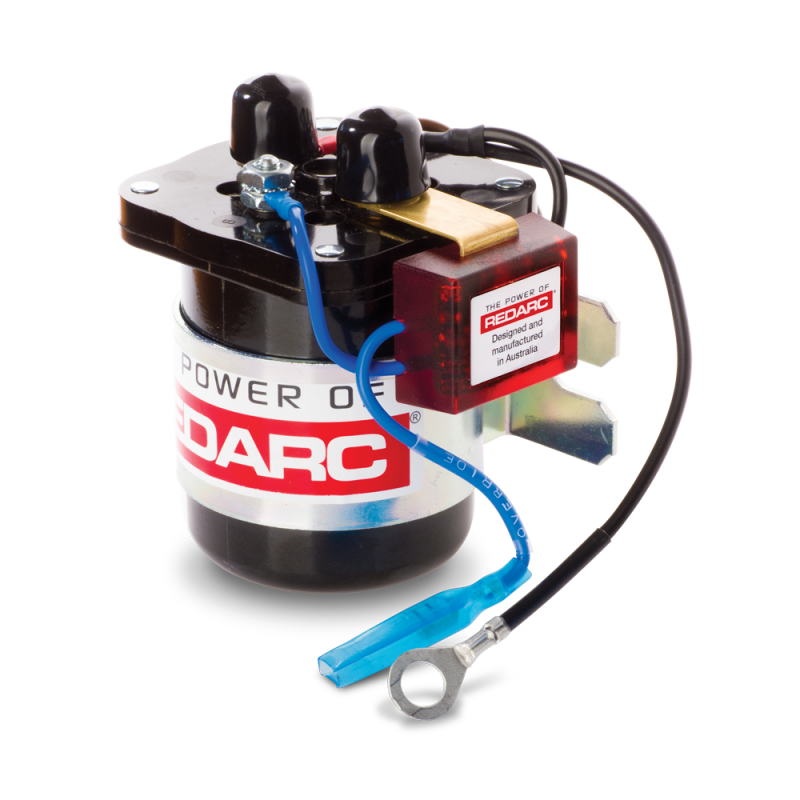

The REDARC SBI212D Smart Start is a dual sensing 12V battery isolator that connects your auxiliary battery to the vehicle's charging system only when it detects a charge from either the alternator or a secondary source. It is built for dual-battery touring and overland builds where you run a fridge, lights, or accessories off a second battery without risking the ability to start the vehicle.
- Dual sensing operation reads voltage from both the primary and auxiliary side, so it works with modern variable-voltage and smart alternators.
- Automatic connect and disconnect based on voltage thresholds, with no manual switching required.
- Rated for high 200A surge loads, suited to heavy accessory draws and winching setups.
Note: an isolator like this splits charge between batteries but does not condition it. If you run lithium or want a controlled, multi-stage charge profile, pair it with a DC-DC charger or step up to a full battery manager. See our full range of dual battery systems to match it to your build.
| Specification | Detail |
|---|---|
| Model | SBI212D |
| System Voltage | 12V |
| Current Rating | 200A |
| Sensing | Dual sensing |
| Type | Smart start battery isolator |
As an authorized REDARC dealer, it is backed by the full manufacturer warranty.
