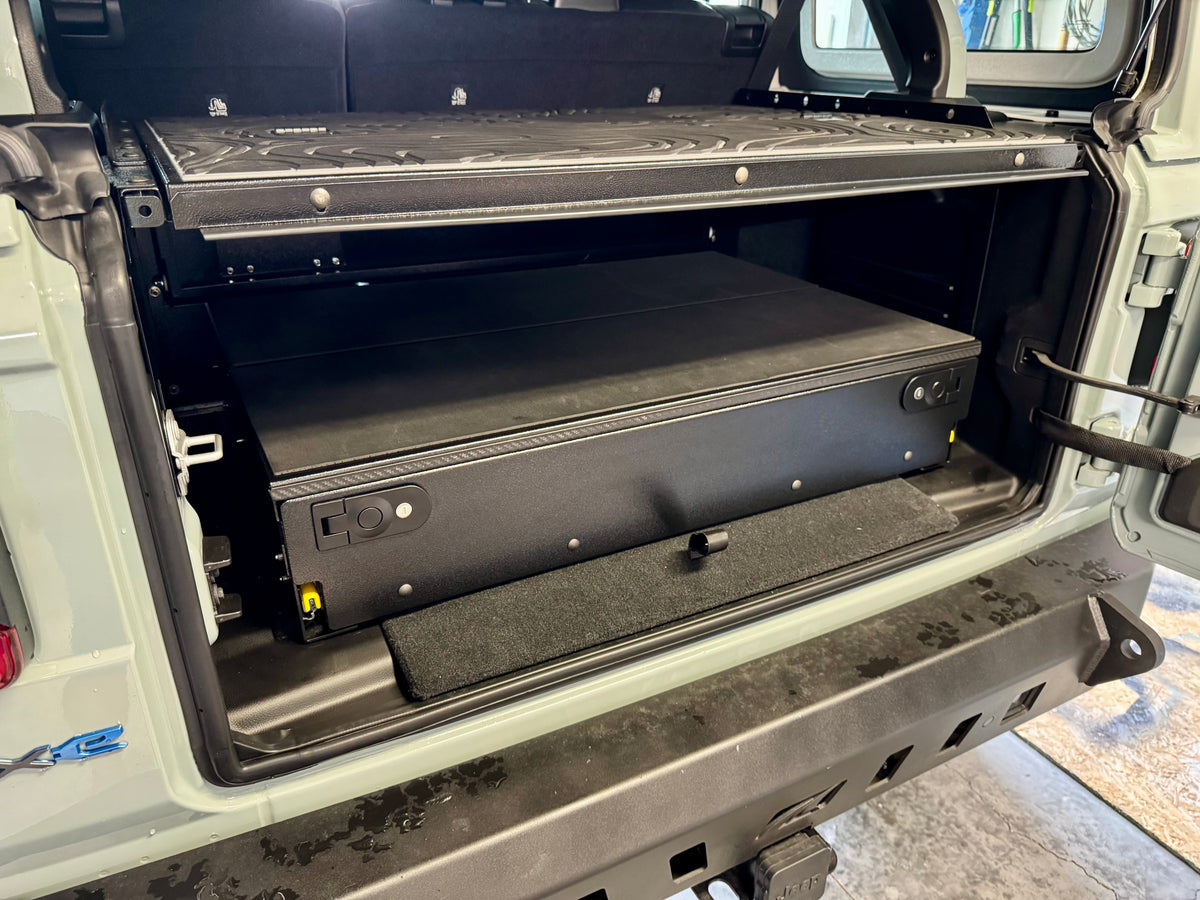

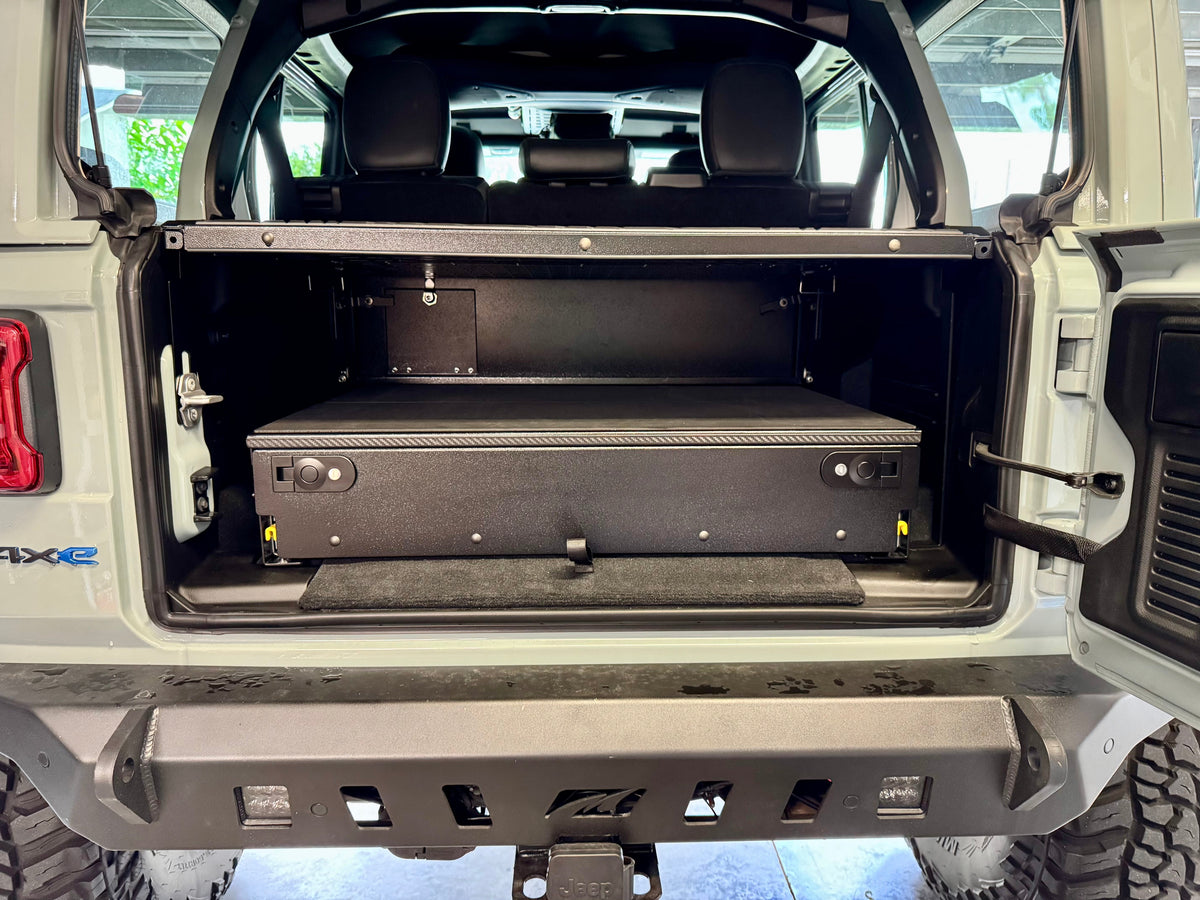

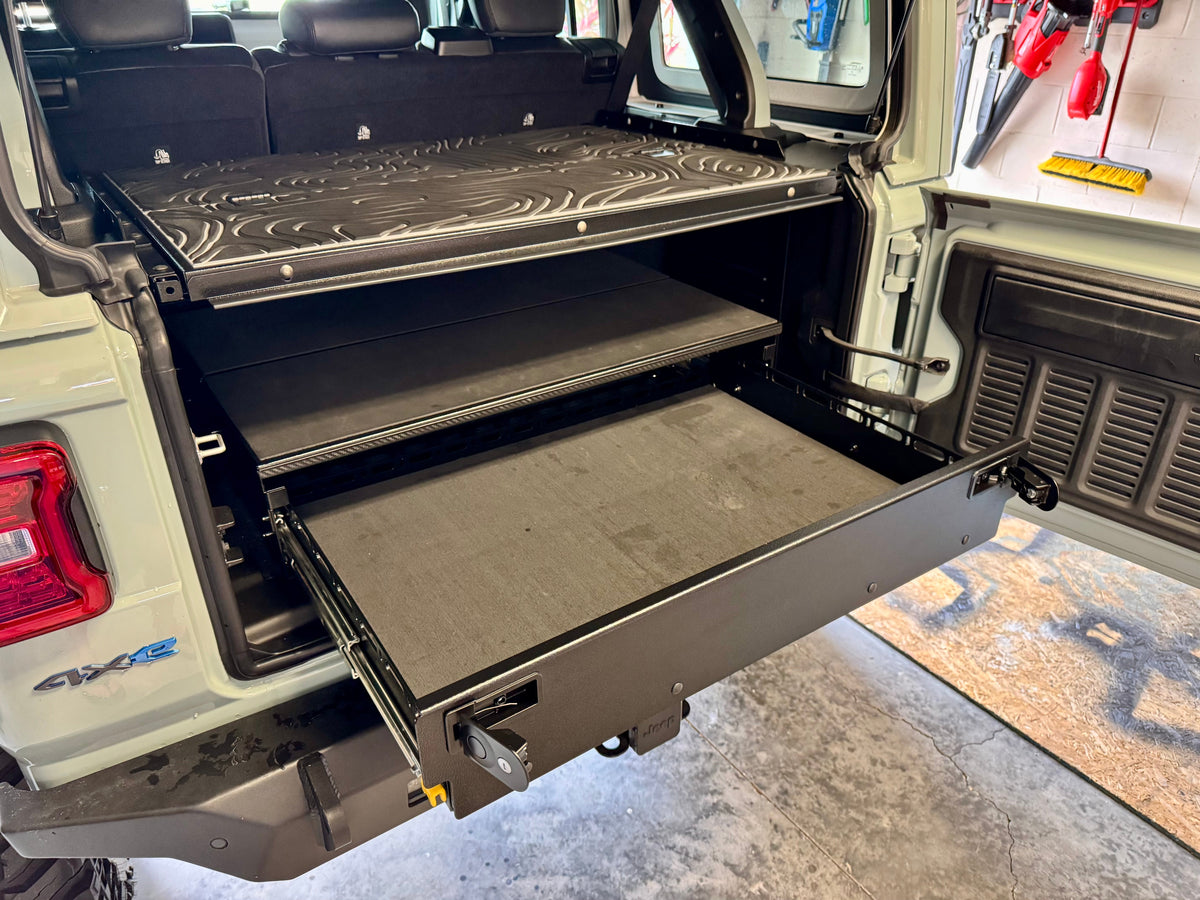

The Diabolical Inc JLU Complete Drawer System packages the slide floor, drawer tops and locking faceplate for the four-door Jeep Wrangler JL Unlimited in one order. The result is a lockable drawer for valuables with a flat, load-bearing deck above it for coolers, bags or a sleeping pad.

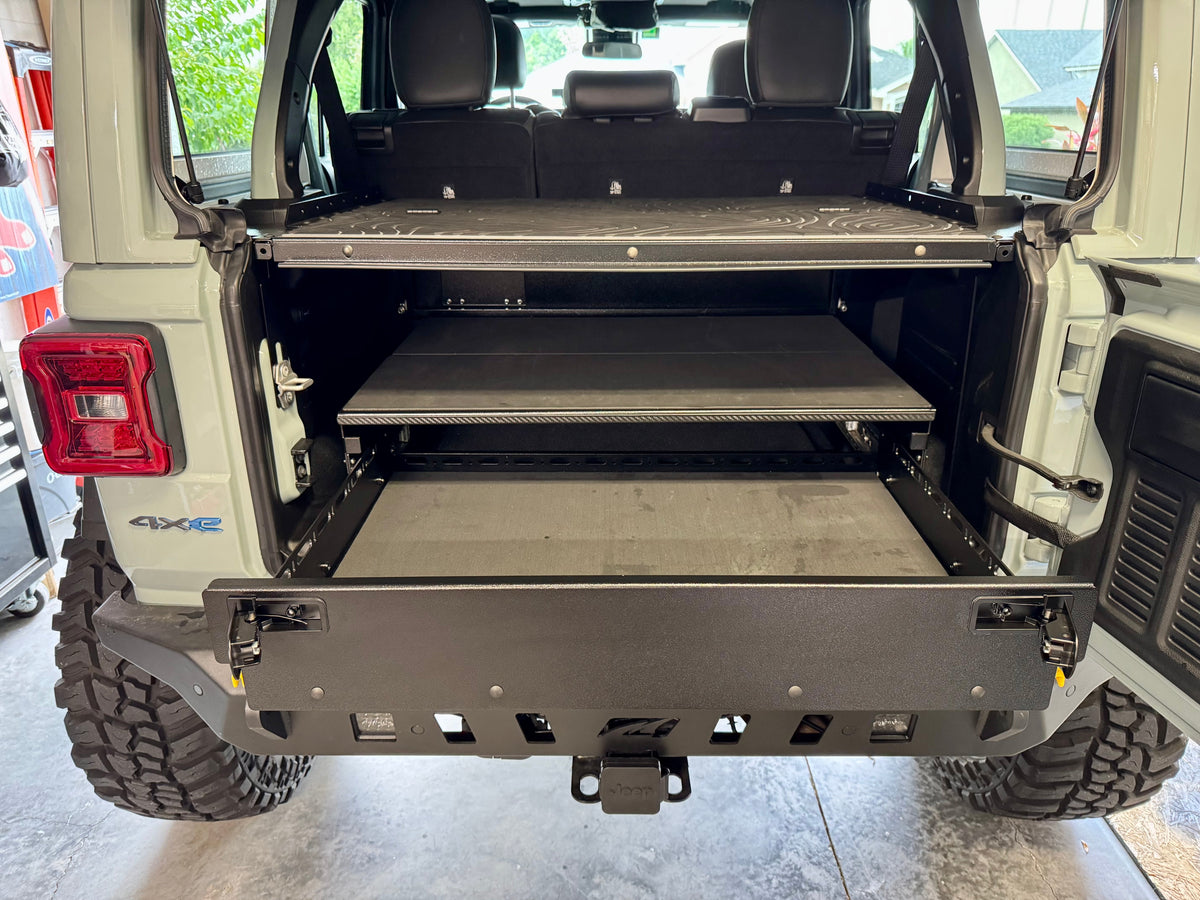

Underneath, the slide floor runs on lock-in, lock-out slides rated at 500 lb total (250 lb per side). The drawer tops carry an integrated cross brace, and Diabolical rates the top surface at up to 500 lb. Overall height is 7 in with about 6 in usable inside, which matches the 4xe battery box so the deck is level with the folded rear seats. The faceplate locks with paddle latches.
Everything is aluminum and installs at the Jeep's factory D-rings without drilling. If you already own the tray, the drawer top is sold on its own. More drawer systems.
Specifications
| Fitment | Jeep Wrangler JL Unlimited (4-door) |
|---|---|
| Tray | 33.5 in W x 24.5 in D |

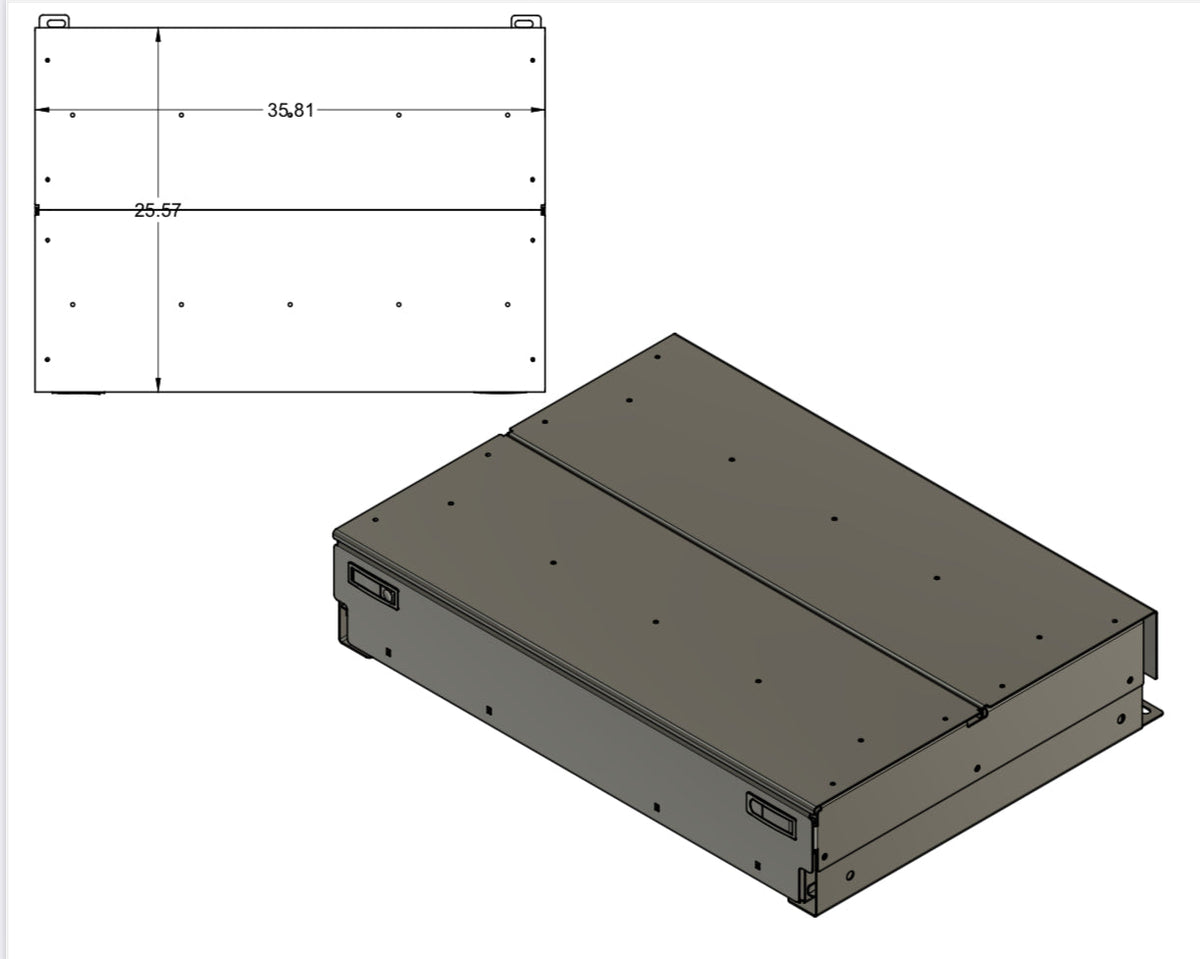

| Drawer top | 35.75 in W x 25.125 in D |
| Height | 7 in overall, 6 in usable |
| Slides | 500 lb total, lock-in / lock-out |
| Load on top | Up to 500 lb with cross brace |
| SKU | JL401800CDS |
In the box
- JLU slide floor
- JLU drawer tops with cross brace
- Locking faceplate with paddle latches
