Forged Bike Mount | Leitner Designs ACS Rack
Configuration:Forged Bike Mount
Quantity:
Choose options
Configuration:Forged Bike Mount
Quantity:
Configuration:Forged Bike Mount
Quantity:

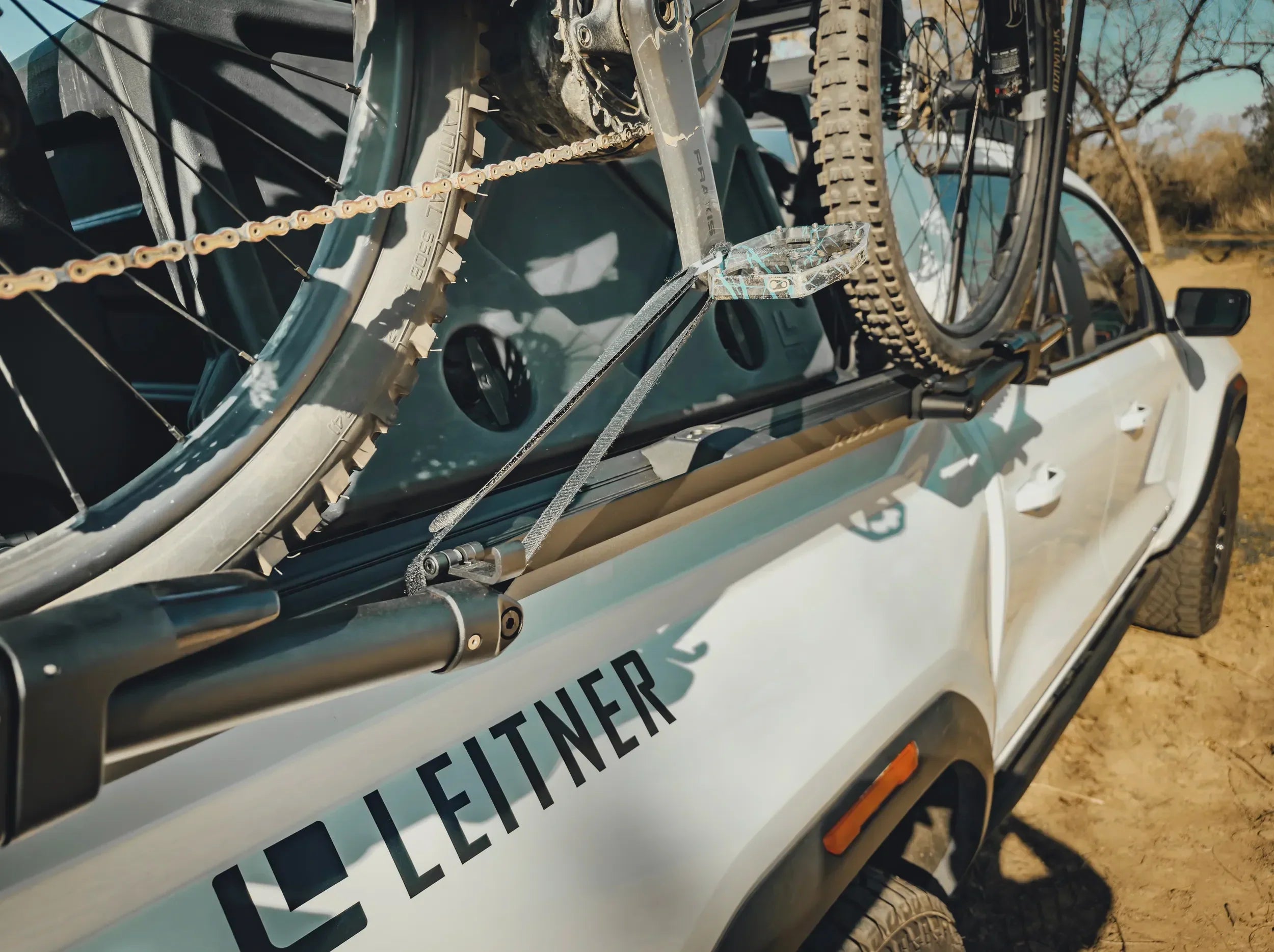

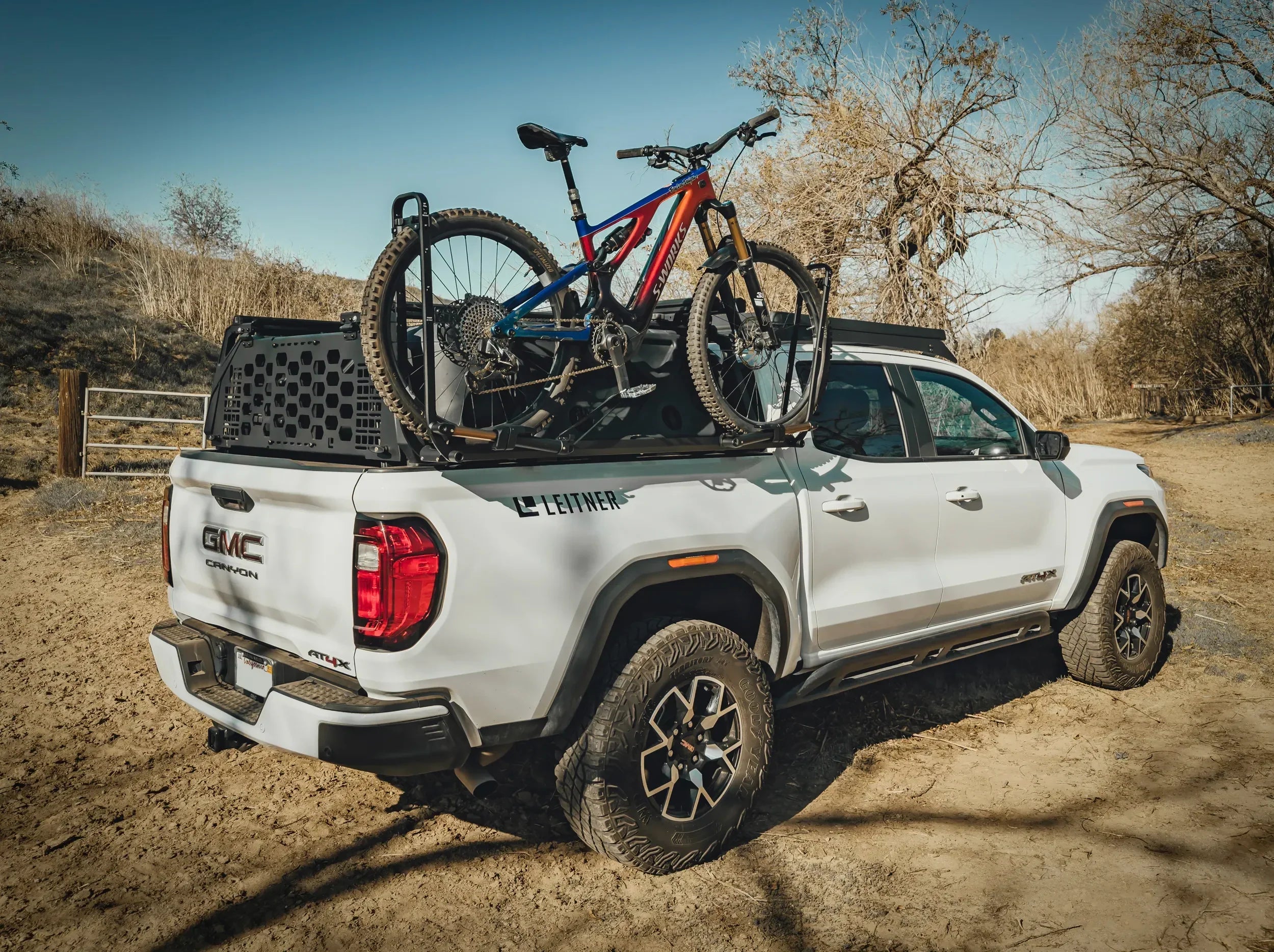

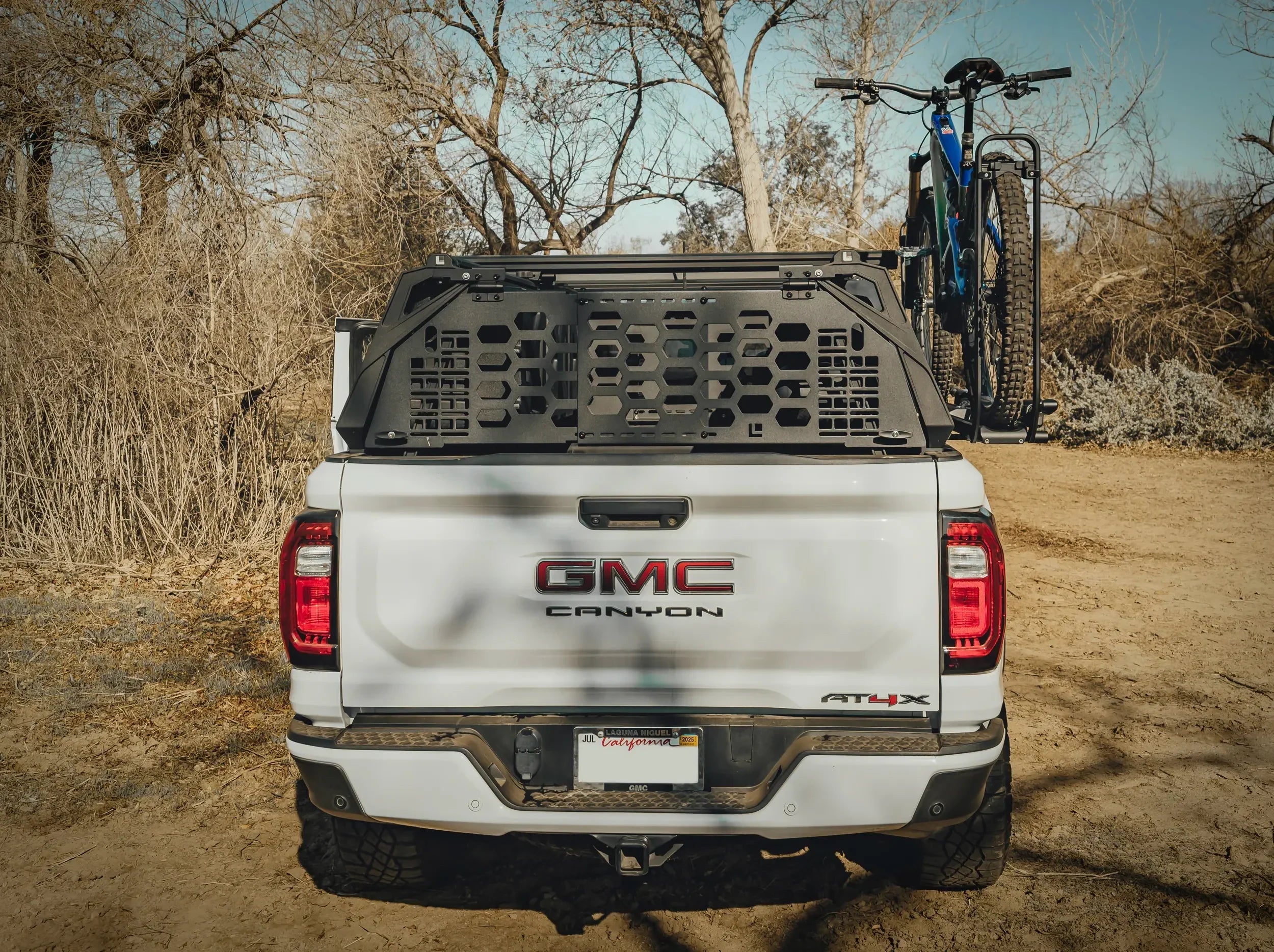

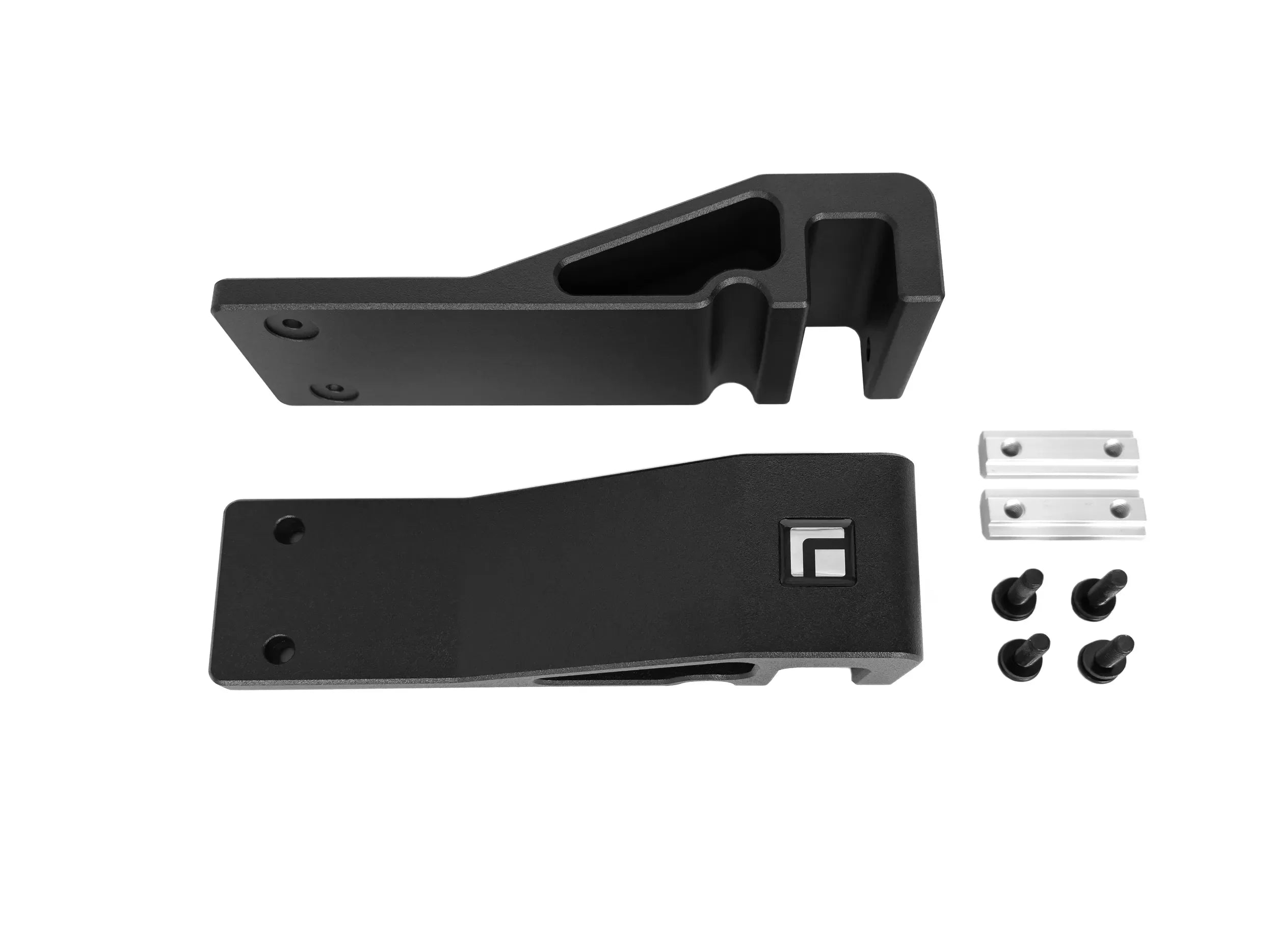

The Leitner Designs Forged Bike Mount is a billet 6061 T6 aluminum bracket that attaches to the side of your ACS Forged bed rack, creating a dedicated mounting point for a bike rack arm — keeping the entire bed free for other gear while your bikes travel alongside the truck. Designed to work specifically with the KUAT Piston SR, one of the most respected bike racks on the market, supporting bikes up to 65 lbs.
Installs in approximately 30 minutes using the T-slot system with no drilling. When the bike rack arms are in the open position and no bike is mounted, you still have full access to all GearPODs. Also compatible with the 1UP bike rack according to customers.
Compatibility note: Not compatible with the GearPOD XL on a 5'6" or shorter bed. Space brackets a minimum of 36" apart, maximum 50.5".
Key specs
- Weight: 5 lbs
- Material: 6061 T6 aluminum, machined from billet
- Fasteners: Grade 10.9 Black Zinc-Nickel-coated
- Finish: Leitner dual-stage powder coat
- Install time: ~30 minutes with all included hardware
- Min bracket spacing: 36" | Max bracket spacing: 50.5"
- Designed, engineered, and manufactured in the USA
Compatibility
- Fits ACS Forged, ACS Tonneau, and ACS No Drill/No Slide bed racks
- Designed for KUAT Piston SR bike rack (sold separately)
- Not compatible with GearPOD XL on beds 5'6" or shorter
