Diode Dynamics
Diode Dynamics C2R LED Pod, White Flood with Red Brake and Running Light (Single)
Choose options

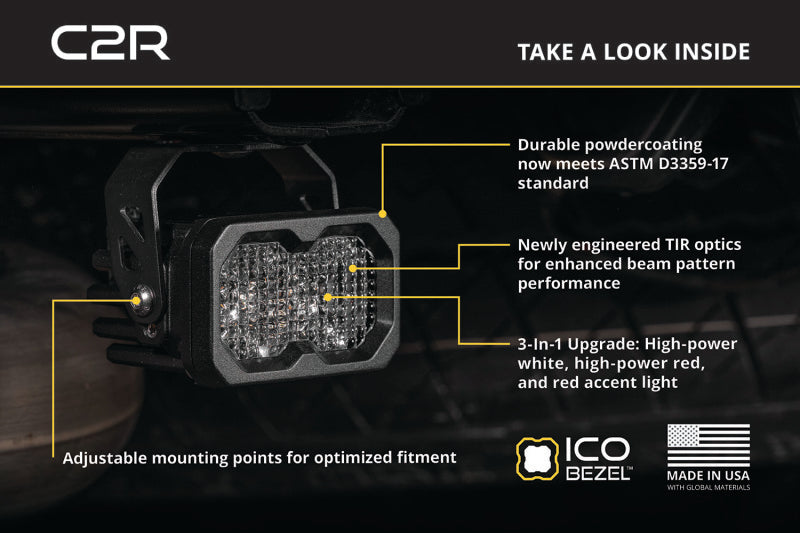

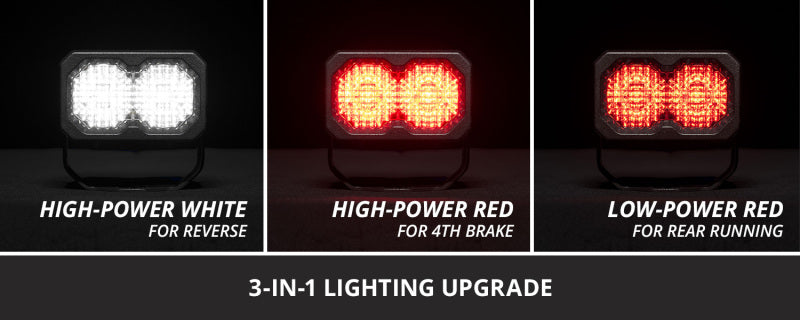

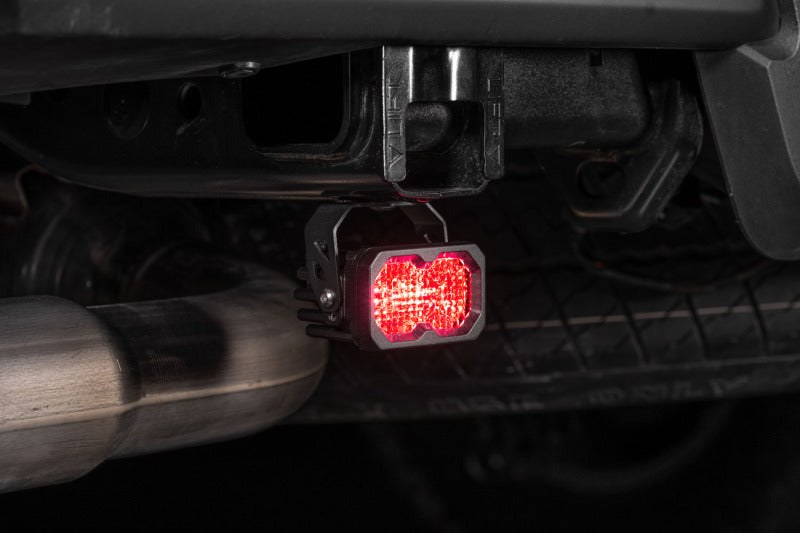

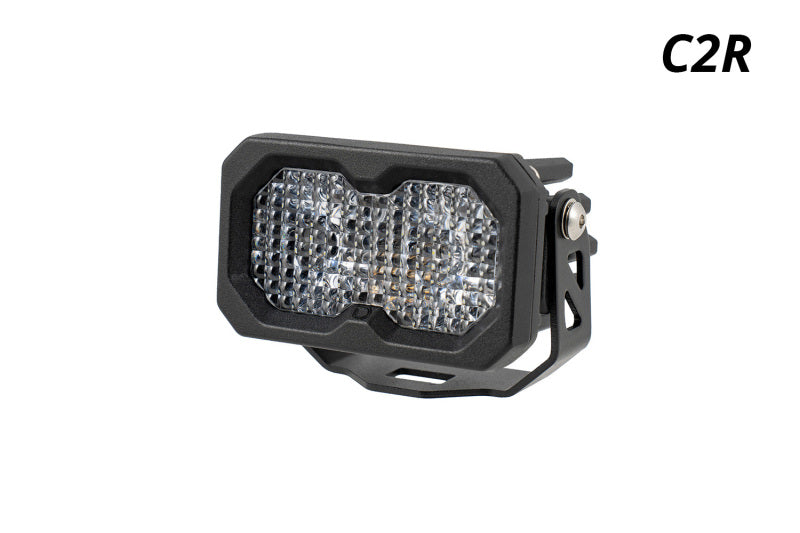

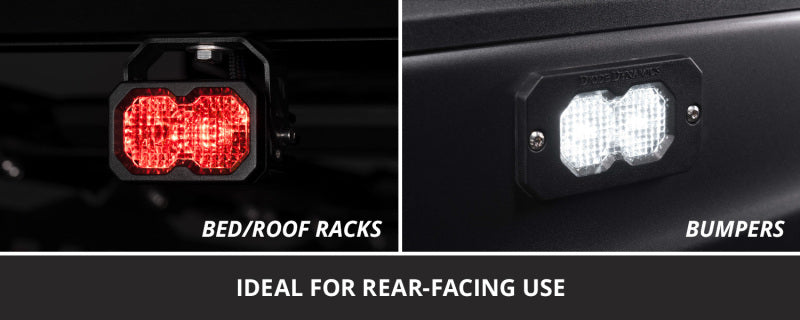

The Diode Dynamics C2R is a 2-inch pod built for the back of a vehicle. Each pod has three functions you can wire independently: a high-power cool white flood for reversing, a high-power red output for a fourth brake light, and a low-power red running light that comes on with the tail lights.

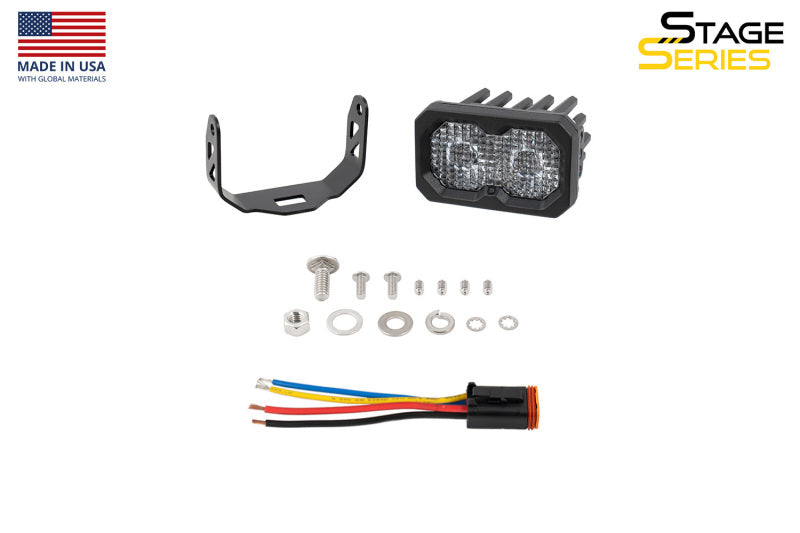

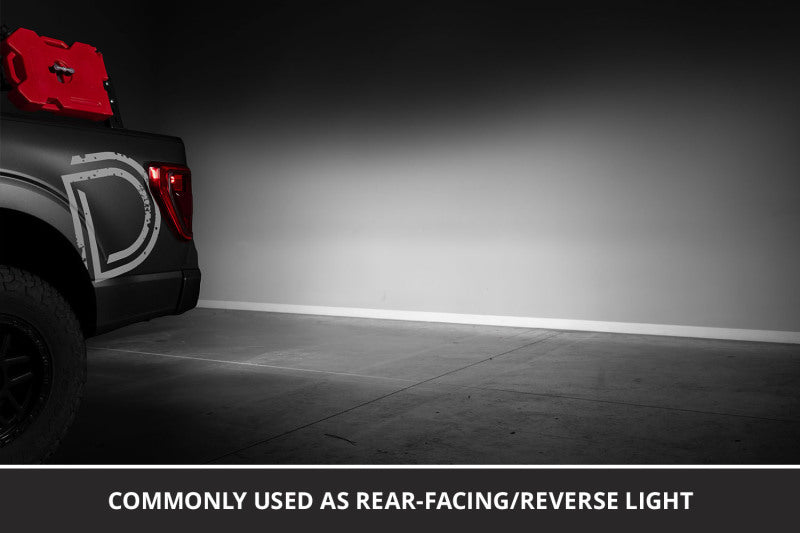

The white flood optic is shaped for broad, even light behind the truck, which is what you want when backing a trailer or setting up camp after dark. A custom-molded Deutsch DT connector on the back takes the included 4-pin, 6-inch pigtail: red powers the white beam, yellow the high-power red, blue the low-power red, black is ground. Diode tests Stage Series pods from -40 to 185 degrees F.

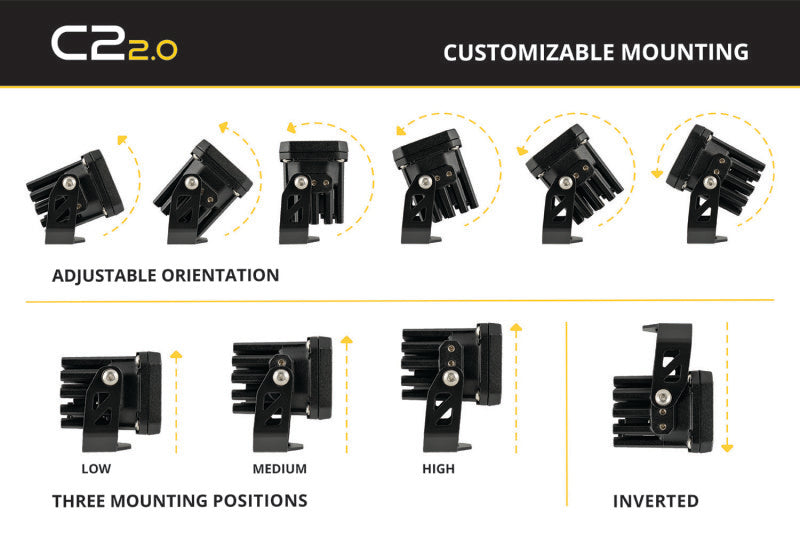

Sold as a single pod; most rear setups use two. Mount ideas in light mounts and brackets.
Specifications
| Size | 2 in pod |
| Main beam | White flood |
| Red functions | High-power (brake), low-power (running) |
| Connector | Deutsch DT, 4-pin 6 in pigtail |
| Tested range | -40 to 185 °F (Diode Dynamics) |
| Quantity | One pod with bracket |
| Part number | DD8450S |
WARNING: This product can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information, go to www.P65Warnings.ca.gov.
