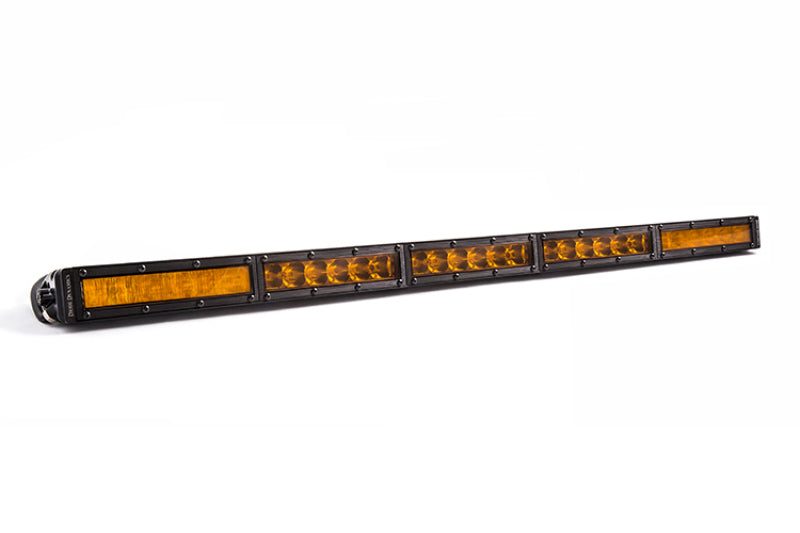

Diode Dynamics Stage Series 30 in Single-Row LED Light Bar, Amber Combo
Choose options
The Diode Dynamics Stage Series 30 in single-row bar with an amber combo lens is a bumper-width bar for drivers who spend time in dust, fog or snow. Diode rates the 30 in amber at about 4,000 measured lumens, and the combo optic mixes forward reach with wide flood.

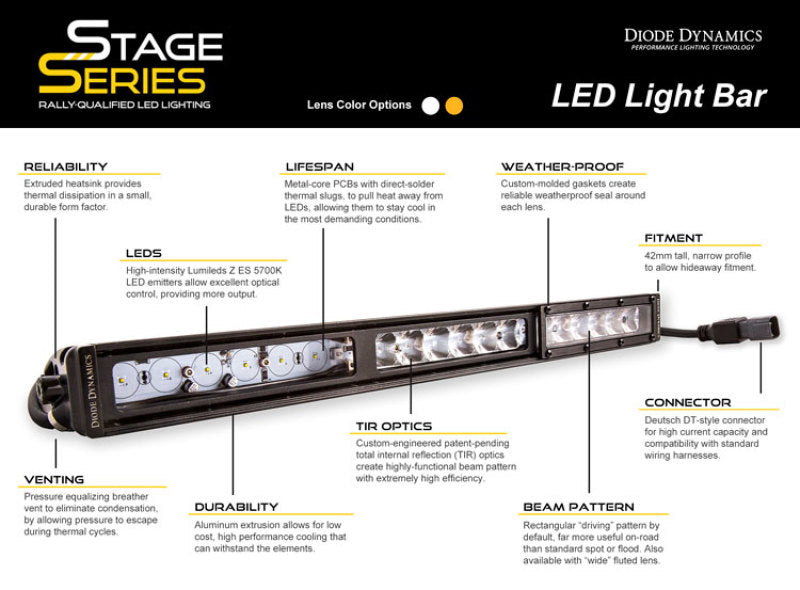

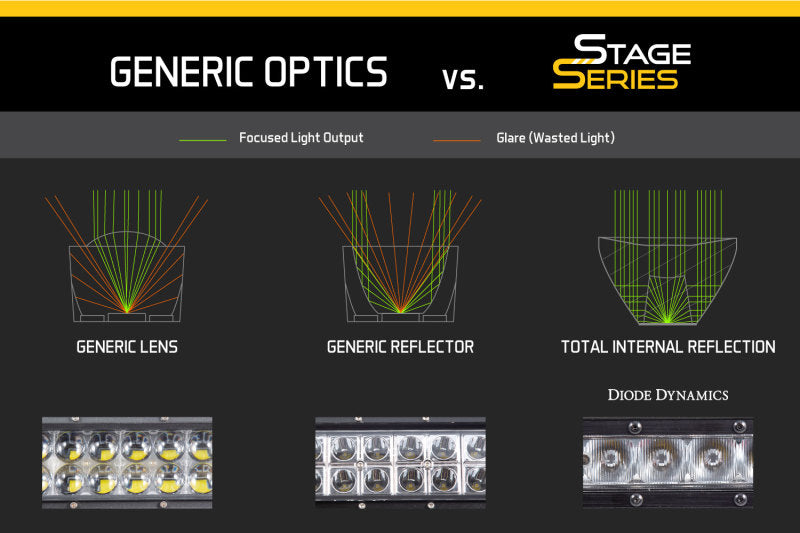

The extruded aluminum housing is under 42 mm tall, so the bar fits where a dual-row bar will not and weighs less. Lumileds LED chips sit behind Diode's TIR optics, which collect the light and aim it instead of losing it to glare, and the housing has a durable matte powdercoat.

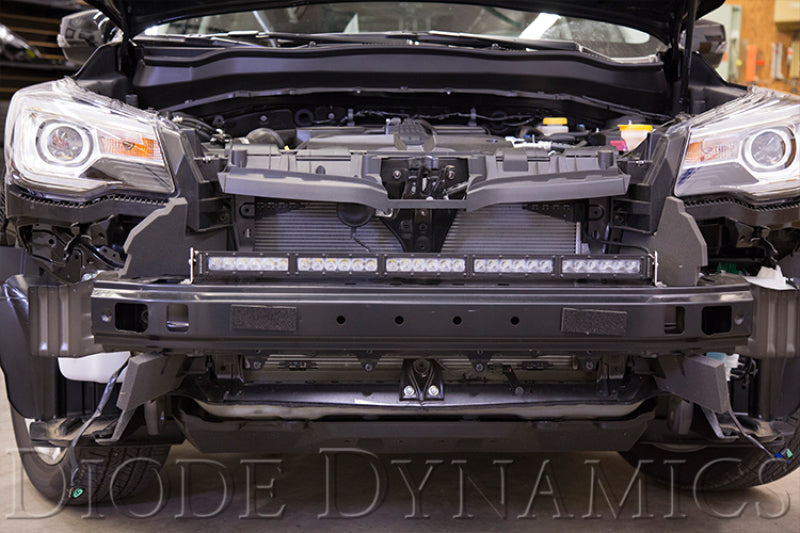

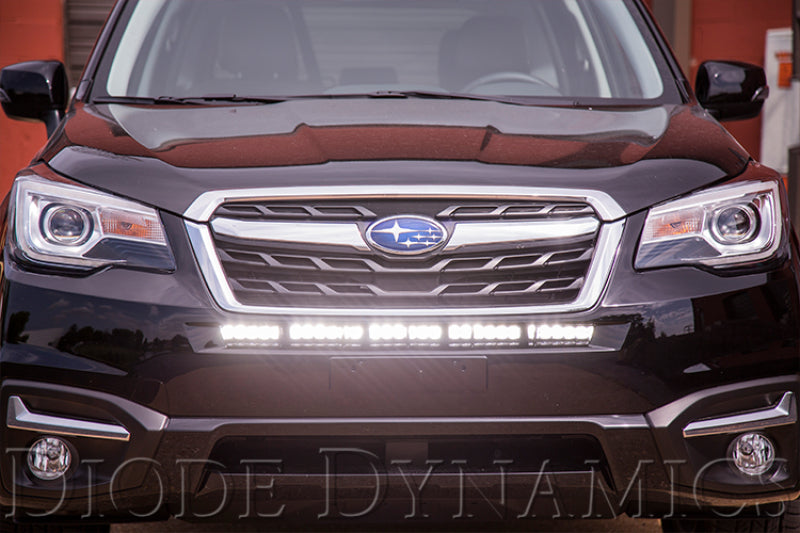

This is the earlier single-row Stage Series bar (Diode now calls it the Classic); confirm availability with us before planning a build around it. Turn 14 links the 30 in bar to Diode's 2016-2018 Subaru Forester bumper kit. See light bars and mounts.
Specifications
| Length | 30 in class |
| Rows | Single |

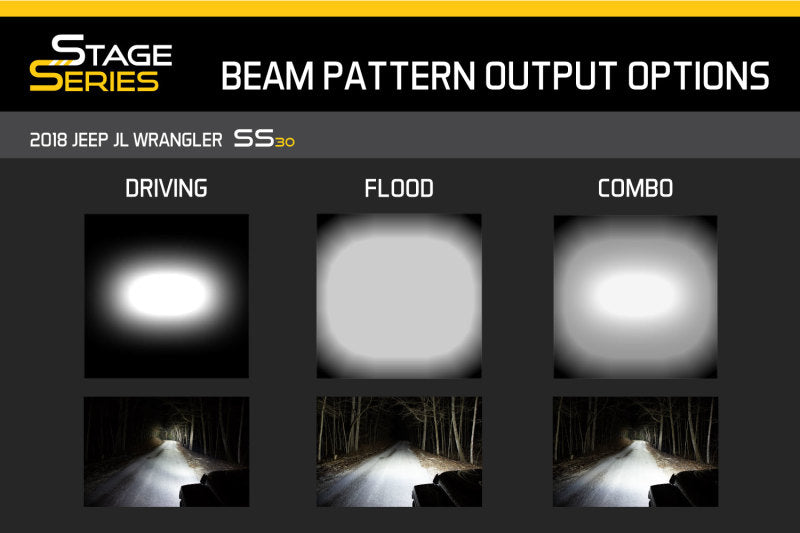

| Beam | Combo: 30x20° driving + 80x50° flood |
| Lens color | Amber |
| Output | 4,000 lm measured (Diode, amber 30 in) |
| Water rating | IP69K |
| Connector | Deutsch DT |
| Quantity | One bar |
| Part number | DD5054 |
WARNING: This product can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information, go to www.P65Warnings.ca.gov.
