Diode Dynamics Stage Series Reverse Light Kit for 2021+ Ford Bronco, C2 Pro
Choose options

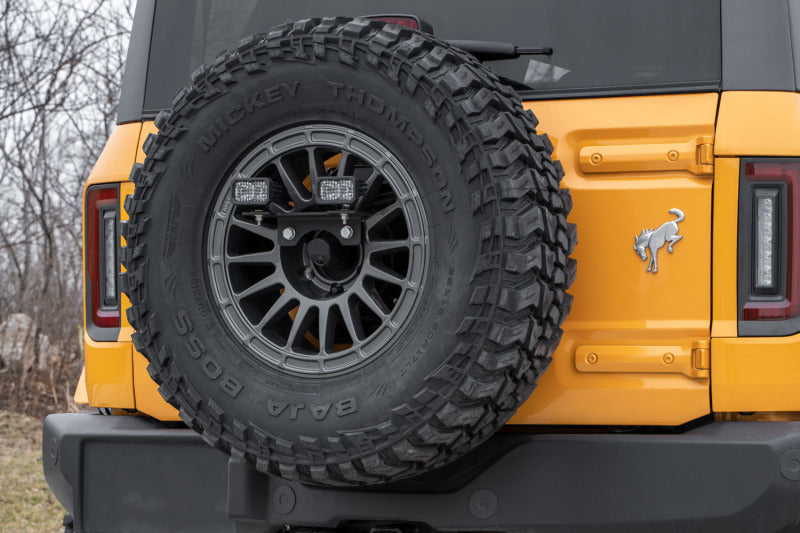

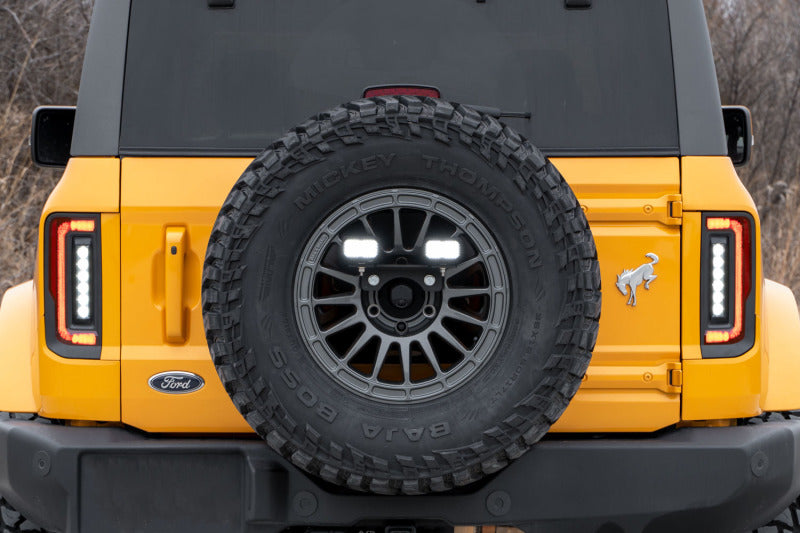

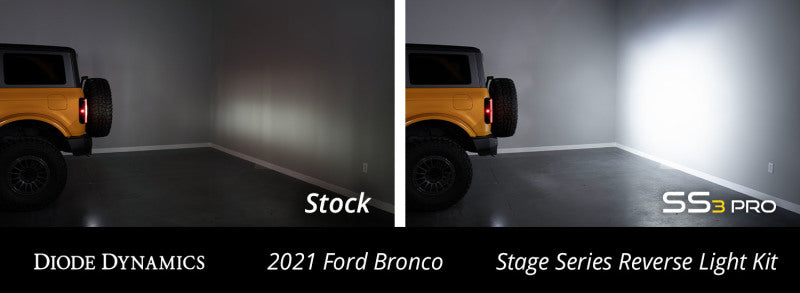

The Diode Dynamics Stage Series Reverse Light Kit for the 2021-and-later Ford Bronco puts two C2 Pro pods on the spare tire carrier, where they light the ground behind the truck far better than the factory reverse lights. The bracket bolts on with included 60 mm or 90 mm extension lug nuts.

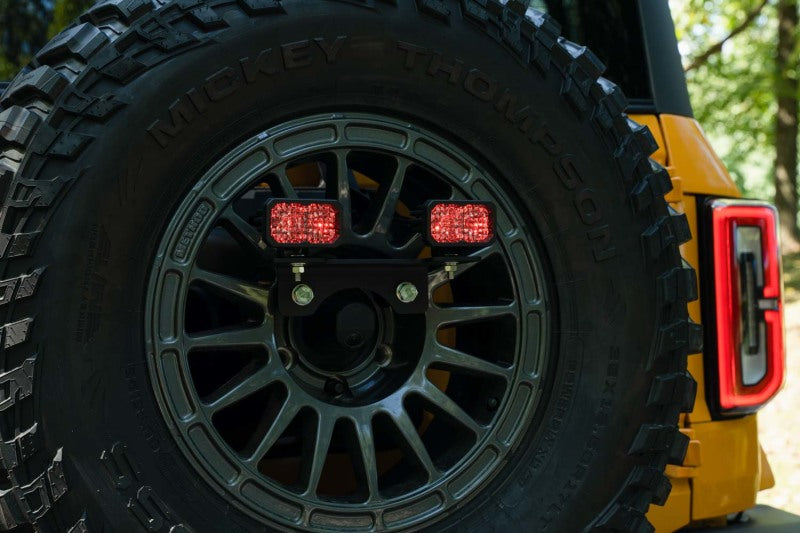

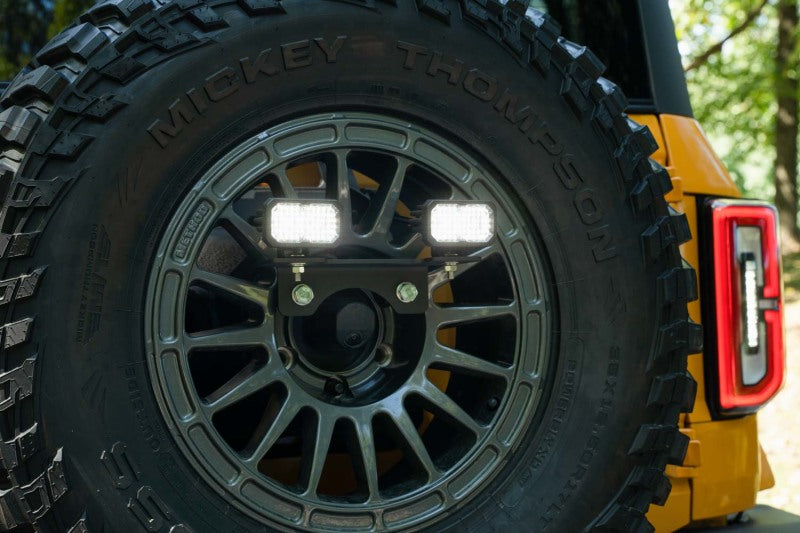

The harness plugs into the factory tail lights with OEM-style connectors, with no cutting or splicing. In normal driving the pods glow red as running lights; in reverse they switch to a high-power white beam. An included toggle switch overrides the vehicle signal so you can turn the white beam on at camp.
Diode includes two lug lengths to suit different spare setups. More Bronco parts.
Specifications
| Fitment | 2021-2025 Ford Bronco |
| Pods | Two Stage Series C2 Pro |
| Functions | Reverse light, red running light, switch override |
| Mounting | Spare tire carrier, 60 mm or 90 mm extension lugs |
| Wiring | Plug-and-play tail light harness, Deutsch DT 4-pin splitter |
| Part number | DD7356 |

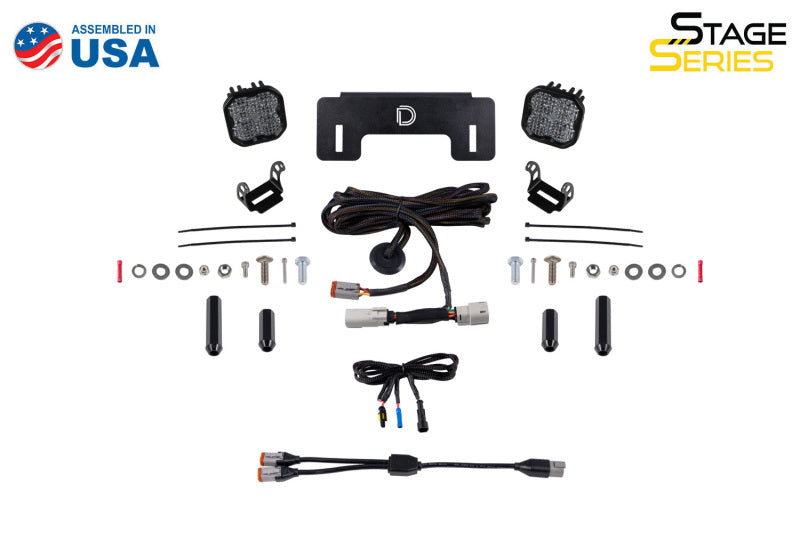

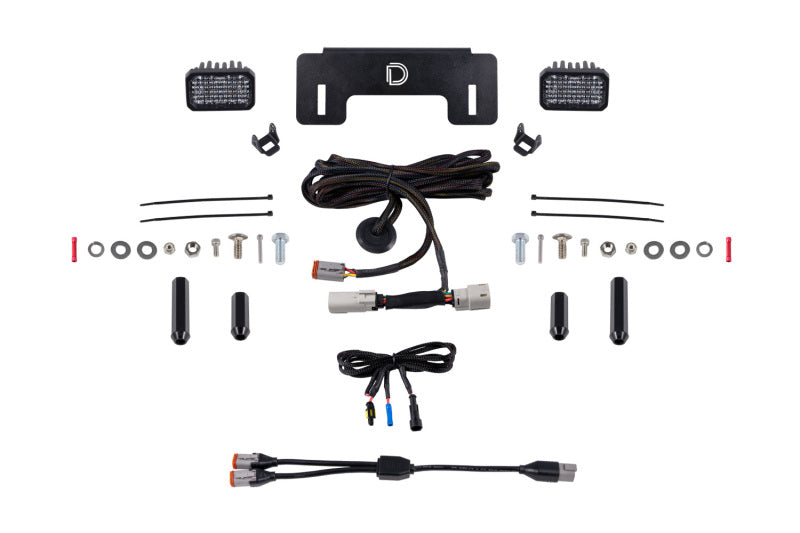

In the box
Two pods, reverse light harness, DT 4-pin splitter, mounting bracket, two 60 mm and two 90 mm lug nuts, zip ties and hardware.
WARNING: This product can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information, go to www.P65Warnings.ca.gov.
