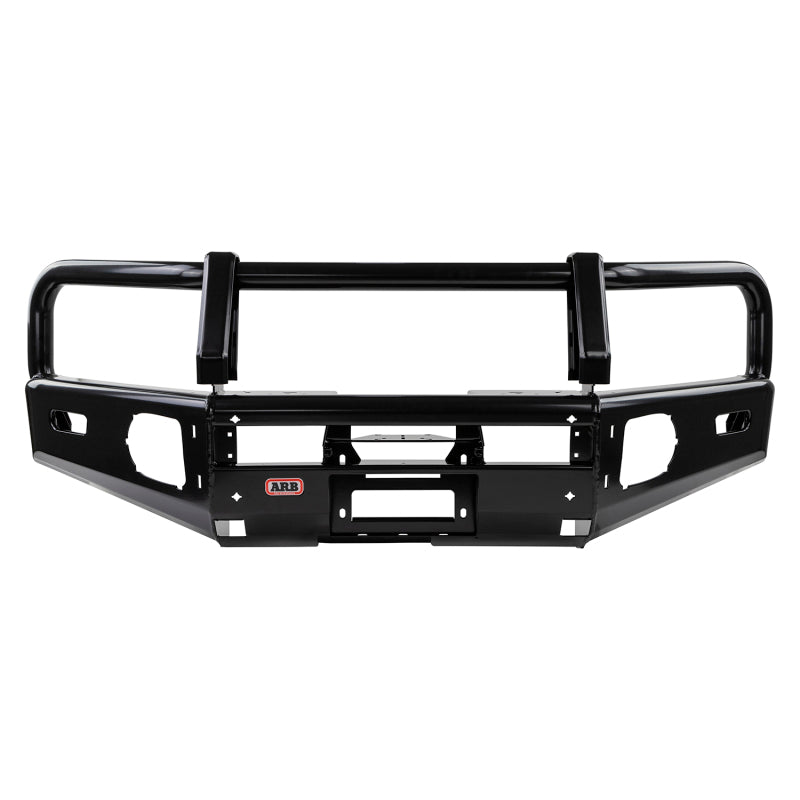

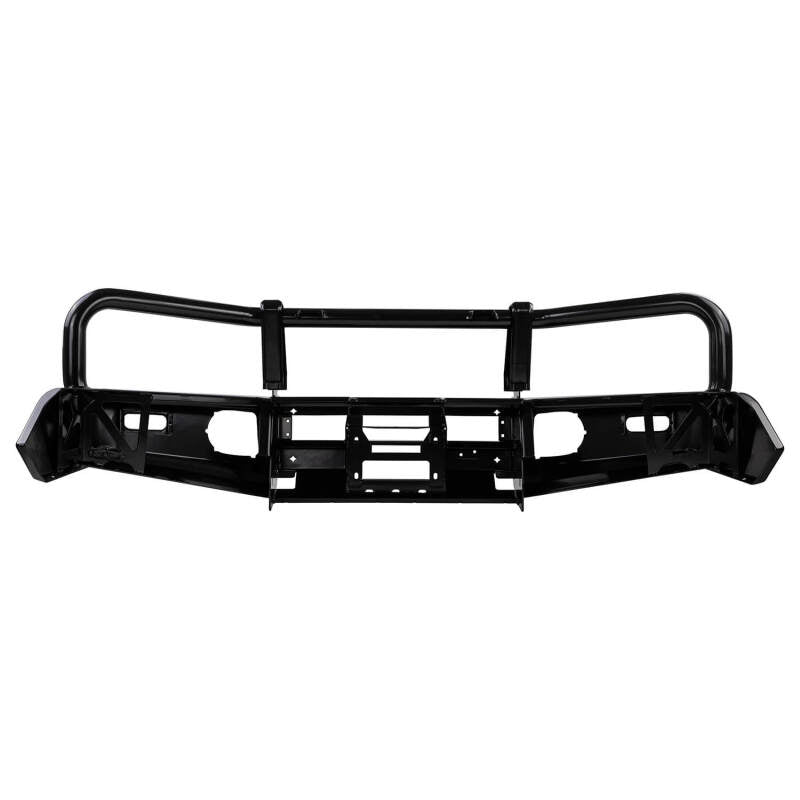

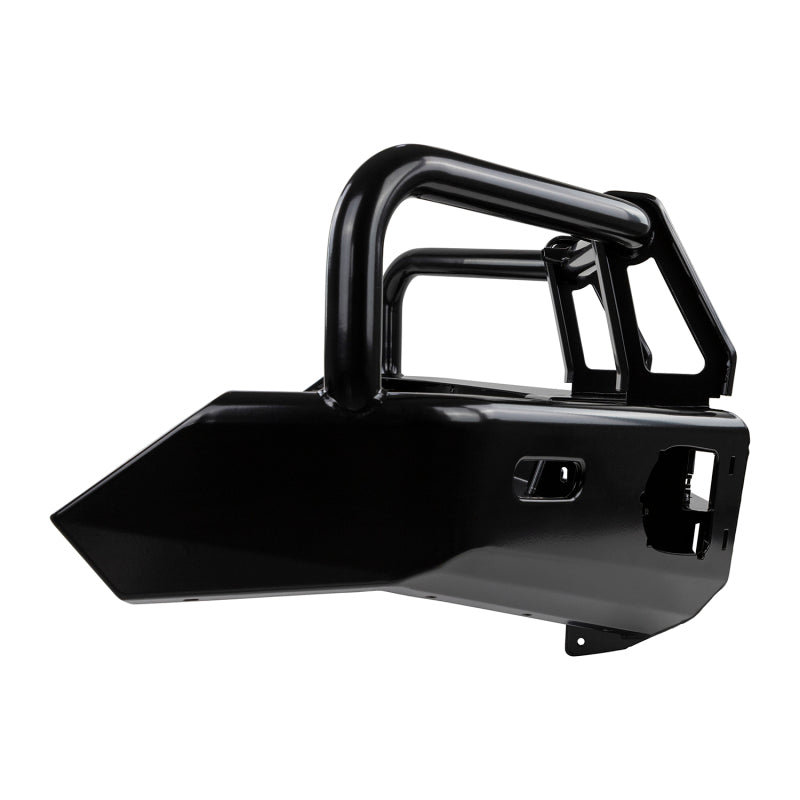

The ARB Summit is a modern interpretation of the renowned ARB Deluxe bumper, engineered to replace the factory front end of the 2015-onward wide-body Toyota Hilux. It combines a winch cradle and integrated bull bar in one air-bag-compatible structure, giving you the frontal protection and recovery capability serious touring demands without disabling the factory safety systems.
| Specification | Detail |
|---|---|
| Type | Summit combination bumper (winch + bull bar) |
| Body style | Wide body |
| Top tube | 60.3 mm outer diameter |
| Winch compatibility | Most low-mount electric winches up to 12,000 lb |
| Air bag compatible | Yes |
| Light provisions | ARB fog lights + auxiliary driving lights |
| Part number | 3414560 |
Why fit the Summit
- Air-bag-compatible mounting system engineered for the wide-body Hilux chassis.
- 60.3 mm top tubing with a 30 mm edge radius on the wings and center pan.
- Wider press-formed cover straps and two-piece polyethylene buffers.
- Twin Hi-Lift jacking points and integrated fog/driving light provisions.

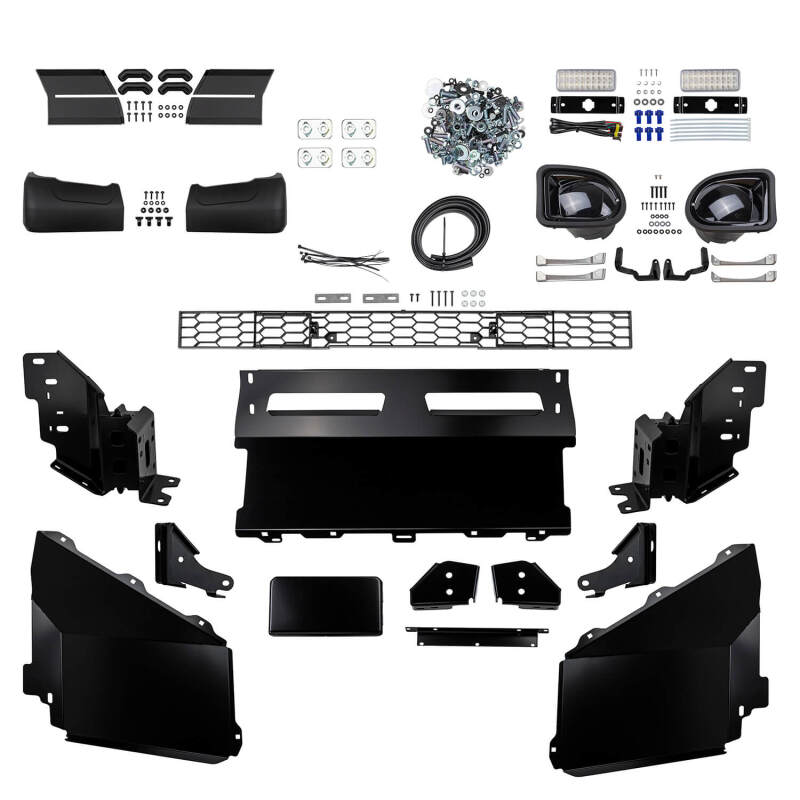

Good to know: the vehicle-specific fit kit is not included and is required for installation. A hawse fairlead spacer kit (part 3500600) is needed if you run a hawse fairlead. Confirm you have the wide-body Hilux before ordering.
This fits
- Toyota Hilux (wide body) — 2015 onward
Browse the full ARB range at Overland Kitted.
California Prop 65 Warning: this product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. See www.P65Warnings.ca.gov.
