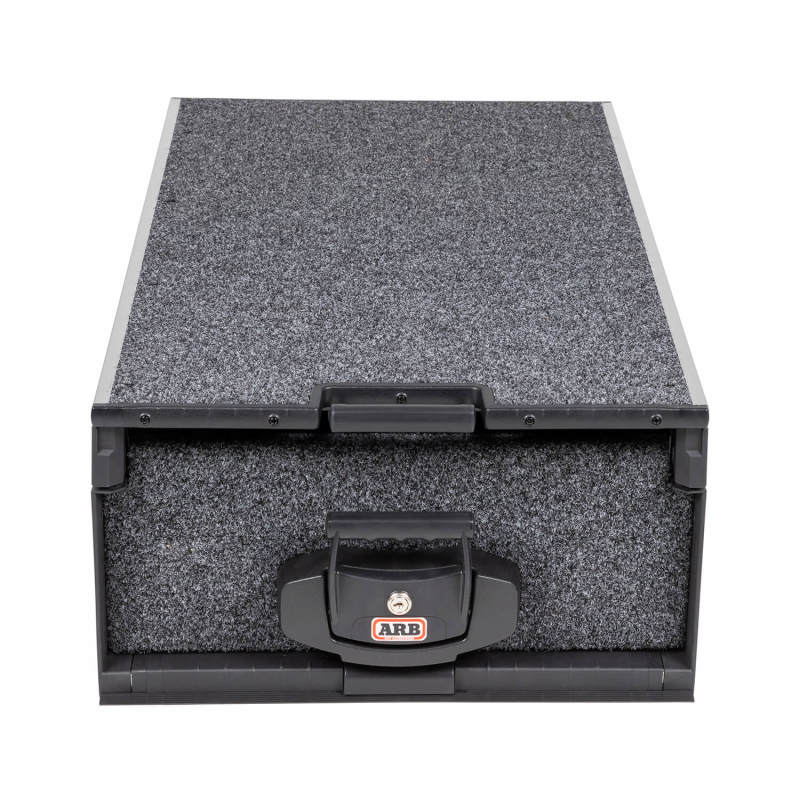

ARB Outback Solutions RDRF1045 roller drawer with roller floor — product view

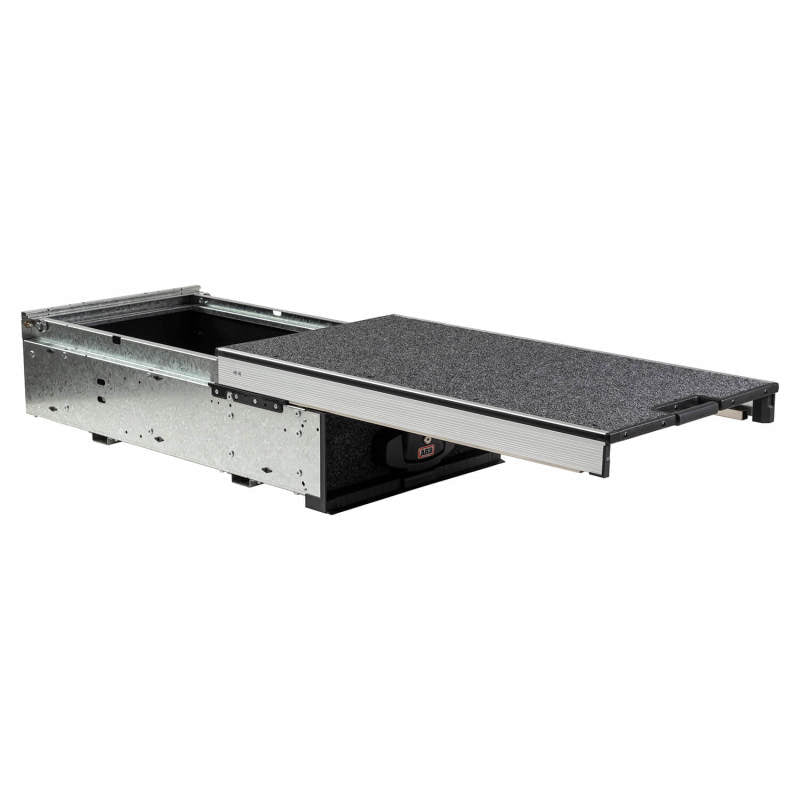

ARB RDRF1045 — roller floor slide extended above drawer

ARB RDRF1045 — anti-roll-back latch detail

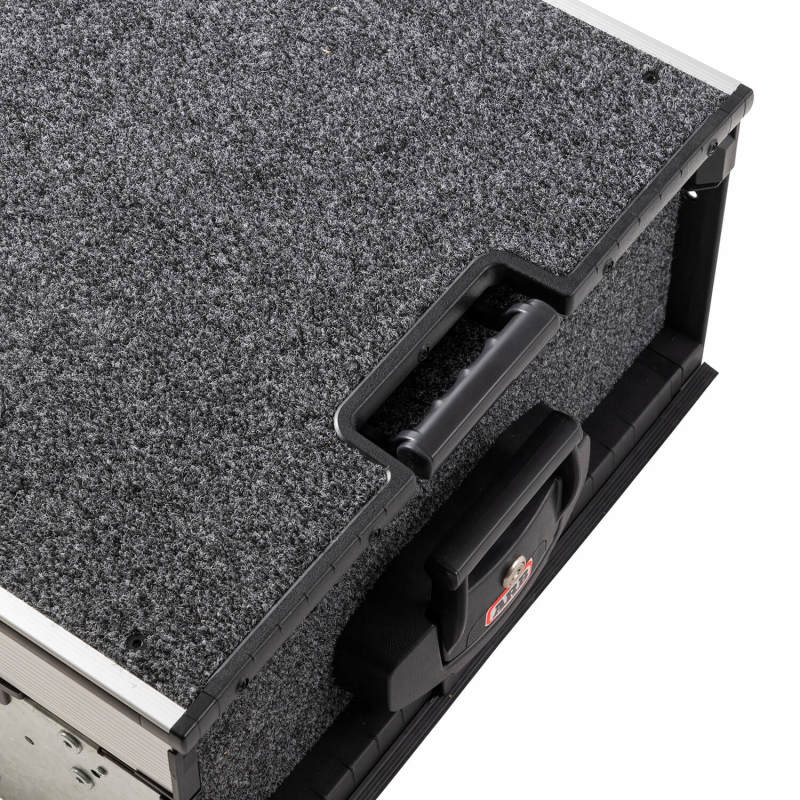

ARB RDRF1045 — carpeted flat top surface

ARB RDRF1045 — fridge mounted on roller floor

ARB RDRF1045 — reinforced guard and corner detail

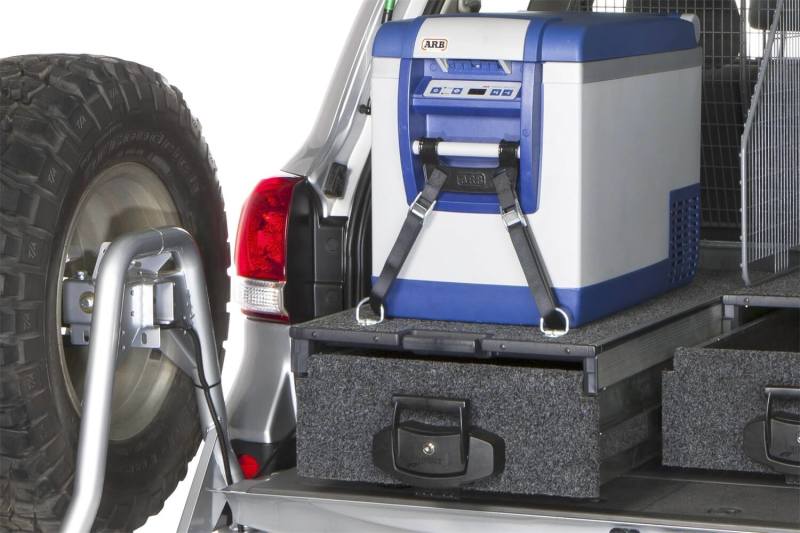

ARB RDRF1045 installed in vehicle cargo area

ARB

ARB Outback Solutions Roller Drawer with Roller Floor — Ford Ranger & Toyota Land Cruiser 200 Series (RDRF1045)

Name: ARB Outback Solutions Roller Drawer with Roller Floor — Ford Ranger & Toyota Land Cruiser 200 Series (RDRF1045)
Brand: ARB
SKU: arbRDRF1045
Price: 1399.95 USD
Availability: OutOfStock

$1,399.95

Sold out

SKU: arbRDRF1045

$149.99 Flat Rate Shipping Promotion on ARB Bumpers

Freight shipping required. Because of this item's size and weight, it ships via freight carrier rather than standard delivery.

Questions? Contact us at Hello@Adventure-Imports.com

This mid-length ARB Outback Solutions module builds a lockable, two-tier storage system: a deep roller drawer below for recovery gear and tools, and a slide-out roller floor on top to carry a fridge low and pull it out for easy access.

The RDRF1045 is sized for the Ford Ranger and 200 Series Land Cruiser, and pairs with a vehicle-specific side floor kit (sold separately) to complete a clean, bolt-in install.

Lockable roller drawer plus an integrated slide-out roller floor
Folded stainless steel bearing runners for smooth, rattle-free travel
Self-locking anti-roll-back holds each tray open on inclines
Marine-grade plywood with steel-reinforced guards, wrapped in UV-stable carpet

Trade-off: it's heavy and ships freight (LTL) — budget for the side floor kit and a hand for install.

Spec	Detail
Part Number	RDRF1045
External (L x W x H)	41in x 21in x 11in
Internal (L x W x H)	37.5in x 18in x 8.5in
Max Load	330 lb per drawer / 600 lb combined
Warranty	3-year

This fits: 2020–2021 Ford Ranger (XL, XLT, Lariat) and 2008–2021 Toyota Land Cruiser (200 Series), including the Heritage Edition.
