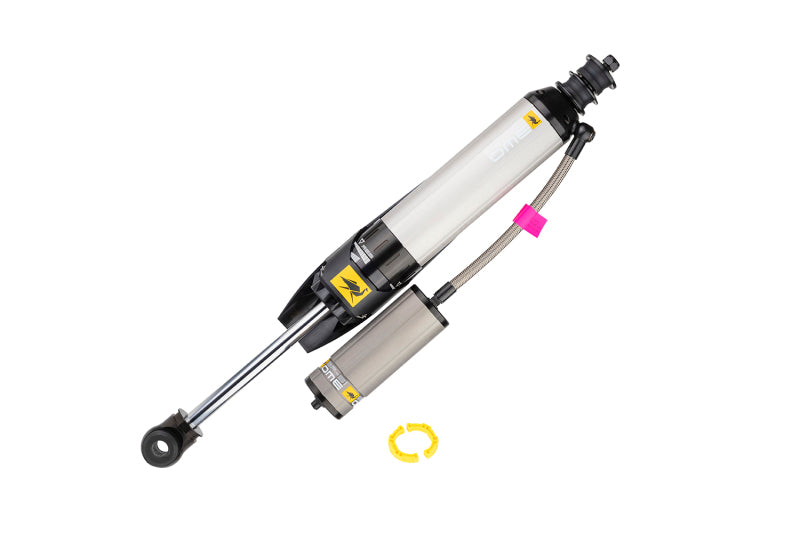

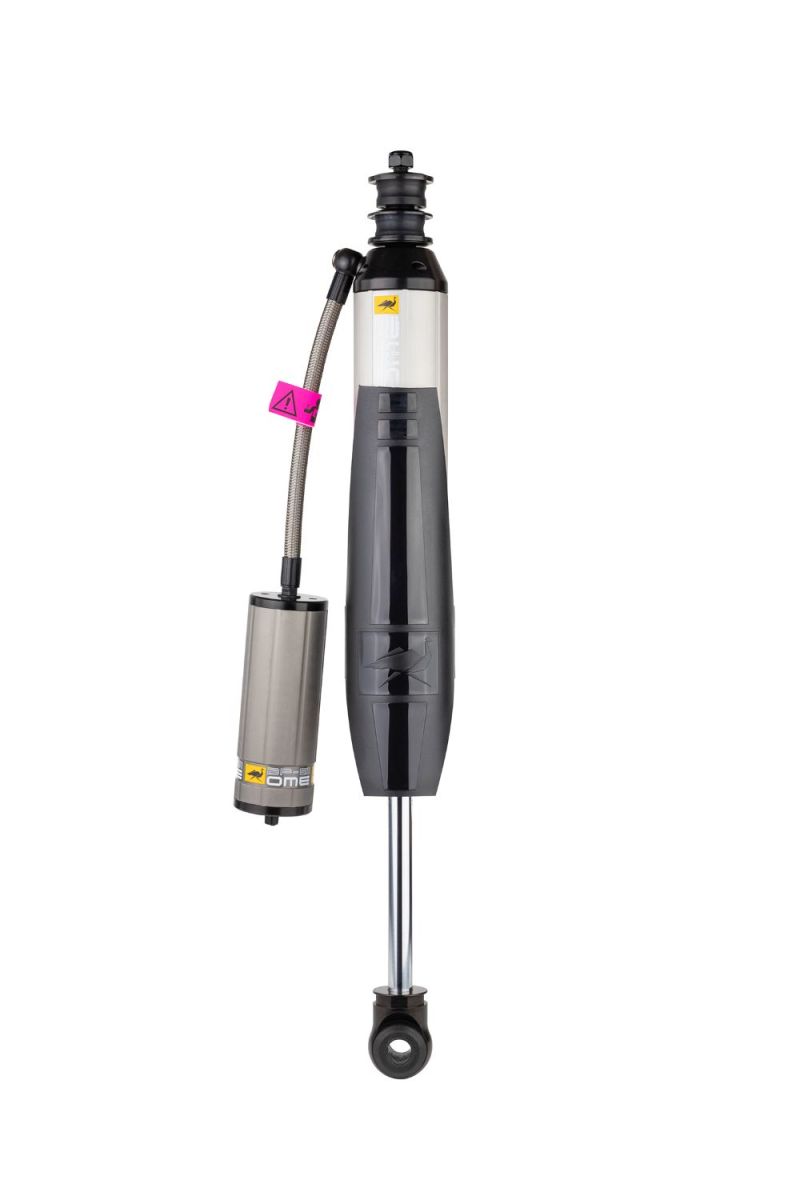

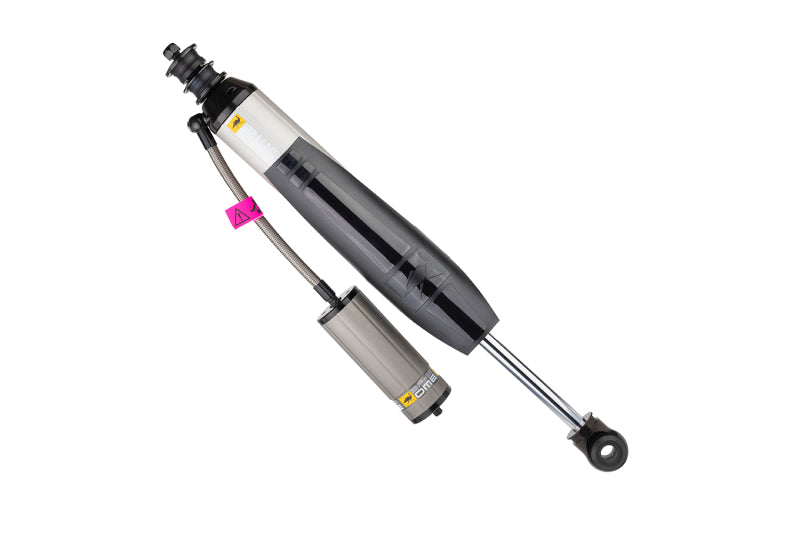

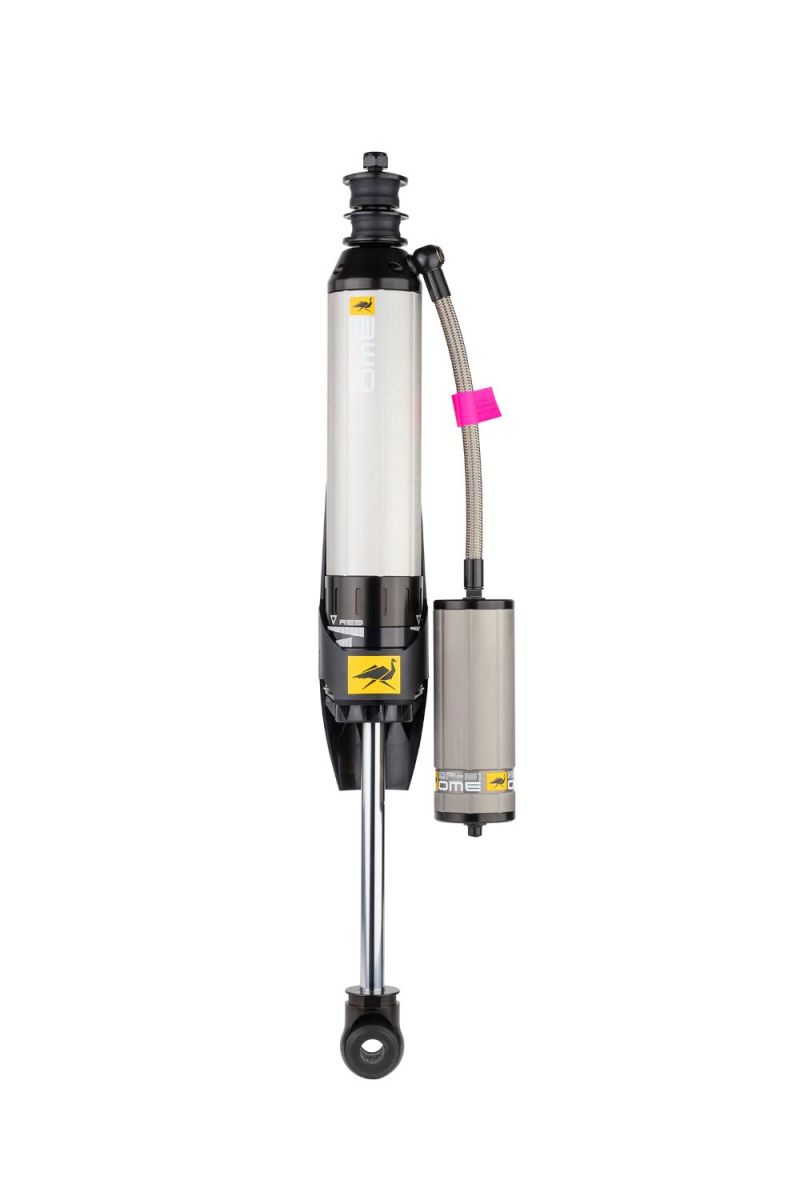

ARB Old Man Emu BP-51 Bypass Shock Absorber — Rear, 1990–1997 Toyota Land Cruiser 80 Series & Lexus LX450
Choose options
The Old Man Emu BP-51 is ARB's flagship bypass shock, built for loaded touring rigs that still need composed control on corrugations and rock. This is the standard-length rear unit for the 80 Series Land Cruiser platform.
Rather than a single fixed damping rate, the BP-51 uses position-sensitive bypass valving so damping builds through the stroke, and both rebound and compression adjust on-car by hand — tune it to your load and the terrain.
- Position-sensitive bypass damping

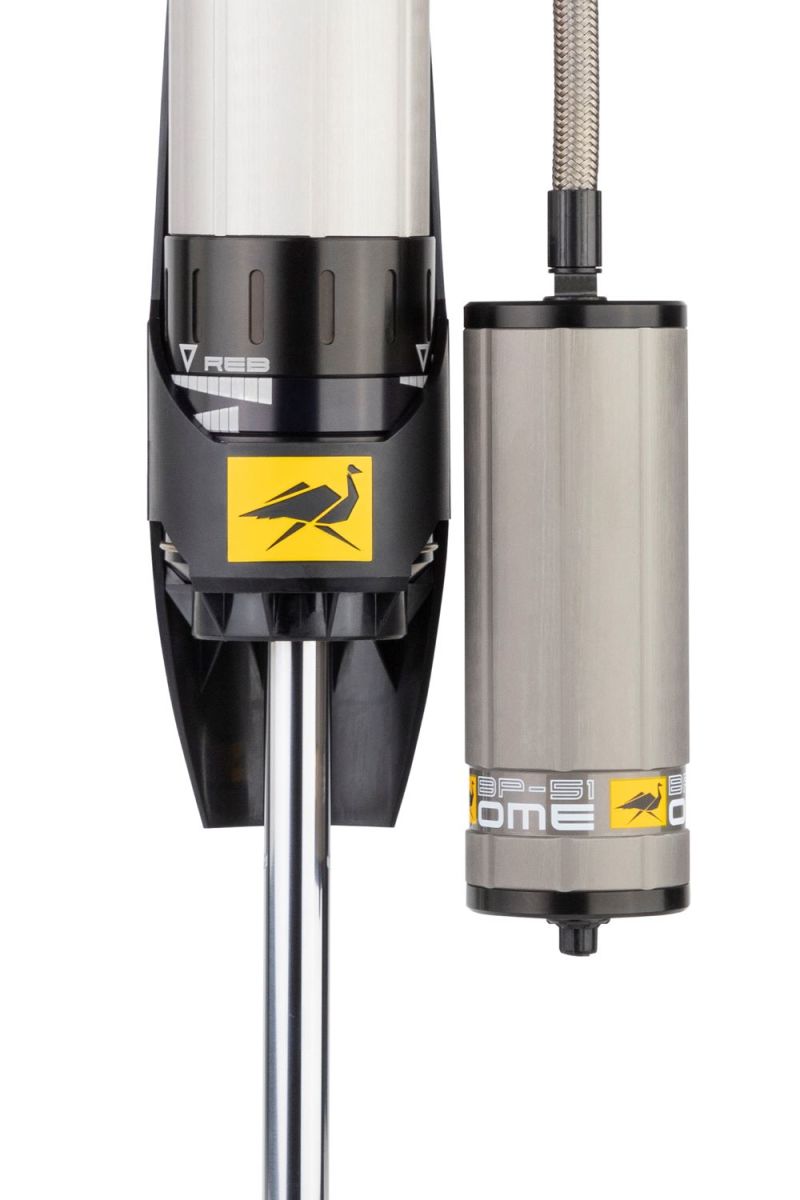

- Externally adjustable rebound & compression
- Monotube, hard-anodised bore for heat control
- Standard rear length (see the "long" variant for taller lifts)
Trade-off: premium pricing, and it is engineered to run as part of a complete OME BP-51 system rather than mixed with other components.
| Spec | Detail |
|---|---|
| Type | BP-51 position-sensitive bypass shock (internal bypass, shim-controlled) |
| Bore | 51mm |
| Position | Rear (standard length) |
| Adjustability | On-car adjustable compression & rebound |
| Reservoir | Remote reservoir |
| Construction | 6061-T6 aluminum body & reservoir, Type 3 hard anodized (40 micron); polyethylene shaft guard; rubber bushings |
| Length (open / closed) | 545mm / 388mm |
| Warranty | 3 years |
| Part number | BP5160013 |
| Sold as | Single shock |
This fits
| Make / Model | Years |
|---|---|
| Toyota Land Cruiser (80 Series) | 1990–1997 |
| Lexus LX450 | 1996–1997 |
