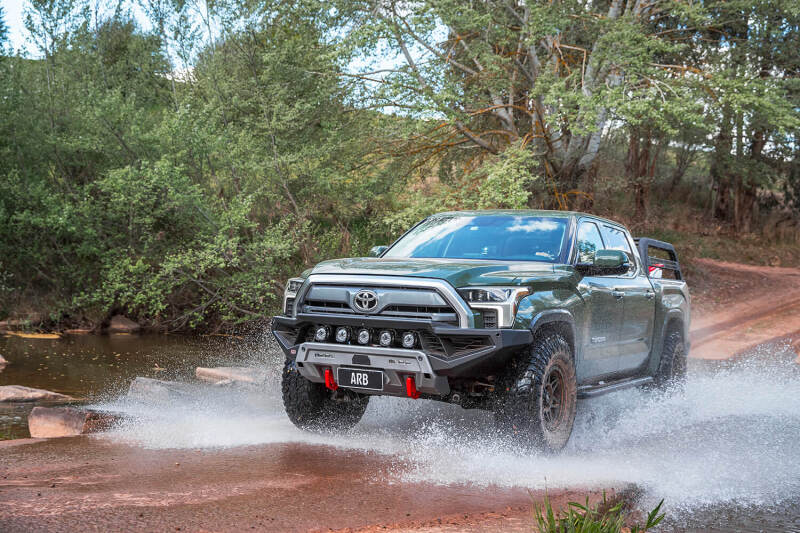

The ARB Zenith Front Bumper Bundle bridges function and style for the 2022-2025 Toyota Tundra, giving you a complete, winch-ready front end in one part number. This bundle pairs the low-profile Zenith bar with its integrated bash plates and the vehicle-specific fitting kit, so everything needed to bolt it on is included.

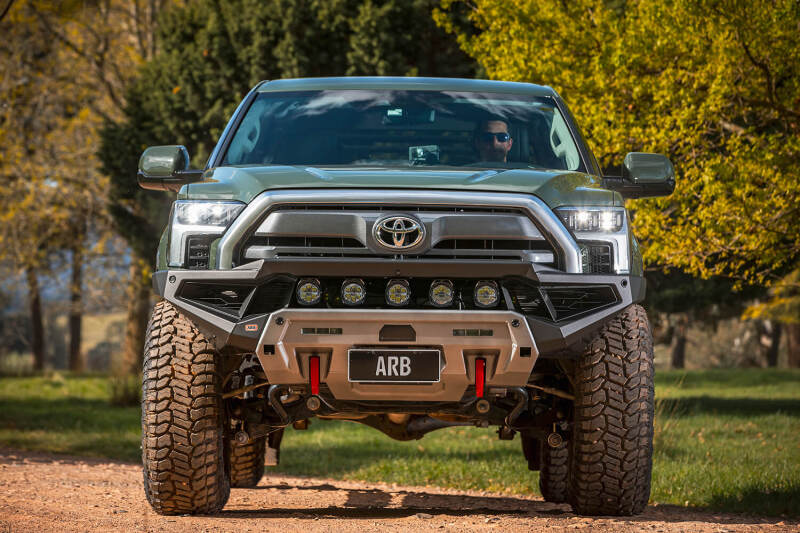

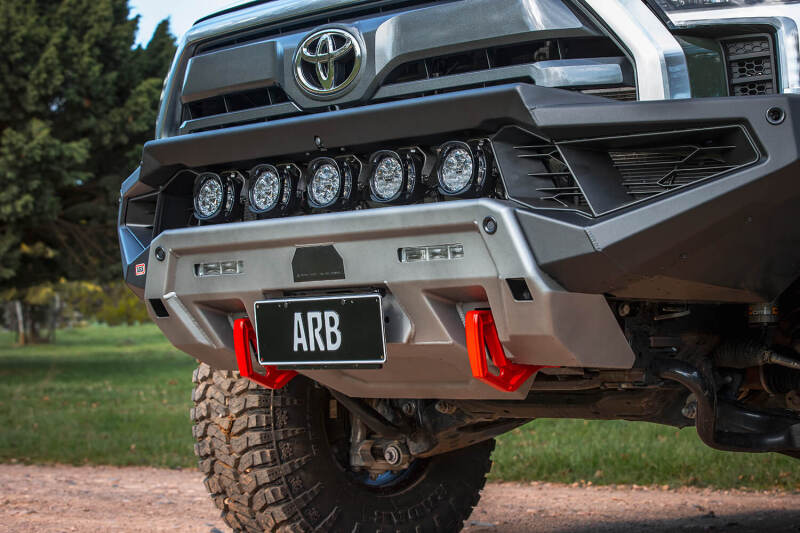

Laser-cut and formed from 3mm steel, the Zenith is finished with ecoat, metal-prep primer and satin black powder coat for serious corrosion resistance. Twin forged recovery points are each rated to 17,637 lb (8T) and shaped to protect soft shackles, while a built-in cradle accepts most low-mount winches up to 12,000 lb. A removable center grille opens the door to up to seven 4in pods or a 30in light bar. The trade-off is weight and freight cost — this is a full 3mm steel replacement bar, so plan for professional installation and LTL delivery.
| Specification | Detail |
|---|---|
| Material | 3mm laser-cut and formed steel |
| Finish | Ecoat + metal-prep primer + satin black powder coat |

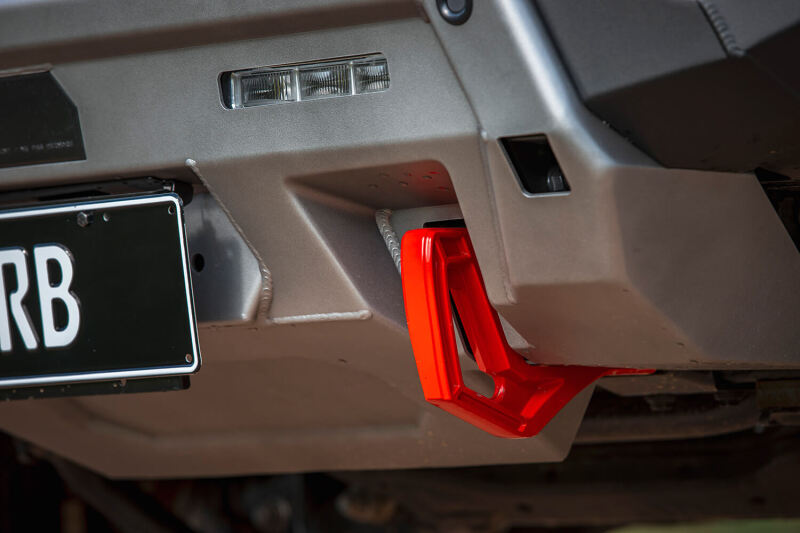

| Recovery points | Twin forged, 17,637 lb (8T) each |
| Winch capacity | Most low-mount winches up to 12,000 lb |
| Light provisions | Up to seven 4in pods or a 30in light bar (removable center grille) |

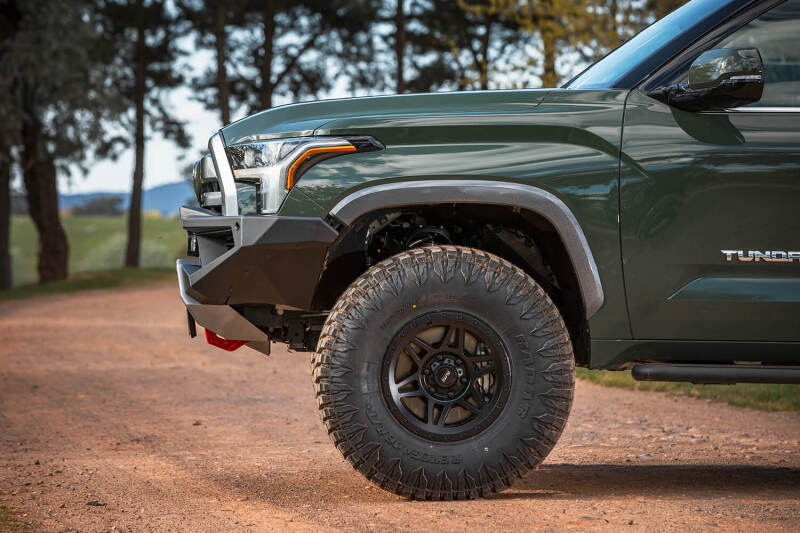

| Underbody protection | Integrated forged center + side bash plates (included) |
| Sensor / camera / ADAS | Compatible with factory Radar ADAS, parking sensors and airbag systems |
| Fog lights | Compatible with the OE fog lights (on applicable models) |
| Included | Zenith bar, bash plates, vehicle-specific fitting kit |
| Part number | 3415260B |
This bundle fits: 2022-2025 Toyota Tundra — SR, SR5, Limited, Platinum, 1794 Edition, Capstone.
Ships LTL freight (oversized). California Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Explore more ARB bumpers and ARB gear.
