Freedom Coast

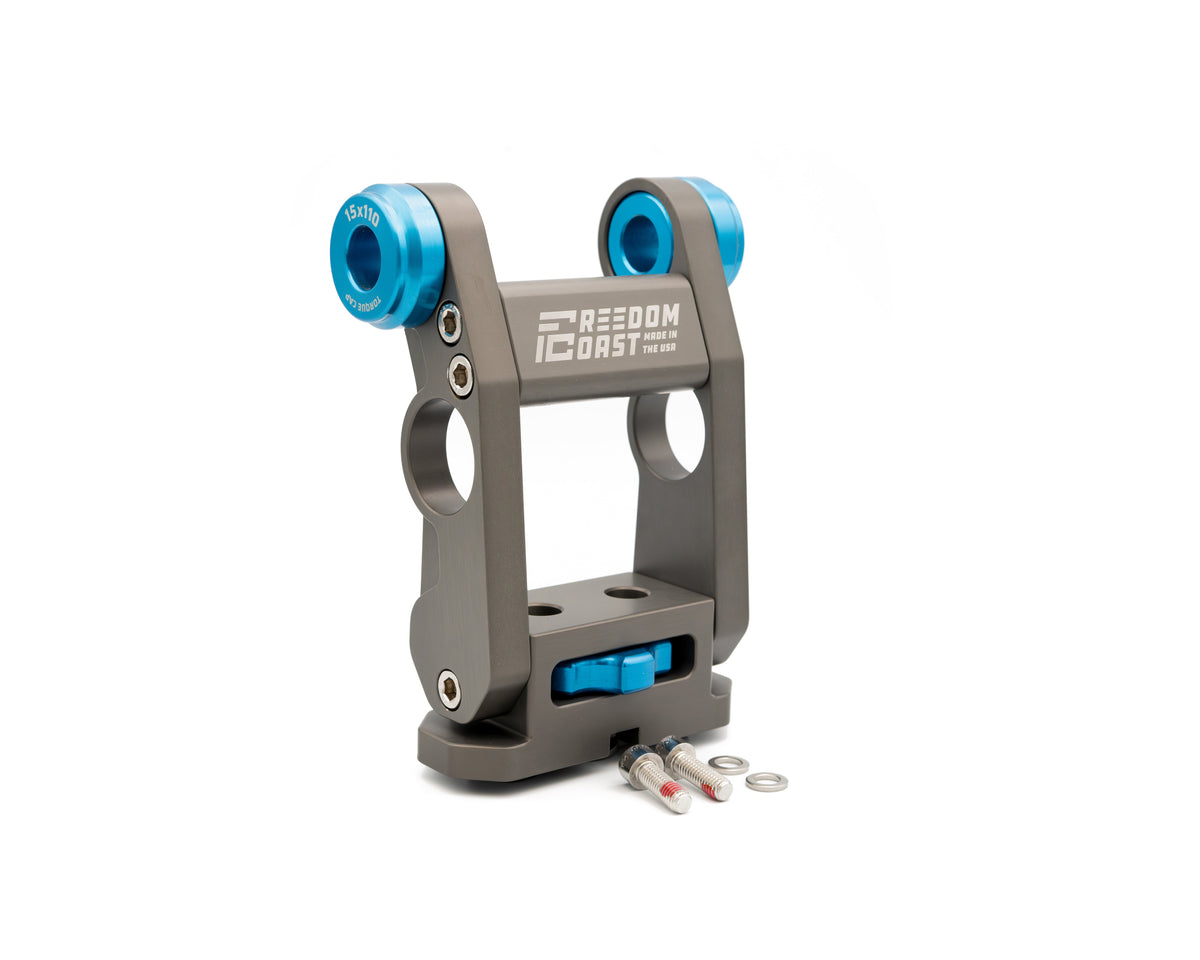

Freedom Coast Adjustable Fork Mount
Choose options
The Freedom Coast Adjustable Fork Mount is the brand's most adjustable bike mount, built for van builds, camper shells and short truck beds. The arm rotates up to 180 degrees and sets in several positions, which is what lets bikes sit closer together.
It clips to its anchor without tools: L-track (including Smartfloor, Rivian crossbars and Thule WingBar), Toyota's Tundra and Tacoma deck rail, or Nissan Utili-Track. The base also has two countersunk bolt-down holes for M6 socket head screws, for a slide-out tray or a plain panel. Axle adapters swap by hand, and one set you choose comes with the mount.
For an exterior rack, Freedom Coast recommends its bolt-down base instead of the track anchors. Extra adapters, straps and rail are in the Freedom Coast collection, along with more vehicle kit.
Specifications
| Rotation | Up to 180 degrees |
|---|---|
| Axle height range | About 1.1 to 4.9 in, by arm position |
| Axle to pivot | 3.74 in (95 mm) |

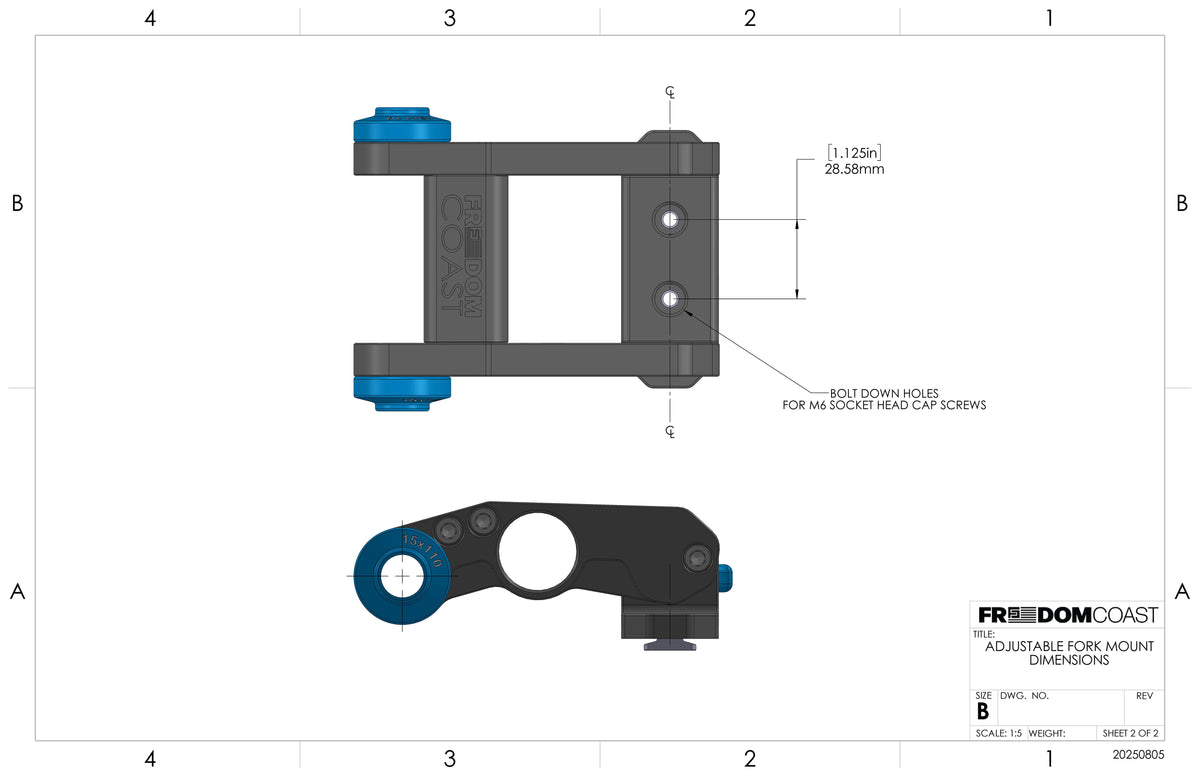

| Bolt-down holes | 2, for M6 socket head cap screws, 1.125 in apart |
| Anchors | L-track / Freedom Track, Toyota OE bed rail, Nissan Utili-Track |
| Adapters | 1 set included, your choice of 10 sizes |
