Heavy Metal Off-Road
GMC Canyon 2015-2022 ROCK-IT Bed Rack by Heavy Metal Off-Road
Choose options

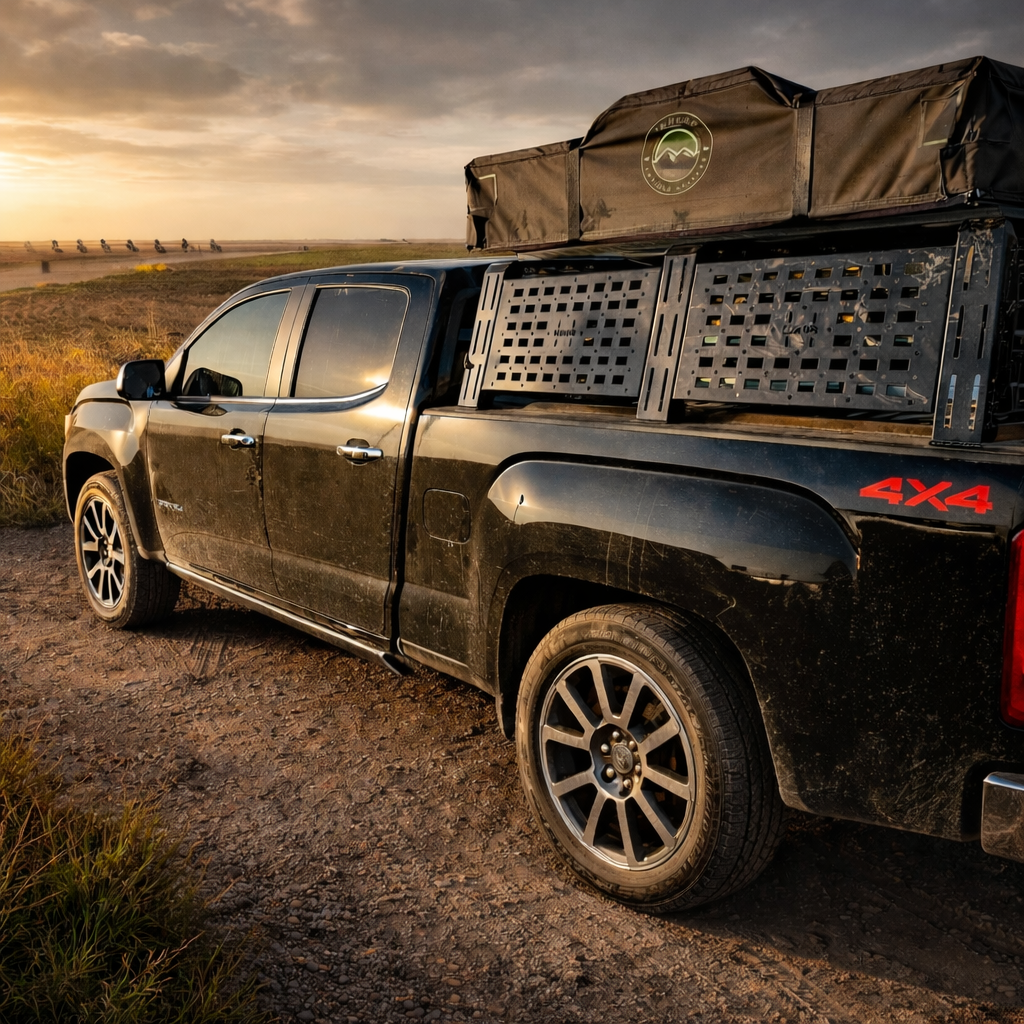

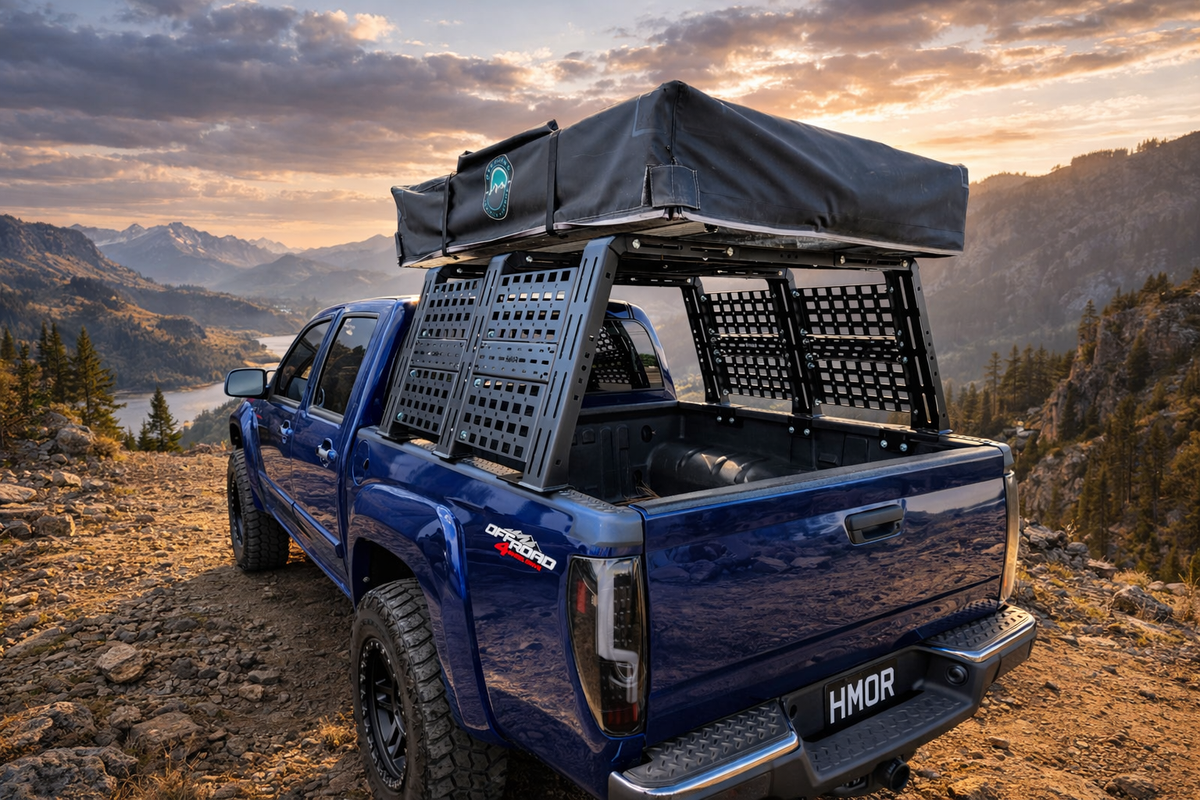

The Heavy Metal Off-Road ROCK-IT Rack for the 2015-2022 GMC Canyon is a modular steel bed rack for the second gen midsize GM truck. It takes a rooftop tent and side-mounted gear while the bed holds coolers or a dirt bike.

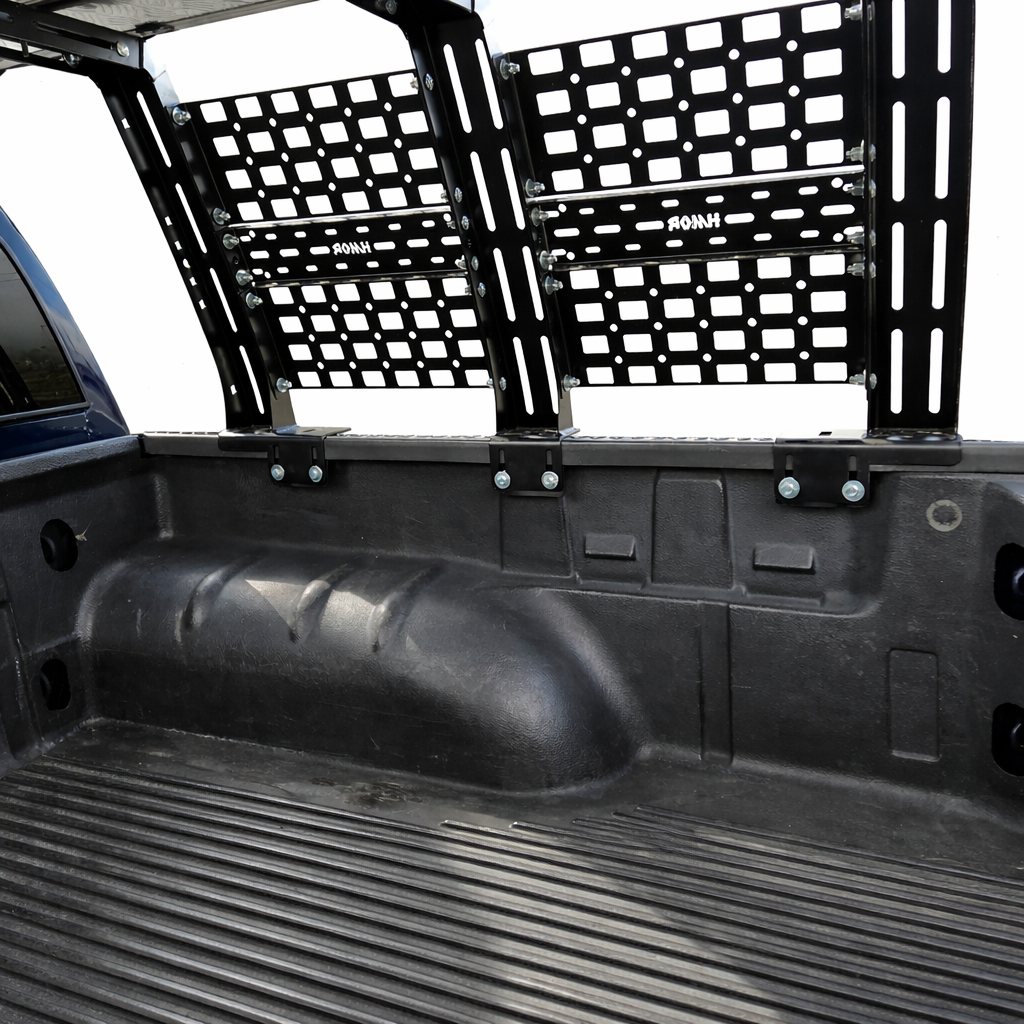

The frame is 12-gauge formed steel, finished in black powder coat, with welded reinforcement at the pillar corners where racks tend to flex. Tent feet and accessories bolt through the slotted crossbars and runners, MOLLE panels hang on the sides, and wiring can pass through the uprights. You set the width as you assemble it. HMOR's rating is 1,500 lb, evenly distributed, parked or in smooth motion.
The 5 ft bed takes the 45 in rack and the 6 ft bed the 60 in rack. Mount with HMOR's no-drill Non-Track feet or Retrax XR and Roll-N-Lock XT rails. Confirm bed length and mount before ordering. Add-ons like grab bars and bike mounts are in bed rack accessories, and more for this truck is in Colorado / Canyon 2015-2022.
Specifications
| Fitment | GMC Canyon 2015-2022 |
|---|---|
| Rack heights | 12 in, 17 in, 23 in |
| Bed / rack length | 5 ft bed / 45 in rack; 6 ft bed / 60 in rack |
| Mounting options | HMOR Non-Track (no drill), Retrax XR / Roll-N-Lock XT T-slot rails |
| Construction | 12-gauge formed steel, welded corner reinforcement |
| Load rating (even load) | 1,500 lb static and smooth-motion dynamic |
| Finish | Black powder coat |
In the box
- All rack components and MOLLE panels
- Rack-to-vehicle mounting hardware for the selected system
- Assembly hardware
