Ford F-250/F-350 Super Duty 2011-2016 ROCK-IT Bed Rack by Heavy Metal Off-Road
Choose options

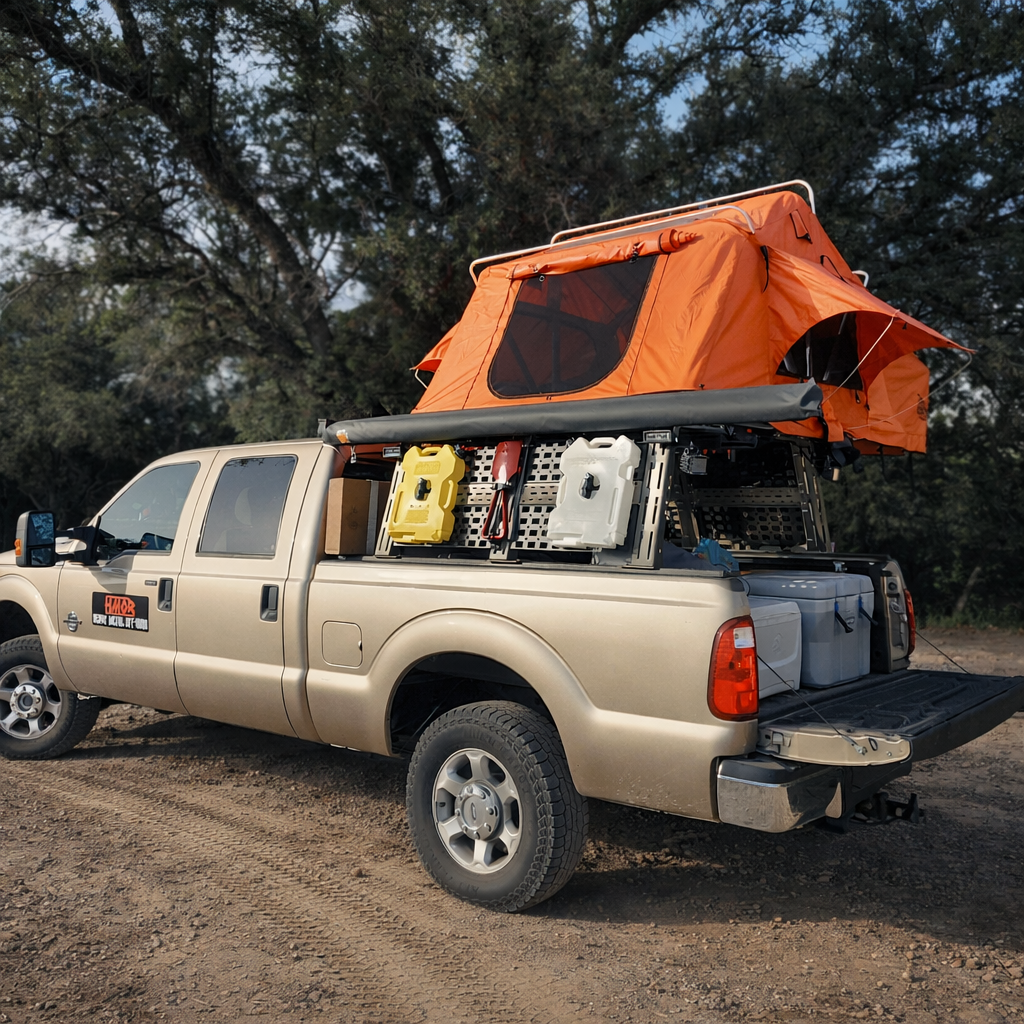

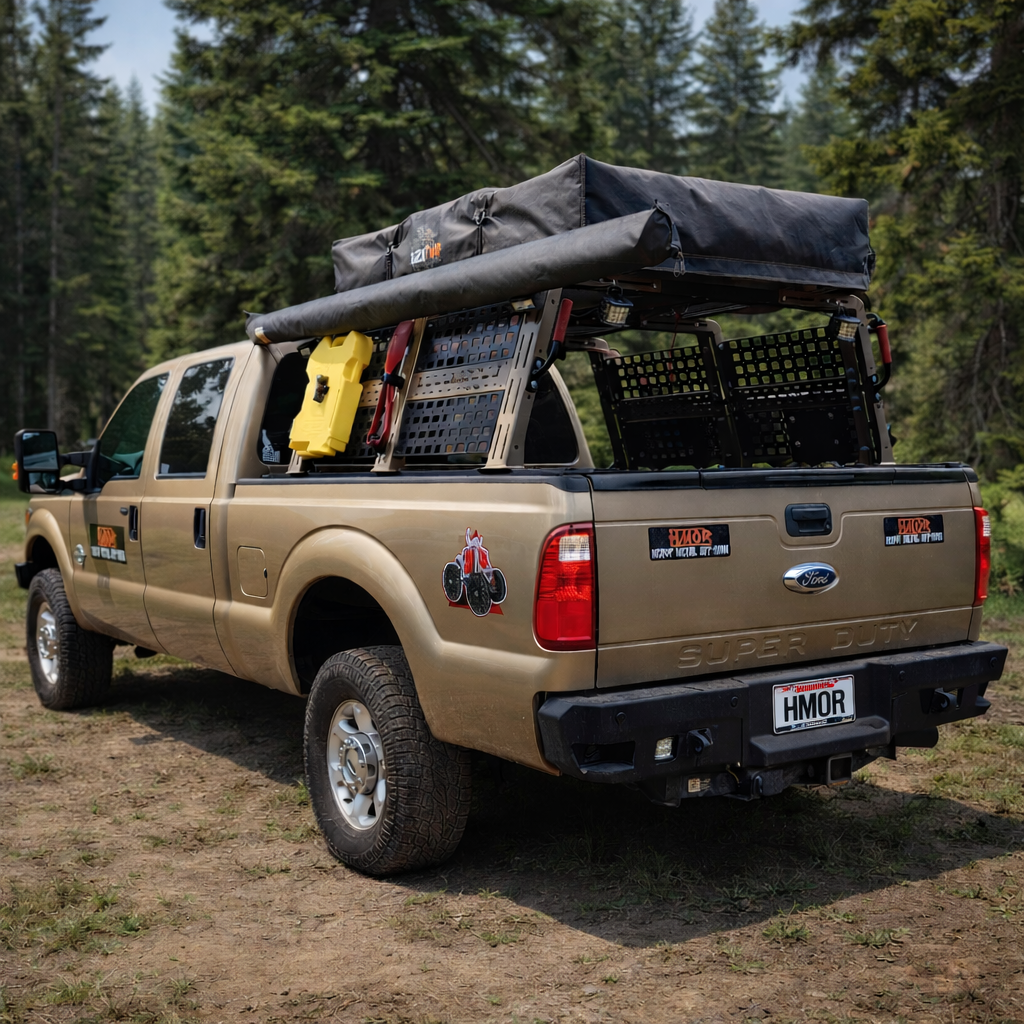

The Heavy Metal Off-Road ROCK-IT Rack for the 2011-2016 Ford F-250 and F-350 gives an older Super Duty a modern modular rack. It is a good base for a tow-rig camper build: tent up top, fuel and water on the side panels, and the bed open for gear.

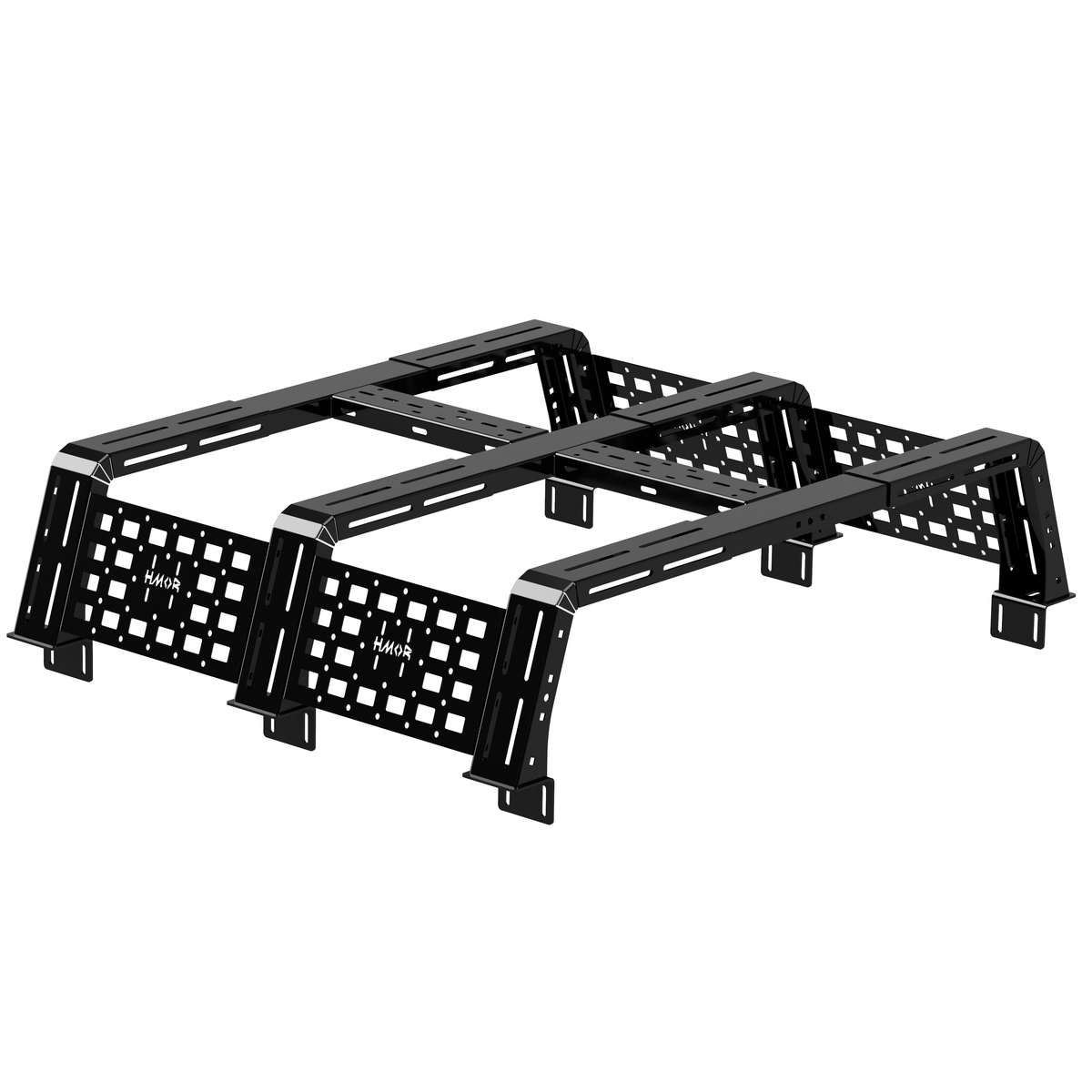

HMOR forms the major parts from 12-gauge steel and welds the corner reinforcements continuously to resist twisting. Slotted crossbars and runners mean many tents bolt straight through without clamps, and the included MOLLE panels and wiring pass-throughs handle lights and gear. It comes powder-coated black, width adjusts at assembly, and it carries 1,500 lb with the load spread evenly.
This version is the 60 in rack for the 6.5 ft bed. Mount it with HMOR's no-drill Non-Track feet or Retrax XR and Roll-N-Lock XT rails. Long-bed trucks are not covered here. Add-ons like grab bars and bike mounts are in bed rack accessories.
Specifications
| Fitment | Ford F-250/F-350 Super Duty 2011-2016 |
|---|---|

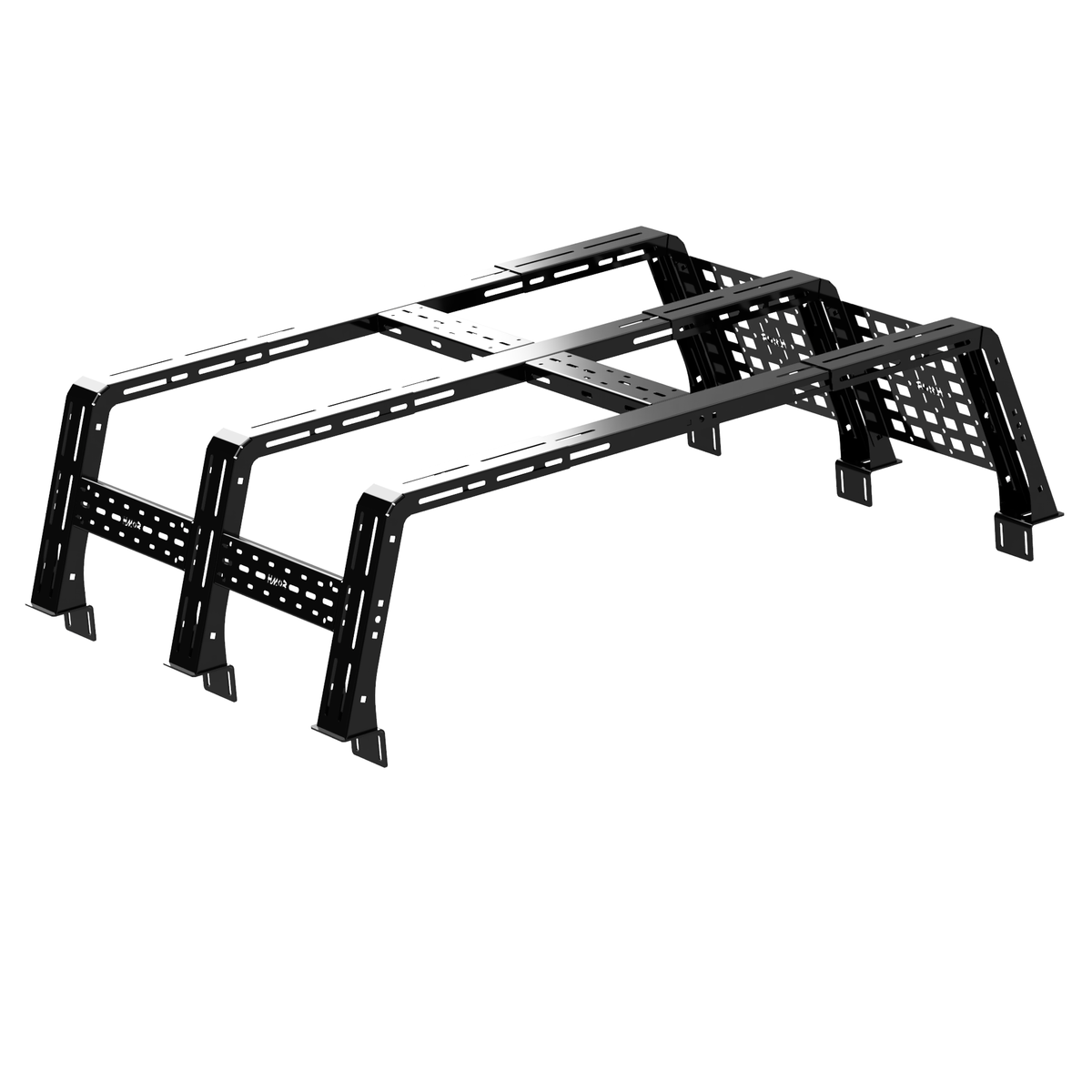

| Rack heights | 12 in, 17 in, 23 in |
| Bed / rack length | 6.5 ft bed / 60 in rack |
| Mounting options | HMOR Non-Track (no drill), Retrax XR / Roll-N-Lock XT T-slot rails |
| Construction | 12-gauge formed steel, welded corner reinforcement |
| Load rating (even load) | 1,500 lb static and smooth-motion dynamic |
| Finish | Black powder coat |
In the box
- All rack components and MOLLE panels
- Rack-to-vehicle mounting hardware for the selected system
- Assembly hardware
