Heavy Metal Off-Road
Toyota Tundra 2007-2026 Bed Bars by Heavy Metal Off-Road
Choose options

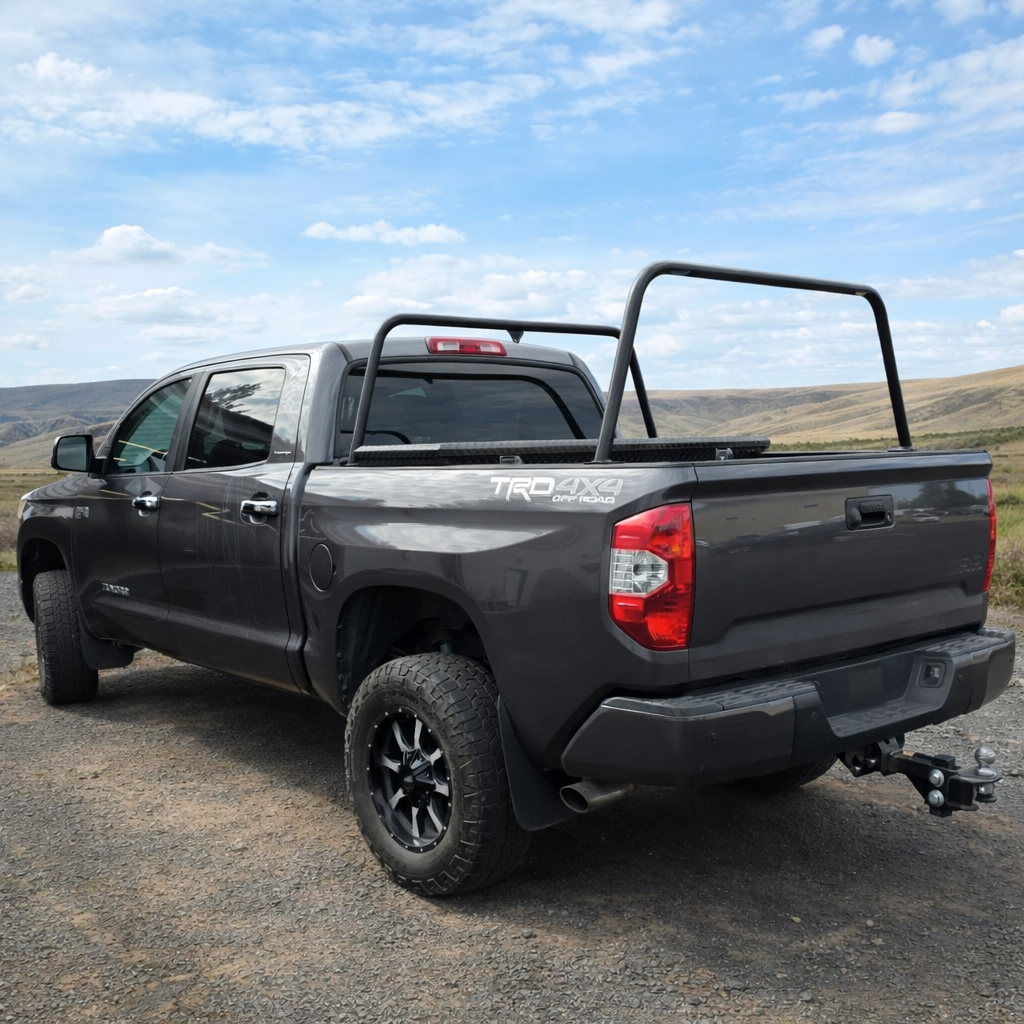

Heavy Metal Off-Road Bed Bars for the 2007-2026 Toyota Tundra cover both the 2nd and 3rd gen trucks with one listing. Full-size beds make long loads easy, and the bars hold a tent, ladder or lumber up high while the bed keeps doing truck work below.

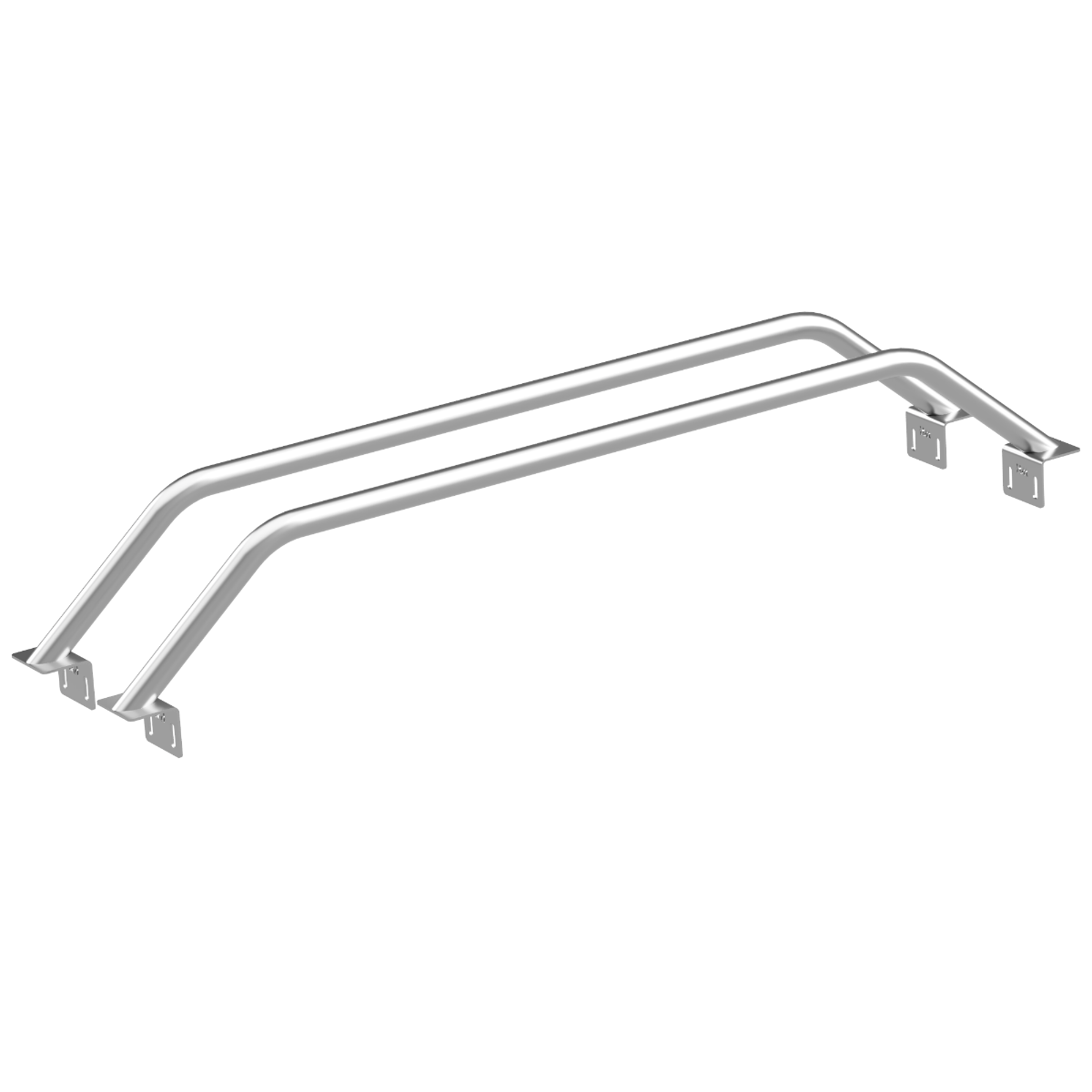

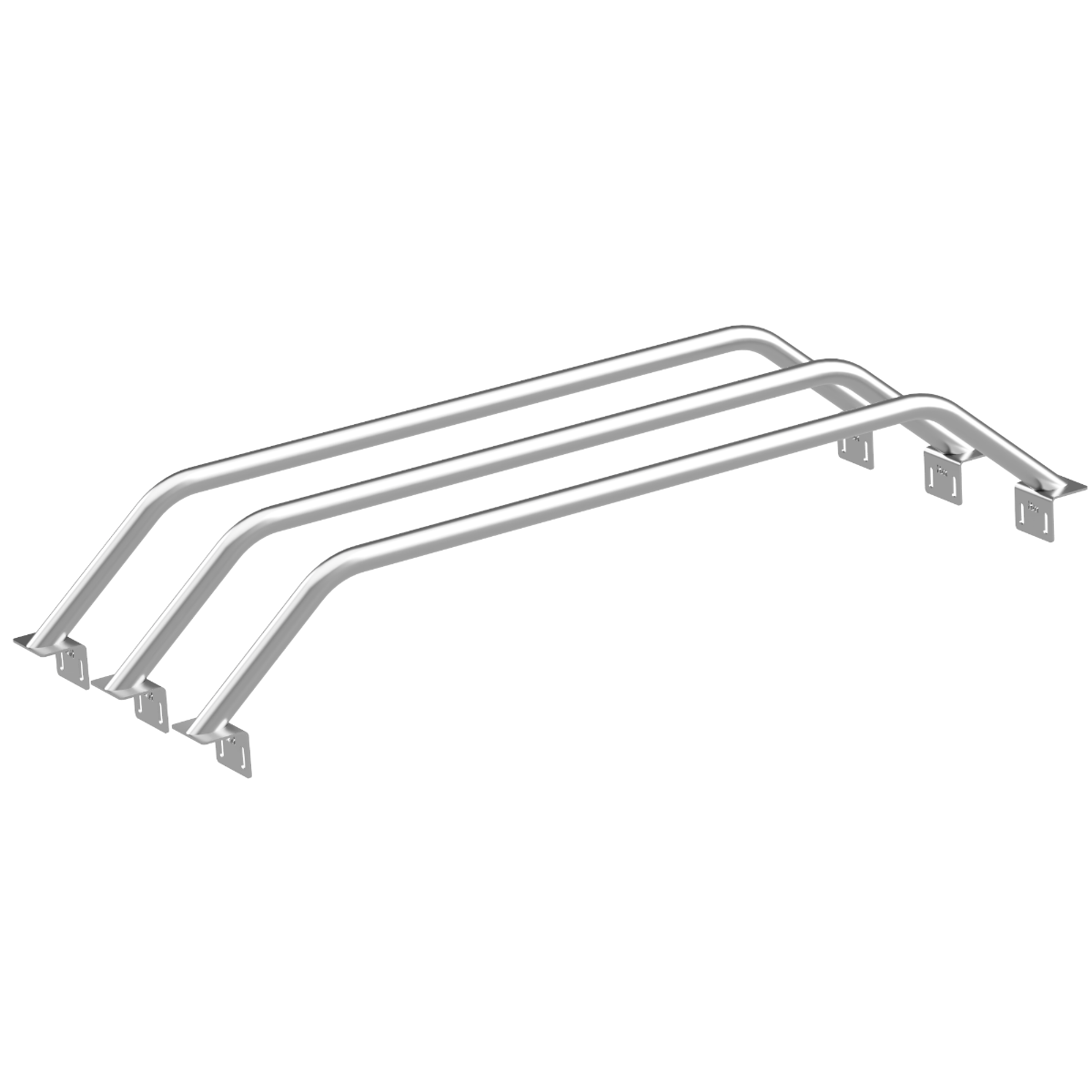

Each bar is bent from 1.75 in OD, 11-gauge HREW steel tube and lands on vehicle-specific feet. Order a single bar, a set of two or a set of three. HMOR rates the two-bar set at 500 lb and the three-bar set at 750 lb, static and in smooth-motion driving, with the load spread evenly; it publishes no rating for a single bar, and the truck's own payload limit still applies. Where the Tundra has the factory Deck Rail, the feet slide in on T-slot nuts; other beds use HMOR's no-drill pinch clamp. The 23 in Softopper height runs a wider, longer foot. One 9/16 in wrench does the job.
Confirm whether your bed has the Deck Rail before you choose a mounting option. These bars are supplied in raw steel, HMOR's standard finish, so plan to paint or coat them before they see weather. Pair them with HMOR's bed rack accessories, such as utility crossmembers or bolt-on tube mounts, or browse more truck bed racks. Shop by truck in Tundra 3rd Gen.
Specifications
| Fitment | Toyota Tundra 2007-2026 |
|---|---|
| Tube | 1.75 in OD, 11-gauge HREW steel |
| Heights | 9 in, 19 in, 23 in; Softopper 23 in |
| Configurations | Single bar, set of 2, set of 3 |
| Load rating (even load) | Set of 2: 500 lb; set of 3: 750 lb (static and smooth-motion dynamic) |
| Mounting | Toyota Deck Rail System (T-slot nuts) or HMOR Non-Track no-drill clamp |
| Hardware | 3/8 in Grade 5 bolts, washers, T-slot nuts, nylon lock nuts (by application) |
| Finish | Raw steel |
| Tools | 9/16 in wrench or socket |
