Toyota Tacoma 2005-2023 Bed Bars by Heavy Metal Off-Road

Heavy Metal Off-Road Bed Bars for the 2005-2023 Toyota Tacoma are a round-tube overhead system for 2nd and 3rd gen trucks. They carry a rooftop tent, kayaks or lumber above the bed while leaving the bed floor and a tonneau or Softopper usable underneath, which is the reason many Tacoma owners pick bars over a full cage.

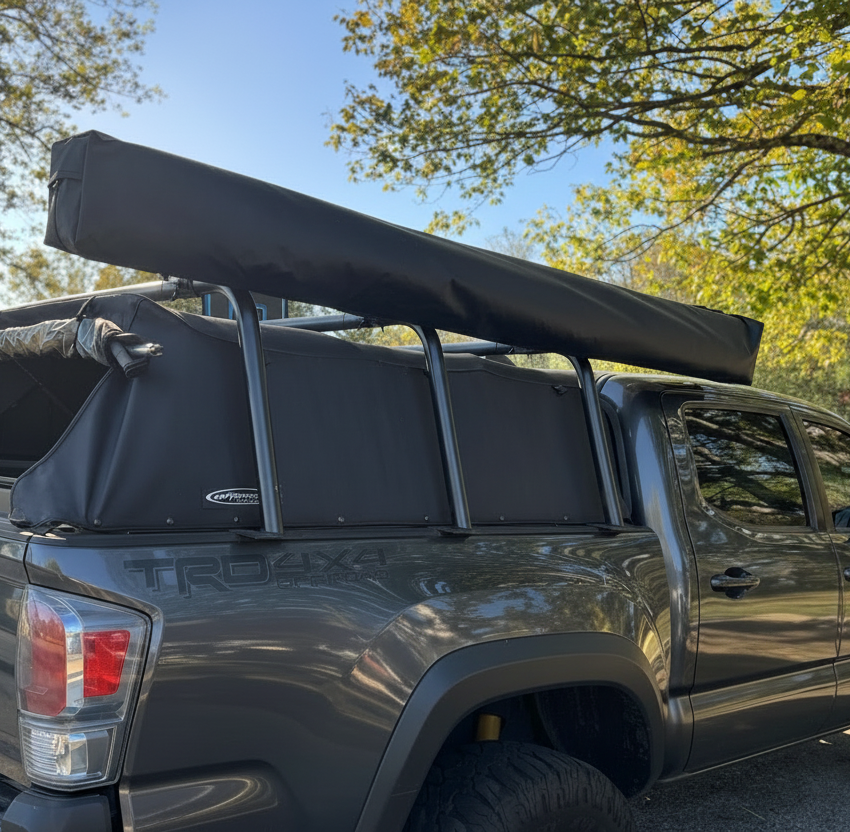

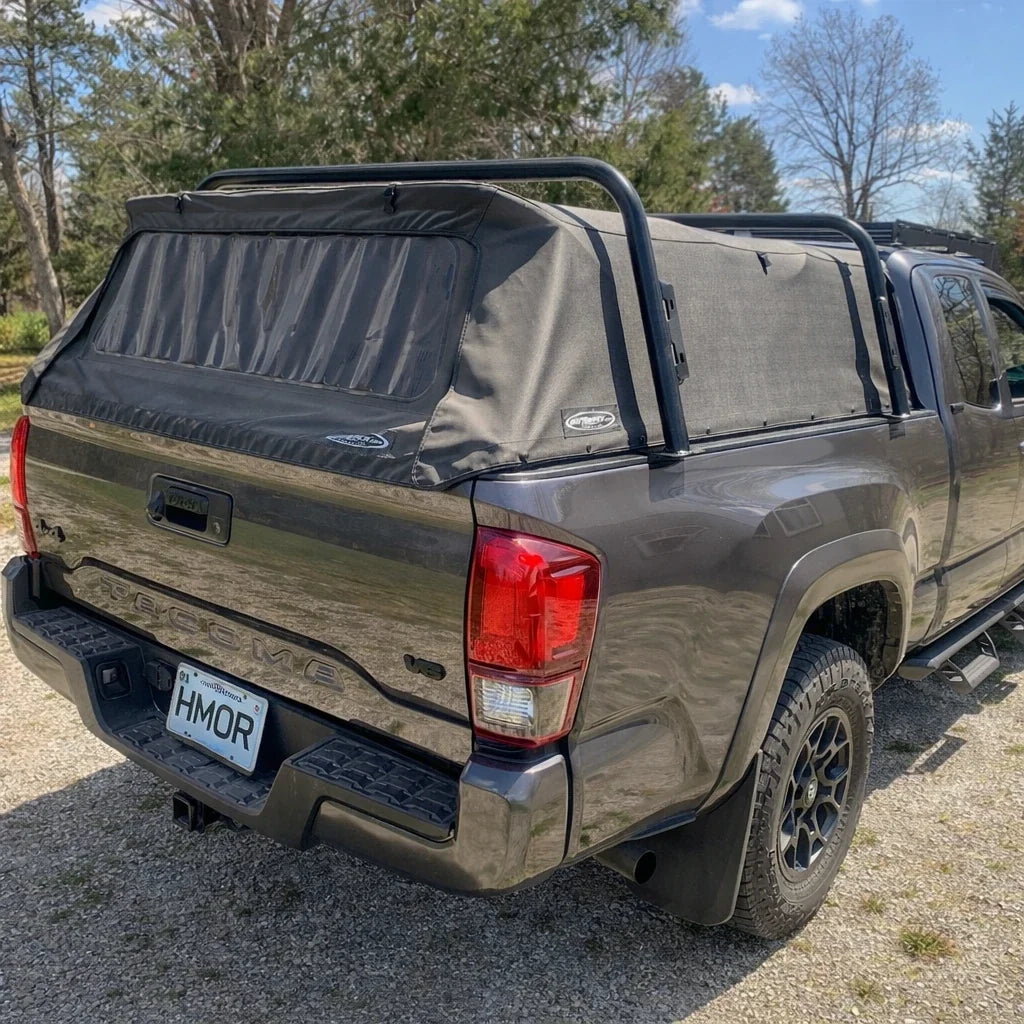

Each bar is bent from 1.75 in OD, 11-gauge HREW steel tube and lands on vehicle-specific feet. Order a single bar, a set of two or a set of three. HMOR rates the two-bar set at 500 lb and the three-bar set at 750 lb, static and in smooth-motion driving, with the load spread evenly; it publishes no rating for a single bar, and the truck's own payload limit still applies. On trucks with the factory Deck Rail, the feet bolt into the rail with T-slot nuts; trucks without it use HMOR's no-drill pinch clamp. A dedicated 21 in Softopper height uses a wider, longer foot, and the whole install runs on one 9/16 in wrench.

Choose the Deck Rail or Non-Track option to match your bed, since the feet differ. These bars are supplied in raw steel, HMOR's standard finish, so plan to paint or coat them before they see weather. Pair them with HMOR's bed rack accessories, such as utility crossmembers or bolt-on tube mounts, or browse more truck bed racks. See everything for the Toyota Tacoma.
