INEOS Grenadier Tire Relocation Bracket | Leitner Designs

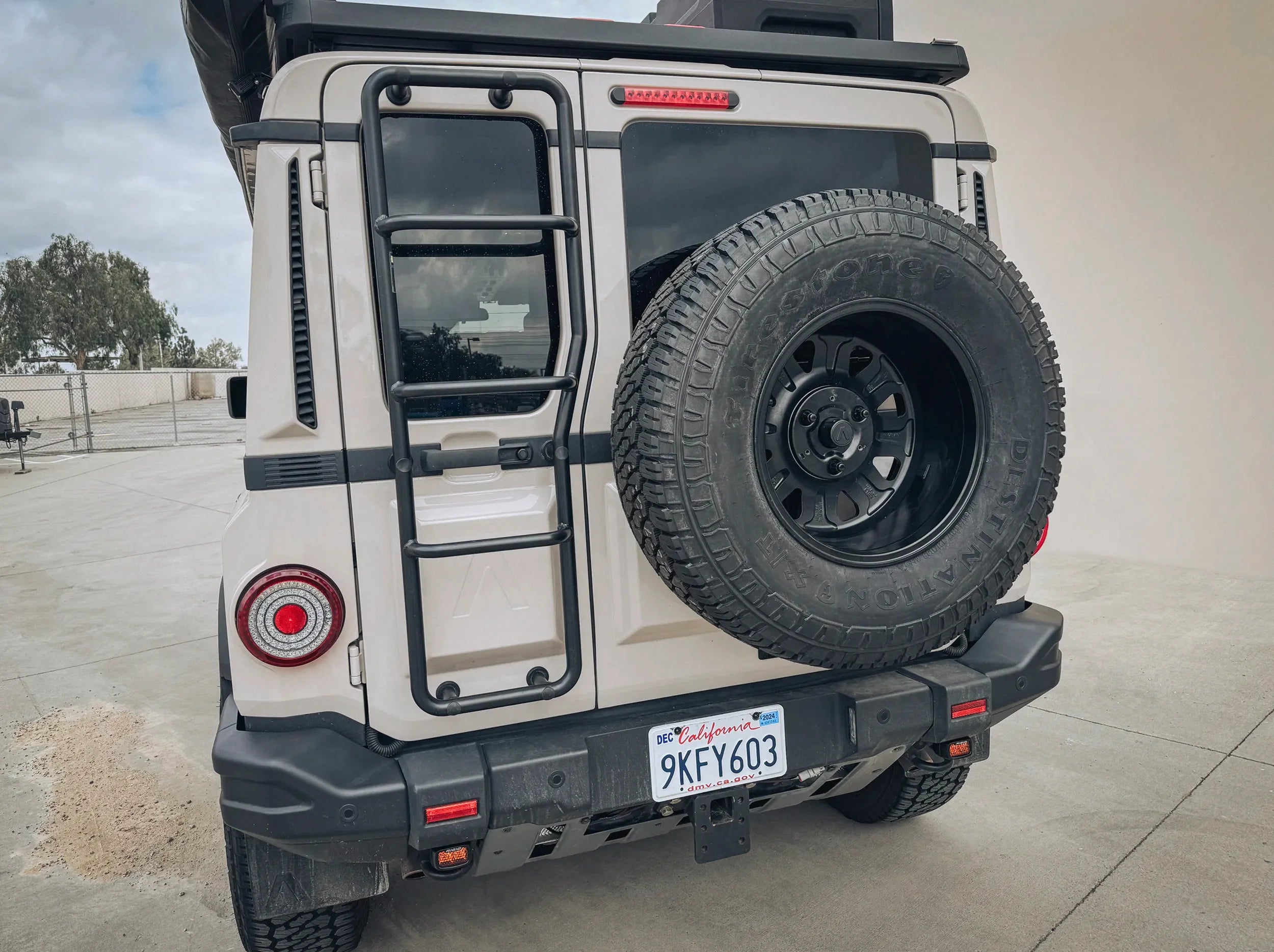

Running 285/75 R17s on your Grenadier? Bigger? The stock spare tire position becomes a problem fast — it blocks the rear door on larger tires, interferes with the windshield wiper if you've gone to a +30mm offset rim, and starts eating into the backup camera view as tires grow past 33". The Leitner Designs Tire Relocation Bracket solves all of it in one bolt-on upgrade.

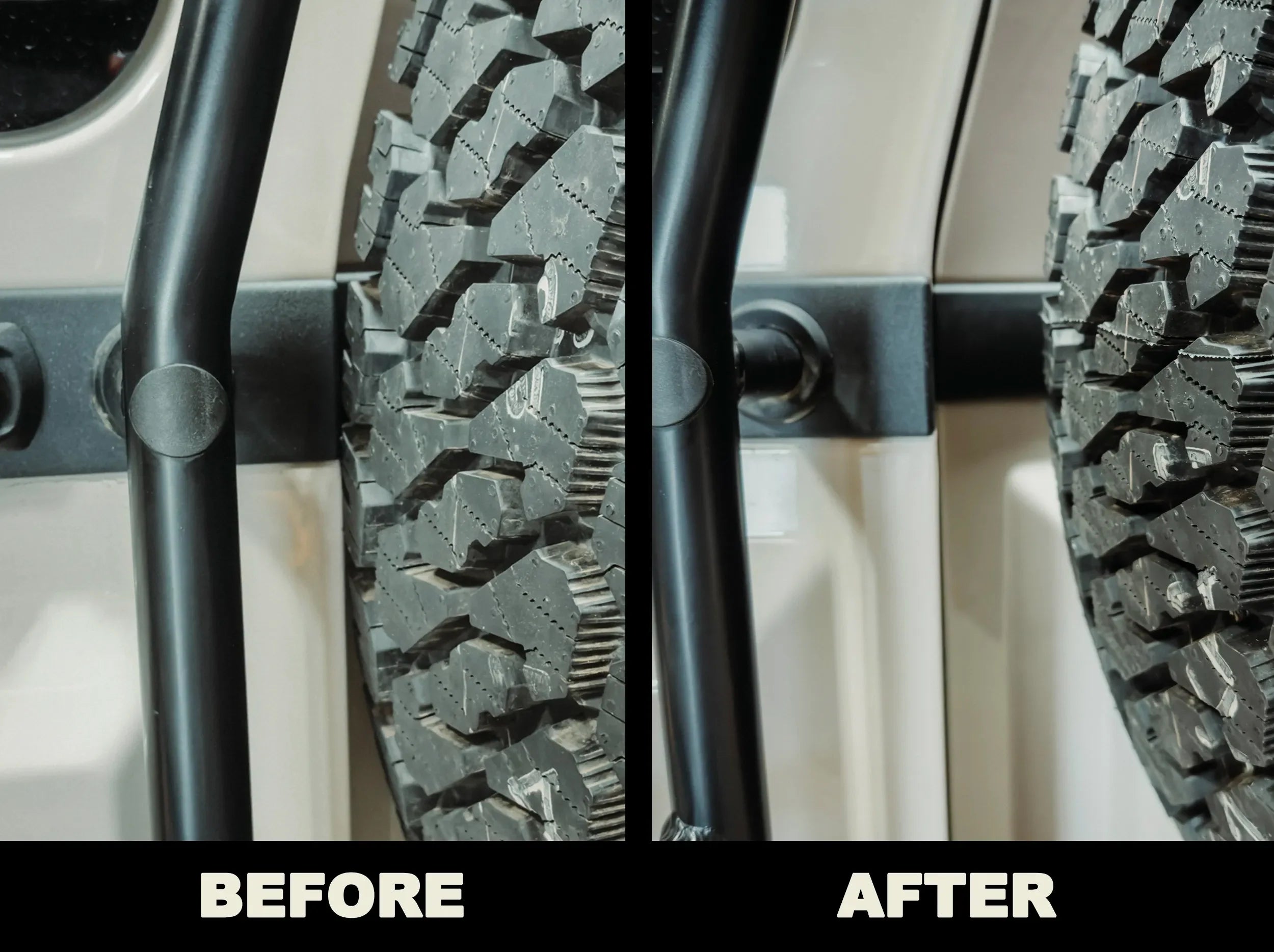

This bracket relocates your spare 1-3/4" up, 1-3/4" to the right, and 1-3/4" outboard — enough clearance to run tires up to 37" without issue, while keeping the wheel in its original orientation so your factory spare cover and internal storage box still work.

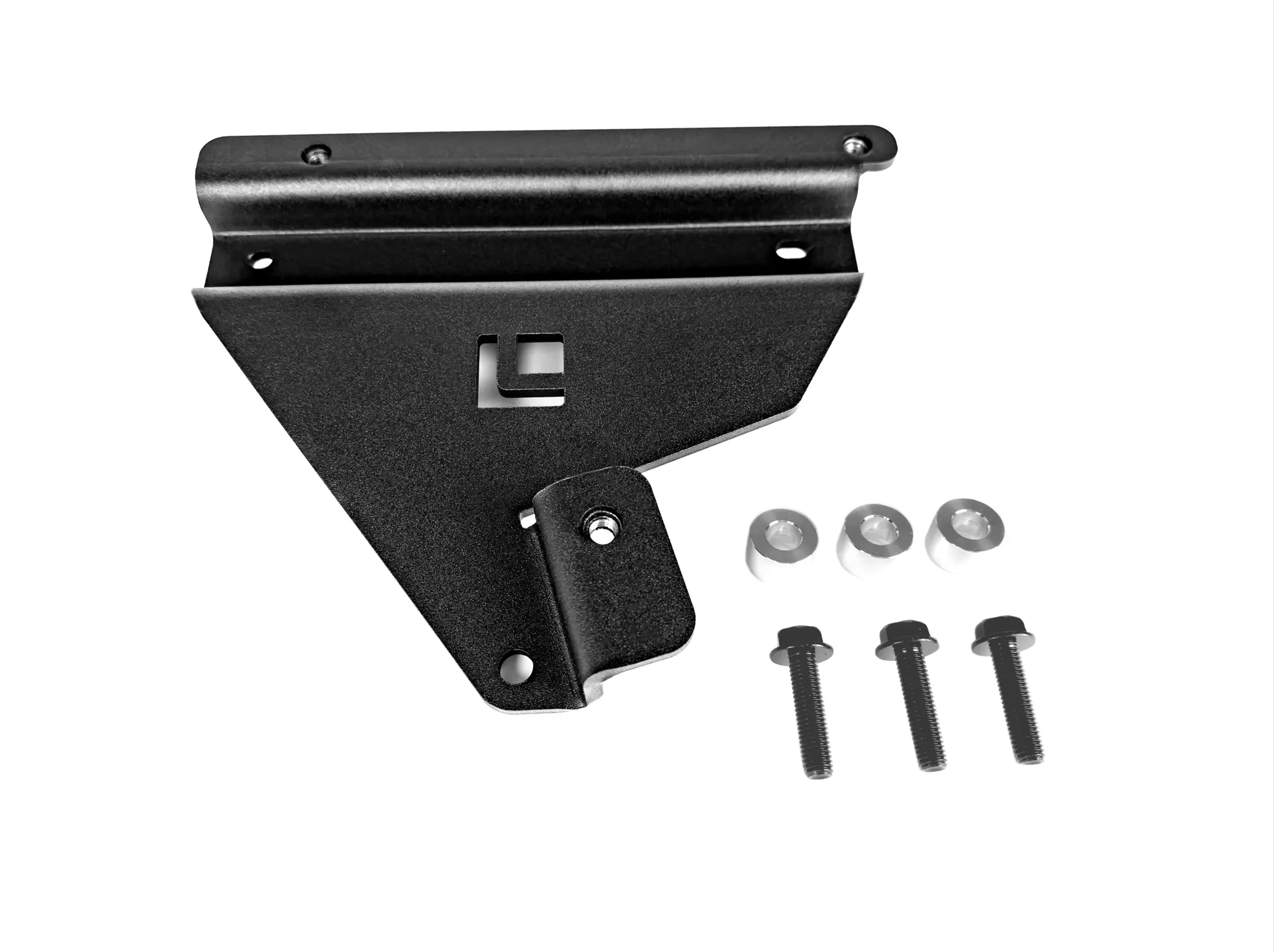

Manufactured from 6-gauge (4-gauge per spec) zinc-plated and powder-coated steel with Grade 10.9 Black Zinc-Nickel-plated fasteners. Built to last the life of the vehicle. Installs in 30 minutes with all included hardware.

Key specs

• Relocation: 1-3/4" up, 1-3/4" right, 1-3/4" outboard
• Max tire size: 37"
• Weight: 10 lbs
• Material: 4-gauge steel, zinc-plated and powder-coated
• Fasteners: Grade 10.9 Black Zinc-Nickel-plated
• Install time: ~30 minutes with all included hardware
• Designed, engineered, and manufactured in the USA

Compatibility

• Fits 2024+ INEOS Grenadier
• Supports tires up to 37"
• Not compatible with wheel offsets exceeding +25mm
• Factory spare cover and internal storage box remain functional
