INEOS Grenadier Front Load Bar | Leitner Designs

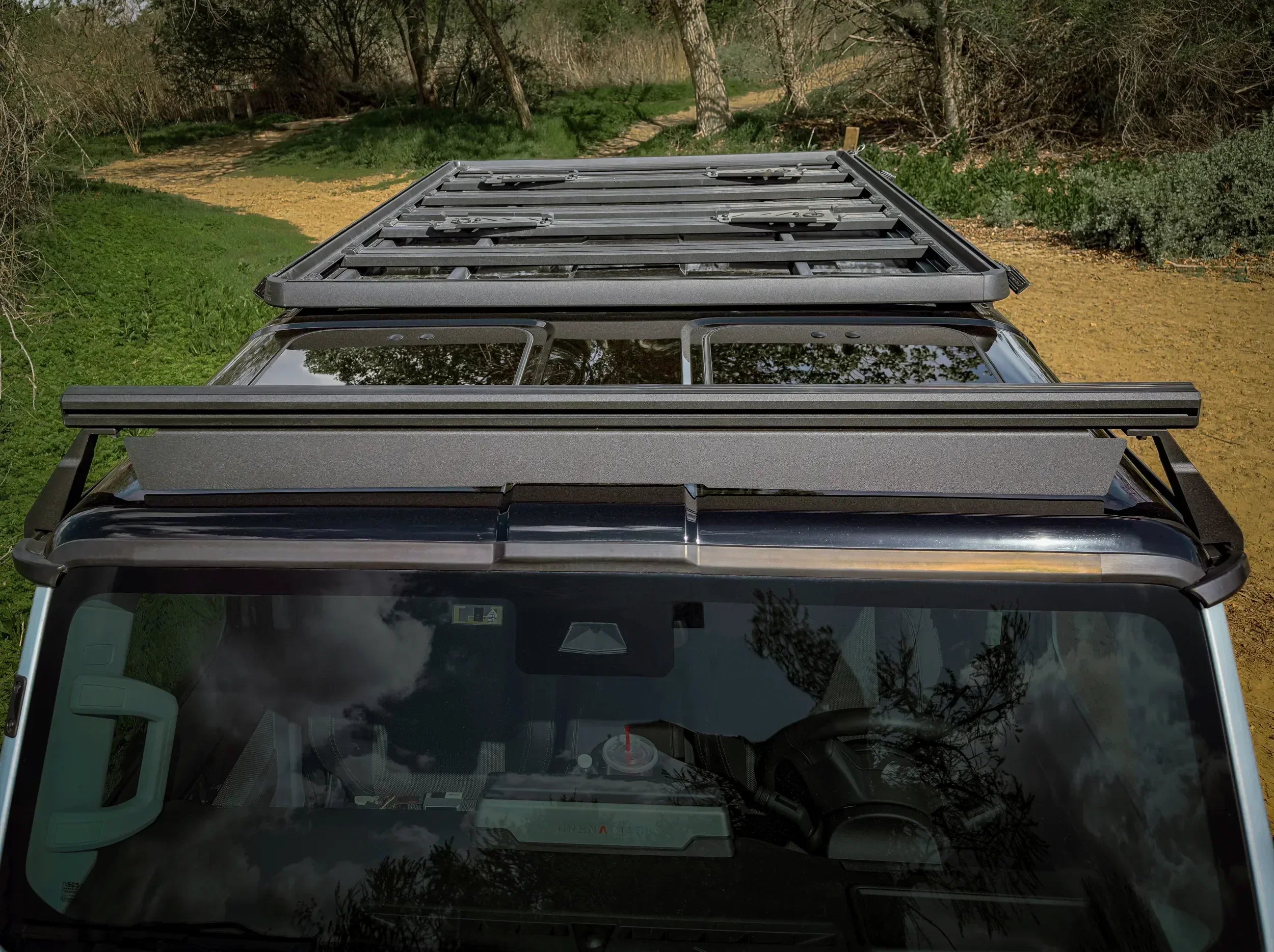

The Leitner Designs INEOS Grenadier Front Load Bar adds a forward-positioned cross bar to the front of the Grenadier's roof — extending your usable mounting surface for long loads, lighting, aerials, or cameras that need to sit ahead of the main rack. It works with or without the Leitner ¾ rack and load bars, making it a standalone upgrade or a natural extension of an existing Leitner system.

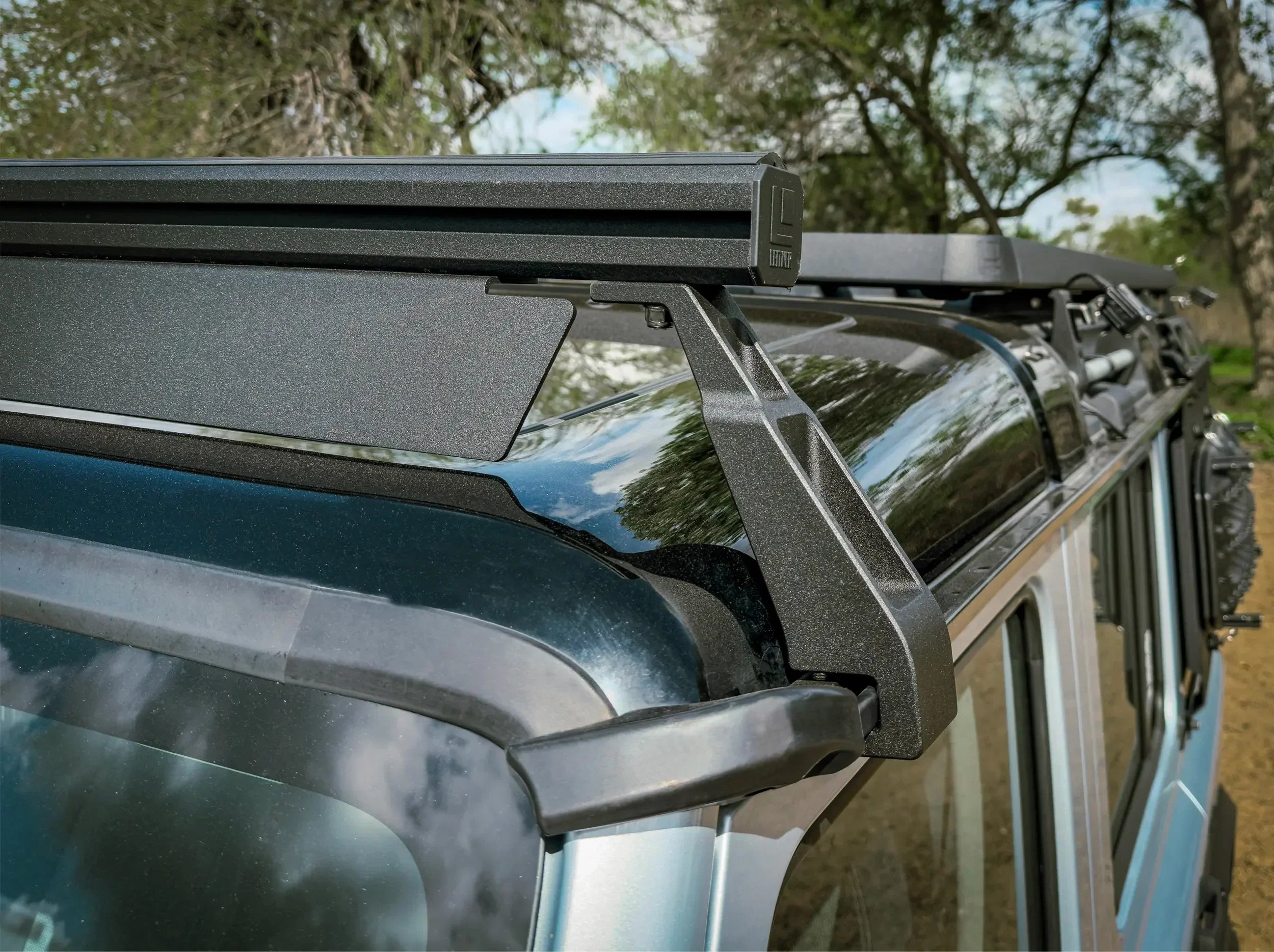

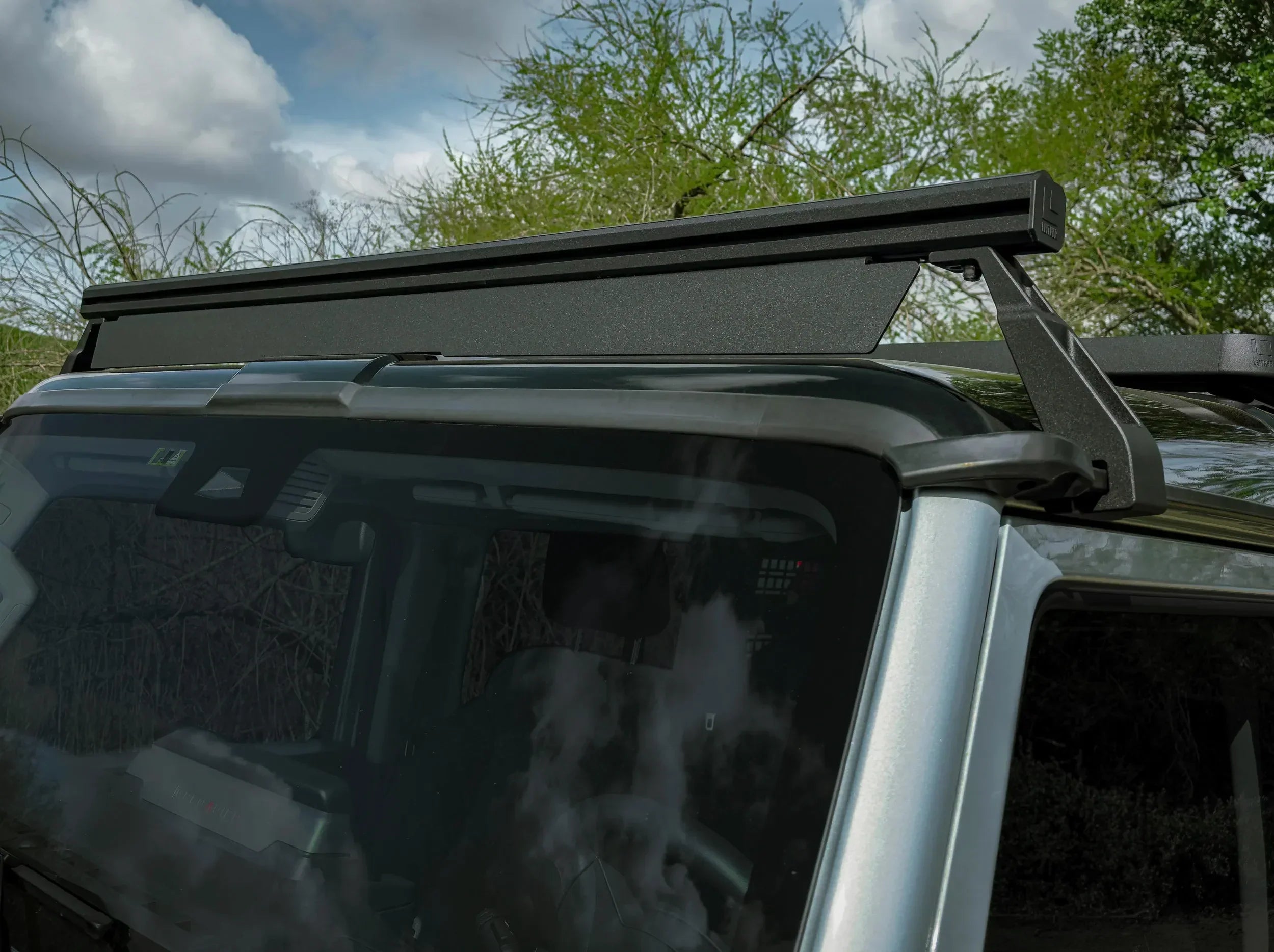

A custom wind deflector is built into the design — engineered specifically to minimize wind noise even with the Grenadier's safari windows open. The bar is 60" long, 2" x 2" extruded aluminum with four T-slot channels, matched by billet machined 6061 T6 aluminum brackets for a completely flex-free install. Removes in approximately 30 minutes with 6 screws when not needed.

Key specs

• Bar length: 60"

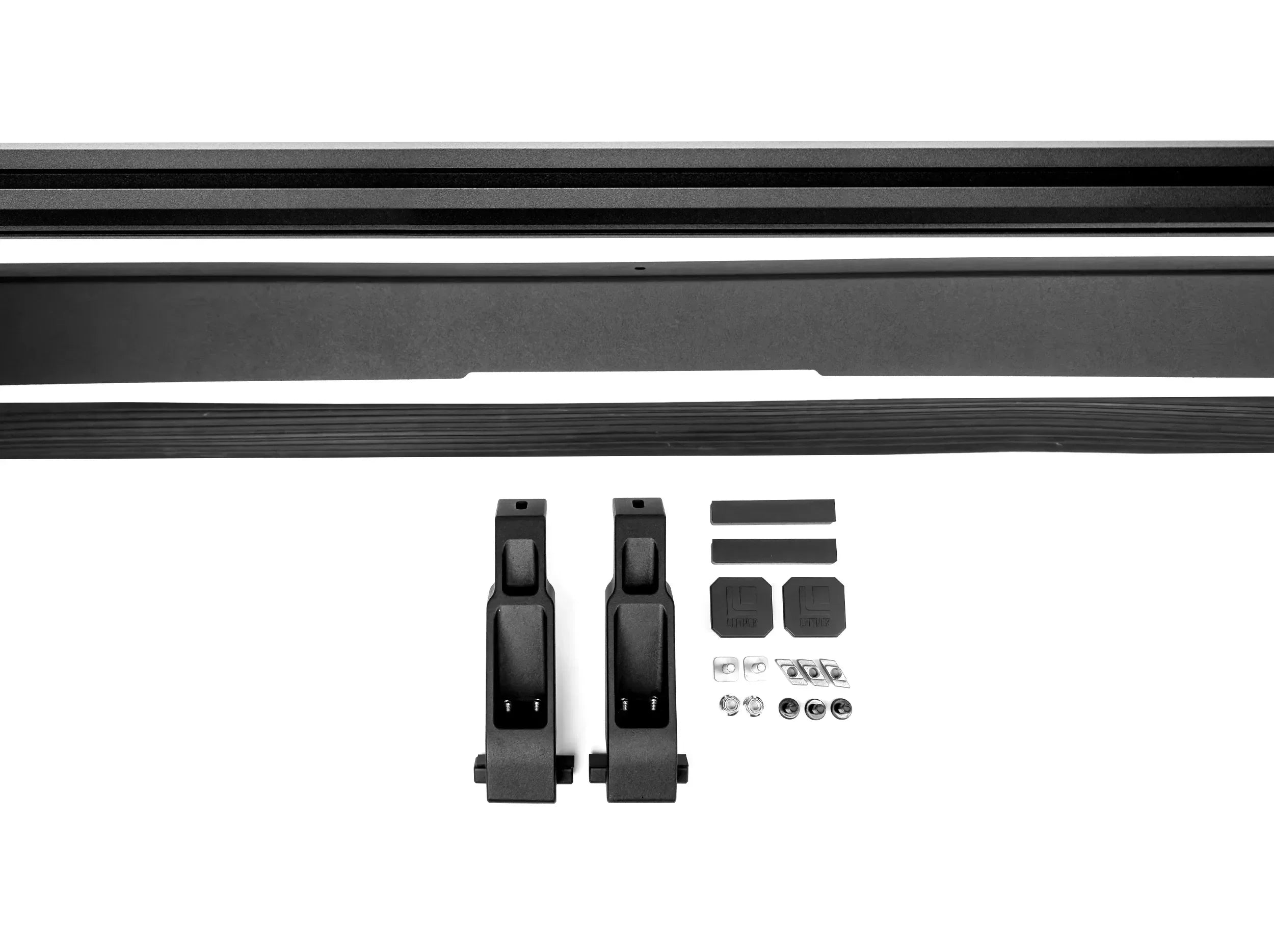

• Bar profile: 2" x 2" extruded aluminum, 4 T-slots
• Bracket material: 6061 T6 billet aluminum, machined
• Fasteners: Grade 10.9 Black Zinc-Nickel-coated
• Finish: Leitner dual-stage powder coat
• Weight: 12 lbs
• Wind deflector: included, custom-designed for noise reduction
• Install time: ~30 minutes with all included hardware
• Designed, engineered, and manufactured in the USA

Compatibility

• Fits 2024+ INEOS Grenadier — with or without Leitner ¾ rack and load bars
