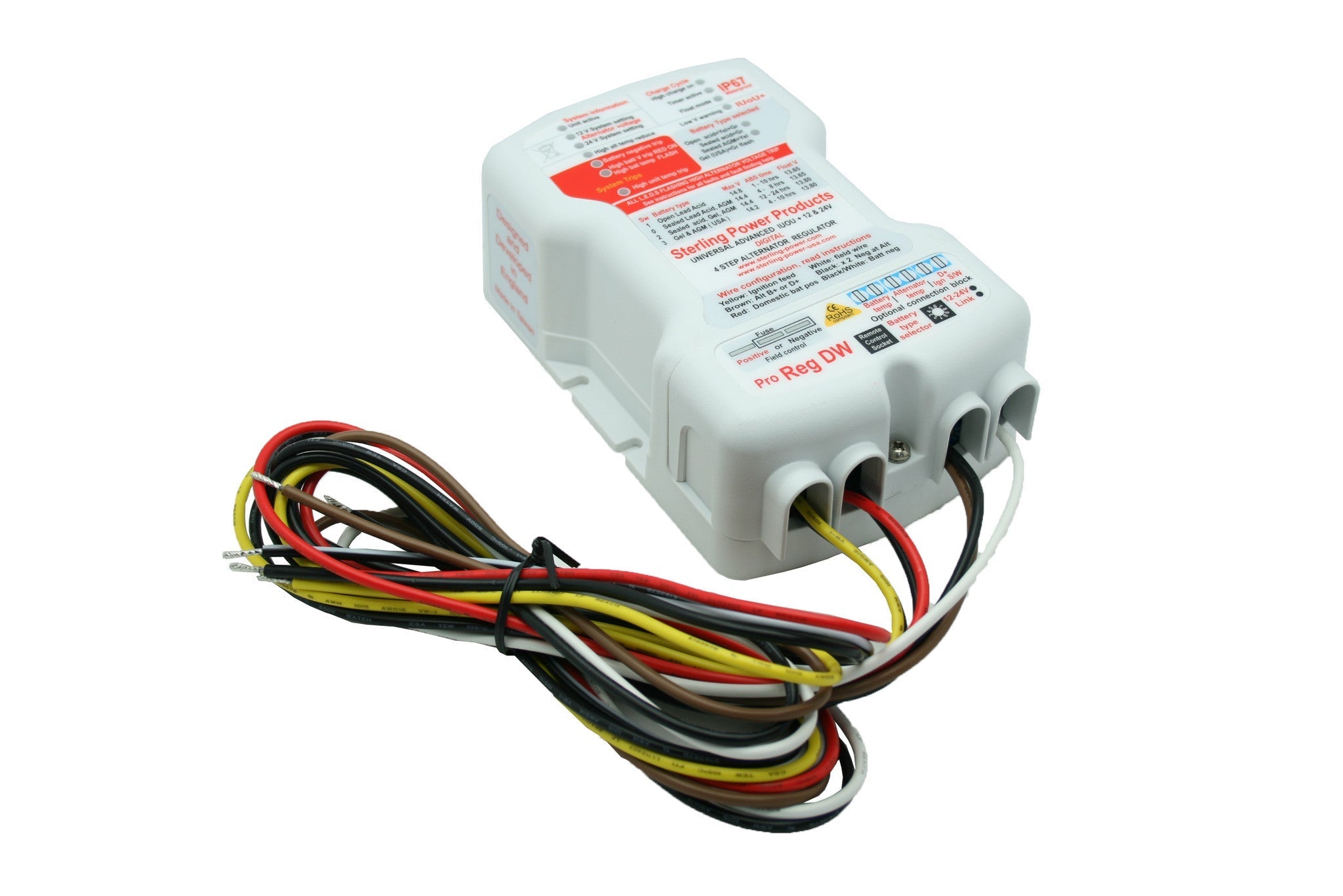

Sterling Power Pro Reg DW alternator regulator with its wiring harness

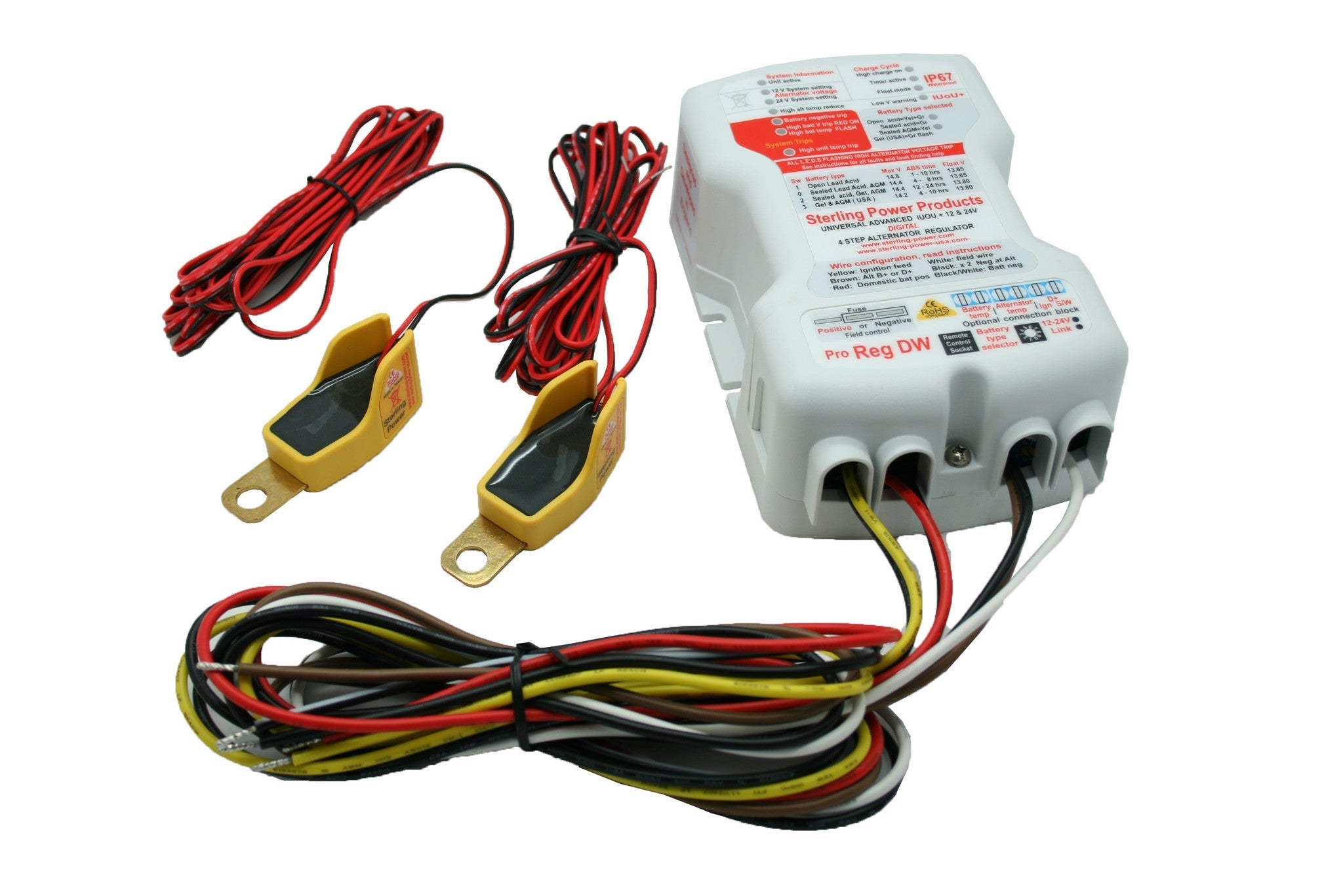

Pro Reg DW regulator with wiring harness and two yellow temperature sensors on red and black leads

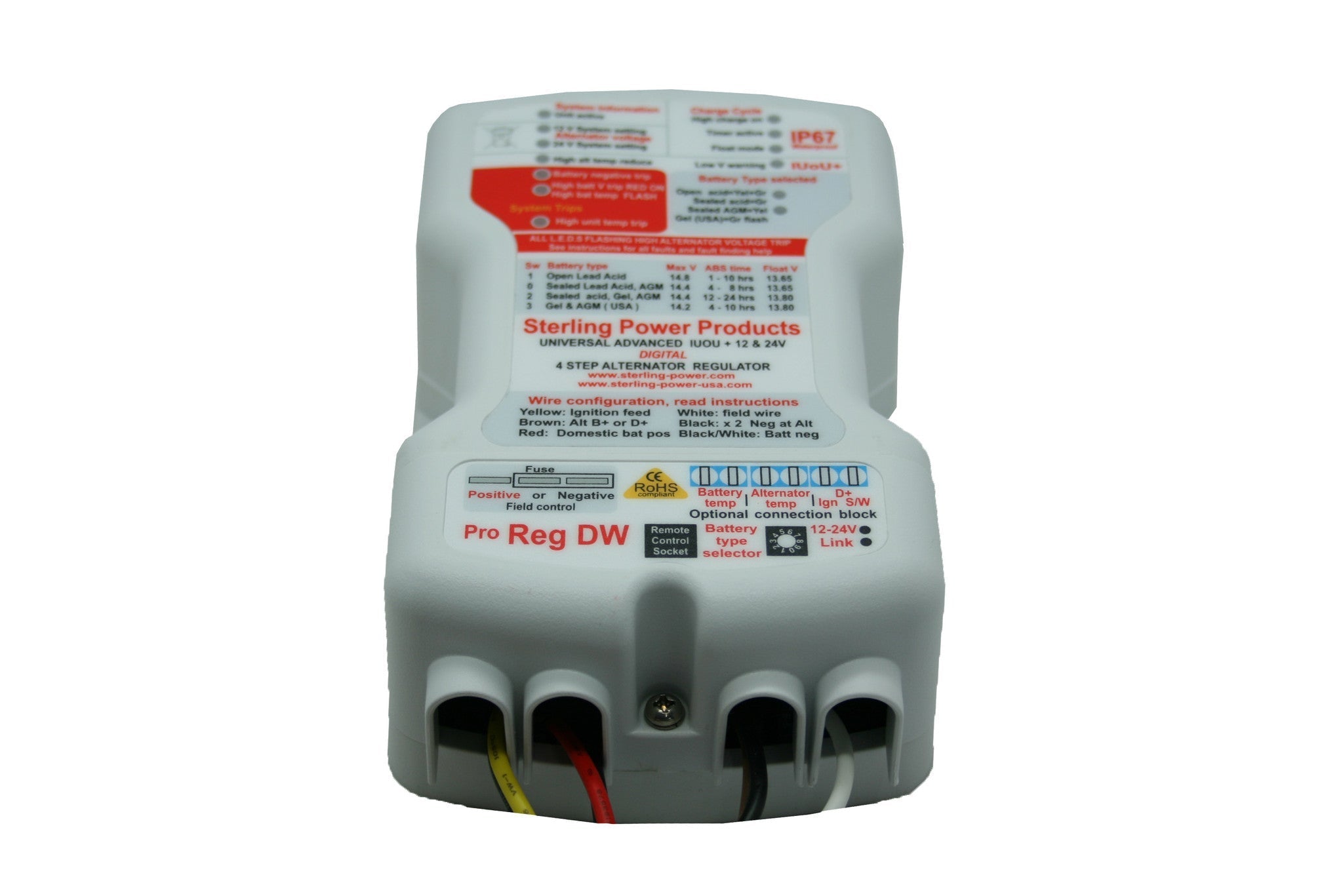

Front view of the Pro Reg DW regulator showing the label and wire entry ports

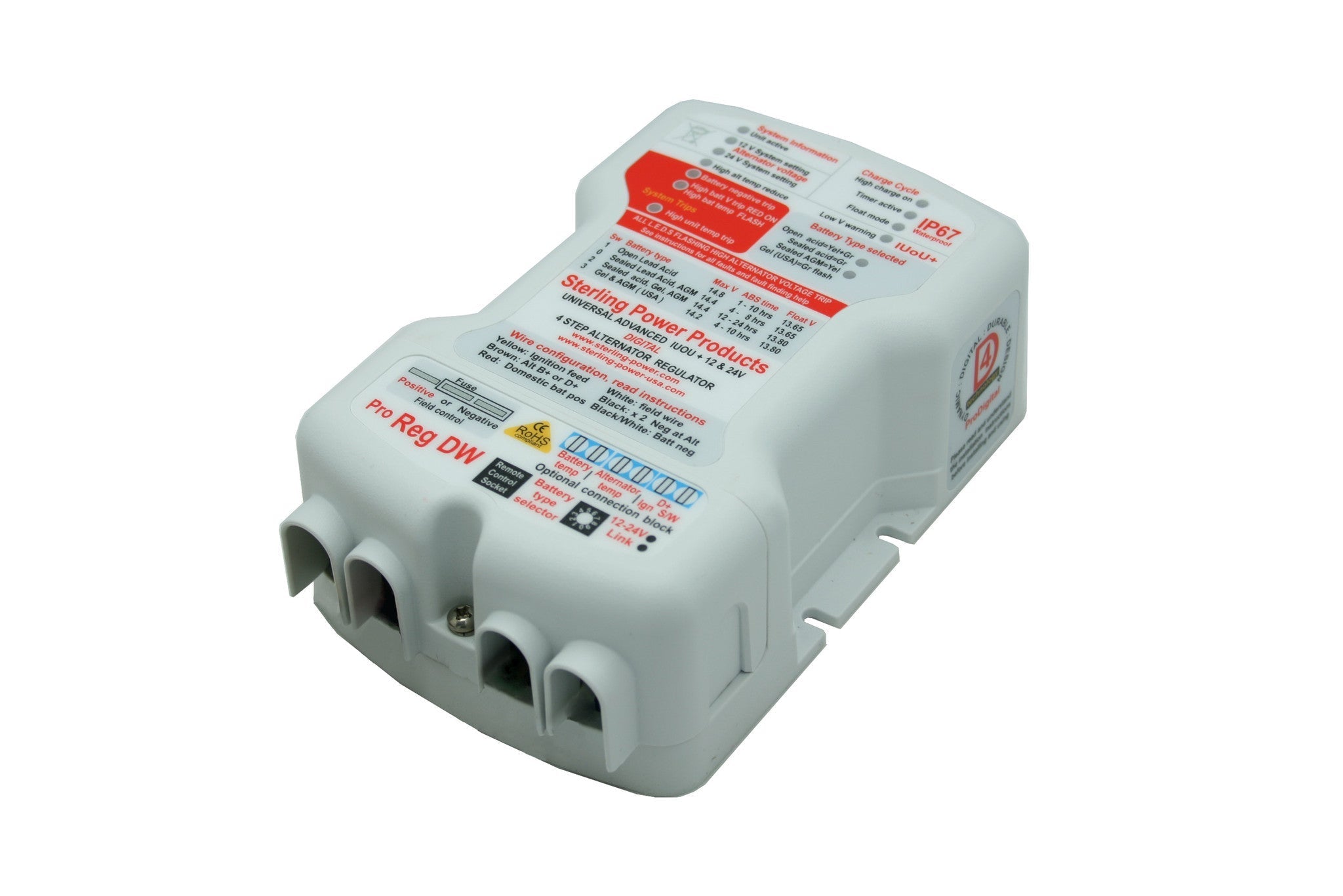

Pro Reg DW regulator angled view with the wire entry ports at the bottom
Sterling Power Pro Reg DW retail box

Sterling Power

Sterling Power PDARW – Pro Reg DW Advanced Alternator Regulator [Clearance]

Sale price$150.00
SKU: PDARW
Quantity:

The Sterling Power PDARW (Pro Reg DW) is an advanced alternator regulator that turns a standard constant-voltage alternator into a 4-step progressive constant-current battery charger. It is IP67 waterproof and ignition protected, and includes two temperature sensors. Offered here at clearance pricing.

Please note: advanced regulators are not suitable for some modern vehicles and boats with integrated engine management systems. They raise the alternator's voltage, and the management system can interpret this as an alternator fault. For these applications, use an Alternator to Battery Charger or a Battery to Battery charger instead.

Specifications

Type Advanced alternator regulator, Pro Reg DW
Part number PDARW
Voltage 12V and 24V
Dimensions 160 × 96 × 55 mm
Weight 0.58 kg
Field control Positive field: 6A max field current. Negative field: 18A max field current.
Cooling Fan cooled
Protection rating IP67 waterproof, ignition protected
Included Two temperature sensors
Optional remote PDARR remote control (170 × 90 × 40 mm, 0.25 kg)

Key Features

  • Digital software control with slow start, which ramps up current to reduce the chance of alternator belt slip
  • Dynamic progressive battery charging, with a charging regime calculated for the battery's state each time
  • Use as a stand-alone regulator or in parallel with the original regulator, which stays in place as a fall-back
  • Programmable for open lead-acid/traction, sealed/gel, gel (Europe), and AGM batteries, each with its own charging curve
  • Four-step constant-current charging curve
  • 13 LED information display
  • Battery temperature sensing adjusts the charging curve; works with or without a sensor fitted
  • Trips on high battery temperature (above 50°C), high battery voltage, high alternator voltage, and excessive negative voltage drop, and displays a warning
  • Monitors alternator temperature, switches off on overheating, and re-engages when it cools
  • Protects batteries if the temperature sensor circuit opens, if a split-charge relay or diode fails open, or if the regulator itself fails
  • Physically breaks the field wire in a fault condition and returns to the standard regulator
  • De-sulphation ability on open lead-acid batteries

Why Use an Advanced Regulator

Standard alternators are designed to charge an engine-start battery enough to start the engine, not to charge a house bank well. An advanced regulator improves charge rates and helps batteries reach a fuller charge, while compensating for voltage drops from long cable runs, diodes, and other wiring.
