Sterling Power PCU1230plus – Pro Charge Ultra Plus 12V 30A Battery Charger
Quantity:
Choose options
Quantity:
The Sterling Power PCU1230plus is a 12V 30A mains battery charger from the Pro Charge Ultra Plus range — a compact, switch-mode charger built to keep 12V banks properly topped up from shore power or a generator. It delivers a full multi-stage charge rather than a crude constant voltage, so lead, AGM, gel, and lithium banks are charged correctly and held at the right float.
Pro Charge Ultra Plus models add selectable battery profiles (including lithium), advanced diagnostics, and remote-control capability via the PCUR remote.
Charging Specifications
| Type | AC-input multi-stage battery charger (Pro Charge Ultra Plus) |
|---|---|
| Nominal output voltage | 12V |
| Max output current | 30A |
| AC input | 80–270V AC, 40–70Hz |
| Charge profile | Multi-stage (bulk, absorption, float) |
| Battery types | Lead-acid, AGM, gel, and lithium |
| Charging profiles | 11 pre-programmed profiles (open/sealed lead acid, AGM, Gel, calcium, LiFePO4) plus 4 user-customizable profiles with adjustable voltage, float, absorption time and safety limits |
| Efficiency | 90.4% |
| Power Factor | 0.976 @ 230V |
| Ripple noise (RMS) | 14mV |
| Ground leakage | 0.5mA |
| Meter accuracy | ±1% |
| Protection rating | IP22 (splash protection) |
| Recommended generator size | ~1000W for cold start (unit draws ~500W at full load) |
| Remote | Compatible with the optional PCUR remote control, 10m cable |
| Dimensions, weight & outputs | 260 × 215 × 90mm; 2.0kg; 3 isolated DC outputs |
| Warranty | 5 years |
Key Features
- 12V 30A multi-stage mains charging
- Selectable profiles for lead-acid, AGM, gel, and lithium
- Remote monitoring and control via the PCUR
- 3 isolated DC outputs
- 11 pre-programmed charging profiles (open/sealed lead acid, AGM, Gel, calcium, LiFePO4) plus 4 user-customizable profiles with adjustable voltage, float, absorption time and safety limits
- Redundant high-voltage protection — primary digital plus secondary analog
- BMS shutdown compatibility via an auxiliary red ground cable; positive-signal activation via a purple cable for automatic Power Supply Relay engagement

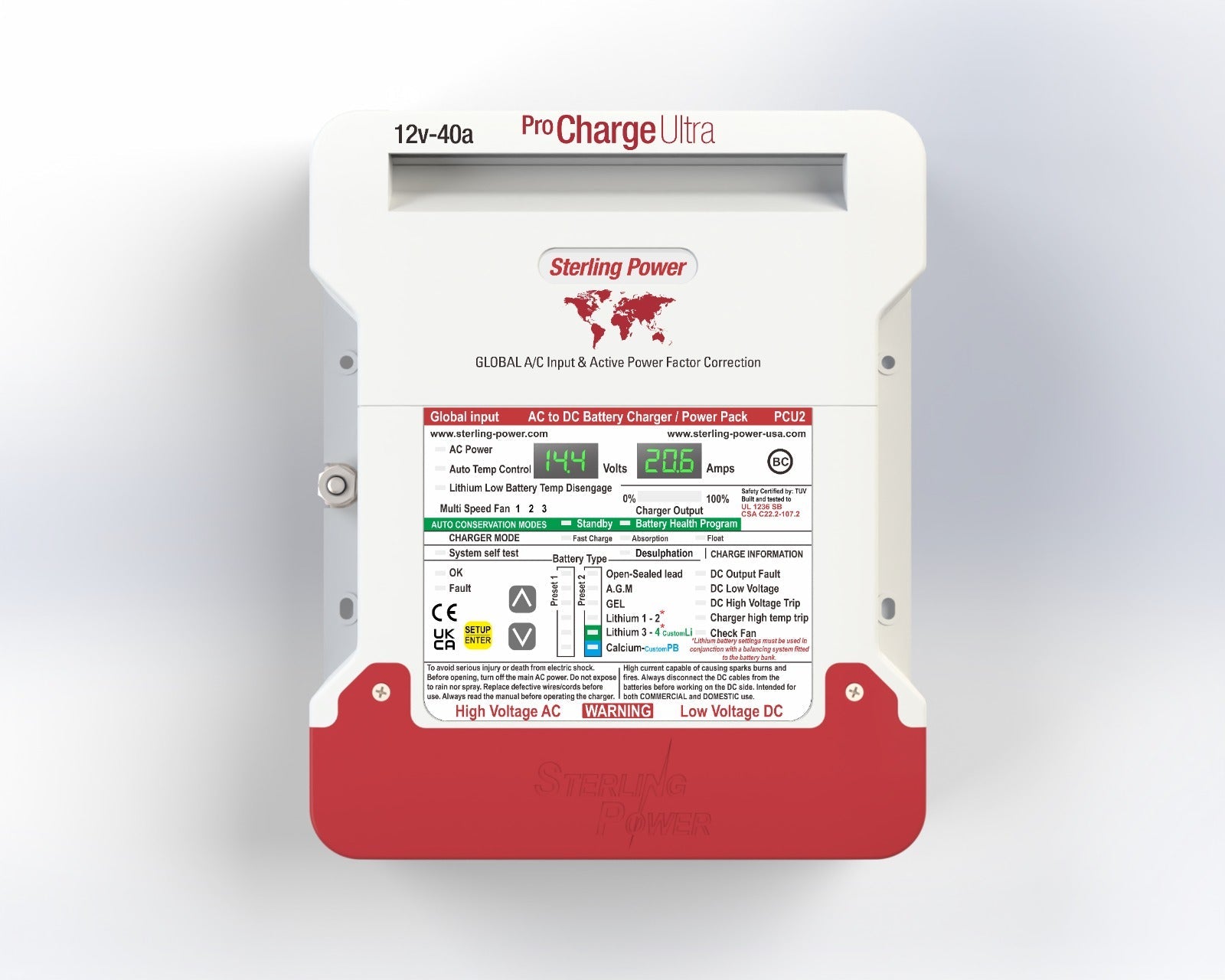

- 32-LED display panel with digital voltage/current meters and a power reserve indicator
- Automatic desulphation/equalization cycle every 7–10 days
- Programmable power reduction (100% / 75% / 50% / 25%)
- Battery temperature sensor with compensation and thermal shutoff
- Conformal-coated PCBs; non-ferrous and corrosion-protected metal parts
- Optional PCUR remote control with 10m cable
- Improved end-cap tabs preventing accidental detachment in high-vibration environments
