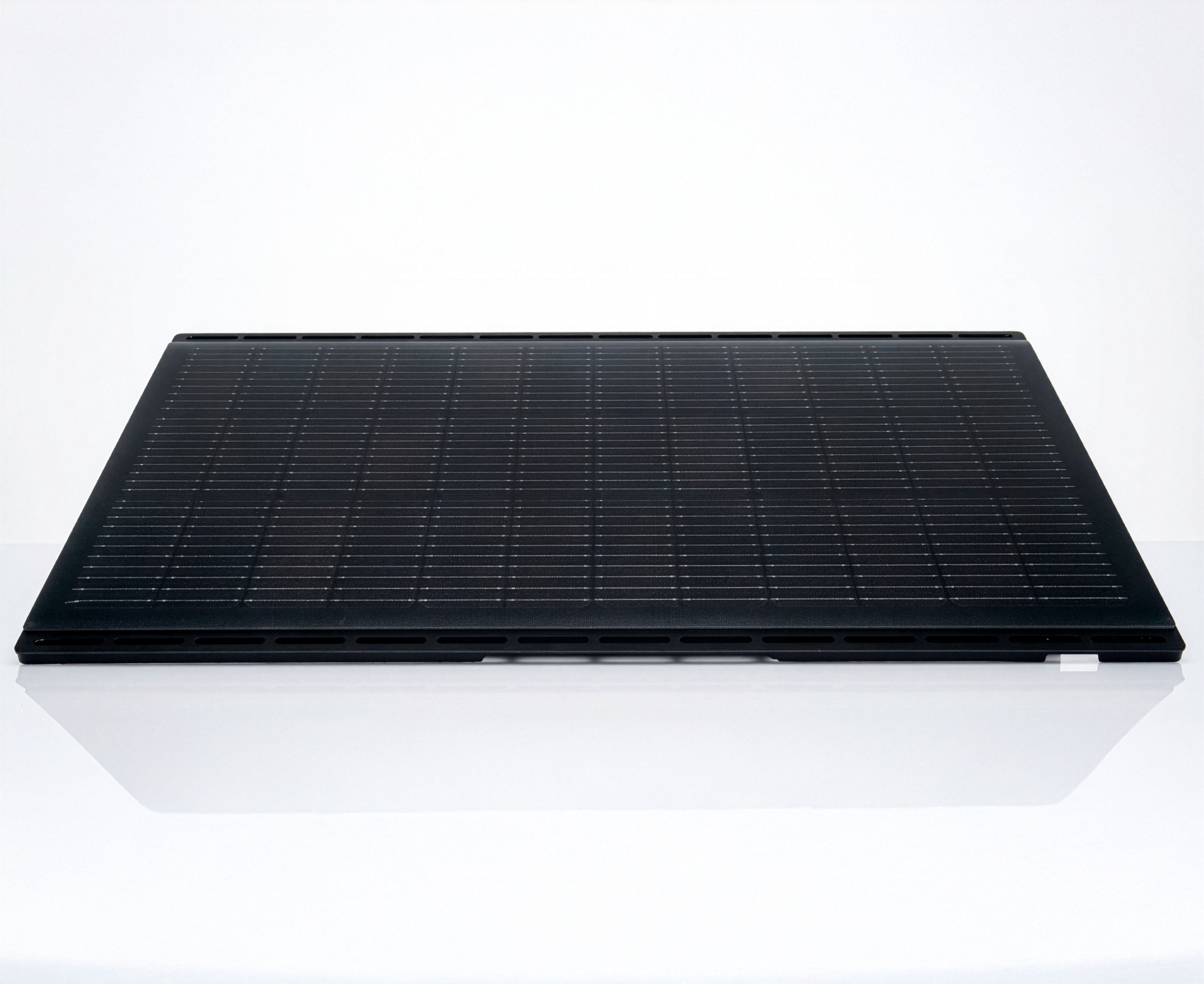

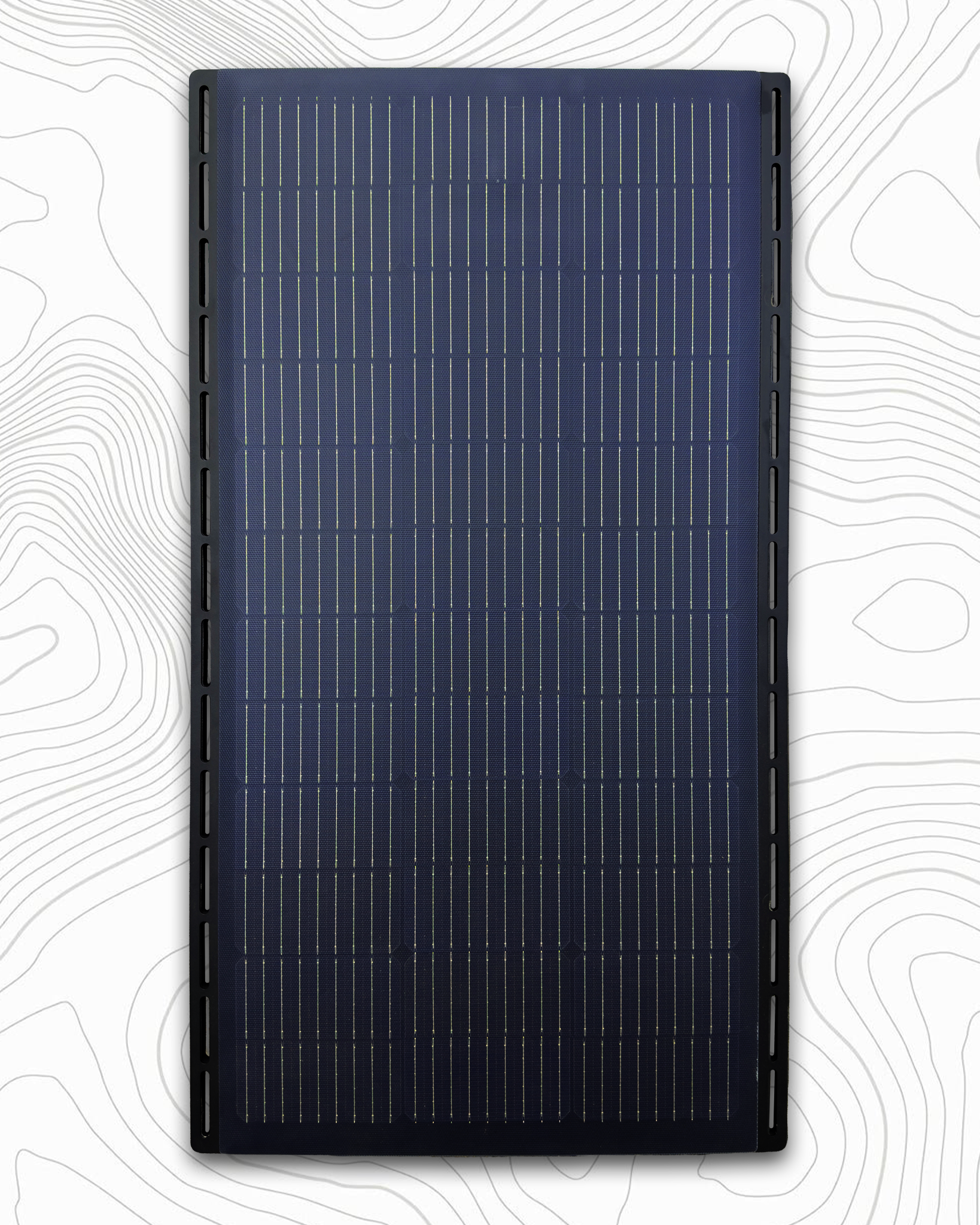

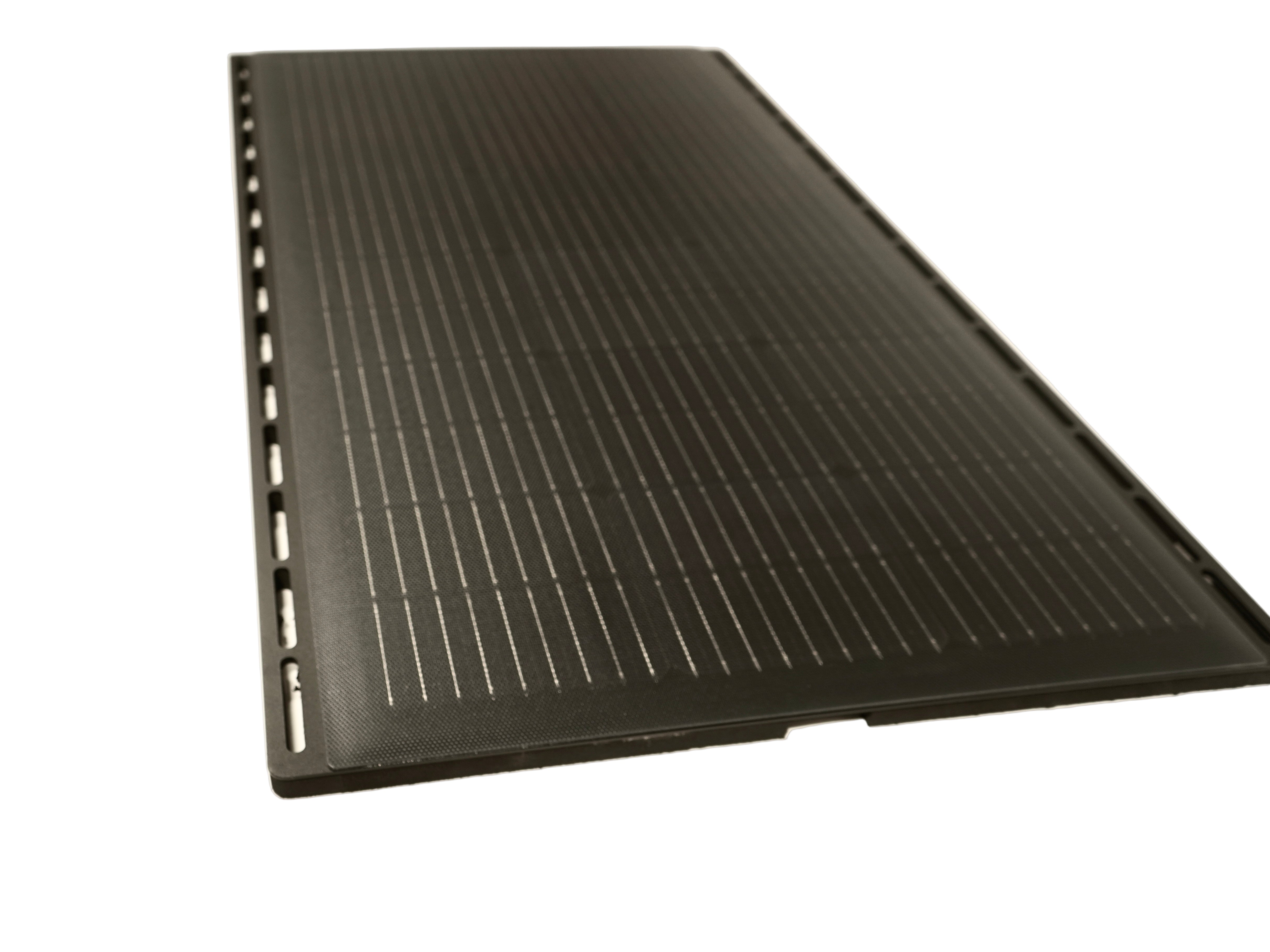

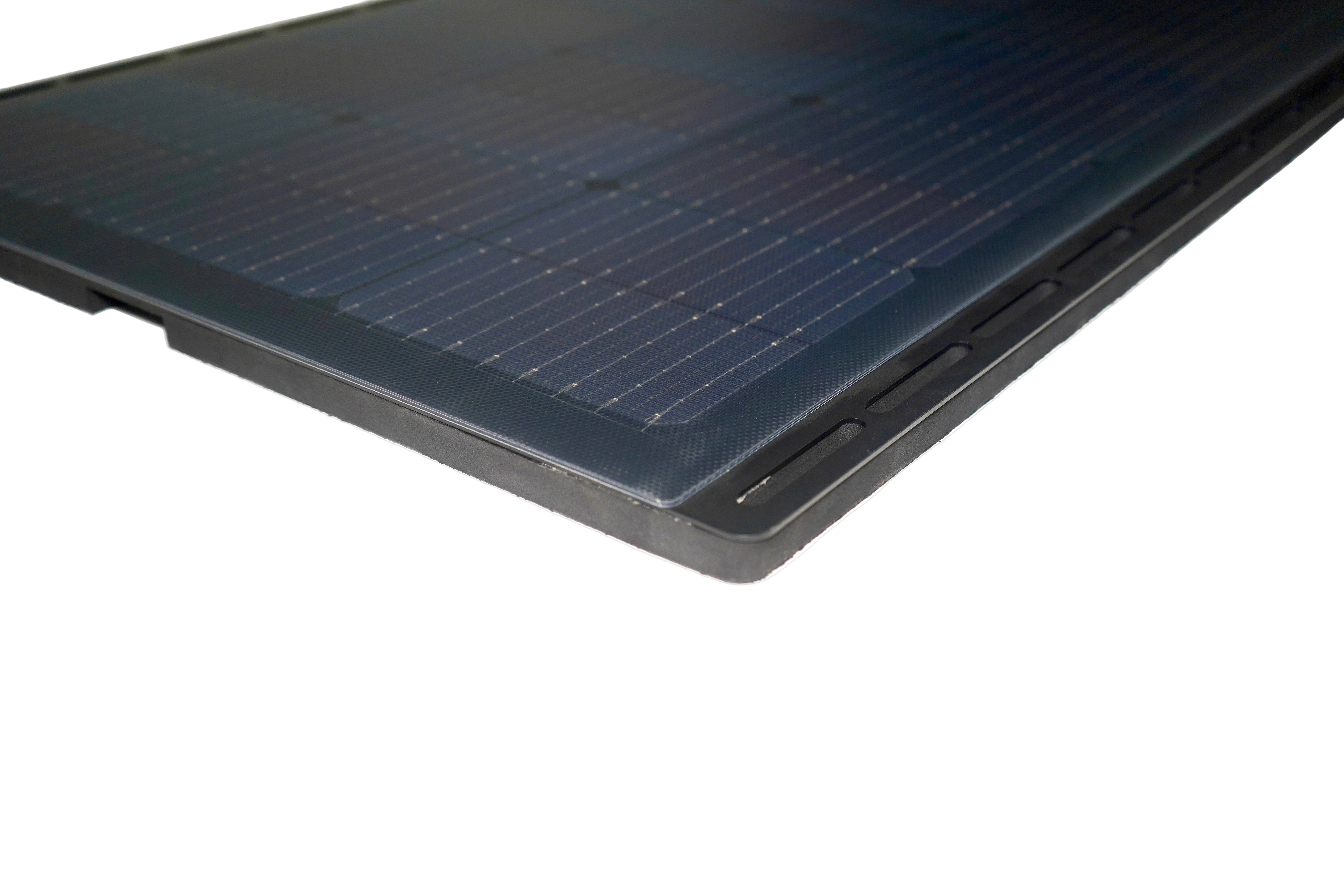

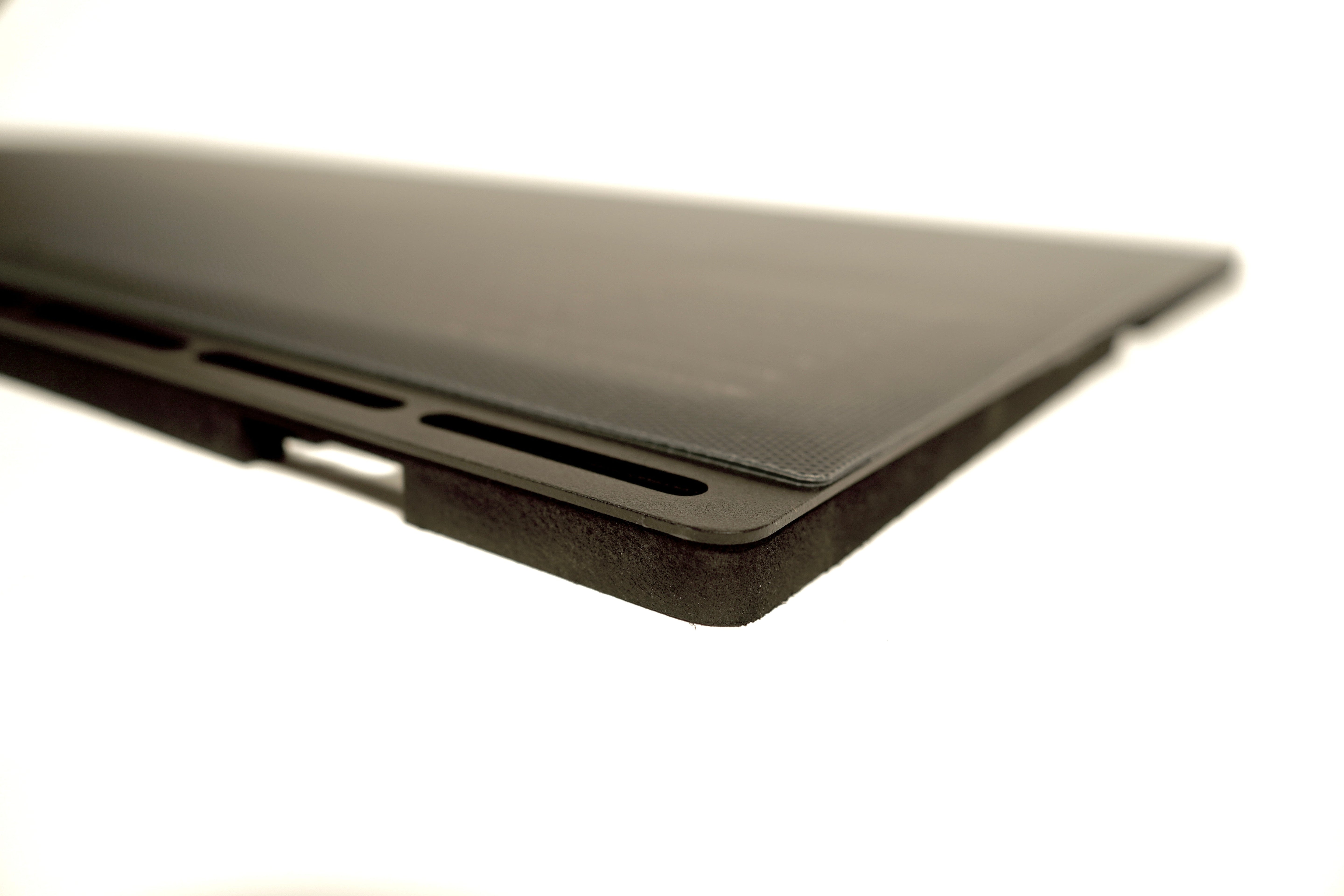

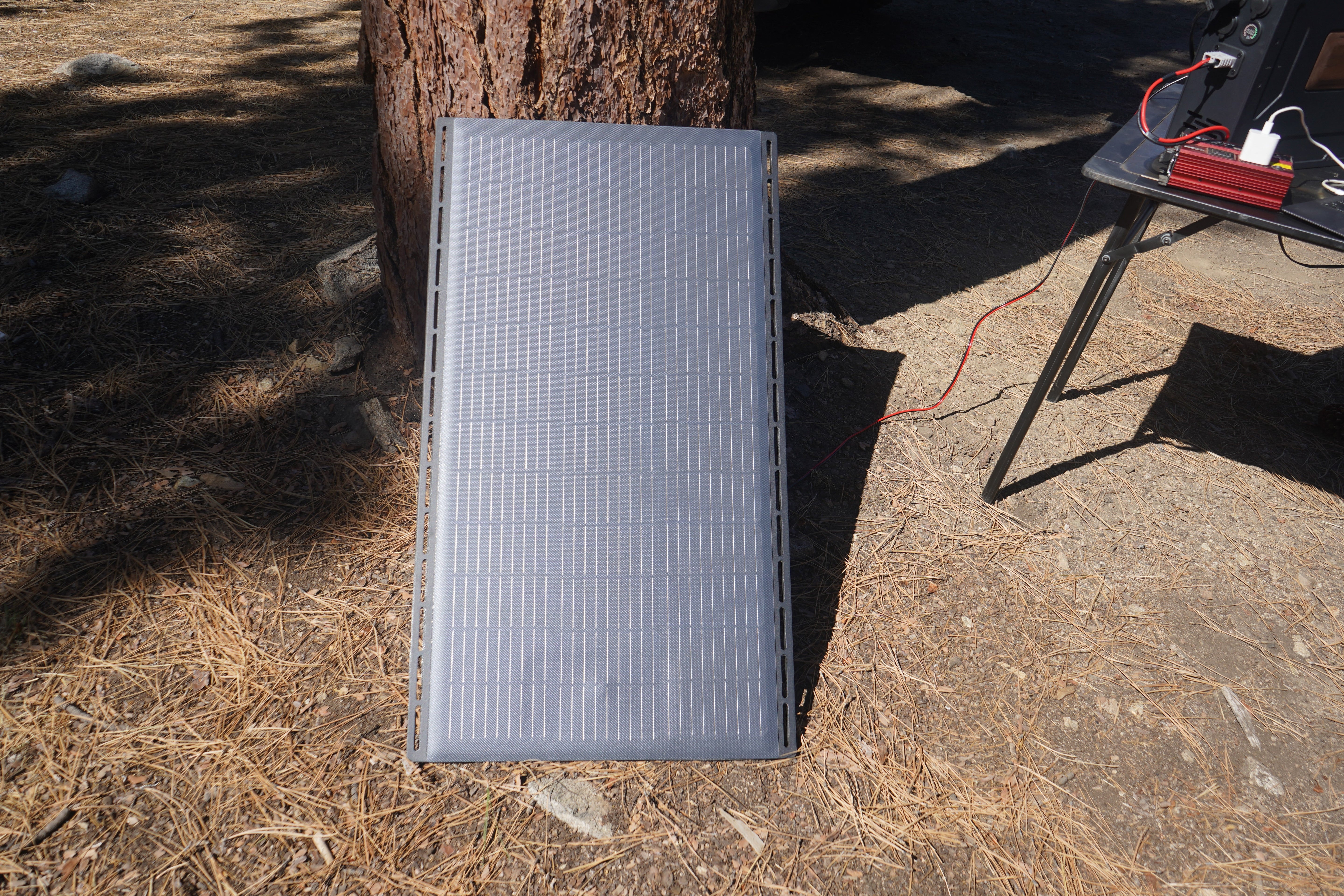

The XPLOR BLOX Modular Solar System offers a customizable, space-efficient solar solution designed for diverse off-grid setups, from compact campervans to spacious RVs and Overlanding rigs. Each 100w BLOX module easily connects with others, allowing you to scale your system up or down based on your power needs. Engineered with A-grade silicon cells, BLOX provides reliable energy in direct sunlight, while its compact design fits seamlessly with standard cross-bar roof racks for easy installation and removal.

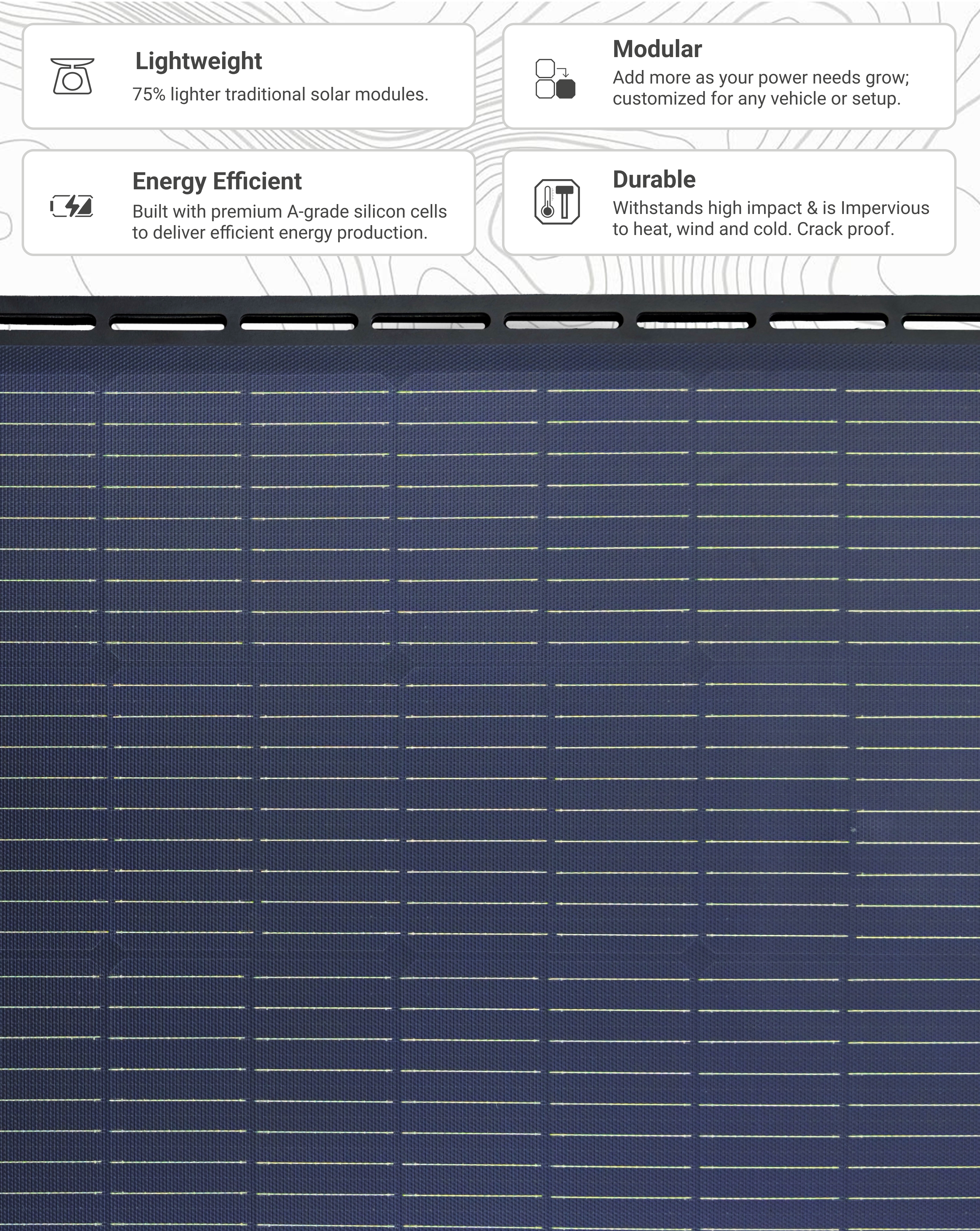

Key Features
-

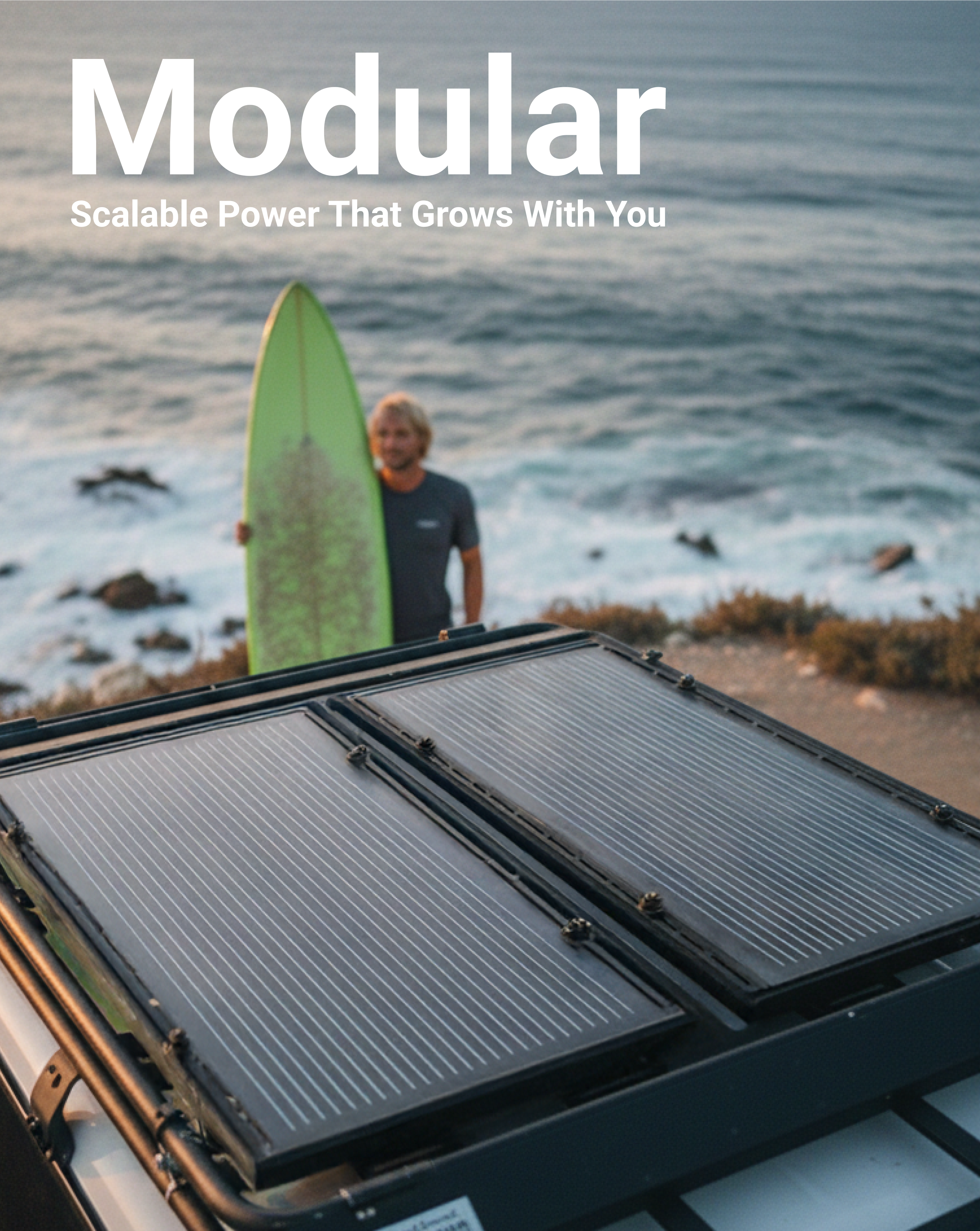

Modular Design: Start with a single 50W module and add more as your power needs grow, making it easy to customize for any vehicle or setup.
-
High-Efficiency Silicon Cells: Built with premium A-grade silicon cells to deliver efficient energy production, even in compact spaces.
-

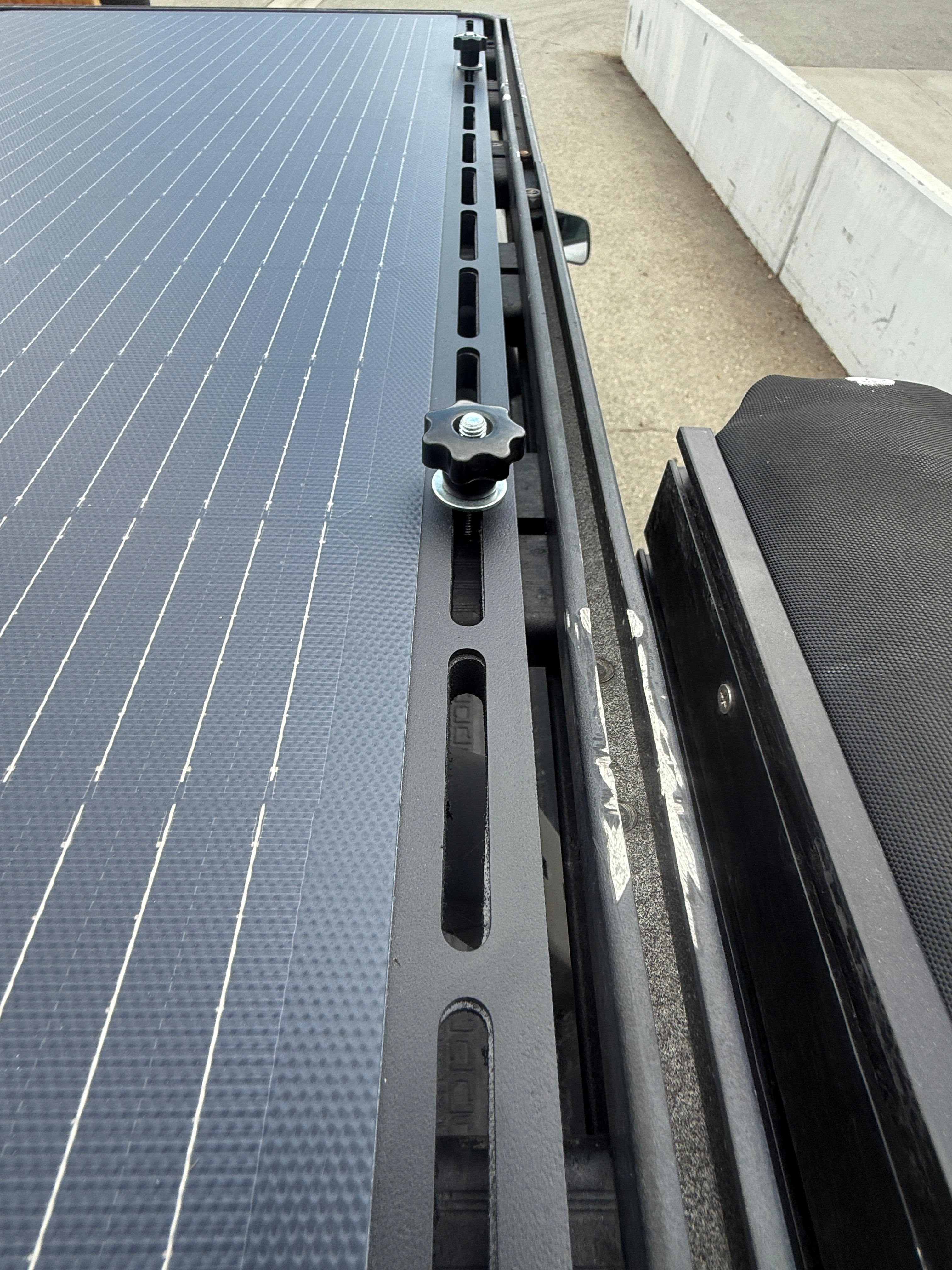

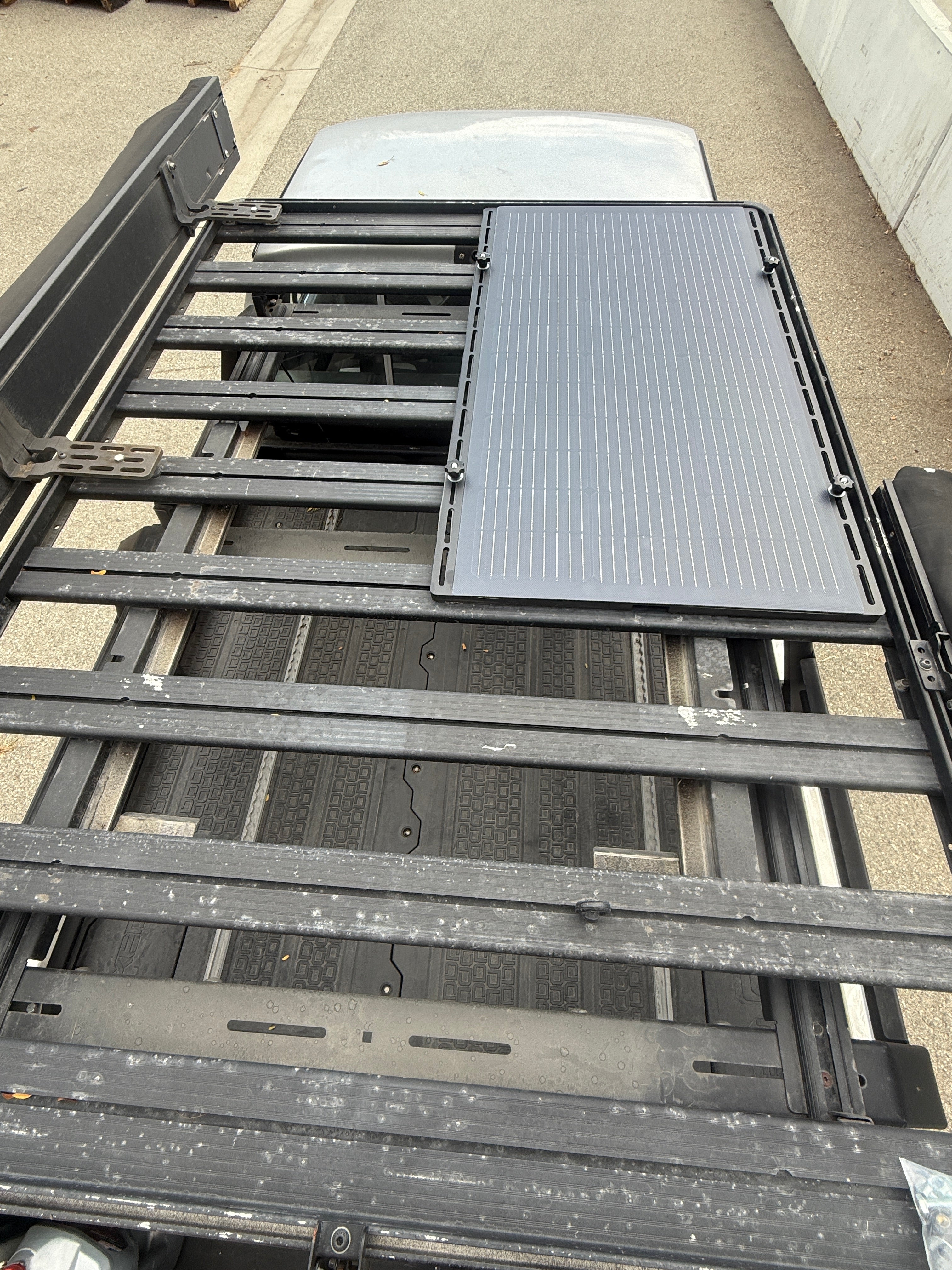

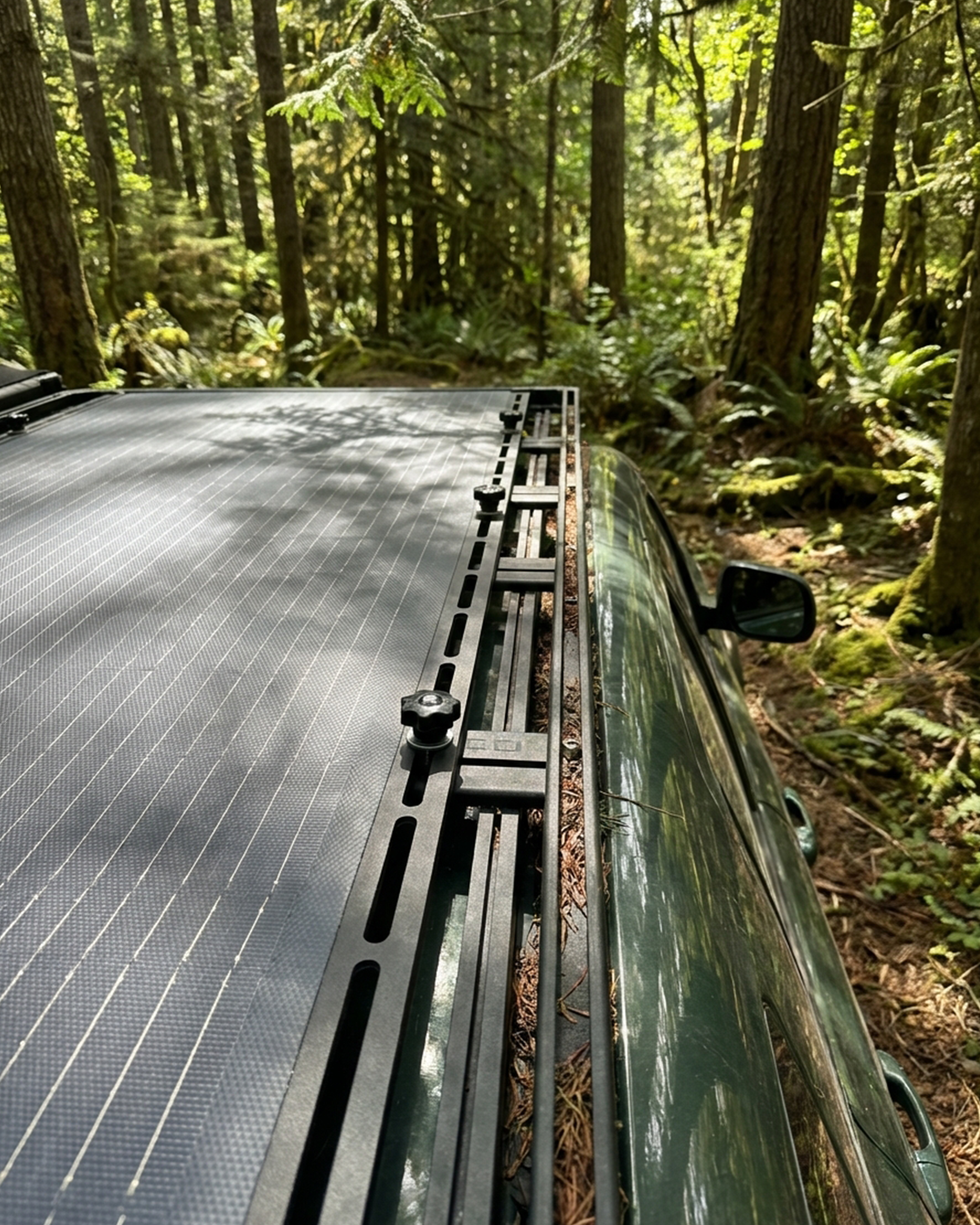

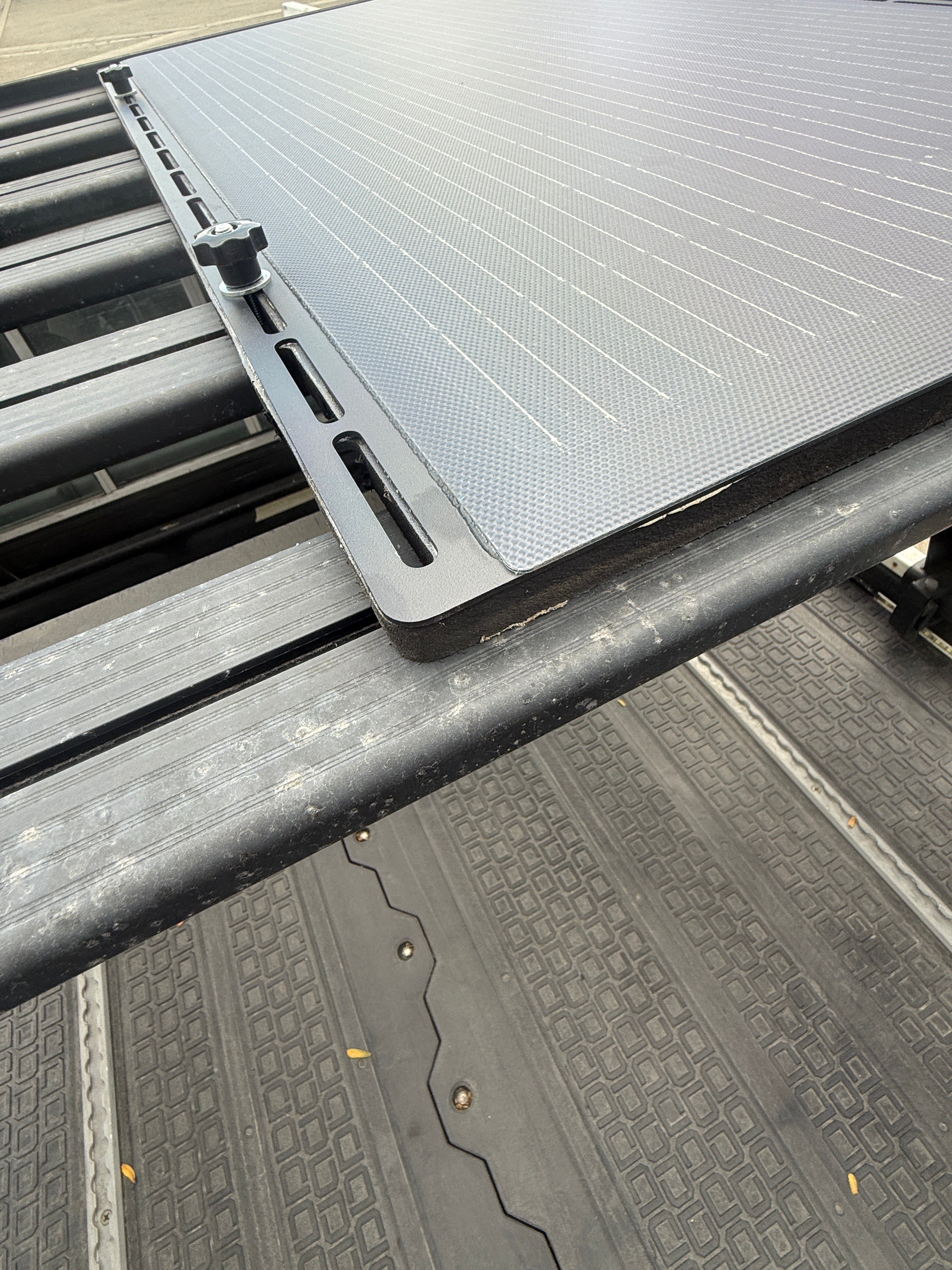

Compact & Lightweight: Each 100w module is lightweight and measures only 42.5" x 23.62" inches, designed to fit onto slotted or solid cross-bar racks for effortless mounting.
-
Durable & Weather-Resistant: Constructed to withstand outdoor conditions, ensuring dependable, long-term power for every adventure.

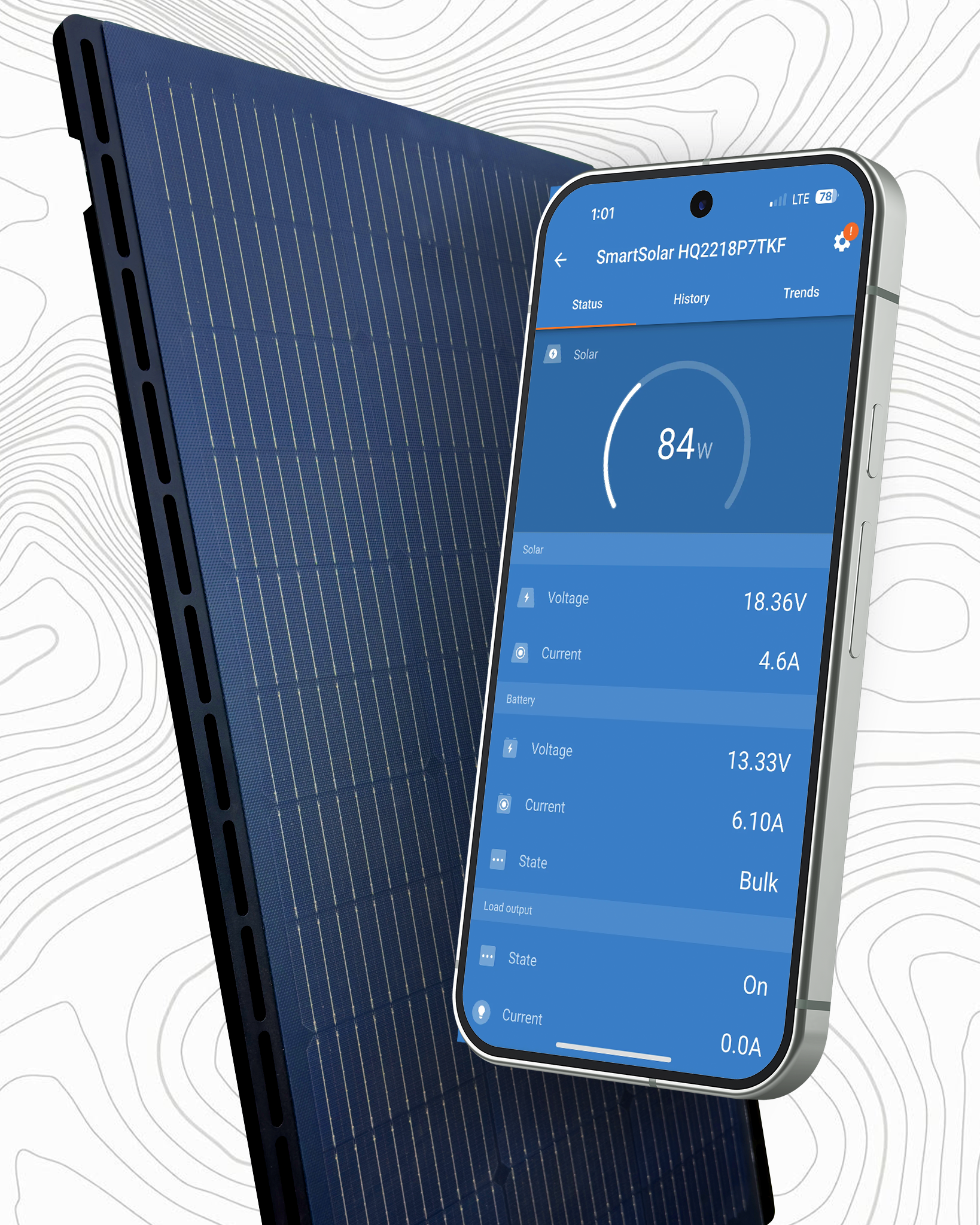

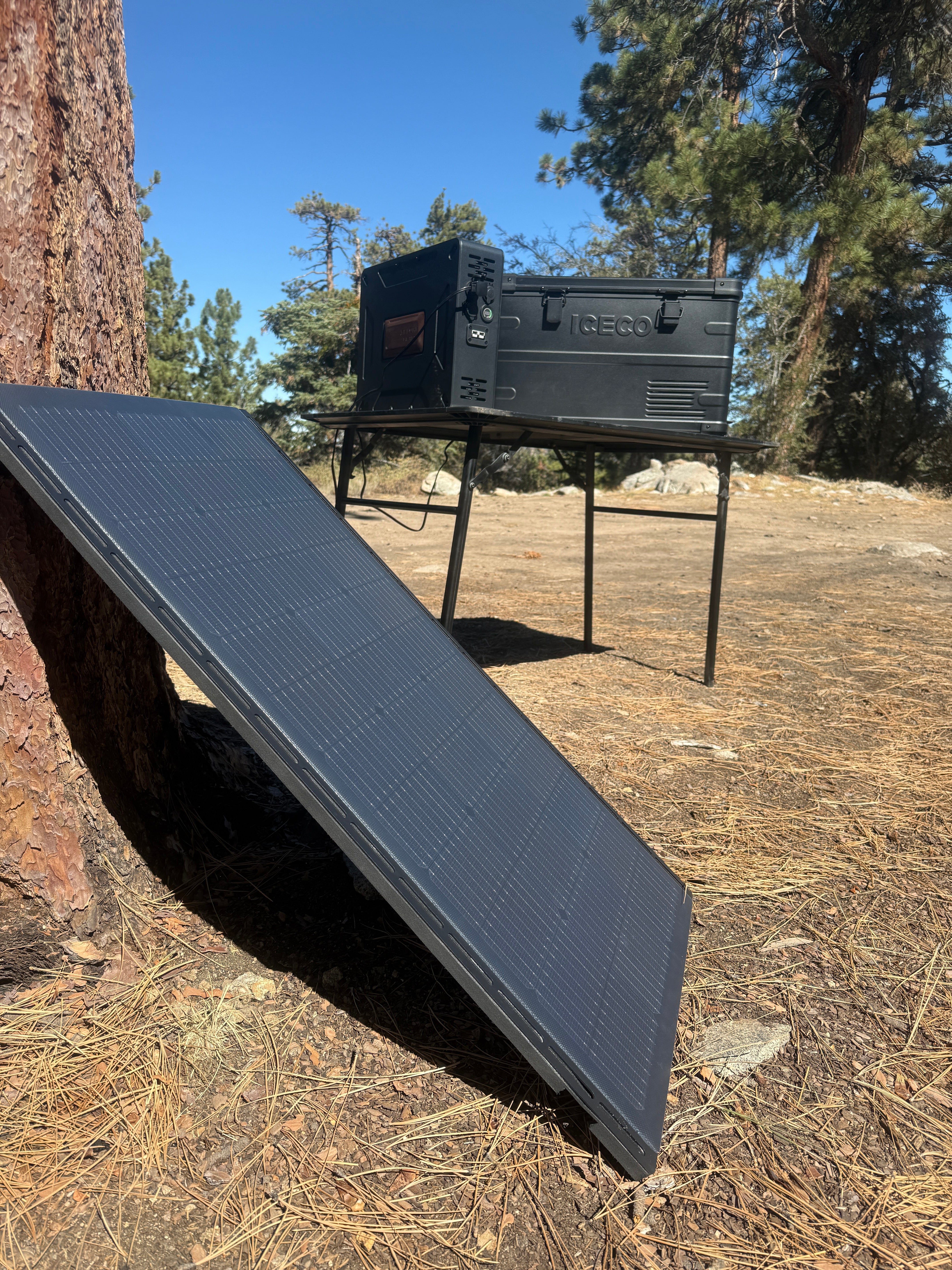

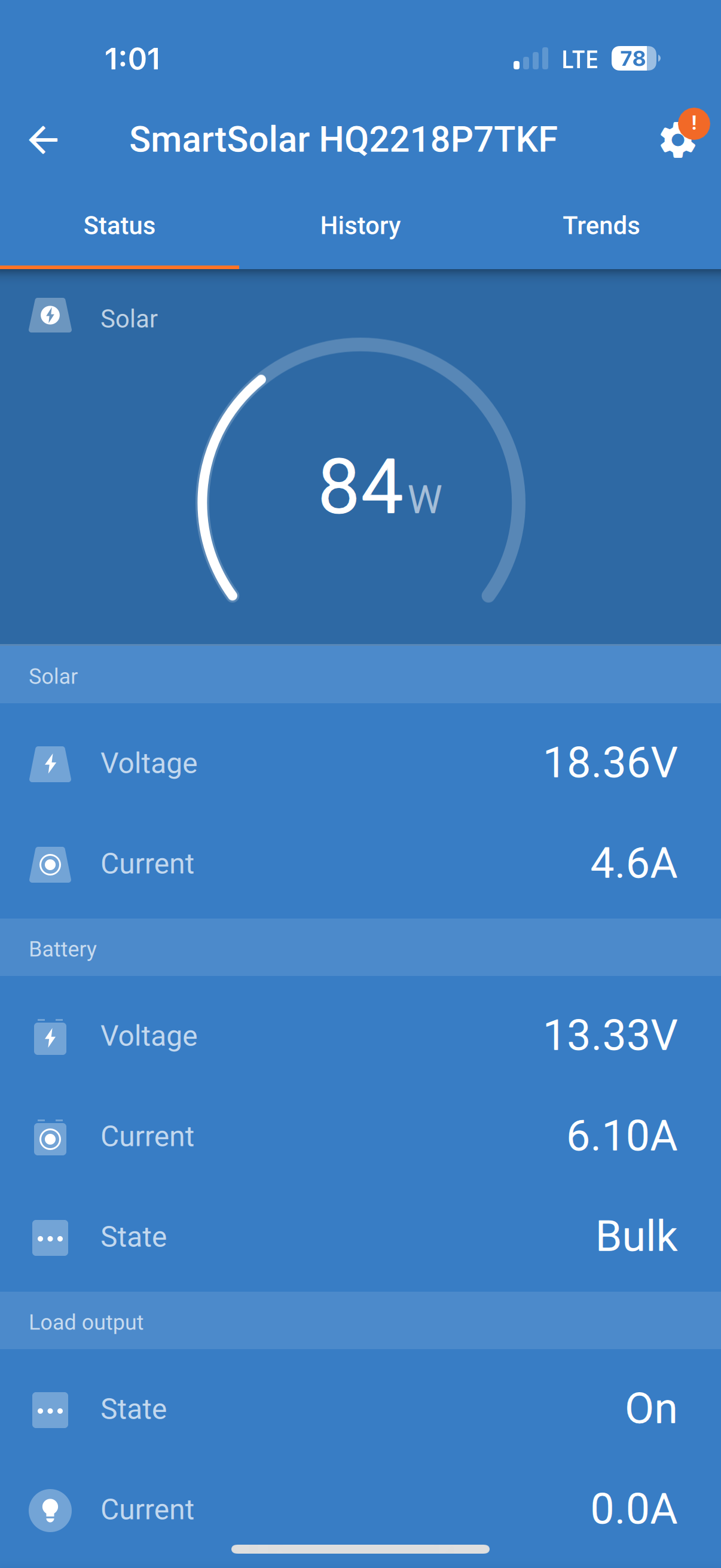

- **Real-world testing of this panel in October showed results of up to 84watts active current with this panel.**
Specifications
-
Rated Power per Module: 100 Watts
-
Voltage at Max Power (Vmp): 20.88 Volts
-
Current at Max Power (Imp): 5.3 Amps
-
Dimensions per Module: 42.5" x 23.62" inches
-
Weight per Module: 6 lbs
-
Operating Temperature: -40°F to +185°F

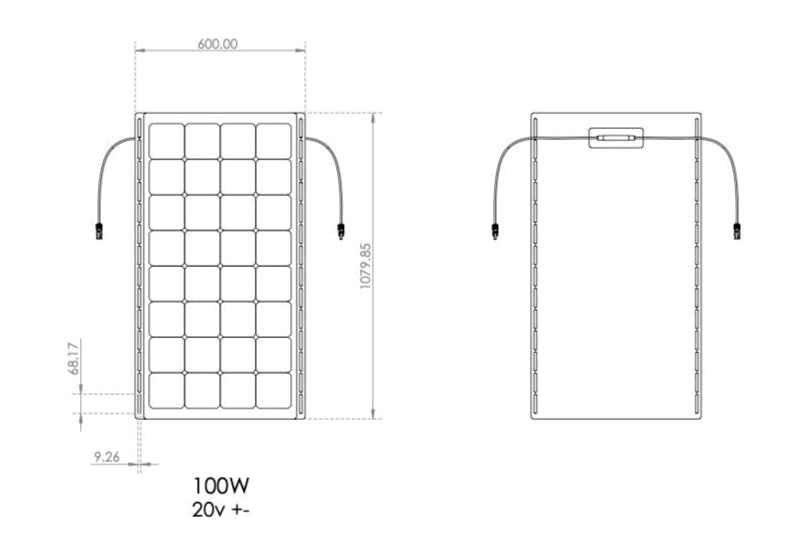

BLOX MECHANICAL SIZE SPECS
Dimension: 42.5 x 23.62 in
Solar Cell : Flex-Si

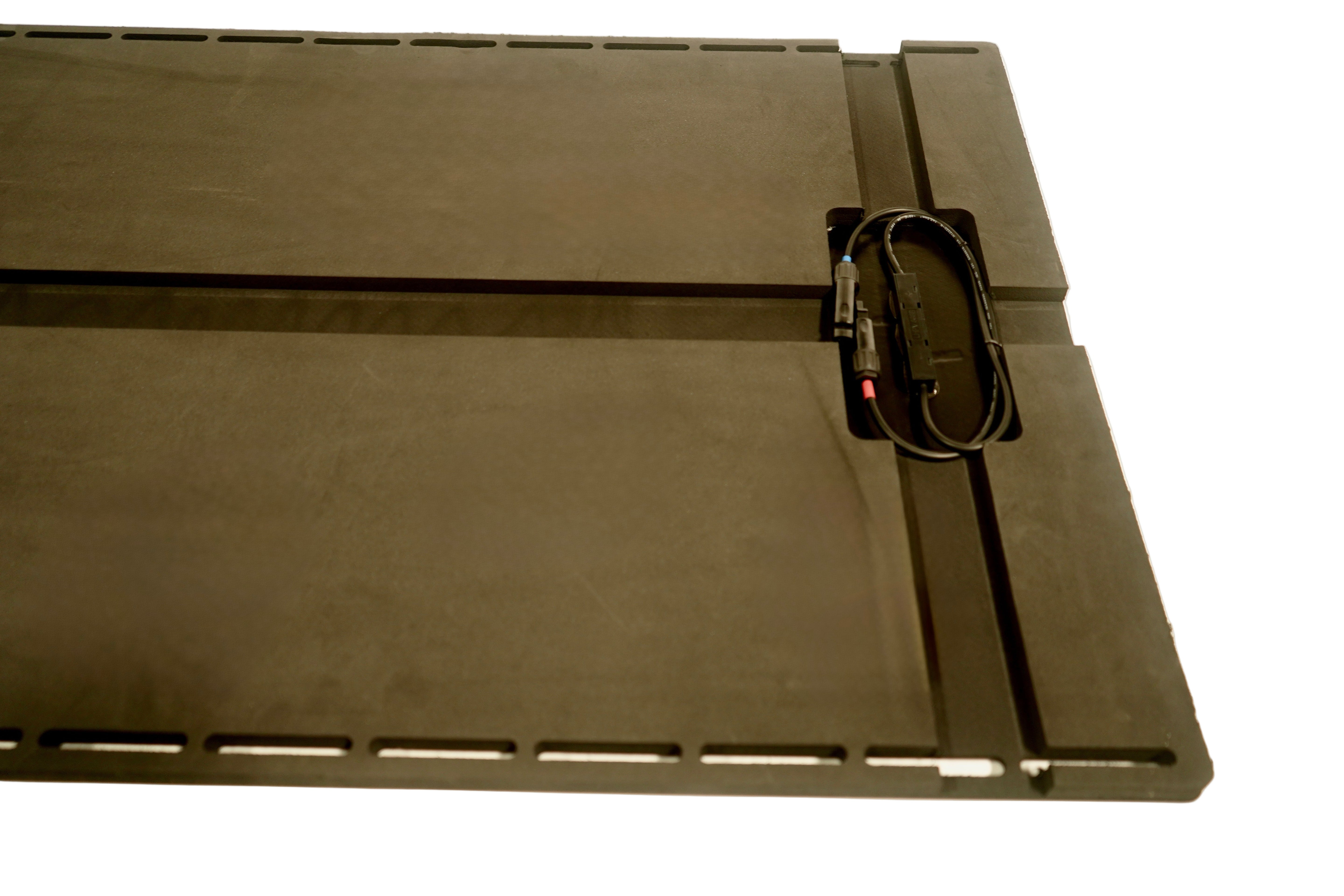

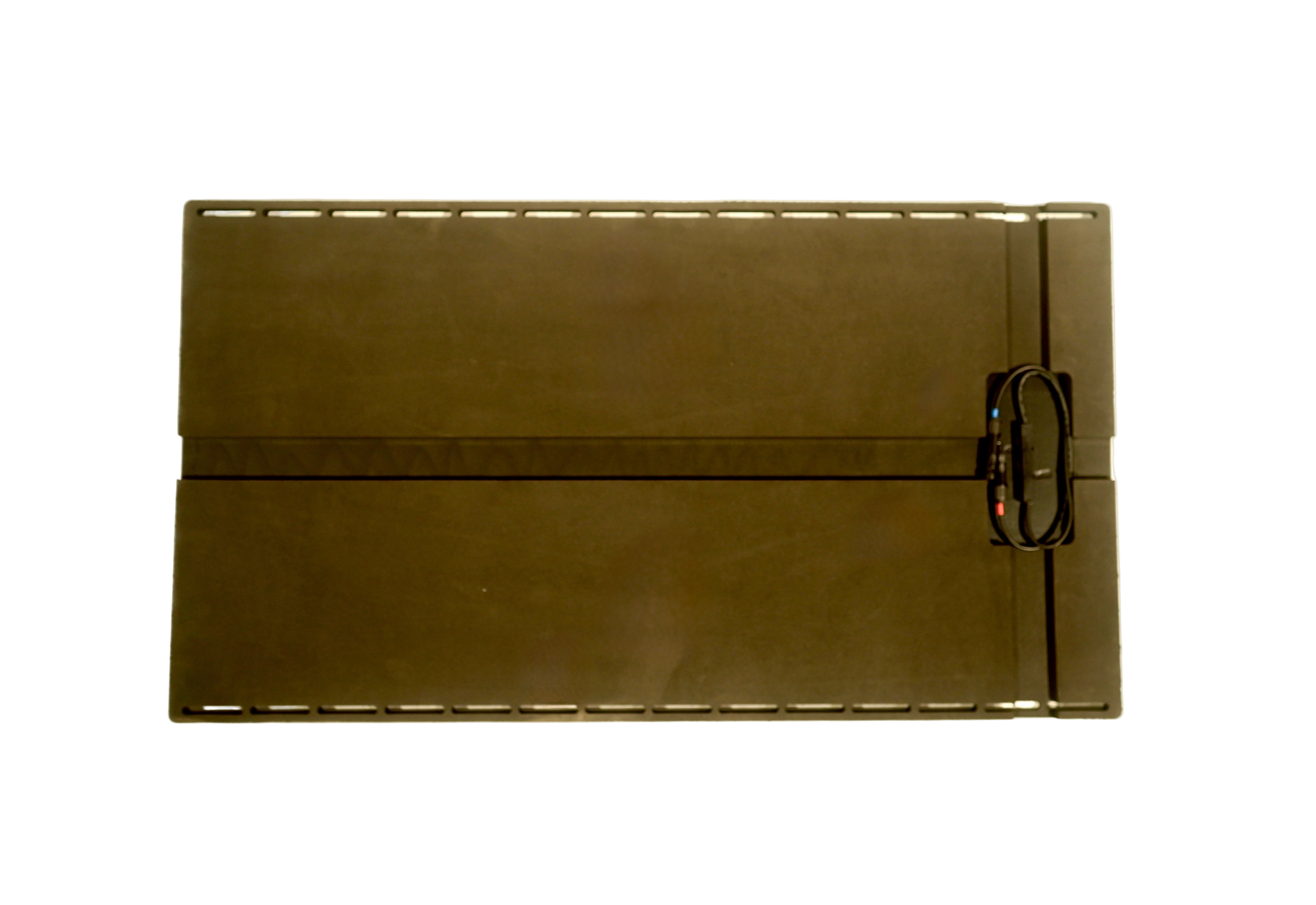

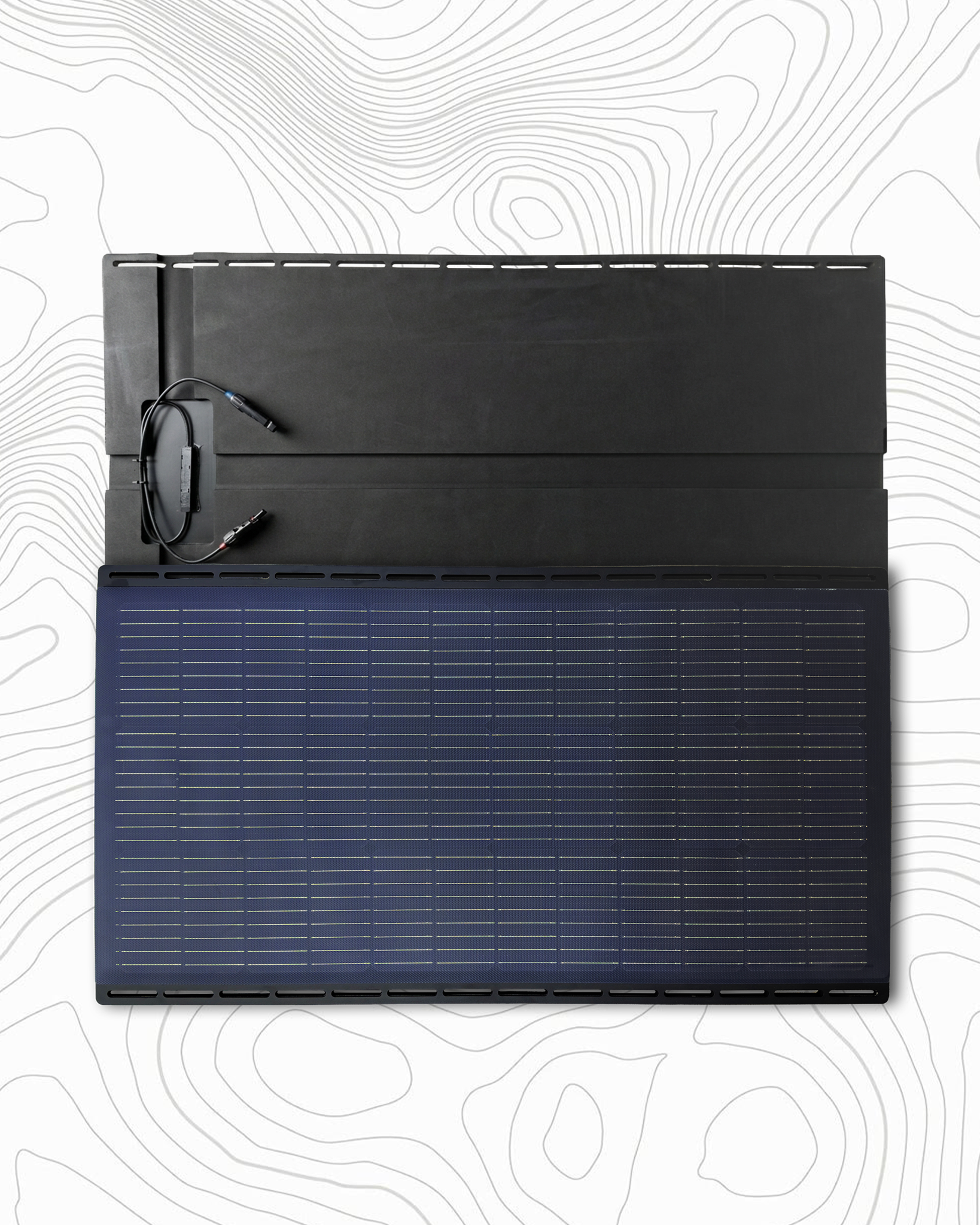

Junction Box : IP-65, MC4 Compatible
Temperature F : -40° F to + 185° F
Impact : 1 in Hail at 52 mph (23 m/s)
BLOX ELECTRICAL SPECS
Peak Power (+5/-0%) : Pmax 100W
Avg. Cell Efficiency : >22%
Imax : 5.3A
Vmax : 20.88V
Voc: 24.48V
Why Choose the XPLOR BLOX System?
The XPLOR BLOX Modular Solar System is perfect for those seeking adaptable power solutions for off-grid living. Whether you’re expanding a campervan setup or maximizing energy on a larger RV, BLOX’s modular, easy-to-install design allows for ultimate flexibility. Connect modules as needed to keep your essential devices running sustainably, while BLOX’s compact design ensures a sleek fit on any rig. Power your adventures with a customizable system that grows with you, wherever the road takes you.
