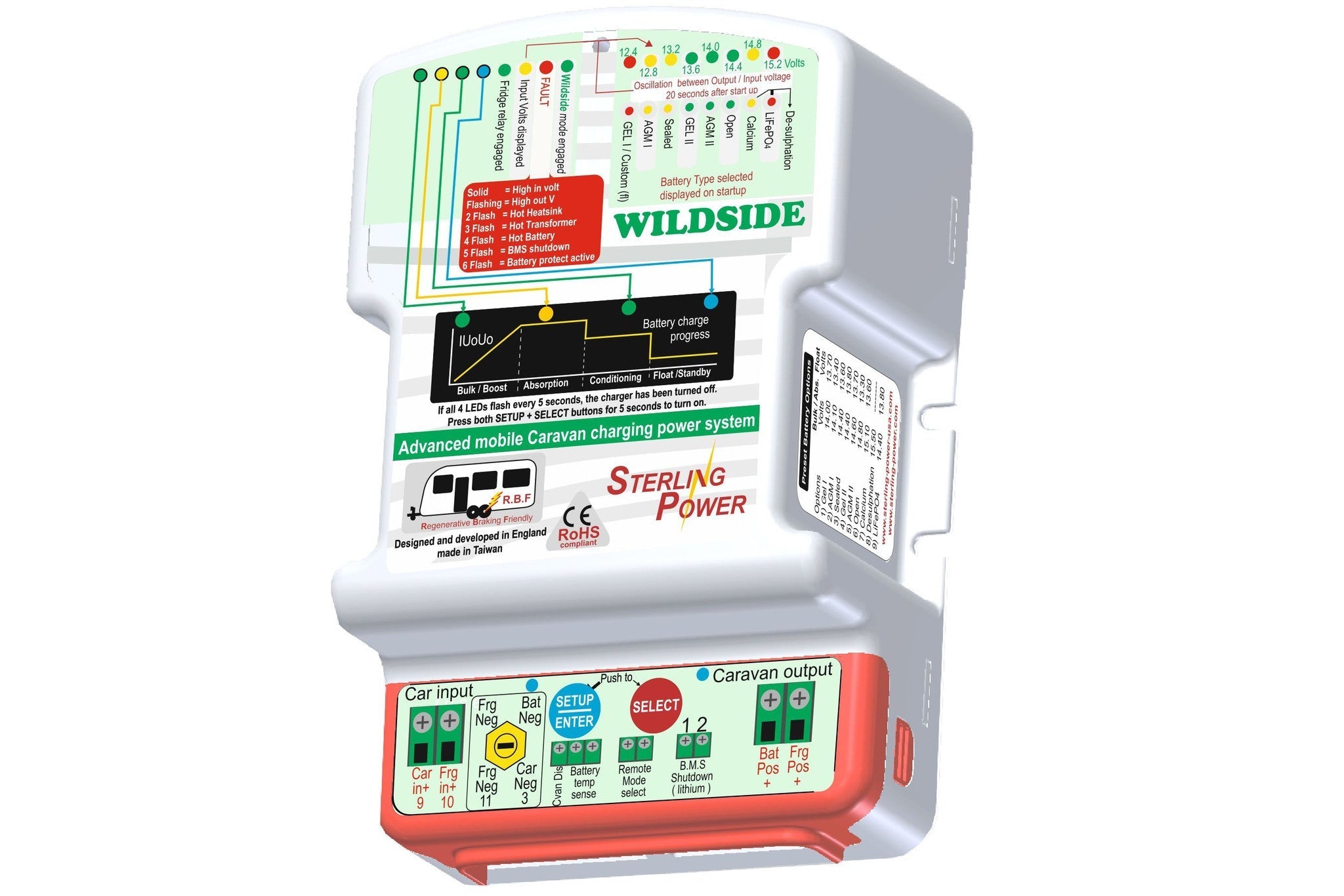

Sterling Power BBC1225 – 12V 25A DC-DC Battery Charger [Clearance]
Choose options
The Sterling Power BBC1225 is a compact 12V-to-12V battery-to-battery (DC-DC) charger delivering up to 24A at 14.4V — an efficient, space-saving choice for smaller lithium and AGM auxiliary banks. Offered here at clearance pricing.
Unlike a voltage-sensitive relay, the Saturn charger measures both current and voltage to move intelligently through bulk, absorption, and float, giving your batteries a correct, complete charge on every drive. It runs at up to 98% efficiency and carries six preset battery profiles (Lead, AGM, and Lithium — two of each).
Charging Specifications
| Type | 12V → 12V battery-to-battery (DC-DC) charger, Saturn series |
|---|---|
| Input voltage range | 9–16V |
| Max output current | 24A at 14.4V |
| Max output power | ~345W |
| Max input current | 26A |
| Efficiency | Up to 98% |
| Reverse / jump-start current | Up to 13A |
| Battery profiles | Lead I/II, AGM I/II, Lithium I/II (6 presets) |
| Temperature sensor | TEMP1 included |
| Cooling | Thermostatically controlled, variable-speed fan |
| Protections | Self-recovering: under-voltage, input & output over-voltage, over-current, over-temperature |
| Recommended input cable / fuse | 6mm² (10AWG) / 30A |
| Recommended output cable / fuse | 6mm² (10AWG) / 30A |
| Dimensions | 123 × 130 × 56 mm |
| Weight | 0.6 kg |
| Operating temperature | −20°C to 60°C |
| Certifications | CE, UKCA |
| Warranty | 5-year return-to-factory |
Key Features
- Up to 24A output at 14.4V from a compact, lightweight body
- Up to 98% efficient
- Six battery profiles for lead, AGM, and lithium banks
- Included TEMP1 temperature sensor for lead/AGM voltage compensation
- Self-recovering protections and conformal-coated internals; CE/UKCA approved; 5-year warranty
Smart Alternator / Euro-6 Ready
Three engagement modes cover any vehicle: automatic voltage sense, ignition-feed control (for smart/Euro-6 alternators), and vibration sense (begins charging after detecting engine vibration — no ignition wire required).
Installation Notes
Requires a common, direct negative between the starter battery, charger, and auxiliary bank. The positive input must come from a circuit with a starter battery or Alternator Linearisation Device — not straight off a bare alternator. Fuse both input and output; recommended cable is 6mm² (10AWG) with 30A fusing for runs under 3m. Note: the BBC1225 has limited configurability via the BBR remote and does not support custom charge profiles.
