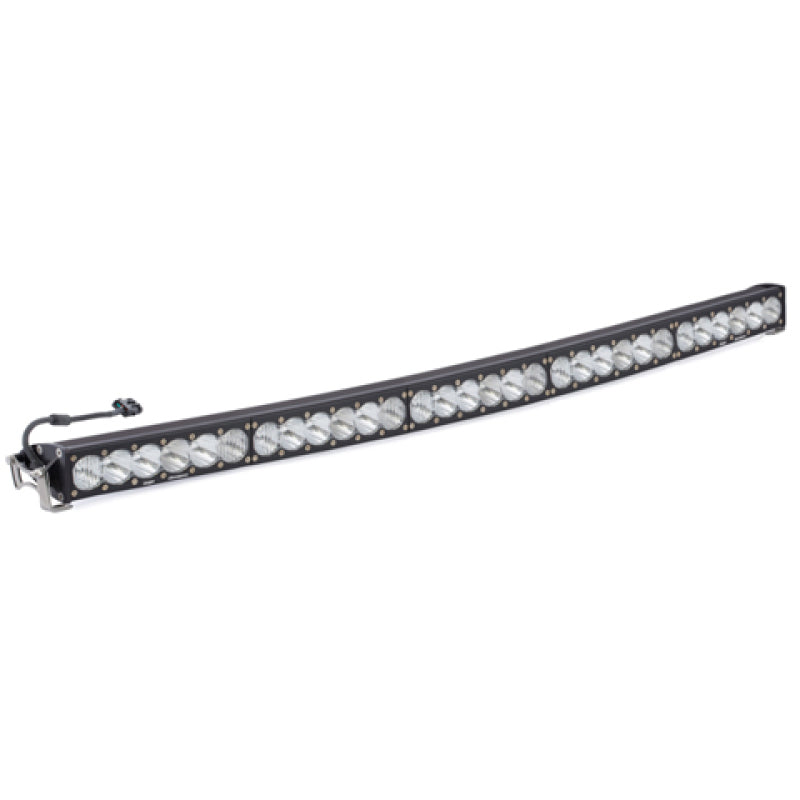

The Baja Designs OnX6 Arc is the flagship of Baja's light-bar lineup, and this 50-inch Driving Combo model blends two optics into one bar. The Combo pattern mixes spot and driving optics—the spot section throws light far down the trail while the driving section fills in the width and corners, so you get distance and spread from a single light. The curved Arc housing extends that coverage further around the front of the vehicle than a straight bar.
Every OnX6 is built around Baja's patented uService system, so lenses and optics are field-replaceable—swap a beam pattern or repair a rock strike without buying a new light. ClearView optics put usable light where you need it, and Direct Ducted Cooling keeps the LEDs running cool for consistent long-term output. Clear output gives a daylight-style color that renders trail detail naturally.
- Driving Combo beam—spot distance plus driving width
- Patented uService replaceable lenses and optics
- ClearView optics and Direct Ducted Cooling
- Curved Arc housing for wider wrap-around coverage
Backed by Baja Designs' 30 Day Satisfaction Guarantee and Limited Lifetime Warranty.
| Series | OnX6 Arc |
| Beam Pattern | Driving Combo |
| Length | 50 in |
| Lens Color | Clear |
| Optics | uService replaceable |
| Cooling | Direct Ducted Cooling |
| Part Number | 525003 |
| Warranty | Limited Lifetime |
