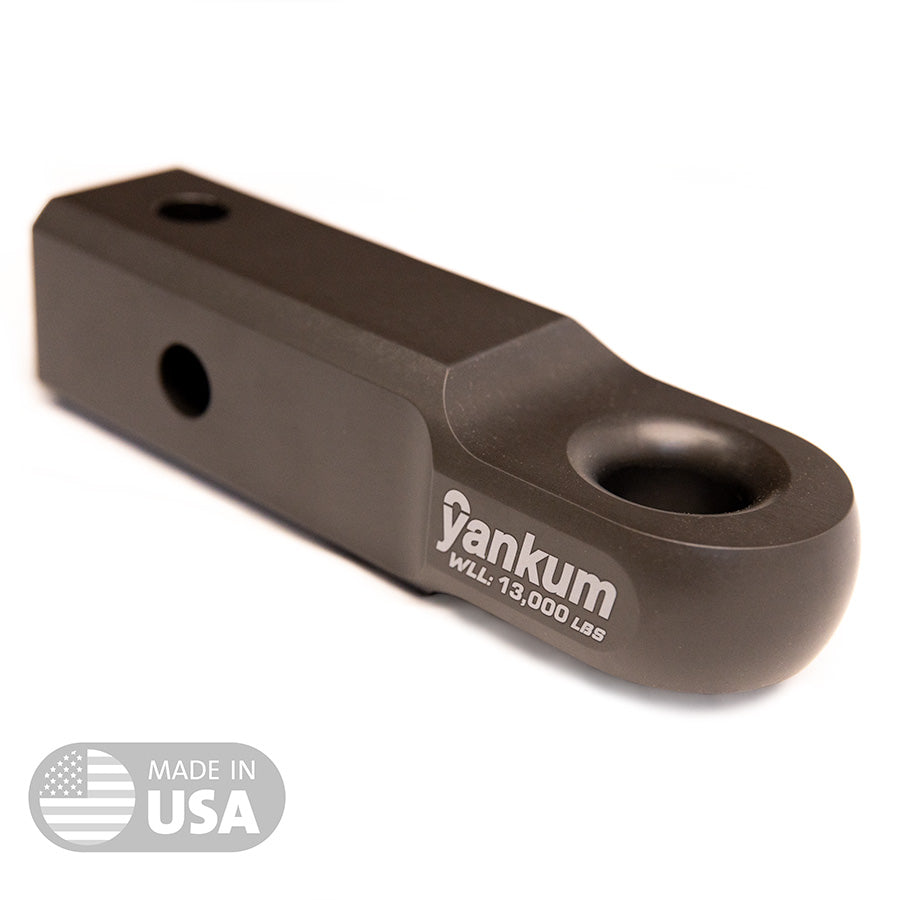

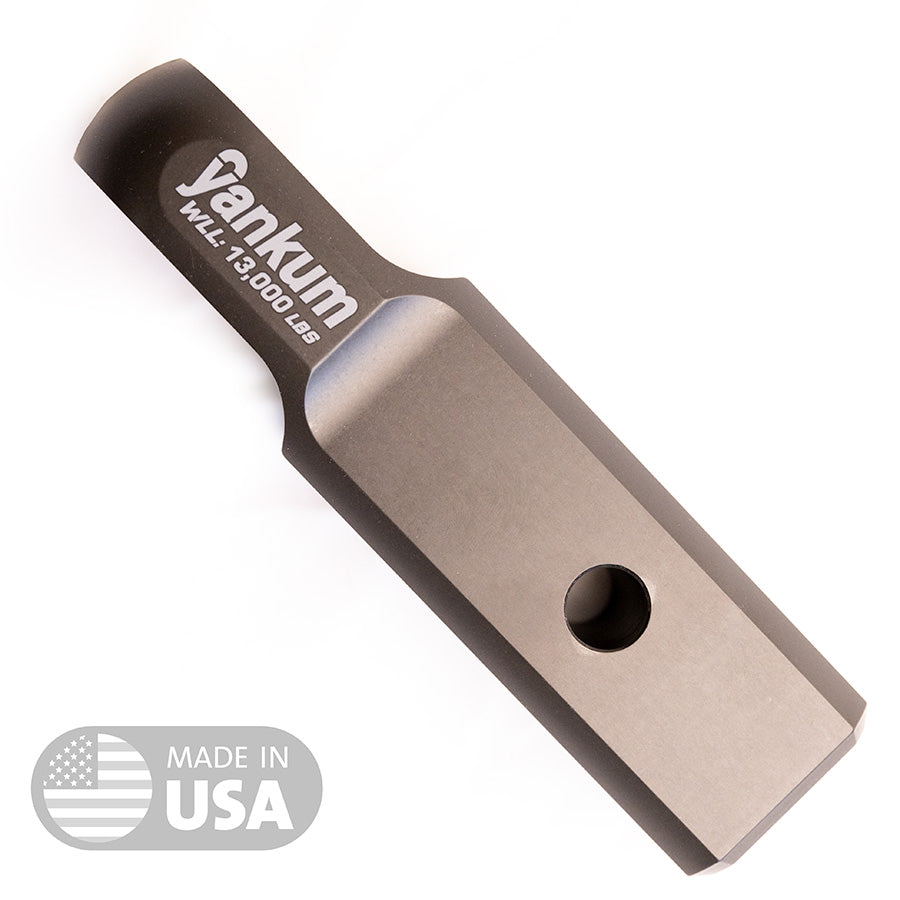

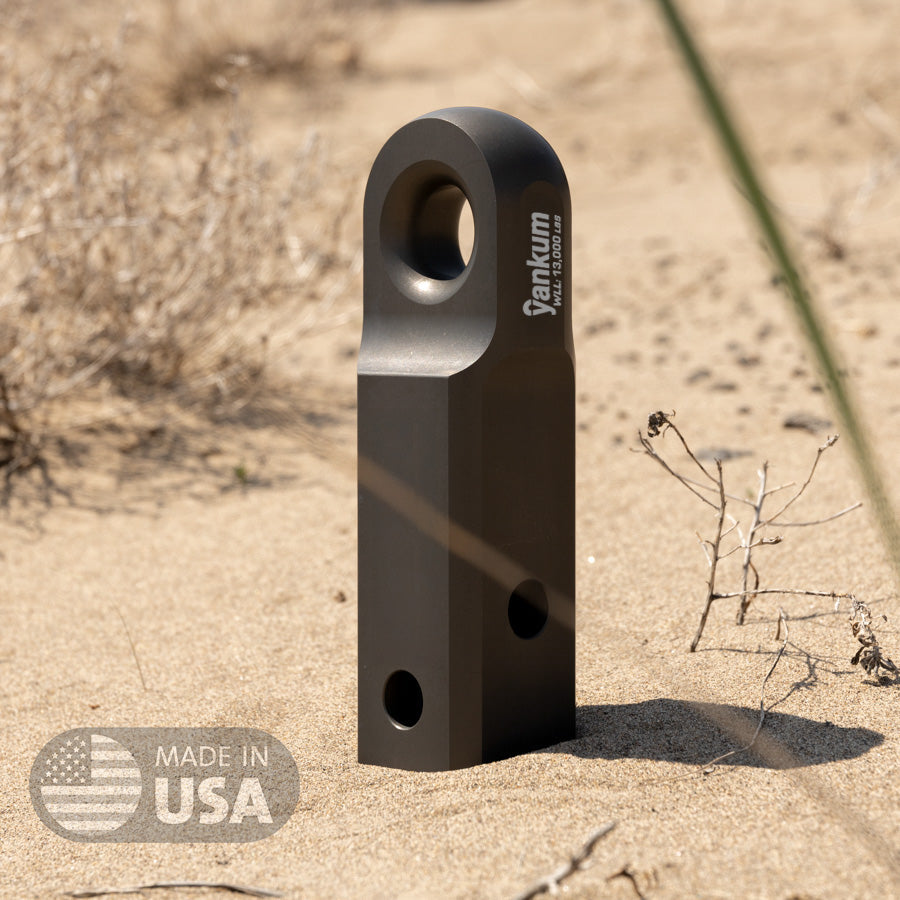

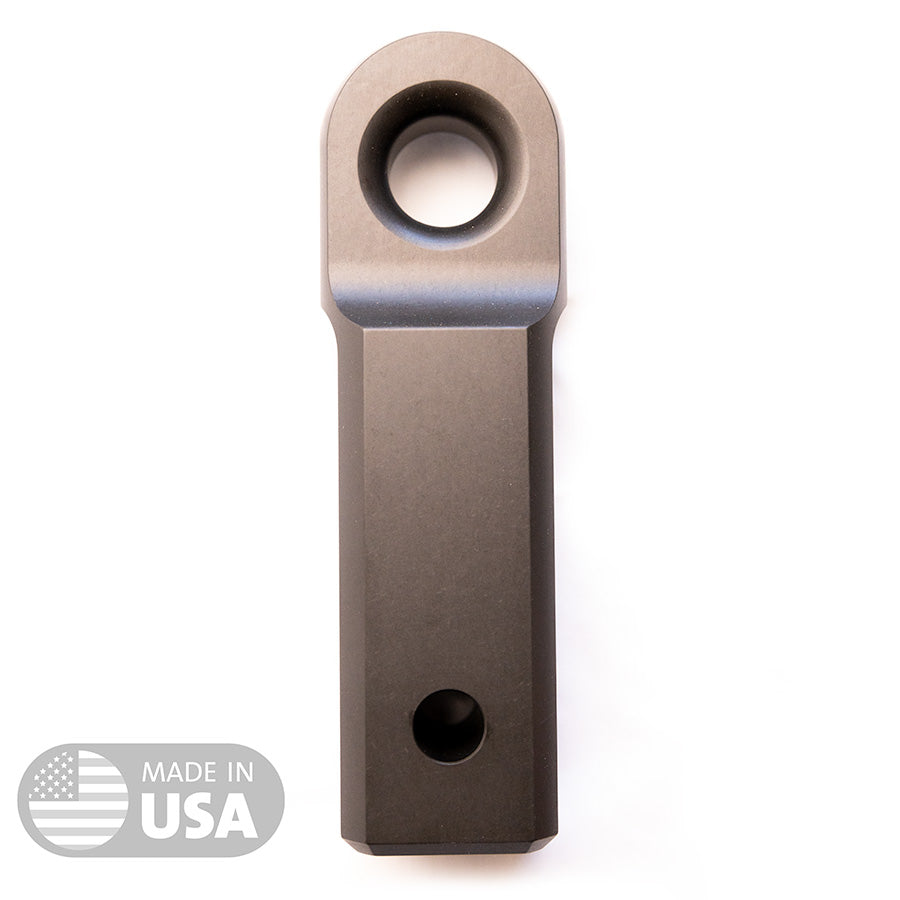

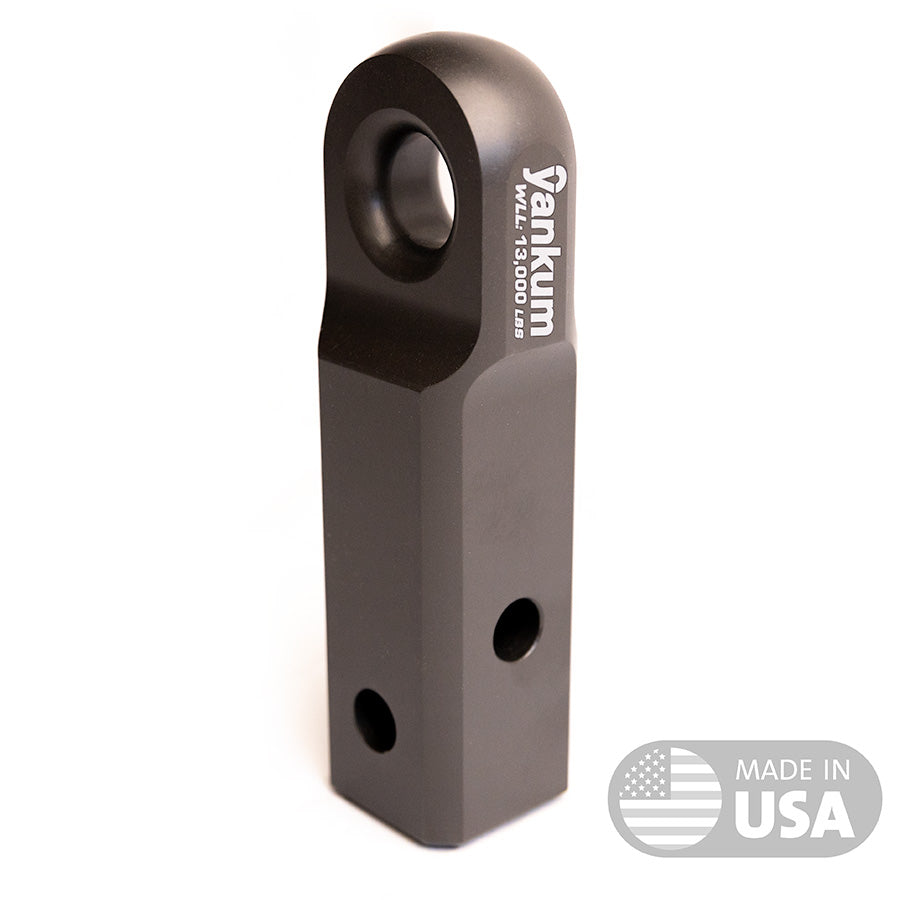

A recovery point has one job: give the rope or shackle something rated to pull against. A trailer hitch is not that — a tow ball will snap and a bare receiver tube deforms. This drops into your 2" receiver and turns it into a proper, rated attachment point.

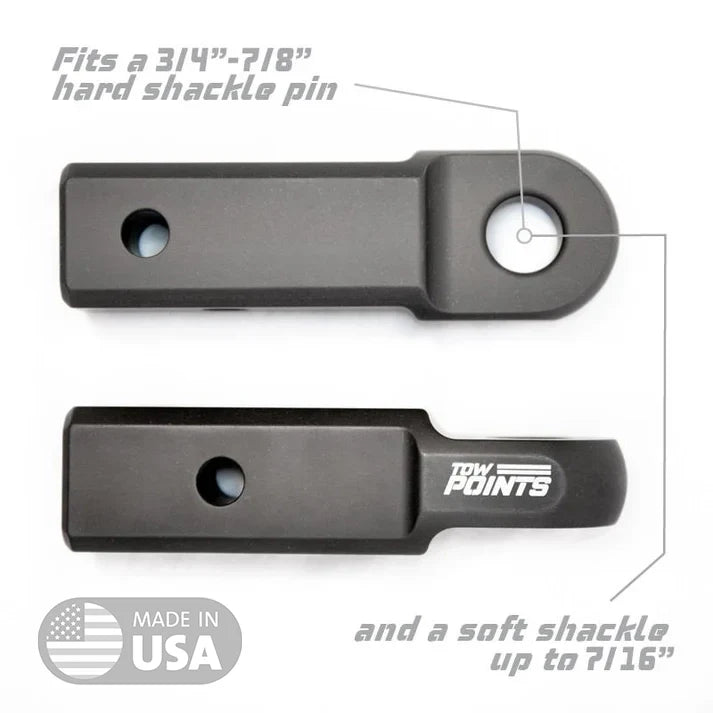

It is the only 2" hitch recovery point built to take a 7/8" hard shackle pin (1" pin), not just the usual 3/4". Chamfered edges let a soft shackle pass straight through it too, so you can drop the metal out of your rigging entirely when you want to.
Specifications
| Minimum breaking strength | 66,400 lbs |
|---|---|
| Working load limit | 13,200 lbs (5:1 factor of safety) |
| Fits | 2" receiver; hard shackles to 7/8", soft shackles to 7/16" |
| Material | 6061 aluminum, CNC machined in Idaho |
| Finish | Type III hard anodize (Mil-A-8625) |

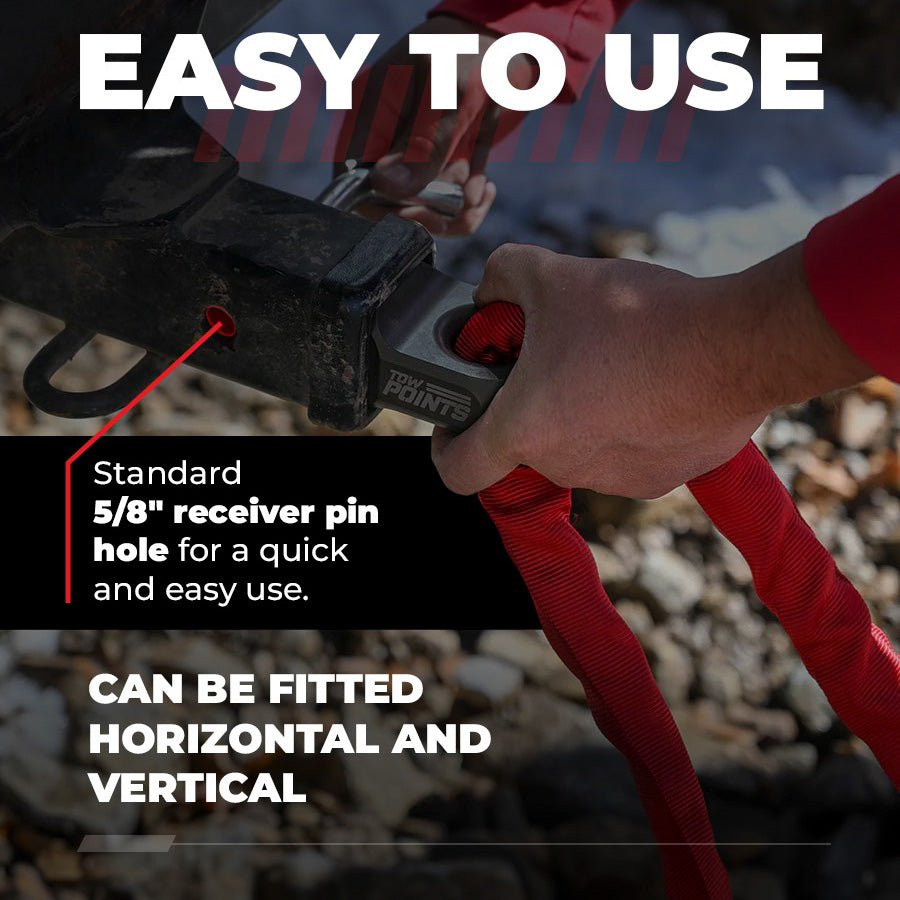

| Dimensions | 8" x 2" x 2.5", 5/8" receiver pin hole |
| Weight | Just over 2 lb |
| Origin | Made in USA |
Match it to the recovery vehicle
Like every part of a recovery system, this gets sized to the vehicle doing the pulling, not the one that is stuck. The 66,400 lb hitch point and a 7/8" shackle are built to stay stronger than the rope in the middle, so the rope stays the working part of the system. Pair it with a shackle and rope rated for your rig's weight.
The hitch point does not include a receiver pin — use a quality rated pin sized for your 2" receiver.
Use it safely
Pull in line with the receiver. Do not side-load it — an angled pull can damage the shackle or receiver, or tip the vehicle. Use only a quality hitch pin; a cheap pin can shear before the recovery point does. Never exceed the rated load, keep a dampener over the line, and keep bystanders well clear.
Made in the USA. Not sure it fits your setup? Ask us.
