The INEOS Grenadier Tire Relocation Bracket is what you need to run larger tires on your Grenadier. 285/75 R17 looks great, but the larger spare tires won’t let you open the back door, and anything bigger is just not feasible at all. If you changed to a +30mm offset rim, you also run into an issue with the spare interfering with the rear windshield wiper, and don’t get me started on how larger tires start blocking the rear backup camera.

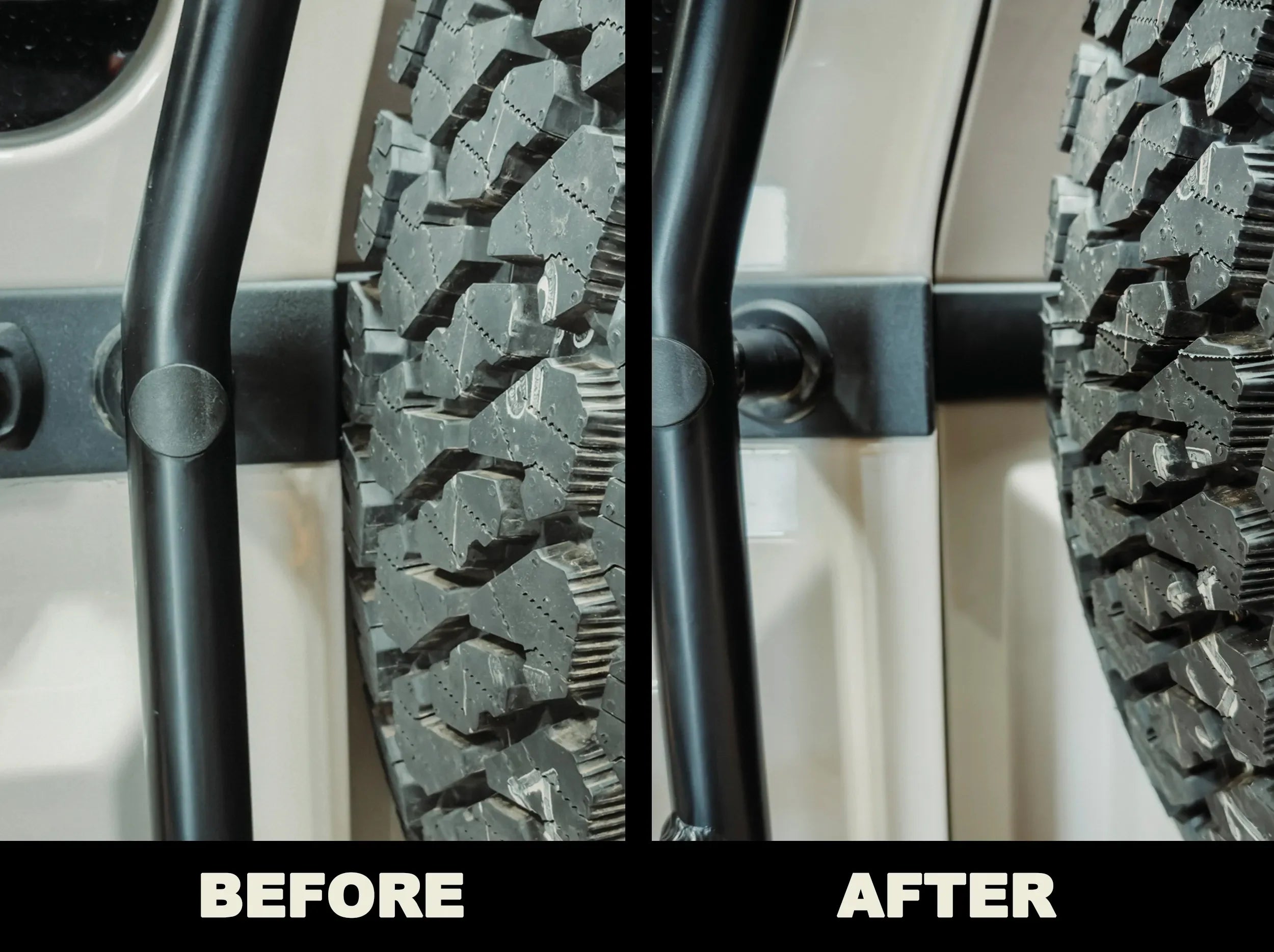

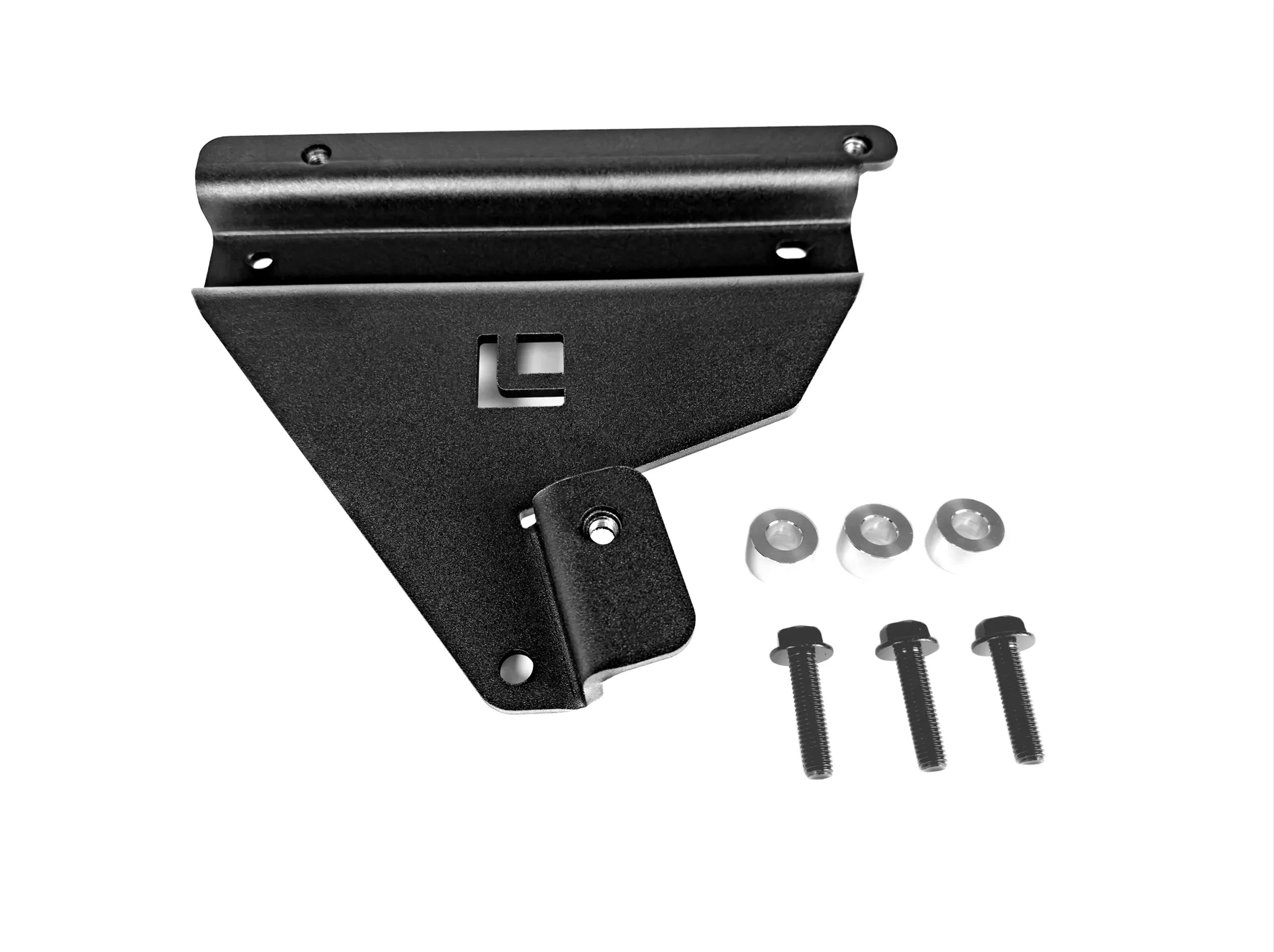

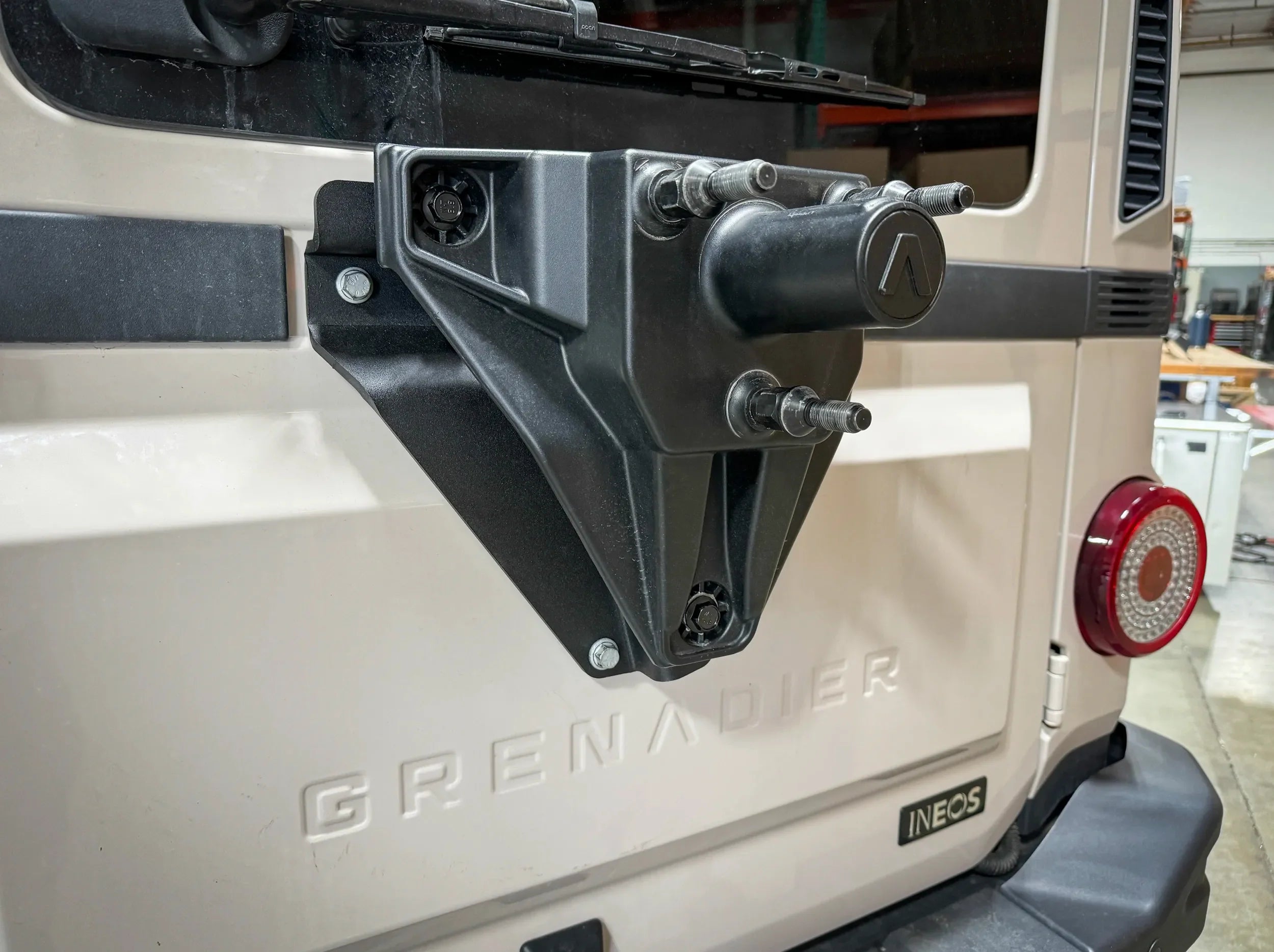

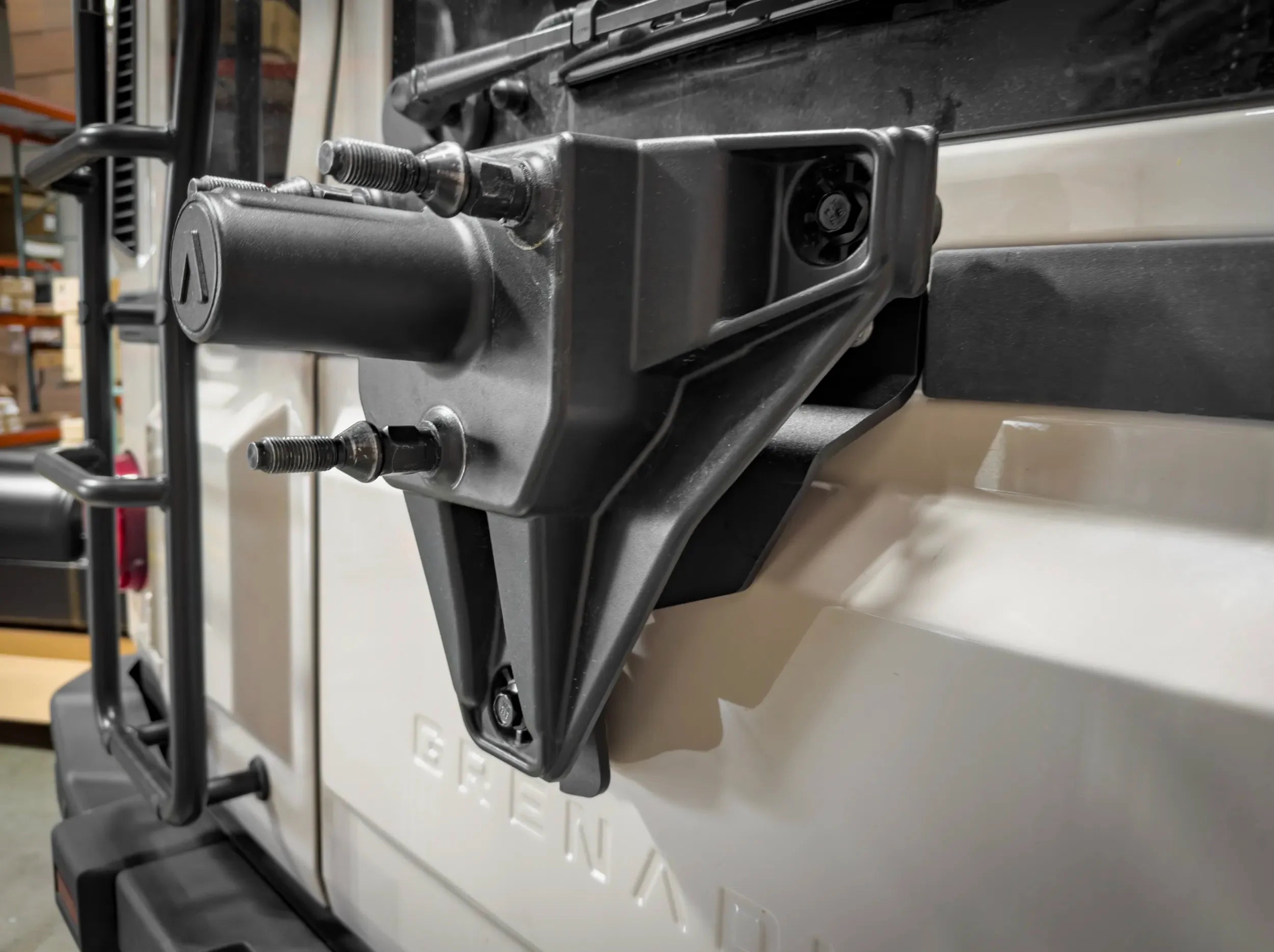

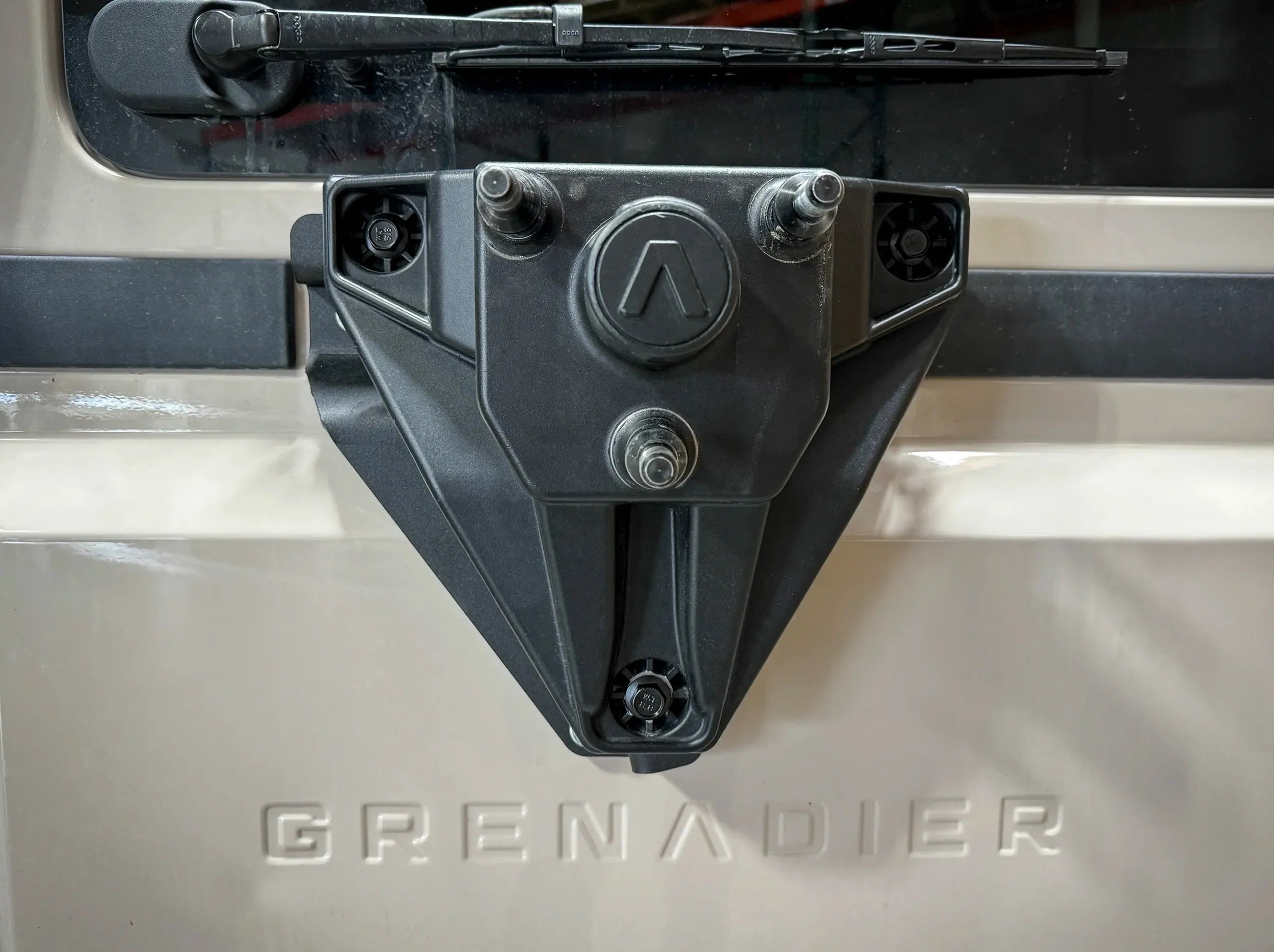

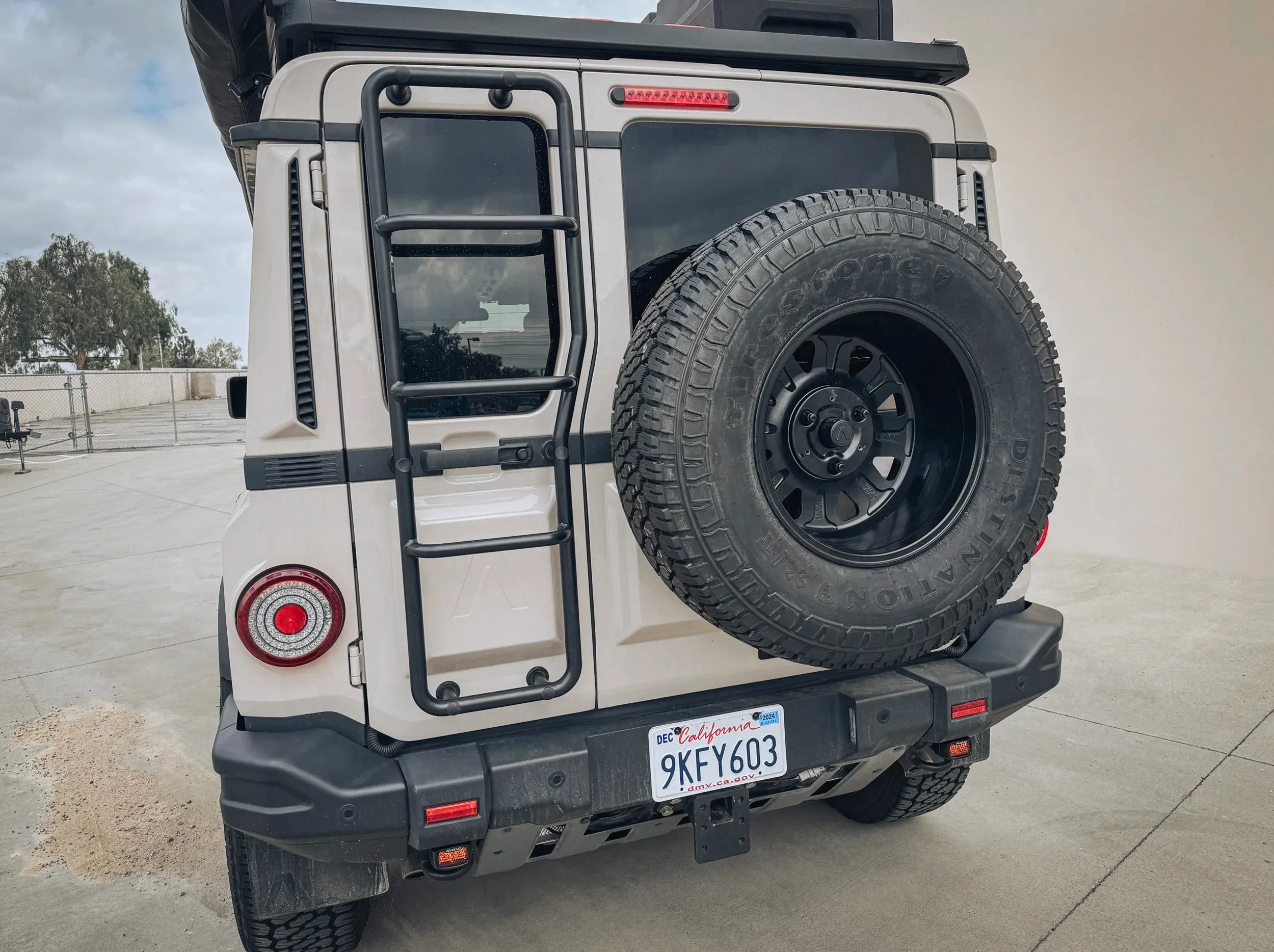

The Grenadier tire relocation bracket solves all these issues. This simple bolt-on plate relocates your spare tire 1-3/4” up, 1-3/4 to the right, and 1-3/4” outboard to solve all the issues, allowing you to put proper tires on your Grenadier. This bracket will allow for a tire size up to 37” to fit without issue.
Manufactured from 6-gauge zinc-plated and powder-coated steel, this upgrade bolts to your vehicle in 30 minutes and will last the life of your vehicle.
NOTE: This Bracket keeps the wheel in its original orientation and allows you to use the factory spare tire cover/storage box inside the wheel that your Grenadier came with from the factory. This bracket does not flip the wheel rim side out.
NOTE: The Tire relocation bracket will not work with some wheel and tire combinations that have more than a 25mm offset, such as Vossen wheels.
- 4-gauge steel construction
- Gold, zinc-plated, and powder-coated to stand up to the harshest climates.
- Grade 10.9 Black Zinc- Nickel-plated fasteners
- Weight 10 POUNDS
- Designed, Engineered, and Manufactured in the USA
- Comes with all hardware to install in 30 minutes
