Dragonfly Mini 180 Awning

The Eezi-Awn Dragonfly Mini 180 Awning is a compact freestanding 180° bag awning that delivers 62.35 ft² of wrap-around side and rear coverage — the same panel geometry as the full Dragonfly 180, scaled down for smaller vehicles, tighter rack clearances, or weight-conscious builds. The self-contained aluminum framework deploys in under a minute with a simple twist-lock mechanism. Built from 260 gram waterproof UV ripstop canvas with a 700 gram UV-resistant PVC cover, and made at Eezi-Awn's Johannesburg facility. Available in Grey or Beige for left or right side mounting.

SPECIFICATIONS

Coverage: 62.35 ft² (5.8 m²)
Weight: 45 lbs (21 kg)

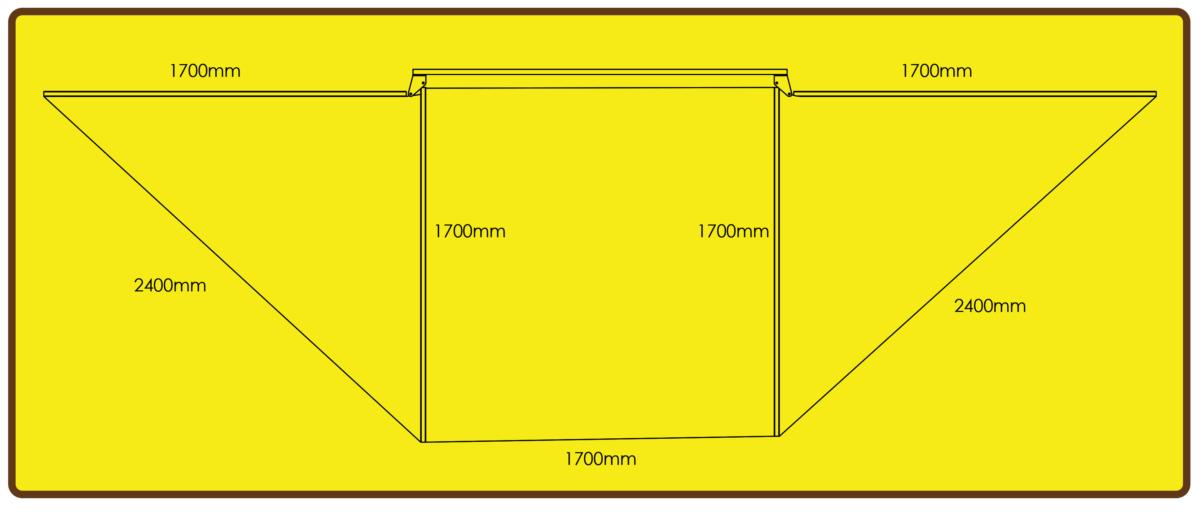

Open Dimensions: (2) Triangular Panels — 95" × 67" × 67" (2400mm × 1700mm × 1700mm); (1) Rectangle Panel — 67" × 67" (1700mm × 1700mm)

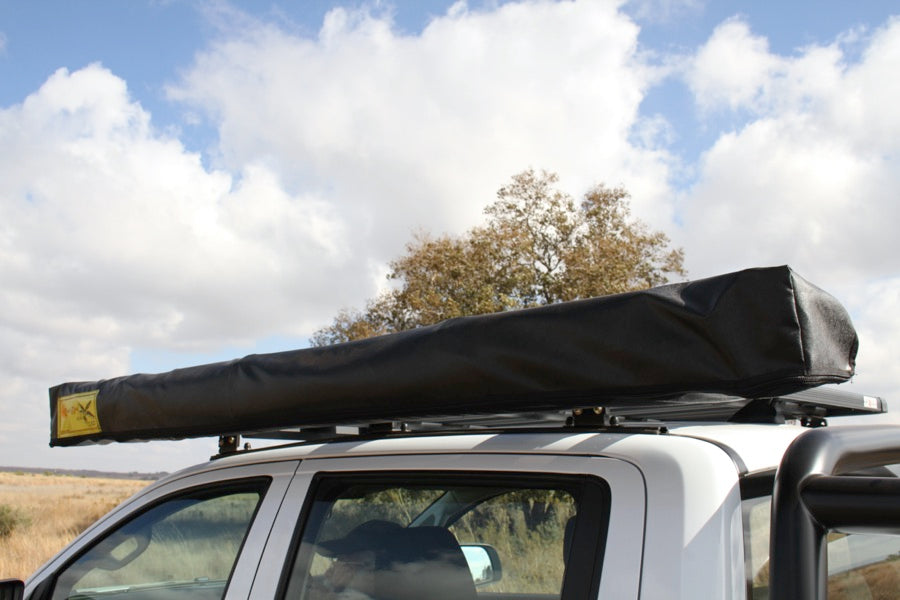

Closed Dimensions: 78" L × 7" W × 8" H (1980mm × 150mm × 200mm)
Mounting Extrusion: 71" L × 5" H (1800mm × 125mm)
Leg Height (Fully Extended): 92" (2330mm)
Awning Material: 260 gram Waterproof UV Ripstop Canvas
Cover Material: Black, 700 gram UV-Resistant Heavy Duty PVC
Color Options: Grey or Beige
Origin: Johannesburg, South Africa

Note: Freestanding in no wind conditions. Staking down at the base of legs in an X pattern is strongly recommended at all times.

KEY FEATURES

180° Wrap-Around in a Shorter Package: At 78" closed, the Mini fits vehicles and racks where the full Dragonfly 180's 97" closed length would overhang or not mount cleanly — delivering the same 180° geometry in a more accessible form factor.
62 ft² of Freestanding Coverage: Two triangular panels and one rectangle panel create defined side and rear coverage — significantly more than a standard 2M side awning from a single mount point.
Freestanding with Adjustable Legs: Integrated legs extend to 92" (2330mm) and are stake-compatible for stability in wind.
260 Gram Waterproof UV Ripstop Canvas: Same canopy spec as the full Dragonfly 180, Bat 270, and Manta 270 — waterproof, UV-resistant, and built for extended expedition use.
700 Gram PVC Cover: Heavyweight tonneau-grade bag protects the rolled canopy during travel — same cover spec as the full Dragonfly line.

IDEAL FOR

Mid-size vehicles — 4Runners, Tacomas, Broncos, and similar platforms — where the full Dragonfly 180's 97" closed length is too long for the available mounting surface.
Overlanders who want 180° wrap-around coverage without the weight of the full Dragonfly 180 (45 lbs vs 55 lbs).
Two-person trips where 62 ft² of covered space covers a camp cooking area and seating without the full Dragonfly's larger footprint.
Builds where a 270° awning's rear wrap interferes with rooftop tent access or rear door clearance.

IN THE BOX

Dragonfly Mini 180 Awning (canopy, PVC cover, rafter arms, and adjustable legs)

Additional mounting hardware may be required depending on your roof rack. See the Eezi-Awn Bat/Manta/Swift/Lite/Dragonfly Awning Mount for compatible options.

COMPATIBILITY

The Dragonfly Mini 180 mounts to a vertical surface. Bat/Manta/Swift/Lite/Dragonfly Awning Mount (sold separately). Orientation (Left or Right) must be selected at purchase.
